Houtlofts

Houtlofts

Houtlofts

ANA architects

BUDGET
$500K - 1M

STATUS
Built

SIZE
0 sqft - 1000 sqft

YEAR
2015

LOCATION
Amsterdam, Netherlands

TYPE
Residential › Multi Unit Housing

Houtlofts

Commissioned by Huis&, ANA designed a series of four dwellings with workspaces. The environment will transform from an industrial are into a combined living and working area in the next years and possesses no prototypical living qualities yet. Therefore focus was put particularly on internal qualities.

SPATIALITY

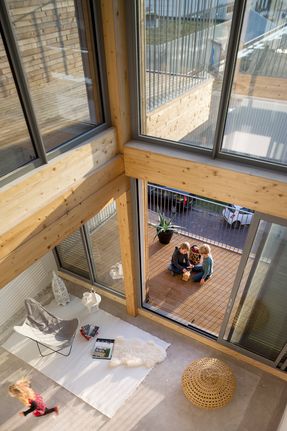

The design uses the spacious building envelope by giving the dwellings large voids. The voids connect levels with one another, and create a great internal quality of space and light.

OUTDOOR SPACES

The dwellings have South facing front gardens adjacent to the street. These garden are used for parking as well. Therefore, all dwellings are supplied with one or more terraces on any of the higher floors. These terraces are perceived as outdoor rooms.

Houtlofts
Houtlofts

DIVERSITY AND COHERENCE

Every house in the Bosrankstraat is different. Within a repeating measuring system, four different dwelling types are created that vary in the way living and working are related.

At the same time there is a clear emphasis on coherence in form and material. This way the Woodlofts show that fulfilling individual needs can be more than the sum of its parts.

SUSTAINABLE

The Woodlofts are built completely out of wood. The laminated wooden beams are openly shown. The dwellings are not connected to the city’s heating system but heat is supplied by an individual heat pump for each dwelling.

Houtlofts
Houtlofts

Furthermore, heat recovery systems and floor heating are applied and window shutters are integrated in the design. Lastly, solar panels and a solar collector are placed on top of the roof.

The project is characterised by efficiency as well. The design was made in only three weeks.

The wooden construction was prefabricated and assembled on site in a few days. The entire process from first sketch to completion took only nine months.
