AIX Arkitekter

ARCHITECTS
AIX Arkitekter

BUILDING CONTRACTOR
Bygghyttan I Karlsborg

LANDSCAPE
Cowi Ab

ELECTRICITY ENGINEERING
Projektengagemang

FIRE CONSULTANTS
Skaraborgs Brandkonsult Ab

BUILDING MANAGEMENT
Ingvar Blixt

STRUCTURE AND ELEVATOR
Per Sjögren

LEAD ARCHITECT
Magnus Silfverhielm. Team: Klas Eriksson, Anders Widegren, Henrik Strid, Lotta Lindgren, Maria Kempe.

STATUS
Built

SIZE
0 sqft - 1000 sqft

YEAR
2017

LOCATION
Varnhem, Sweden

TYPE
Cultural › Museum Pavilion Religious

Exhibition hall, Kata Farm in Varnhem, Västergötlands museum.

Kata Farm
Kata Farm

In 2005, excavations were initiated in a hill near Varnhems monastery church. There were found remains of a farm church from the 9th century, which testifies that Västergötland was christened 100 years earlier than was believed.

The ruins are the remains of Sweden's oldest Christian church and probably even the oldest Swedish building. Kata was the woman who ruled the farm and allowed the church to be built, and that is why the place was named Kata farm.

Kata Farm
Kata Farm

In order to make the old church accessible for visits, the church fundaments with its burial sites is protected from weather and wind.

With a structure that works like a roof, the foundation is protected, but also creates a space for exhibiting and explaining the stories about the place and its history.

Kata Farm
Kata Farm

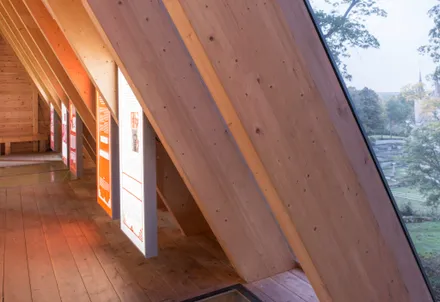

The building is constructed of glued laminated timber beams that form an equilateral triangle in its cross section, a timber roof truss.

The timber roof trusses are placed on horizontal sill plates of glued laminated timber, which rests on a number of pillars in the ground.

The sloping walls of the building are covered by pine tar treated woodroof. The room above the ground is open to see the masonry from above. The glazed railing let visitors to see the basement.

Kata Farm
Kata Farm

Even Kata's tomb from the mid-1000's is visible through the glazed floor from above. A breakthrough in the limestone wall reveals the incision of the foundation wall and provides access to the stone basement.

An electrical lifting platform with glazed walls is installed between basement and the roof structure as an accessible alternative to the entrance staircase.

Kata Farm
Kata Farm

The structure above the ruin and grave is 12 meters wide, 19 meters long and 12 meters high. The building is not heated. The existing road to the monastery church has a hard surface to facilitate the visit to the ruins. In May 2017, the exhibition hall and weather protection were opened over the ruin of Sweden's oldest church.


Kata Farm
Kata Farm
Kata Farm
Kata Farm
Kata Farm
Kata Farm
