Lake Como Boathouse
[Moto Guzzi]

Act romegialli

ARCHITECTS
Act romegialli

BUDGET
$500K - 1M

YEAR
2011

LOCATION
Mandello del Lario, Italy

TYPE
Cultural › Pavilion

The volume is distributed in two separate pavilions,
adjacent but with slightly staggered locations for breaking its total volume.

Lake Como Boathouse [Moto Guzzi]
Lake Como Boathouse [Moto Guzzi]

The shape of the buildings is typical of simple construction with a pitched roof, the archetype of the "house."

It’s composed by n.1 deposit for rowing boats n.1 training-room and n.1 multifunctional room.

Lake Como Boathouse [Moto Guzzi]
Lake Como Boathouse [Moto Guzzi]
Lake Como Boathouse [Moto Guzzi]

The pavilions are placed longitudinally in relation to the lake shore.

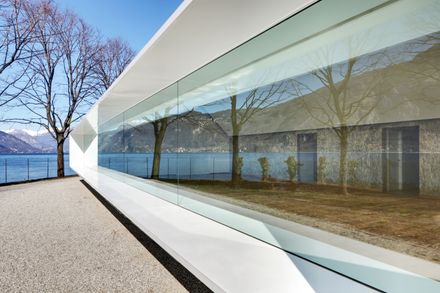

On the western side a continuous glass surface allows you to enjoy the view of the Como lake.

Lake Como Boathouse [Moto Guzzi]
Lake Como Boathouse [Moto Guzzi]

The deep frame above the glass surface manage
exposure to direct sunlight in the winter and summer solstices.

The materials are based on maximum simplicity.

Lake Como Boathouse [Moto Guzzi]
Lake Como Boathouse [Moto Guzzi]

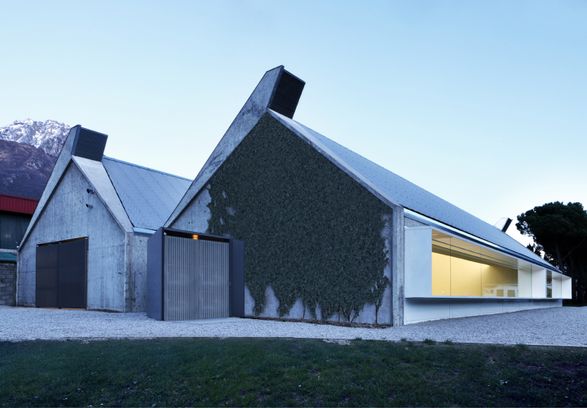

The tympanums are made in concrete - formwork type OSB (wood chips pressed) that returns to the surface a smooth, natural appearance, the roof structure is composed by
steel profiles.

The roof surface reproduces the typical material of the historic ferry piers on the Como Lake, the simple galvanized corrugated iron.

The four tympanum are designed entirely covered with creeper species "ficus pumila."

Lake Como Boathouse [Moto Guzzi]
Lake Como Boathouse [Moto Guzzi]

The creeper, as well as reducing the impact of the builtvolumes in the park, reinterprets historic customs.

In the past this method to cover architectural surfaces often was used on walls and pavilions of the most important historic villas on the Como Lake.
