Comas - Pont Arquitectes, SLP

Psychological medical center

Psychological medical center
© Adrià Goula

PSYCHOLOGICAL MEDICAL CENTER

Comas-Pont arquitectes

PHOTOS
Adrià Goula (10)

STATUS
Built

BUDGET
$1M - 5M

SIZE
10,000 sqft - 25,000 sqft

YEAR
2016

LOCATION
Barcelona, CT, Spain

TYPE
Government + Health › Medical Facility

All the rehabilitation services for people with mental illness are grouped in this building composed by the repetition of a 6m wide spatial module.

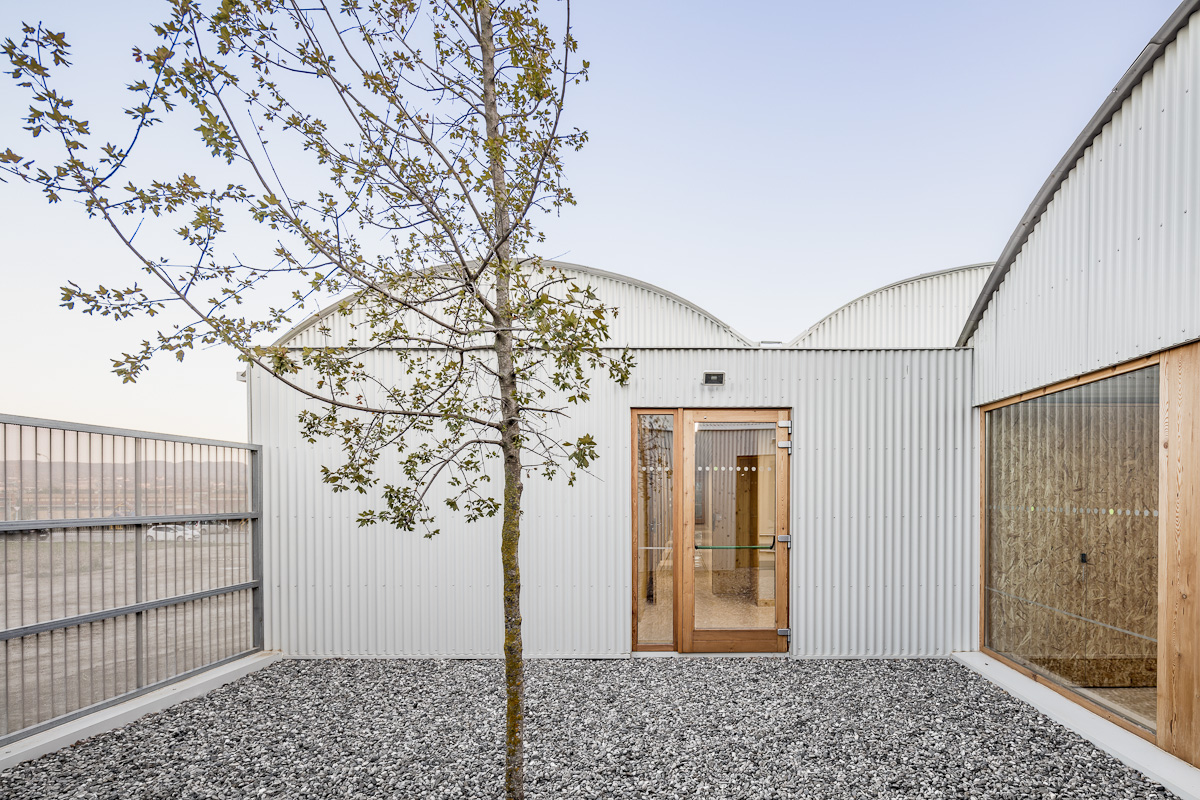

Psychological medical center
© Adrià Goula

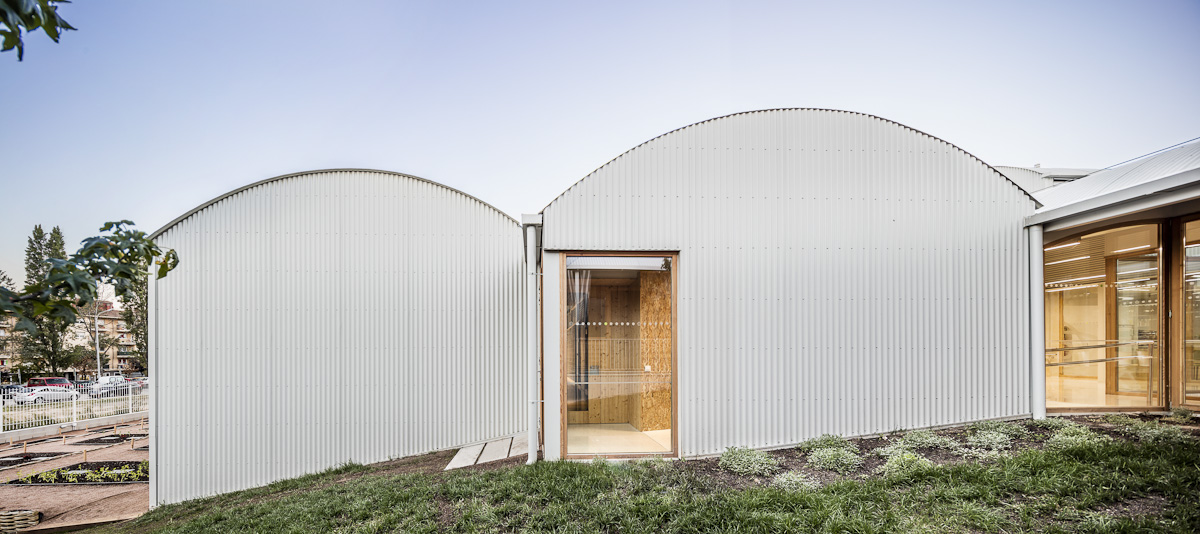

Psychological medical center
© Adrià Goula

An economic and energy-sustainable constructions system, the domestic scale and the warmth of the interior spaces added to the closed relationship between building and nature makes it a HEALTHY BUILDING.

From the beginning, the project was considered as a participative process.The main challenges were to achieve that in the same building mental health and addiction problems and to integrate diverse users profiles (adult, children, homeless...).

Departing from the particular needs of each labor department, floor area was optimised and services were grouped together to create a new, much more flexible functional program that has resulted in a more economic construction and maintenance and an anergy saving.

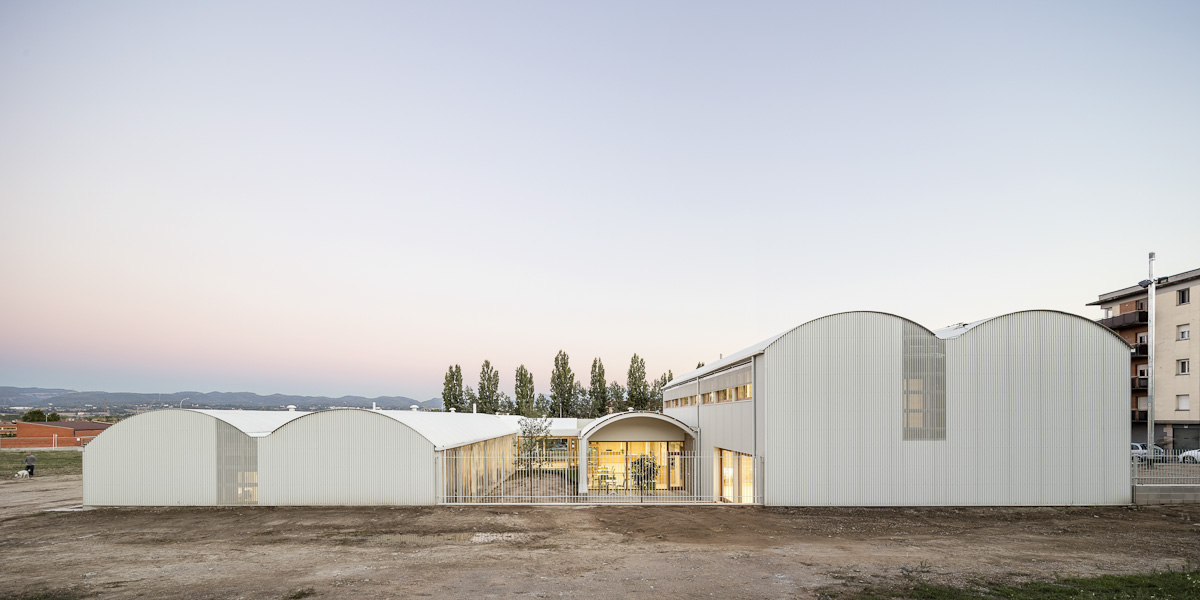

Psychological medical center
© Adrià Goula
Psychological medical center
© Adrià Goula

The building is located next to the main health centers of the city (Vic), surrounded by a park on the outskirts, and its program is basically developed on a ground floor to facilitate the mobility of its users.

Around a central acces pavilion are grouped the rest of pavilions with their specific program, adapted to the original terrain topography and separated from each other by gardens and orchards. The interstitial spaces between the acces and those perimeter pavilions are occuped by the connecting ramps.

Psychological medical center
© Adrià Goula
Psychological medical center
© Adrià Goula

The austerity of using a single cladding material for façades and roofs contrasts with the appearence of vegetable greenhouses on the south façades as a passive bioclimatic system and the use of wood as a main element in the interior spaces.

The building has an economical, modular and high efficiency energy system that allows the adaptation of energy demand according to the interior occupation and the external climate. A 6m. with metallic structure every 2,40m. supports a lightweight, ventilated vaulted cover.

Psychological medical center
© Adrià Goula
Psychological medical center
© Adrià Goula

The roof section allows to open the roof cavity in summer to ventilate it and close it in winter to mantain the heat and radiate it towards the interior. The vegetable greenhouses on the south façades are a passive bioclimatic system.

These spaces have a practicable closure based on ultraviolet protected pvc curtains that can be closed in winter to accumulate heat (introduced to the interior through the ventilation system) or opened in summer leaving the porch exposed as a sun protection element.

Psychological medical center
© Adrià Goula
Psychological medical center

The vegetation in these spaces is cultivated by the patients themselves as a rehabilitation therapy. For a more sustainable building we made the decision to provide the climate contribution through a district heating/cooling option.

The heating is distributed by a radiant floor and it is combined with a ventilation system that slightly cools the indoor air in summer.

Psychological medical center
Psychological medical center

The sustainability criteria have been essential during the construction process. The Energy Certification places our building in the “A” category, the most efficient.


Psychological medical center
Psychological medical center
