ARCHITECTS
100Architects

AREA
3000 sqft - 5000 sqft

STATUS
Built

YEAR
2018

LOCATION
Shanghai, China

TYPE
Commercial › Pop-Up, Cultural › Pavilion, Landscape + Planning › Playground Public Park

Paint Drop

Paint Drop is a creative public space intervention designed to create a visual link between the main plaza and a newly open retail space, to firstly make the new space noticeable, and secondly attract customers dragging them through a color splash corridor.

As the installation was intended to call the attention of pedestrians and drag them to the desired area, it had to be both, eye-catching & permeable allowing pedestrian circulation through it.

Paint Drop
Paint Drop

To comply with both requests, a tunnel of splashing color paint was proposed as the theme.

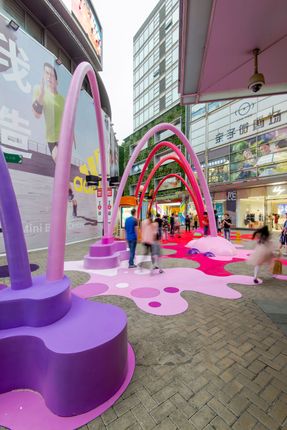

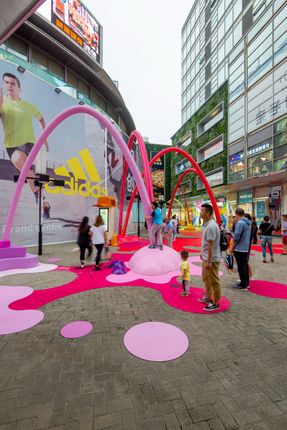

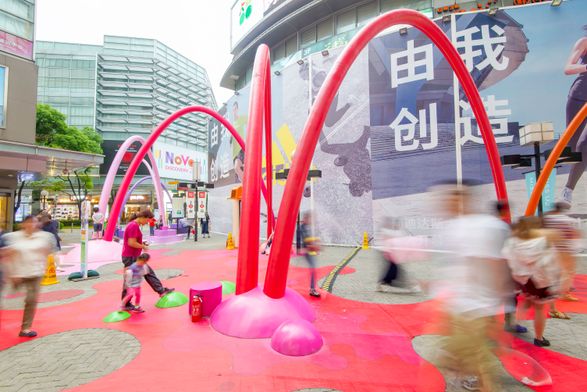

The solution consisted on a system of 8 catenary arches linked to each other spreading along the intended path, rendered as paint dropping on the floor from above.

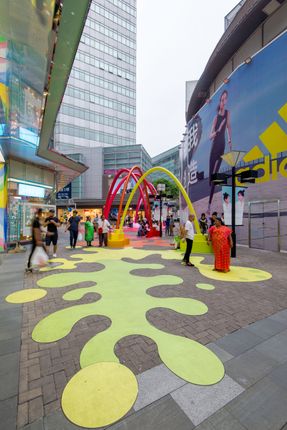

As the paint arches reach the floor, a splash of color occurs, leaving a functional trace in the form of seating features and resting areas accompanied by immersive floor graphics to enhance the experience.

Paint Drop
Paint Drop
Paint Drop

The 8 arches from the colorful tunnel were equipped with an interactive lighting system.

Movement sensors were placed at the bases of the arches, which would activate flexible LED strips of light embedded in the arches every time a person would pass by.

Paint Drop
Paint Drop

During the summer period, the vortex of color became one of the hotspots of Life Hub @ Daning’s open-air retail street, gathering kids and adults alike, and successfully increasing the pedestrian circulation at the desired spot.
