M & M' s h o u s e | 2 0 1 5

Noarq

FIRM
Noarq

STRUCTURAL PROJECT
A400 – Eng. Francisco Bernardo

COLABORATORS
Diana Fernandes, Arch; Marlene Maciel, Arch; Renata Santos, Arch; Gonçalo Ferreira, Arch

AUTHOR
José Carlos Nunes De Oliveira, Arch

GAS AND HVAC PROJECT
Get – Eng. Raul Bessa

HYDRAULIC AND ACUSTIC PROJECT
A400 – Eng. Francisco Bernardo;Electricity, Telecommunications And Security Gpic – Eng. Fernando Aires

PHOTOGRAPHY
João Morgado, António Carlos Ferreira

BUDGET
$10K - 50K

SIZE
0 sqft - 1000 sqft

YEAR
2015

LOCATION
Trofa, Porto District, Portugal

TYPE
Residential › Private House

M&M's House 2015

A single-family house. A plot of 1500 sqm, in Trofa. From Rua do Carvalhinho – on the north side – the topography goes down for 2,4 m till the street that confine on the south side, EN104.

On east side, the neighbor’s land lifts over the land plot for 2 m. We demolished the old farm house, the stone and mud walls and the clay floors, in front of the street.

M&M's House 2015
M&M's House 2015

An urban trouble. We maintained the squared stone well, an old fruit tree and the localization of pre-existing access, set on the opposite side of the plot, on the North and on the South.

The proposal’s geometry reasons were willing – tree and well. We tried a “S”. Followed a “4”, we failed. Emerged an “H” that occupies the plot’s center. The “legs” embrace the tree, the “arms” evolve just a bit.

M&M's House 2015
M&M's House 2015

The “H” configure a social patio in the south, guarded from the east and west light, protected from north-west wind. In the north, the entrance patio.

The house has a single floor graven in the ground, a raised landing that gives access to the roof garden. It has a 377,38 sqm of construction area.

M&M's House 2015
M&M's House 2015

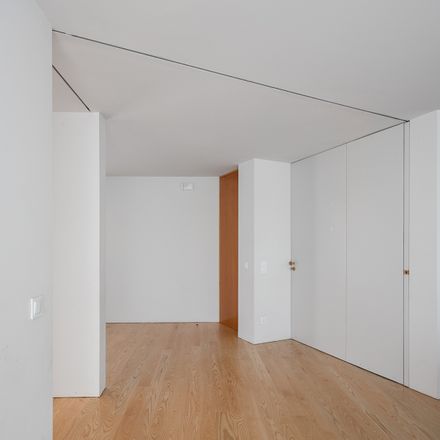

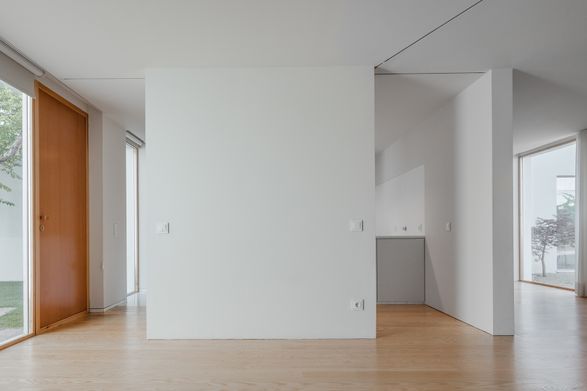

The center of the volume (of the H) holds all the functions more attended by the inhabitants and the daily activities: entrance, distribution, services and kitchen.

The west wing is reserved to concentration, rest and all their services: toilettes and laundry.

M&M's House 2015
M&M's House 2015
M&M's House 2015

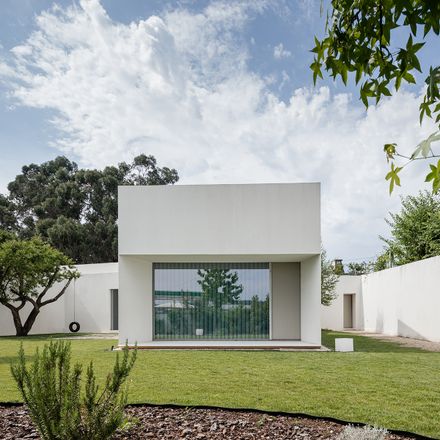

On the east side, two blocks connected at the central volume turned in the opposite directions – North and South – define the rest of the “H” and holding respectively a box and the living room.

The box has the worst exposition situation of the plot.

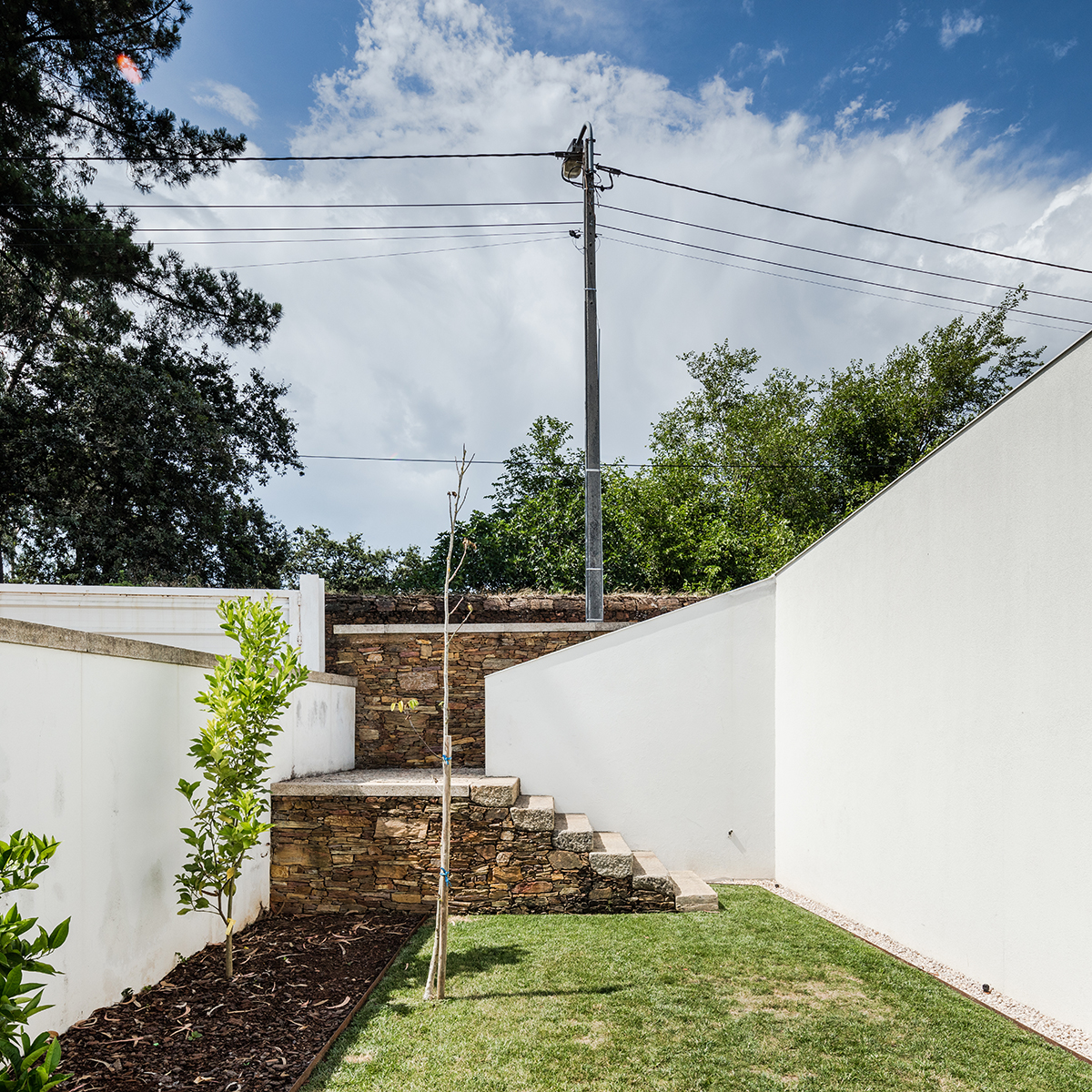

The original shale walls have been rebuilt for a landscape Imposition on Rua do Carvalhinho.
