Kyeong Dok Jai

Kyeong Dok Jai

Kyeong Dok Jai

IROJE KHM Architects

STATUS
Built

AREA
0 sqft - 1000 sqft

YEAR
2014

LOCATION
Goyang-si, South Korea

TYPE
Residential › Private House

SLICED PIE-SHAPED LAYOUT - FOR INTRODUCING SOUTHERN SUNLIGHT IN WINTER

We selected eco-friendly layout which was composed by three sliced pie- shaped zone that contain southern axis to introduce winter sunlight into inner and exterior space of this house.

Kyeong Dok Jai
Kyeong Dok Jai

MAXIMIZE THE AREA OF GARDEN IN SMALL SITE

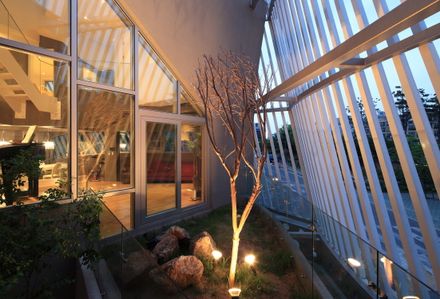

In this small site, about 230㎡, we try to maximize the area of garden and to characterize the variety of gardens where are piloted approach garden, inner garden, piloted pavilion garden, sunken garden, roof garden.

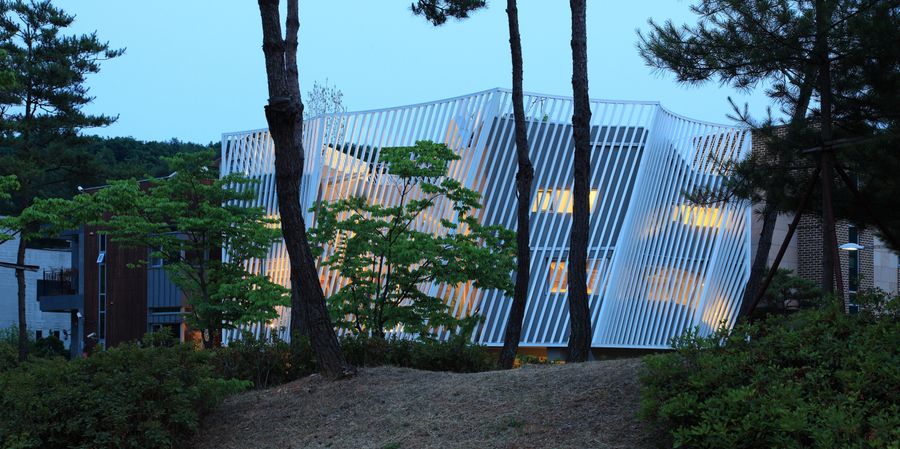

ECO-SCREEN FACADE - FILTER FOR SUMMER SUNLIGHT, NOISE, PRIVACY AND SECURITY

We covered front facade with aluminium pipe screen for filtering summer-hot-sunlight, noise for keeping privacy, protection from criminals.

Kyeong Dok Jai
Kyeong Dok Jai

TRADITON SCAPING - FLOATING&STROLLING

Floating shape – Dynamic curve in white aluminium pipe-screen as exterior skin is derived from the curve of “Cheoma” of traditional roof.


And perforated concrete fence is metaphor of the form of traditional stone fence.

Kyeong Dok Jai
Kyeong Dok Jai

Strolling space – All the program of spaces of this house were laid out as the touring course that has dramatic interest of “strolling” through the inside and outside of this house, visually and spatially.

PROGRAM OF “FAMILY LOVE” - CONCERT HALL-LIKE SPACE

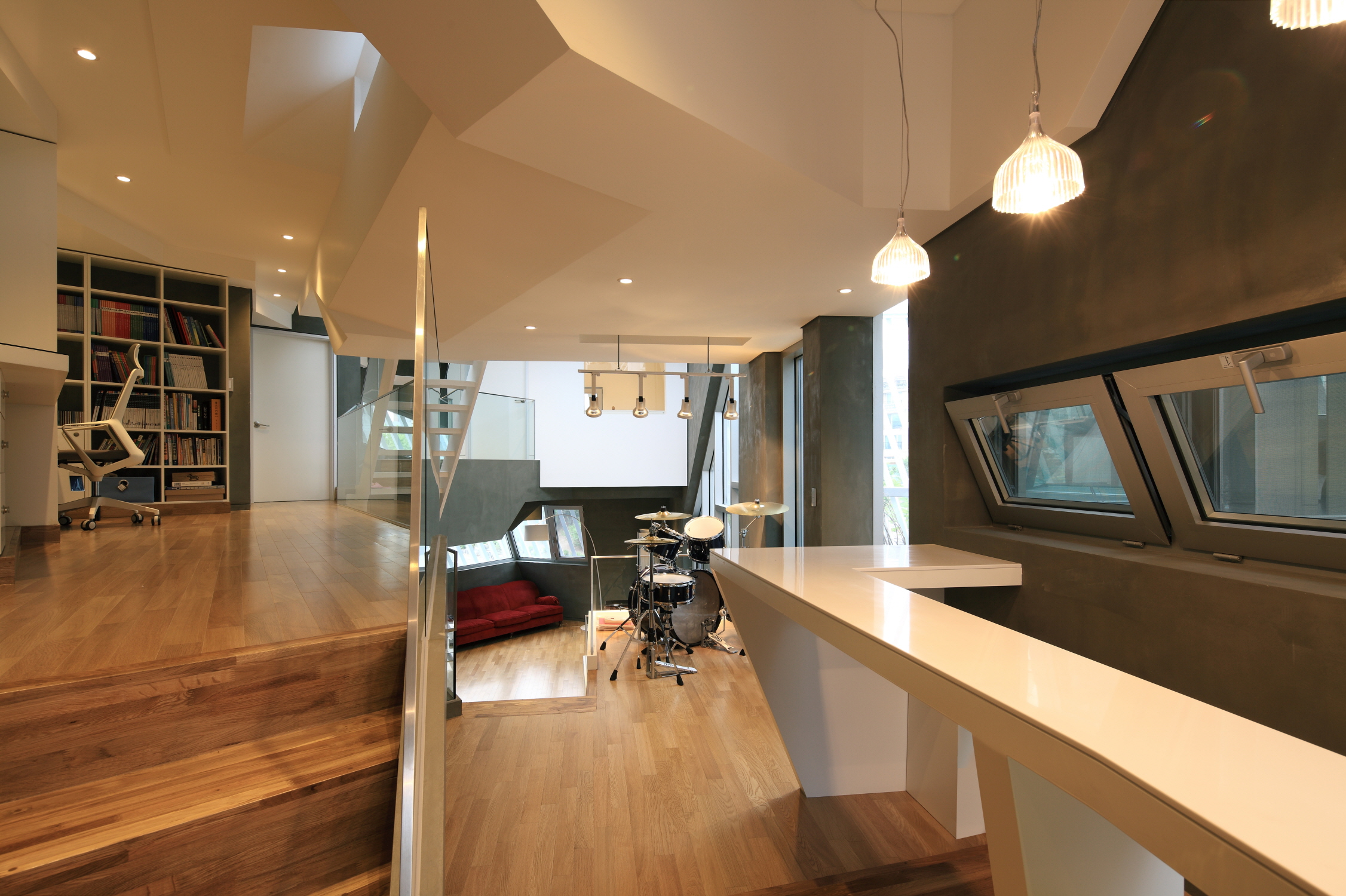

For increasing the “family love”, we designed concert hall-like “one complex space” where are living room, dining room at 2nd floor and study room, child’s bed rooms, bar, piano and drum stage at stair floor and 3rd floor.

Kyeong Dok Jai
Kyeong Dok Jai

Thereby, all the members of family always interact each other in common life.

NON-ARCHITECTURAL LANDSCAPE

The white-curved aluminium pipe screen plays a role in producing some image of collage of various element of this house which is translucent and non-architectural.

And so, we add non-architectural landscape to this residential context which is shaped with continuous house of similarity.

Kyeong Dok Jai


Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
Kyeong Dok Jai
