A THOUSAND PLATEAUS OBSERVATORY

Emer-sys

ARCHITECTS
Emer-sys

LEAD ARCHITECT
Janghwan Cheon

CONTRACTOR
Youngjin Construction Co. Ltd

DESIGNER
Dawon Lee

STRUCTURAL ENGINEERS
SDM

PROJECT ARCHITECT
Dongkyung Shin

FAÇADE CONSULTANTS
Vs-a. Kr

PHOTOGRAPHS
Kyungsub Shin

AREA
778 M²

YEAR
2022

LOCATION
Chuncheon-si, South Korea

CATEGORY
Public Architecture

Text description provided by architect.

This observatory makes the process of walking up the observatory a rich visual and physical experience.

The pedestrian path and open space around the site are naturally drawn into the observatory, extending the urban flow toward the roof and the open decks extending in different directions, allowing you to discover a new aspect of Chuncheon Lakeside

A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin

The stairs winding around the observatory and the cantilevered slab provide an optimized view in all directions facing the Chuncheon Lakeside, and a clear open view is available from the top.

Unlike the view from the open deck, which stretches out long and provides an experience of becoming one with the panoramic view in front of you, the view around the Lake through small frames on the stairs and landings of the observatory makes you feel as if you are viewing a picture at a museum.

A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin

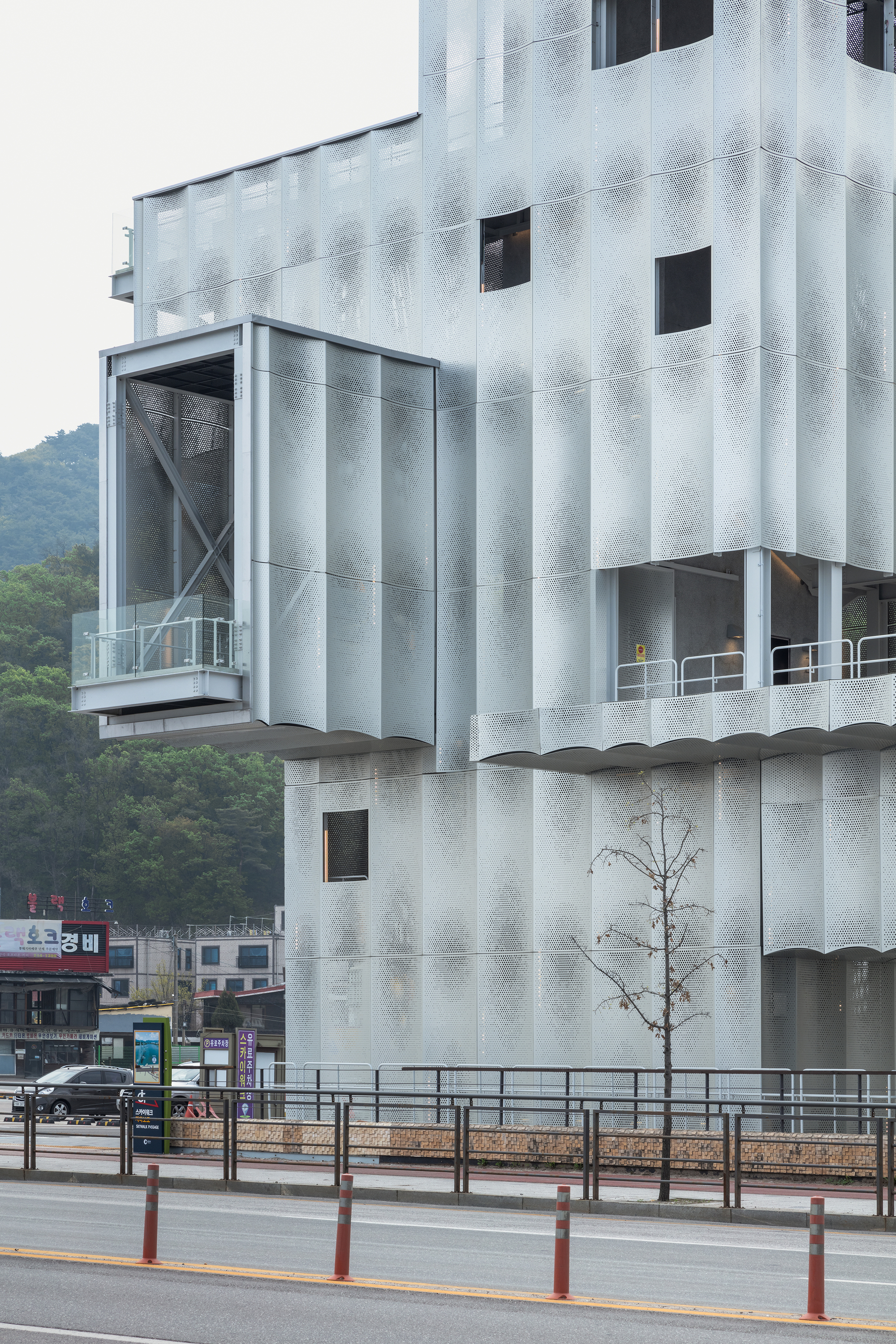

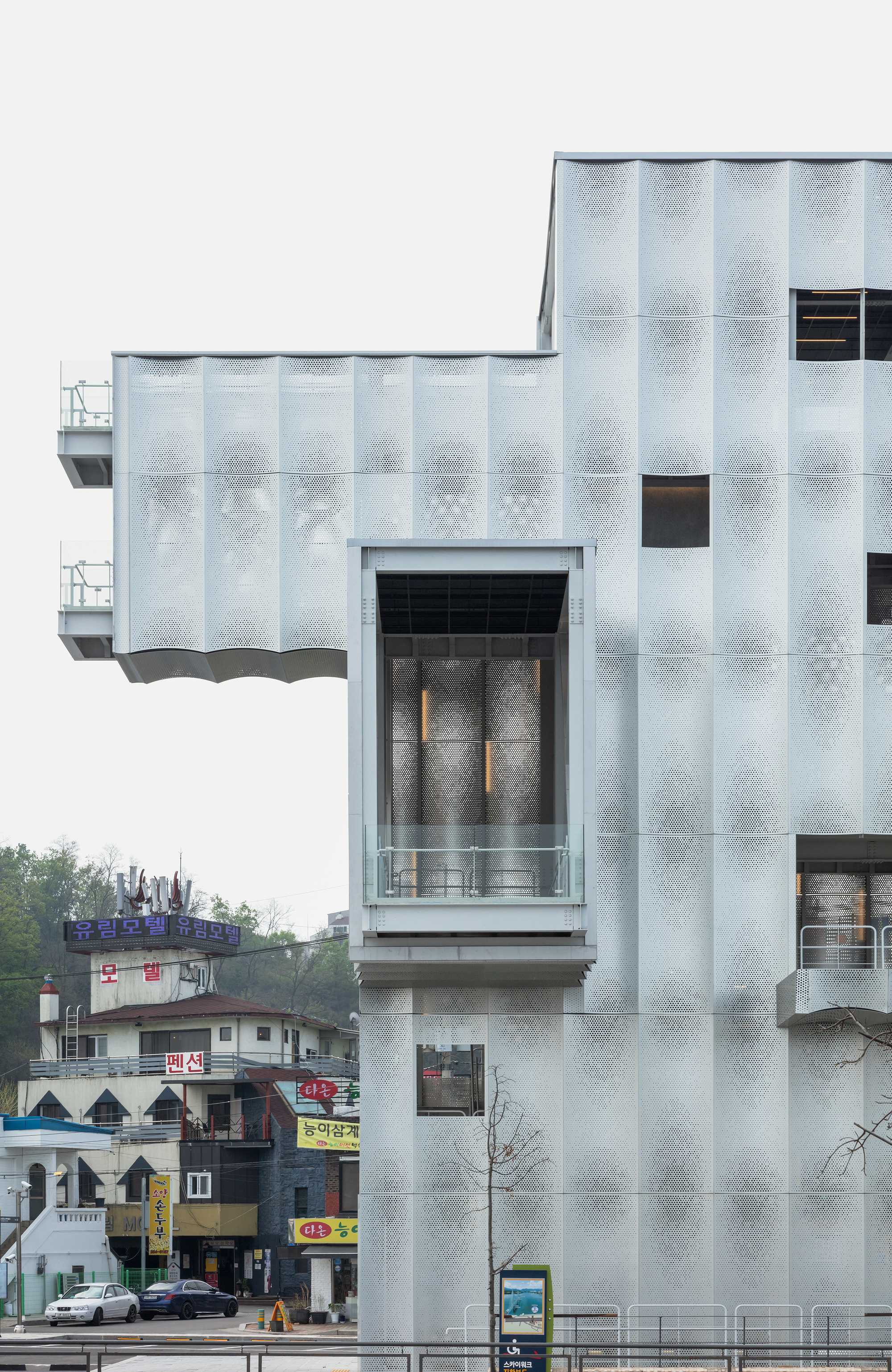

The curved aluminum panels covering the observatory embody rich phenomena and experiences. The size of the perforated holes, which resemble thousands of droplets, varies from 0.5cm to 3.0cm in diameter, securing an opening rate of 70% at eye level and making it look blocked or open depending on the viewing angle.

Through perforated holes, the effect of light showers is created from the inside and an immaterial sense of mass is created from the outside.

A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin

In particular, the wave-like shape created by the perforated panels covering the facade embodies the symbolic image of the soft yet strong landmark of Chuncheon Lakeside. The inwardly curved perforated panel has its own structural rigidity, minimizing the fixtures that support the panels.

In addition, these curved surfaces induce various reactions of light such as reflection, passage, and overlap depending on the viewing angle, and these changes overlap with the mass of the heavy concrete core inside to create a colorful sense of depth every moment of the day.

A Thousand Plateaus Observatory
© Kyungsub Shin


A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin
A Thousand Plateaus Observatory
© Kyungsub Shin


A Thousand Plateaus Observatory
Plan - Ground Floor
A Thousand Plateaus Observatory
Plan - 1st Floor
A Thousand Plateaus Observatory
Plan - 2nd Floor
A Thousand Plateaus Observatory
Plan - 3rd Floor
A Thousand Plateaus Observatory
Plan - 4th Floor
A Thousand Plateaus Observatory
Plan - Roof Floor


A Thousand Plateaus Observatory
Elevation 01
A Thousand Plateaus Observatory
Elevation 02
A Thousand Plateaus Observatory
Elevation 03
A Thousand Plateaus Observatory

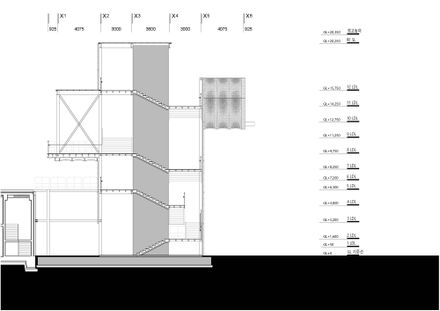

Section 01
A Thousand Plateaus Observatory
Section 02
A Thousand Plateaus Observatory
Section 03


A Thousand Plateaus Observatory

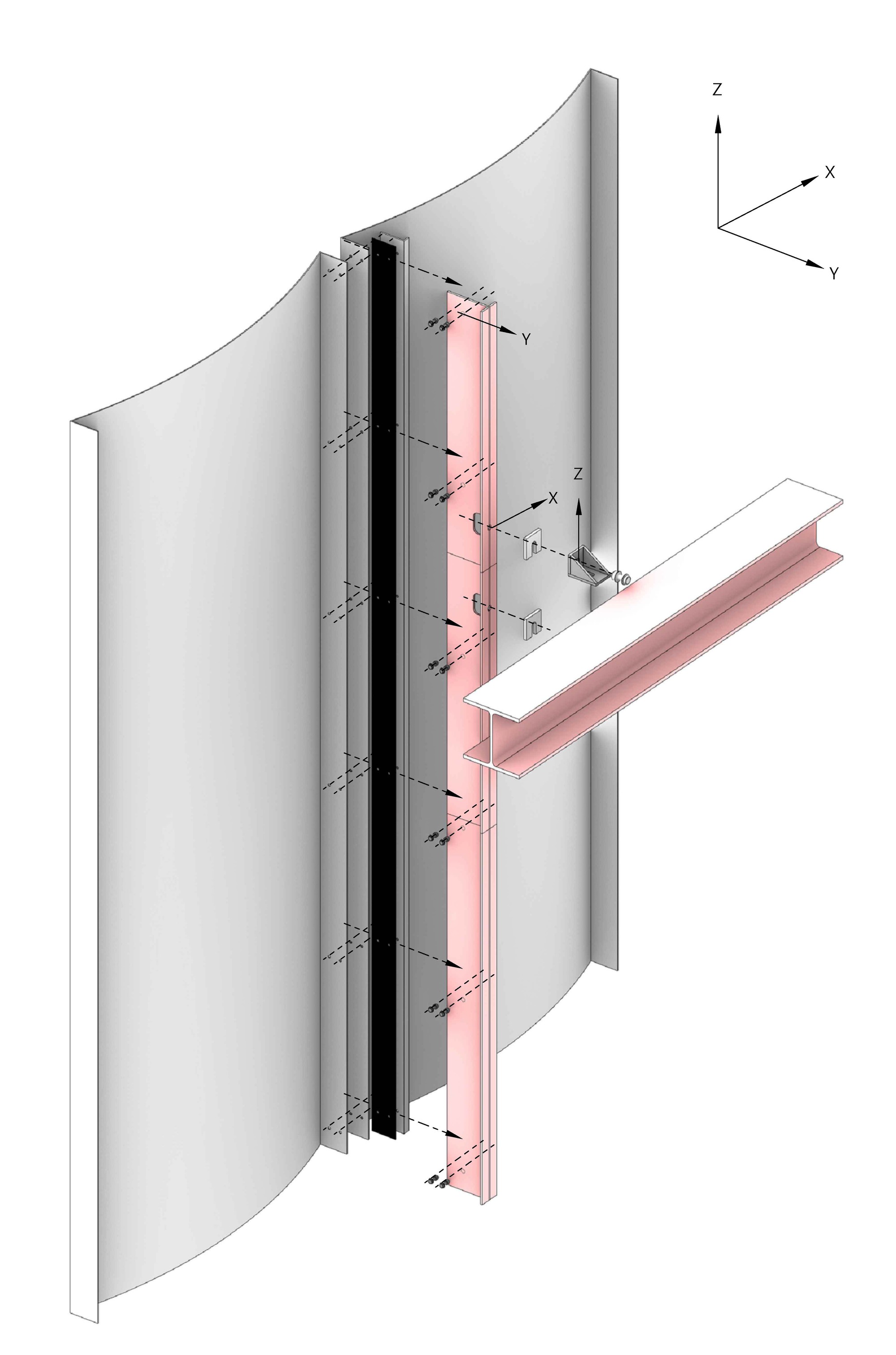

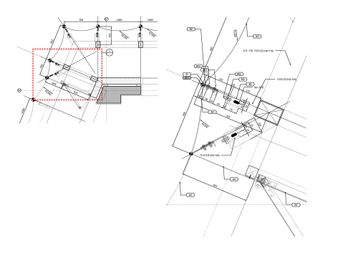

Construction Detail 01
A Thousand Plateaus Observatory
Construction Detail 02
A Thousand Plateaus Observatory
Construction Detail 03
