Daminghu 100 Culture & Arts Centre

Daminghu 100 Culture & Arts Centre
© Lei Tao

DAMINGHU 100 CULTURE & ARTS CENTRE

TAOA

ARCHITECTS
TAOA

CLIENT
Shandong Culture And Tourism Group Co.,ltd.

LANDSCAPE
Taolei(Beijing) Architectural Design Co.,ltd.

CONSTRUCTION
China Building Technique Group Co.,ltd.

DESIGN TEAM
Lei Tao, Zhen Chen, Yumuling Zhou, Zhenqiang Duan, Gen Li, Lili Xu, Tong Shi, Lang Sun, Yunyi Dai, Jiming Li, Xiangrui Meng, Zishen Liu, Renfang Man

LEAD ARCHITECTS
Lei Tao

PHOTOGRAPHS
Lei Tao

AREA
5806 M²

YEAR
2022

LOCATION
Jinan, China

CATEGORY
Cultural Center

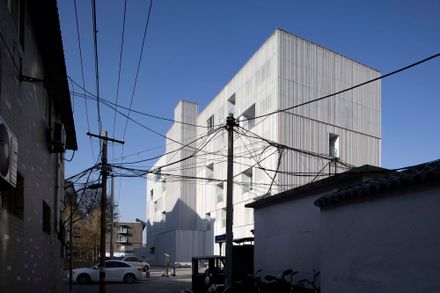

It's a building renovation project. In an old traditional neighborhood, the building has been transformed from offices and a hotel into an artistic and cultural complex, opening up to the city with a simple and distinctive personality, reuniting the natural landscape of the lake and the lakeside historical and cultural district, activating and bringing new vitality to this historic city.

Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao

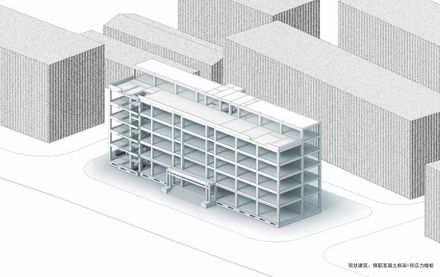

The building is a reinforced concrete frame structure, and the floor slab adopted a prestressing system. Low floor heights and the lack of connection among floors shackle the openness and freedom that art spaces should have.

From the inside out, we reorganized the building's function, creating freedom and proper variation of the interior space, thus affecting the facade and connecting with the open view of DaMing Lake.

Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao

We separate some relatively independent and closed functions to form multiple independent "boxes", which are freely stacked, staggered, and squeezed within the framework of the six-storey space, blanking the homogeneous structural columns, and breaking the horizontal limitation of the floors.

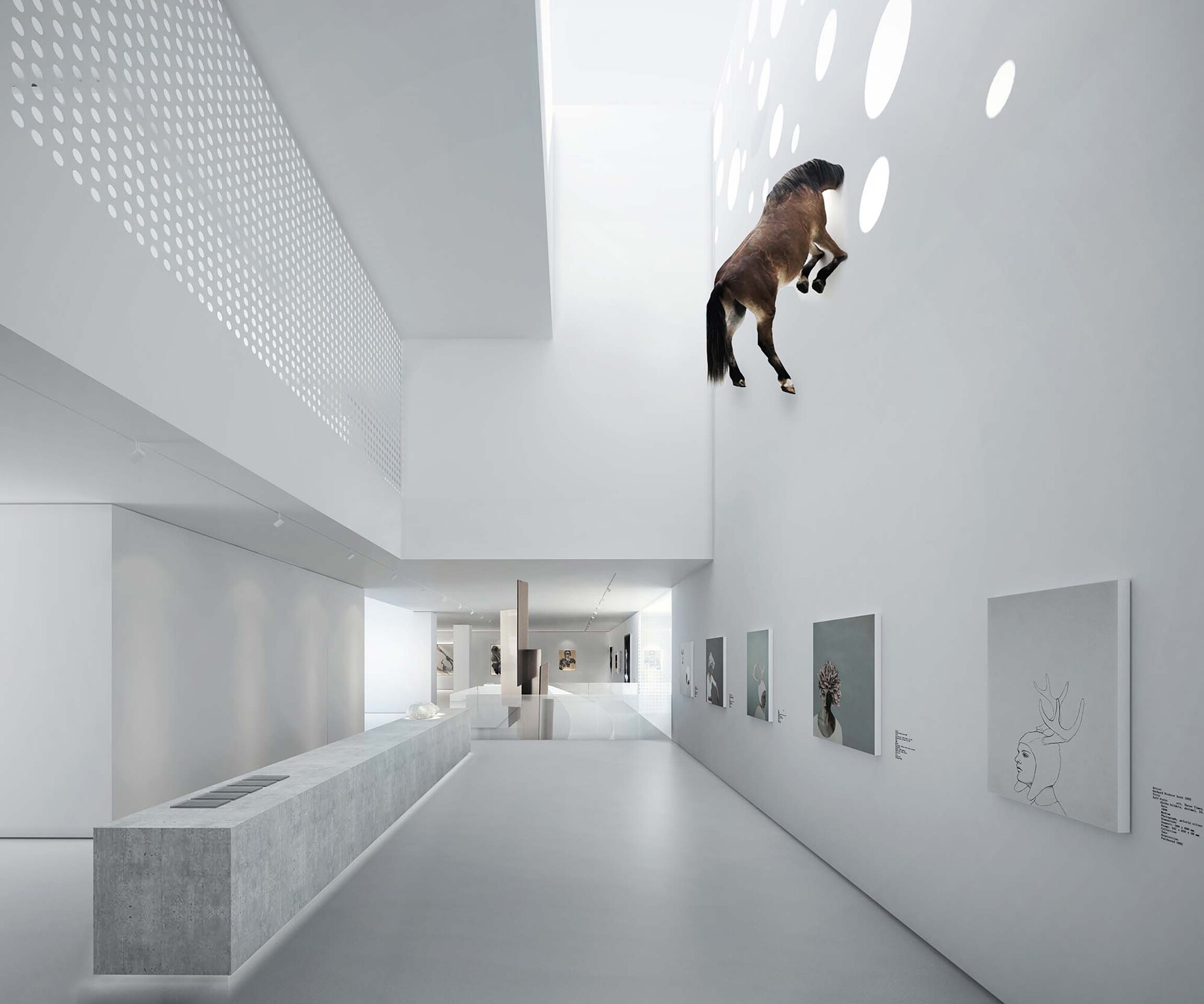

The blank-leaving among the "boxes" become open functions, creating a column-free public space that crosses the floor, flows freely, and grows vertically where the upper and lower floors connect.

Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao

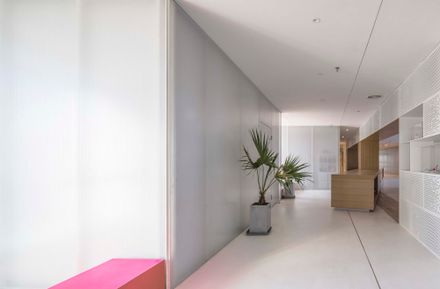

The corridor of horizontal traffic function is also integrated into the public space and interconnected. The original structural frame and floor panels were visually liberated.

To make these stacked "boxes" a whole, we wrapped the surface of the building with aluminum sheets.

Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao

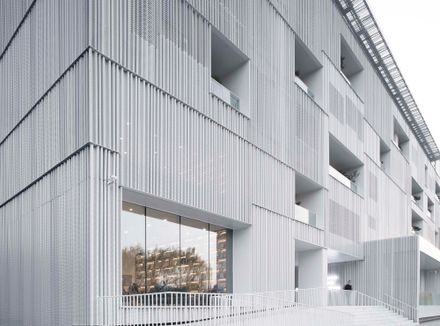

Echoing the interior space, punched aluminum plates with different permeability produce the transparency required, so that the wrapped "boxes" space can be perceived by pedestrians walking on the street.

The aluminum plates are folded out of the corrugated shape so that they can generate enough stress on themselves without creating excess structure.

Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao

The punched aluminum panels as windows of independent space, and together with the blank-leaving among the "boxes", are superimposed on the facade, forming staggered layer imprints of different sizes. At the same time, the public part has become more open.

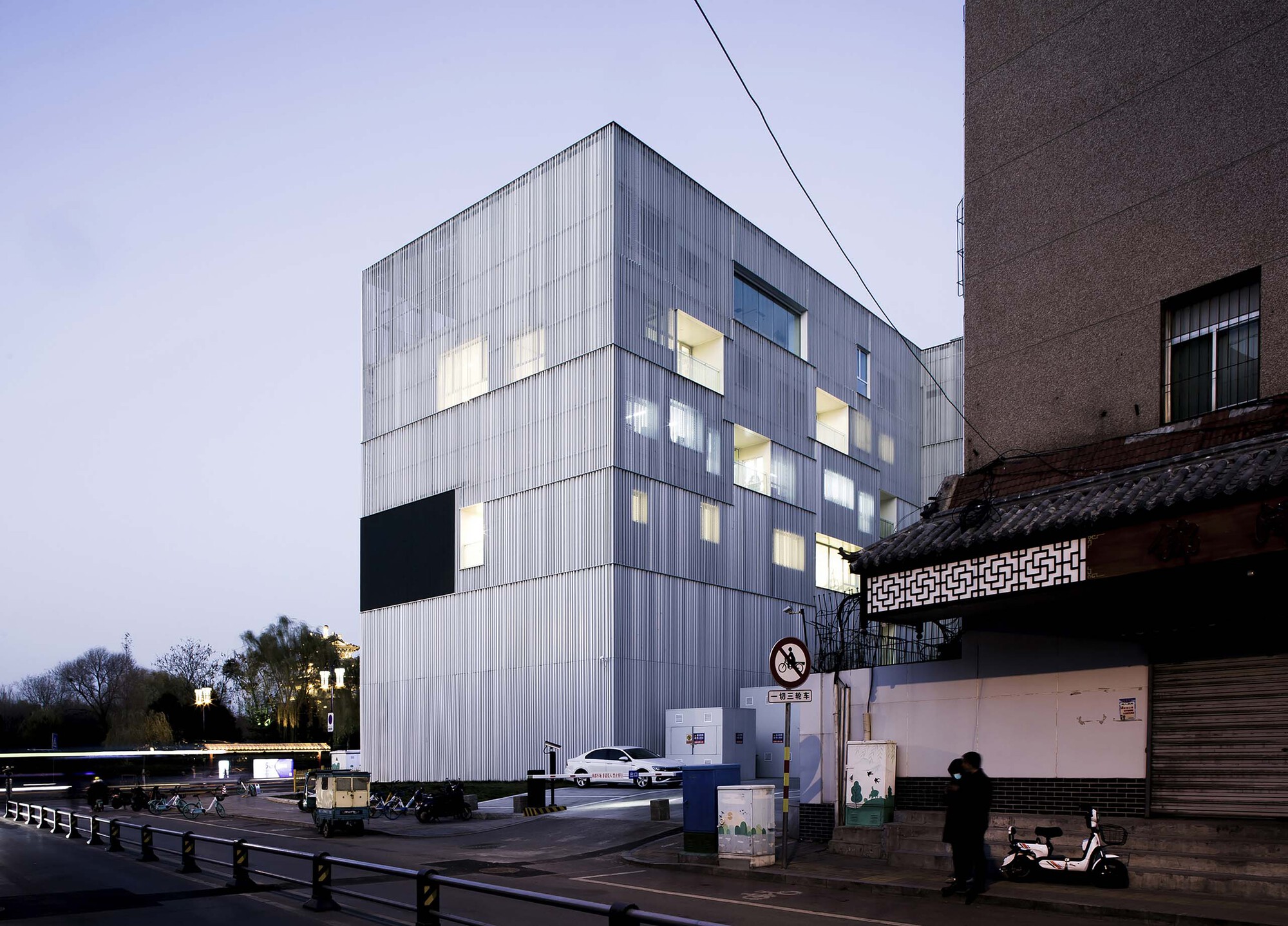

At night, interior lighting shines through surface holes and openings, rendering the entire building warm.

Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao

Due to the staggering and continuity, the internal become both independent and mixed, forming a three-dimensional, abundant, open, and free art life experience center.

Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao


Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao


Daminghu 100 Culture & Arts Centre
© Lei Tao
Daminghu 100 Culture & Arts Centre
© Lei Tao


Daminghu 100 Culture & Arts Centre
Location
Daminghu 100 Culture & Arts Centre
Plan - 1st Floor
Daminghu 100 Culture & Arts Centre

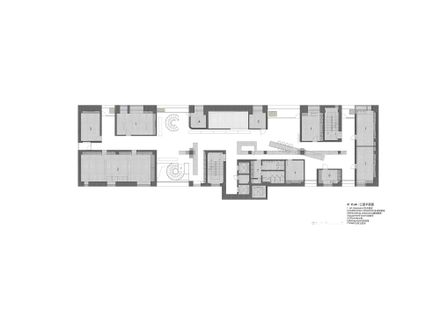

Plan - 2nd Floor
Daminghu 100 Culture & Arts Centre
Plan - 3rd Floor
Daminghu 100 Culture & Arts Centre
Plan - 4th Floor
Daminghu 100 Culture & Arts Centre
Plan - 5th Floor
Daminghu 100 Culture & Arts Centre
Plan - 6th Floor


Daminghu 100 Culture & Arts Centre

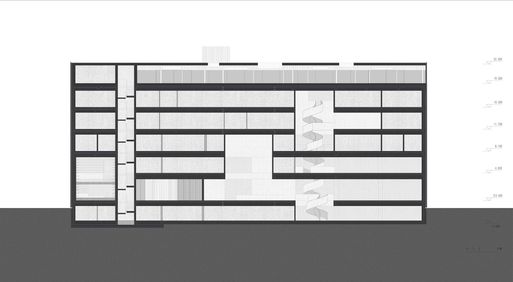

Elevation
Daminghu 100 Culture & Arts Centre
South Elevation


Daminghu 100 Culture & Arts Centre

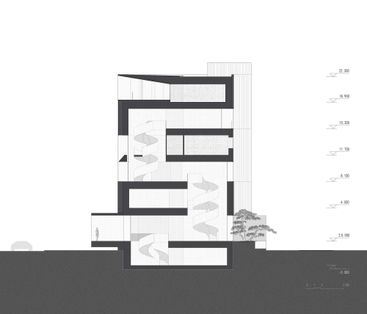

Section
Daminghu 100 Culture & Arts Centre
Section


Daminghu 100 Culture & Arts Centre
Structural Details

Daminghu 100 Culture & Arts Centre
Space Analysis


Daminghu 100 Culture & Arts Centre

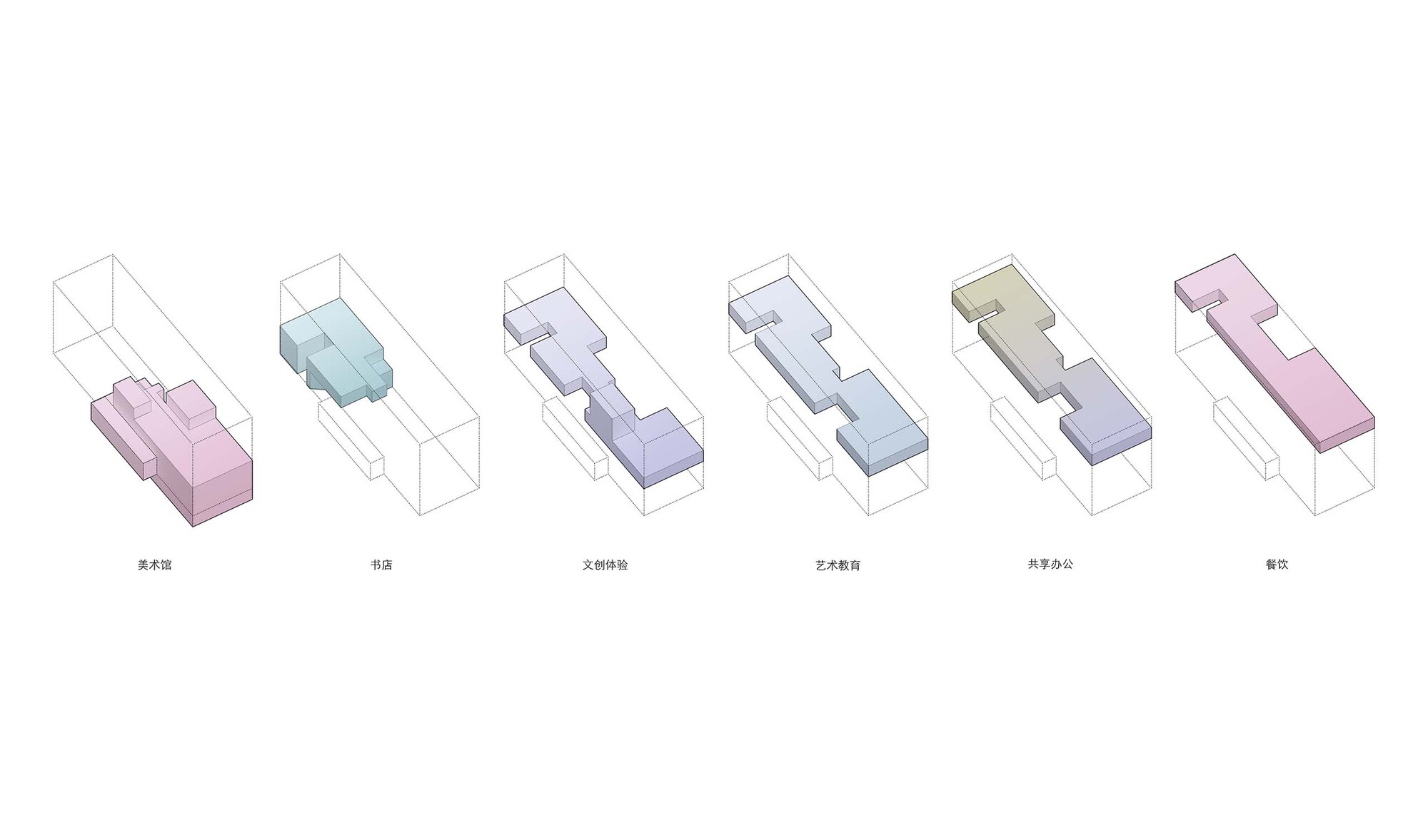

Functional Layers
Daminghu 100 Culture & Arts Centre
Functional Layouts


Daminghu 100 Culture & Arts Centre
Form Generation
Daminghu 100 Culture & Arts Centre
Form Generation
Daminghu 100 Culture & Arts Centre
Form Generation
Daminghu 100 Culture & Arts Centre
Form Generation
Daminghu 100 Culture & Arts Centre
Form Generation
Daminghu 100 Culture & Arts Centre
Form Generation
