Daniello Mill Renovation

Daniello Mill Renovation
© Marcelo Villada Ortiz

DANIELLO MILL RENOVATION

Enrico Sassi Architetto

LOCATION
Coldrerio, Switzerland

CATEGORY
Cultural Architecture, Educational Architecture, Renovation

CIVIL ENGINEERING
Comal.ch SA

MANUFACTURERS
Capoferri Tende, Coibentazioni, Eco 2000, Maffi Massimo, Piergiorgio Balzaretti, Schindler SA, Walco Lin

ELECTRICAL ENGINEERING
Elettroconsulenze Solcà SA

LIGHTING CONSULTANT
Progelec sagl

CONSTRUCTION PHYSICS
Think Exergy SA

YEAR
2022

BUILDING CONTRACTOR
Gianini & Colombo SA

ELECTRICIAN
Arrigo G&A SA

CARPENTER
Mirco Solcà

PLASTERER
Valsangiacomo M. Sagl

PAINTER
Trapletti Pittore Sagl

HEATING
Progetto Energia SA

CLIENT
Fondazione Luigi e Teresa Galli

COLLABORATOR
Roberta Blasi, Irene Lucca

GARDENING
Ianchello Giardini Sagl

WORKS DIRECTOR
Eraldo Pianetti Ing.

SANITARY CONSULTANT
Fabio Pinciroli

SANITARY
Agustoni Claudio

FIREFIGHTING SPECIALIST
Angelo Fumagalli

KITCHEN ASSEMBLY
Claudio Amaglio

BLACKSMITH
Damiano Petraglio Fabbro Metallbau Sagl

GRINDING
Nicola Involti

WOODWORKS
Carpentinox Sagl

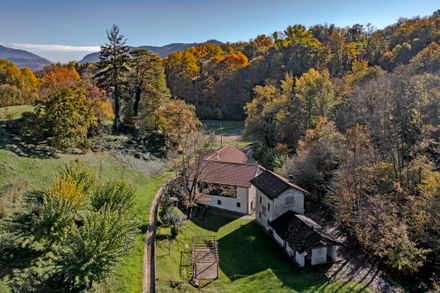

The Daniello mill is a building that stands on the banks of the Roncaglia stream, in the center of the Motta Valley Park, between the municipalities of Coldrerio and Novazzano.

Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz

The building dates back to the early 1800s. The original building housed a room with three millstones and an oil mill, a stable, a garage, a barn and the rooms where the miller lived.

In addition to the Daniello mill building, there are also two other buildings: a two-storey building, originally used for breeding silkworms and a shed open on the sides.

Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz

The mill consists of two buildings with traditional masonry that intersect on right angles The three original millstones and the oil mill are conserved on the ground floor of the southern body.

One of the three millstones and the crusher are working and are put into operation through two external water wheels (one in wood, one in metal) fed with water from the canal.

The renovation project of the building plans to keep the volume and the original character of the building unchanged and transforming it into an educational-congress centre.

Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz

The intervention involves the conservation and enhancement of the part of the building that houses the historical activities: the ground floor with the mill room and the small house-museum of the Galli family.

The room with the machines has been restored, without any addition of thermal insulation to not compromise its original appearance.

Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz

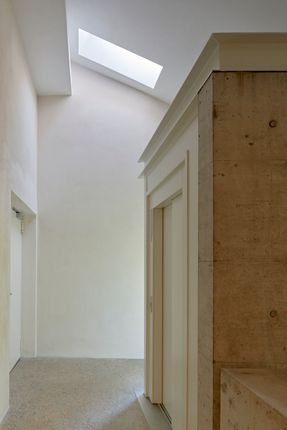

The wooden water wheel, which was in very poor condition, has been restored. On the ground floor, the elevator-stairway block, the rooms with toilets and a new space for displaying the products of the mill and original historical objects have been added.

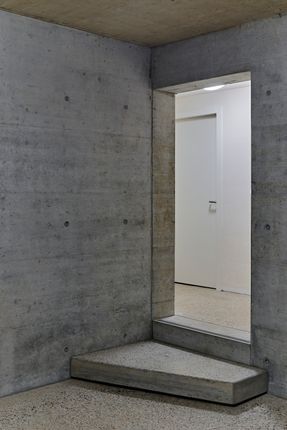

The new masonry interventions were made of reinforced concrete left exposed.

Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz

Two spaces have been created on the first floor: a 50 m2 classroom for teaching (ancient truss room) and a multipurpose room (100 m2).

The multi-purpose room is naturally illuminated by the original openings on the south side and a large new window (820cm long) that opens onto the park to the north.

Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz

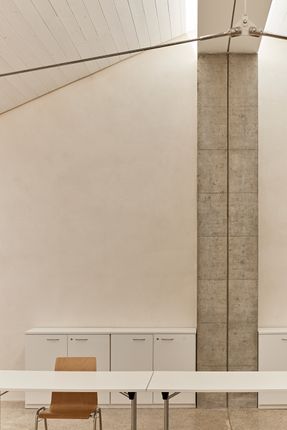

The roof of the multipurpose room has a 10 m long IPE 550 profile metal ridge beam, covered and transformed into a lighting fixture.

The tie rods of the trusses are galvanized steel strands (18 mm diameter) stretched on site and suspended in the centre.

Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz

The floors are concrete with added red aggregates (red marble of Verona and porphyry of Cuasso al Monte), then smoothed. Room heating is provided by two pellet stoves.

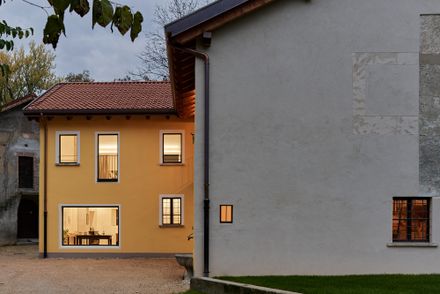

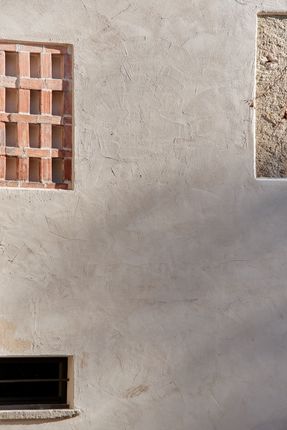

Part of the original plaster was preserved where possible, the rest of the brickwork was finished with lime-based plaster. The two facades of the entrance were painted in the original yellow colour.

Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz


Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz
Daniello Mill Renovation
© Marcelo Villada Ortiz


Daniello Mill Renovation
Plan building 01
Daniello Mill Renovation
Plan building 02
Daniello Mill Renovation
Plan 01
Daniello Mill Renovation
Plan 02
Daniello Mill Renovation
Plan 03
Daniello Mill Renovation
Plan building 03


Daniello Mill Renovation
Elevation 01
Daniello Mill Renovation
Elevation 02
Daniello Mill Renovation
Elevation 03
Daniello Mill Renovation
Elevation 04
Daniello Mill Renovation
Elevation 05
Daniello Mill Renovation
Elevation 06


Daniello Mill Renovation
Section 01
Daniello Mill Renovation
Section 02
Daniello Mill Renovation
Section 03
Daniello Mill Renovation
Section 04
Daniello Mill Renovation
Section 05
Daniello Mill Renovation
Section 06


Daniello Mill Renovation
Plan - Site
