A Prototype of the Family House in Posazavi

A Prototype of the Family House in Posazavi

A Prototype of the Family House in Posazavi

A69 - architects

TEAM, COLLABORATION
Michal Nohejl

VISUALIZATION
Obrazek.org - Michal Nohejl

BUDGET
$0 - 10K

PHOTOS
Tomas Rasl (11)

ARCHITECT
Boris Redčenkov, Prokop Tomášek, Jaroslav Wertig

MAIN CONTRACTOR
(Diy), Carpenters - Jiří Kotík, Windows - Nevšímal A.s.

PHOTOGRAPHER
Tomáš Rasl

TECHNICAL DESIGN, COLLABORATION
Omega Project S.r.o. - Jan Škopek, Miroslav Fejfar, Construction - Radek Brandejs

SIZE
1000 sqft - 3000 sqft

YEAR
2015

LOCATION
Czech Republic

TYPE
Residential › Private House

A prototype of a family house is built in a former granite quarry in Posázaví.

The purpose of this built project is to check structural, typological, and user qualities of the prototype.

A Prototype of the Family House in Posazavi
A Prototype of the Family House in Posazavi

The house is located on the edge of a rock above a lake. The project preserves grown trees, emphasizes the view to the water, and allows access to the meadow in the middle of a forest.

A simple cubic mass 15x15x4 m contains interior spaces formed in a more complex manner.

A Prototype of the Family House in Posazavi
A Prototype of the Family House in Posazavi

Organically moulded labyrinth of the interior habitable space allows more day- and sunlight, vistas out and through from the depth of the layout.

The house hovers over the landscape, it is not founded traditionally. A steel load-distributing modular raft is bedded on existing granite blocks – remnants of former mining.

A Prototype of the Family House in Posazavi
A Prototype of the Family House in Posazavi
A Prototype of the Family House in Posazavi

A 2x4 timber frame is erected on the raft. The roof structure is nailed trusswork. The roof is flat finished with extensive green. The façade is ventilated made of lumber. Windows are aluminium.

A sliding glass wall provides for connecting the living area with an outdoor terrace on the meadow.

A Prototype of the Family House in Posazavi
A Prototype of the Family House in Posazavi

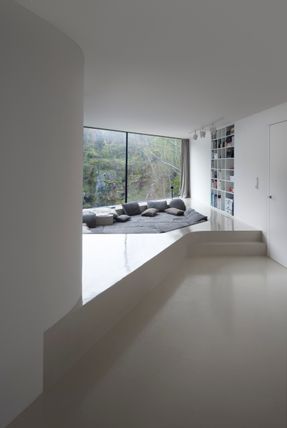

The interior is monochromatic using different shades of white – a neutral frame for colours of the forest at different periods of a day and year.

The house is a DIY type. It can be taken into pieces, it may disappear without a trace left.

A Prototype of the Family House in Posazavi
