Idin Architects Co., Ltd.

Keereetara Restaurant

Keereetara Restaurant
© DOF Sky|Ground

Keereetara Restaurant

IDIN Architects

ARCHITECTS
IDIN Architects

INTERIOR DESIGNERS
Promote KamolpanOp

CONTRACTORS
Promote KamolpanOp

AREA
2290 m²

OWNER
Promote KamolpanOp

PHOTOGRAPHS
DOF Sky|Ground

STRUCTURAL ENGINEERS
C-Insight Company Limited

YEAR
2022

LOCATION
Thailand

TYPE
Restaurant

Keereetara is a brand-new restaurant intended as a replacement for its original branch located nearby.

Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground

The restaurant itself is one of the most popular and successful Thai restaurants in Kanchanaburi, so the owner decided to maintain a sense of the traditional Thai style reflected in the building that links to the Thai dishes served.

Due to its small property size, especially when compared to the required functions of a major restaurant branch, the restaurant needs to be able to support large-scale events such as seminars, and weddings.

Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground

This resulted in having a large commissary kitchen of over a thousand square meters in order to fully support any future expansions and the nearby branches.

Not only that Keereetara has to house a large service facility but as the site is adjacent to the Kwai river - it is also crucial to take advantage of this view for both the indoor and outdoor dining zones.

Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground

The design process started from the limitation; of finding the most functional location for most of the services and the commissary kitchen - which takes up most of the available space on the first floor.

This in combination with a high ceiling results in a large building mass that fills up the space and obstructs the view of the river.

The architect, therefore, places other usable functions on the second level the kitchen and services behind a large staircase that leads all visitors to the entry foyer on the second floor.

Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground

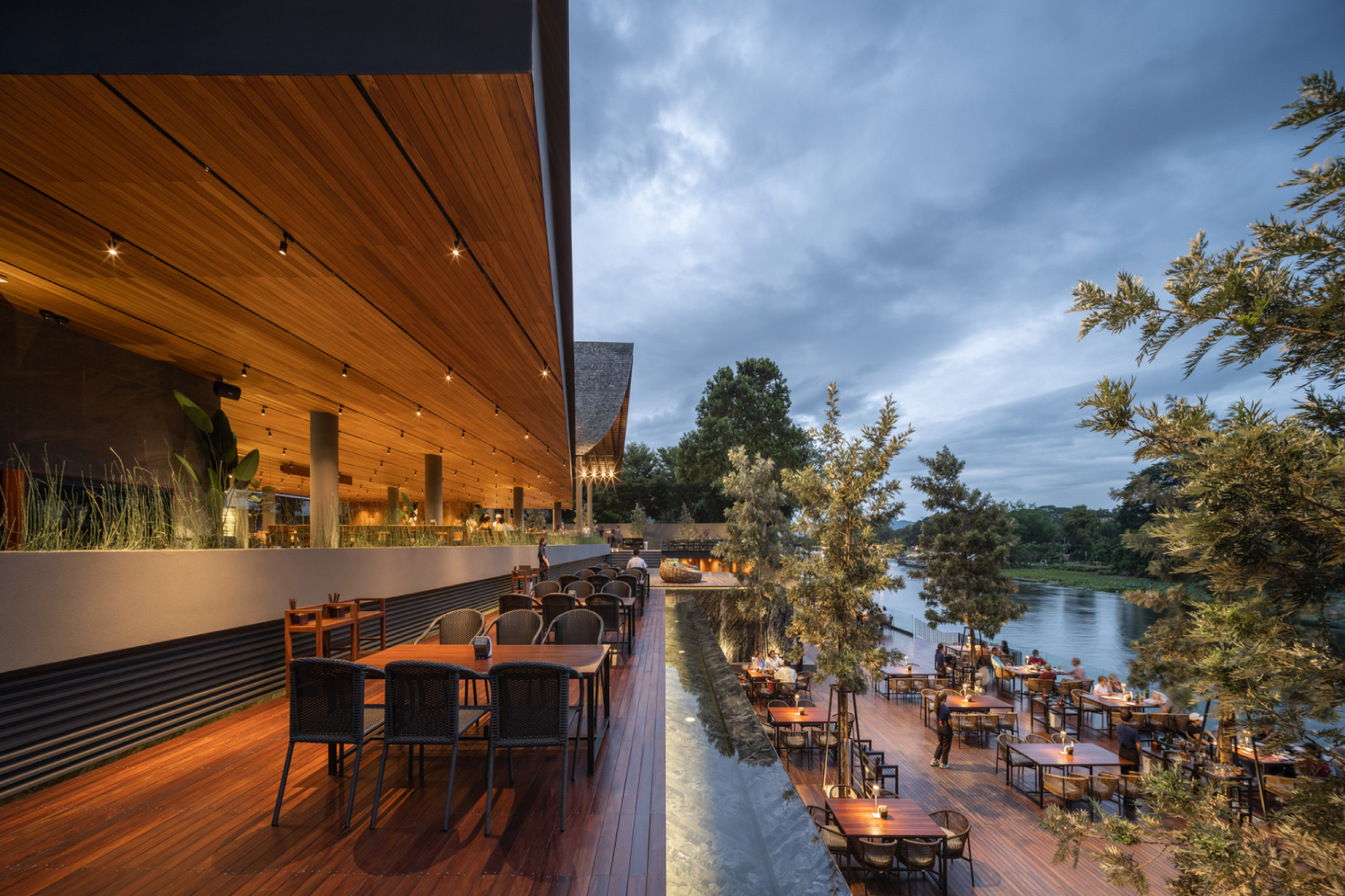

The foyer further diverts to the banquet hall on the third level but also continuously leads the visitors to the dining terrace which has been designed with alternating levels that gradually gets closer to the river bank, resulting in an area that can be separated into several dining zones.

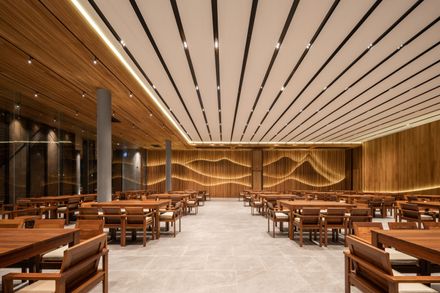

On the third level, a banquet hall was placed to hold functions such as seminars or weddings. The hall is surrounded by a veranda and an additional dining zone with a higher view of the river.

Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground

Another important point was the infusion of “Thainess” into a large-scale building which was a challenge.

Traditionally, large-scale Thai buildings that encompass wide spans are either temples or palaces. Thai houses are traditionally small-scale and are often collectively placed in clusters.

Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground

The architect, therefore, adopted the “feelings” and “senses” of Thai architecture into the usable spaces to highlight this infused Thai atmosphere for the users rather than using direct proportions or decorative elements from Thai architecture.

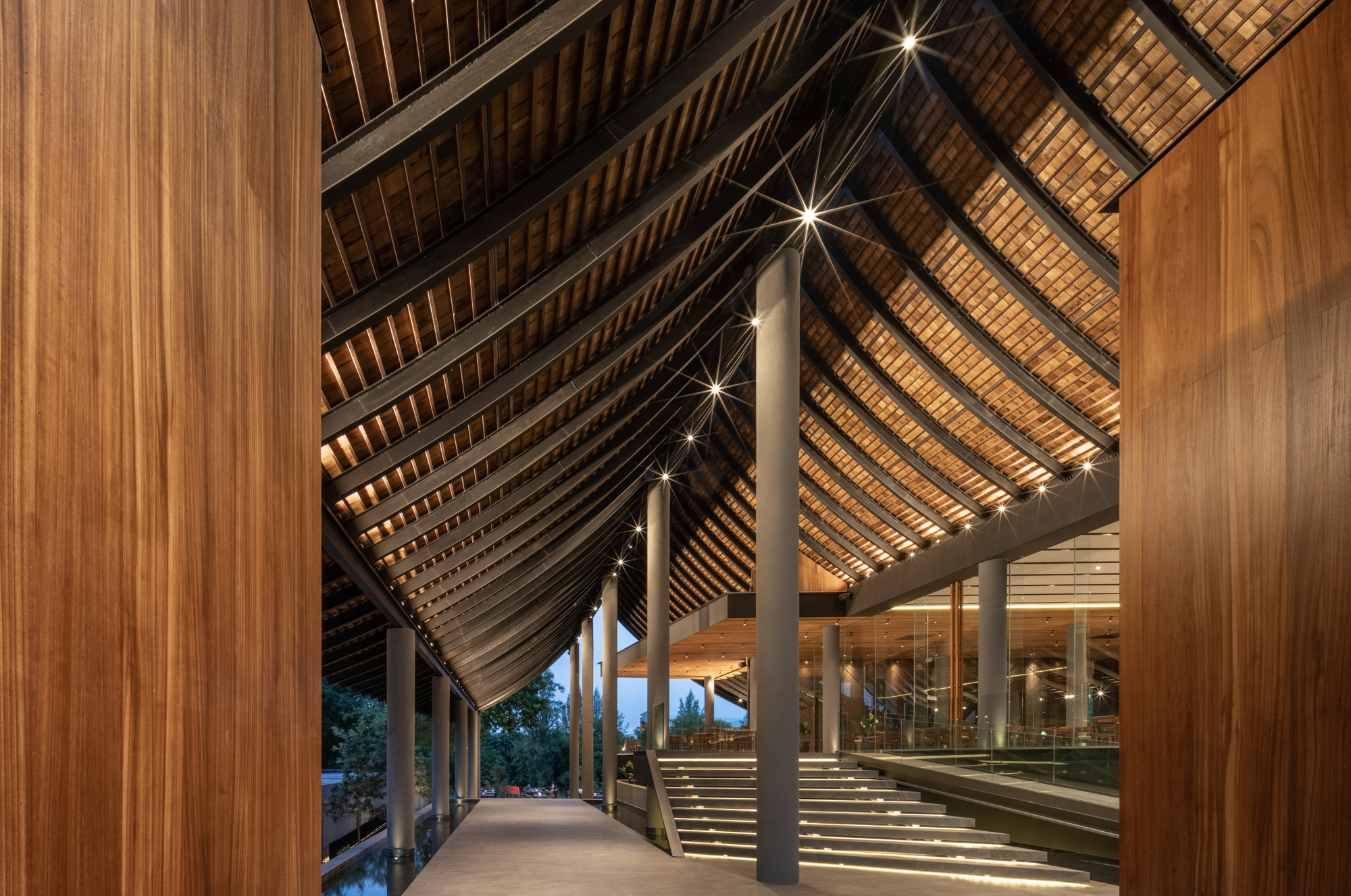

This interpretation resulted in a large curved gable roof that is also functional to the building use; the central ridge is offset and centered along the main entrance, slightly tilted to allow for natural light penetration, creating an axis in a ray of light towards the river.

Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground

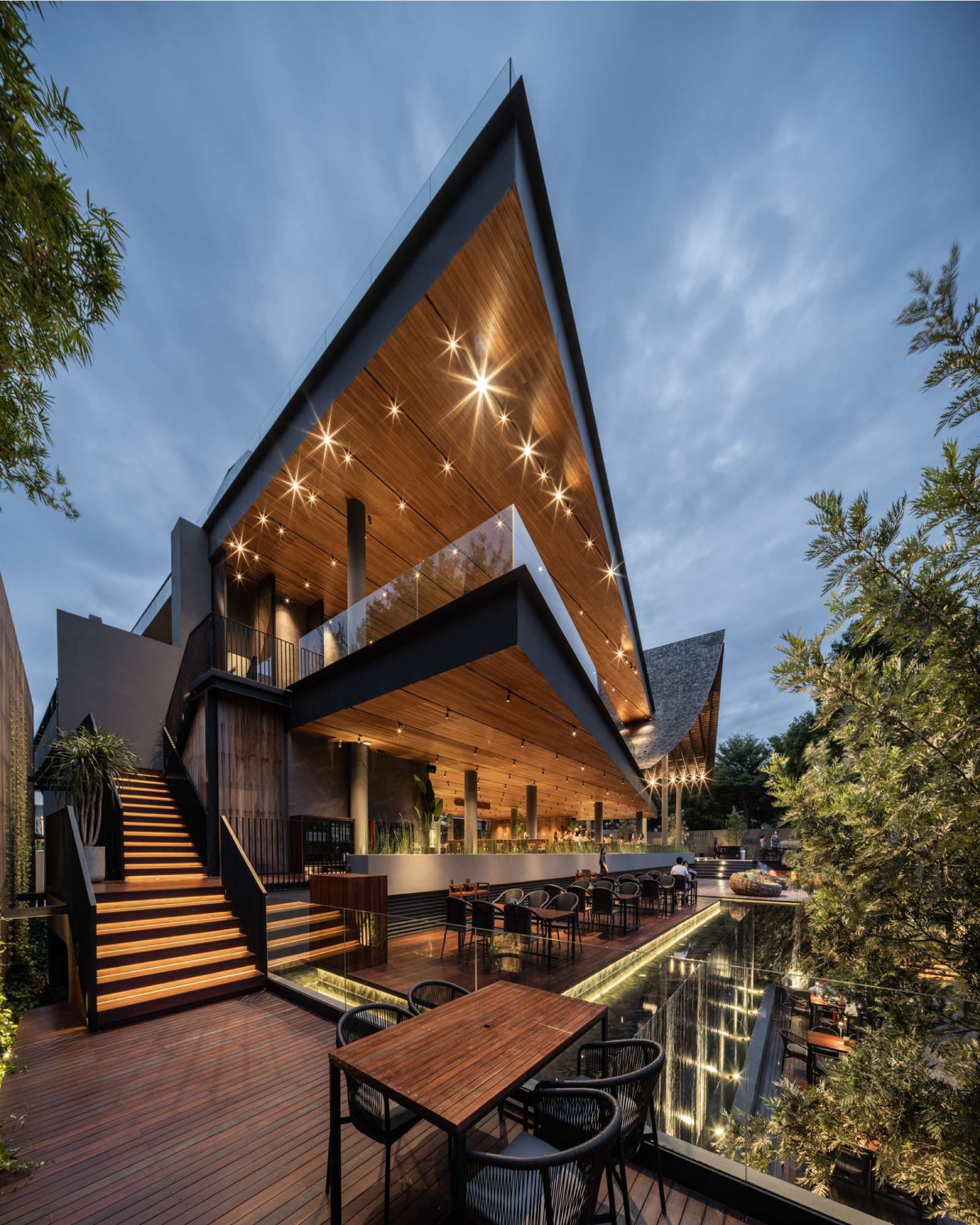

The long side of the gable roof gradually sloped down to reach the floor which seemingly reduces its gigantic roof scale.

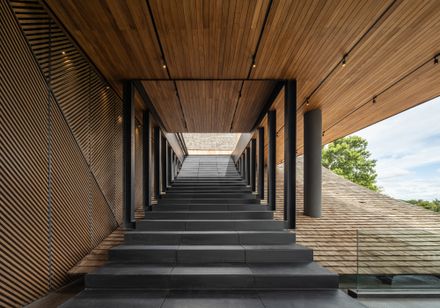

Further, the sloping roof on the riverside also operates as stairs for the users to access the rooftop bar and the roof deck.

Keereetara Restaurant
© DOF Sky|Ground


Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground
Keereetara Restaurant
© DOF Sky|Ground


Keereetara Restaurant
Plan - Ground Floor
Keereetara Restaurant
Plan - 1st Floor
Keereetara Restaurant
Plan - 2nd Floor
Keereetara Restaurant
Plan - Roof Floor


Keereetara Restaurant
Sections AA and BB
Keereetara Restaurant
Sections CC and DD
Keereetara Restaurant
Sections EE and FF
Keereetara Restaurant
Diagram


Keereetara Restaurant
Elevation A
Keereetara Restaurant
Elevation B
Keereetara Restaurant
Elevation C
Keereetara Restaurant
Elevation D
