ARCHITECTS
Bonnifait + Giesen: Atelierworkshop
PHOTOS
Russell Kleyn Photographs (8)
STATUS
Built
AREA
1000 sqft - 3000 sqft
BUDGE
$500K - 1M
YEAR
2013
LOCATION
New Zealand
TYPE
Residential › Private House

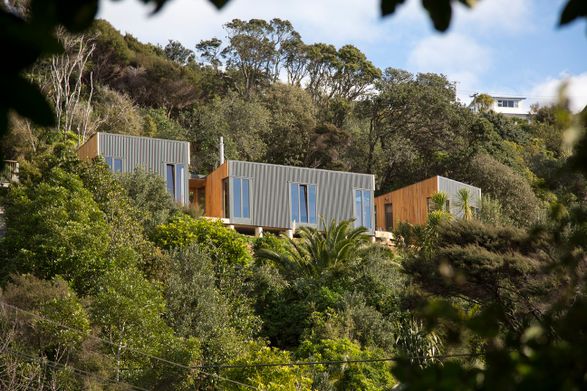

The site is part of a bush covered North East steep slope over looking Hekerua Bay and the outer Hauraki Golf on the northern side of Waiheke Island.
A priority for the client was to keep the site untouched by avoiding as much as possible excavations and retaining the mature trees while opening views and circulations through the bush.
The building is separated into 3 modules separated by courtyard areas.

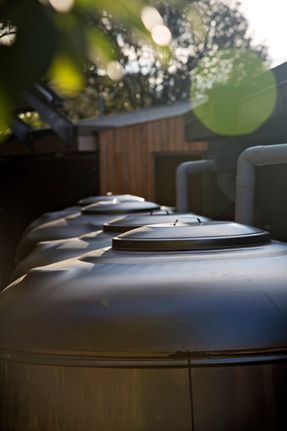

A services spine runs along the southern edge of the house incorporating the water tanks and the “solar foil” which provides the majority of the energy needs of the building.

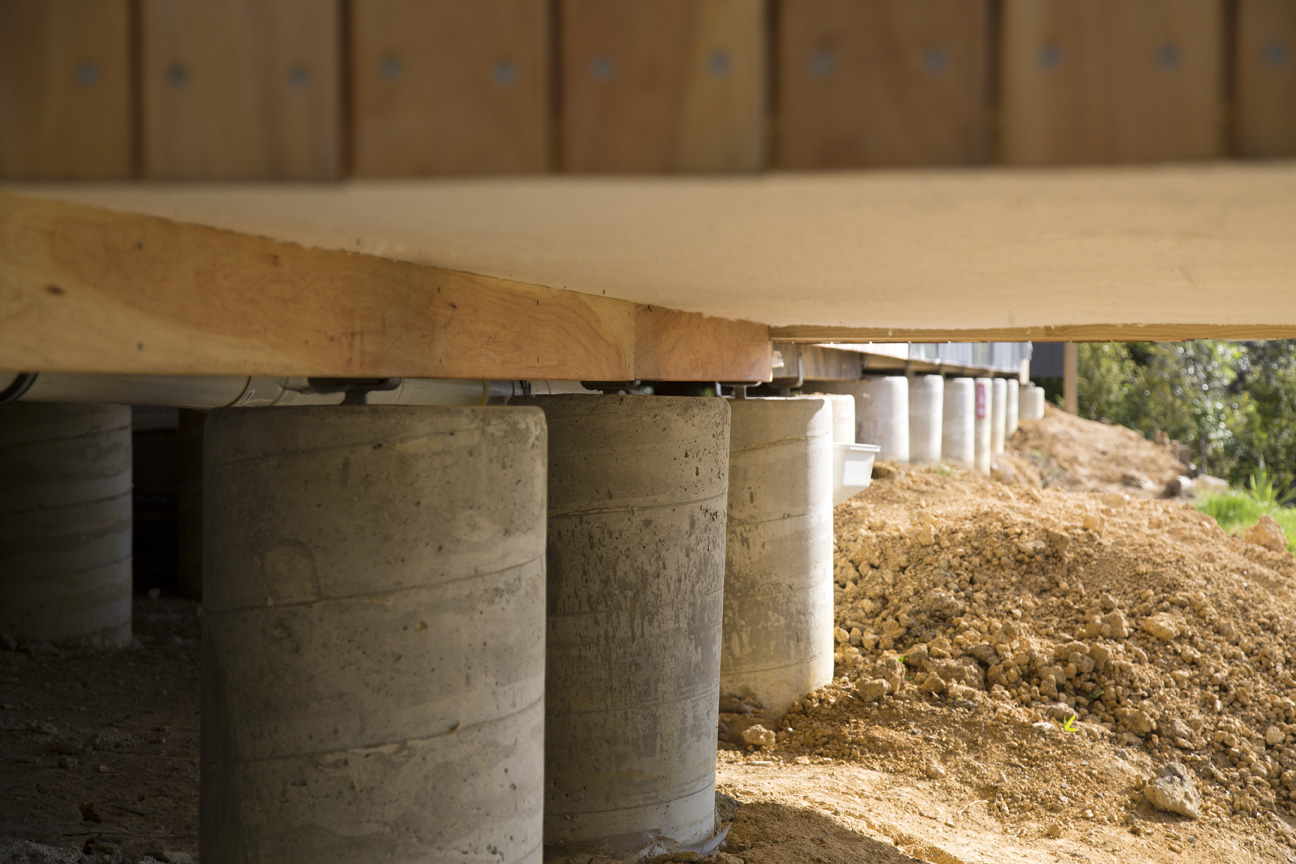

The lack of access to the site meant we used a level of pre-fabrication that allowed the building to be brought to site in modules that could be carried by people.
A new planting plan guided the usable space for construction while the form of the building was kept as simple as possible while maximizing views and entry of winter sunlight.
Services were kept compact and circulation spaces minimized in order to reduce the footprint of the house.
