Casamar Housing Complex

Casamar Housing Complex
© Renzo Rebagliati

Casamar Housing Complex

Cuatro Cero Cuatro Arquitectura

AREA
3466 ft²

CONDOMINIUM
53949 ft2

PHOTOGRAPHS
Renzo Rebagliati

MANUFACTURERS
KLIPEN, Marmoleria Gallos, Miyasato, rossello & cia

LEAD ARCHITECTS
Israel Ascarruz, Diego Hernández

STRUCTURES
Impacta Design & Building

ENGINEERING
MIA Proyectos

PROGRAM
Vivienda(s) de Verano, Zona social (sala, comedor y cocina integrado), Zona Privada ( Dormitorio Principal y 3 Dormitorios Secundarios)

YEAR
2022

LOCATION
Zorritos, Peru

TYPE
Housing

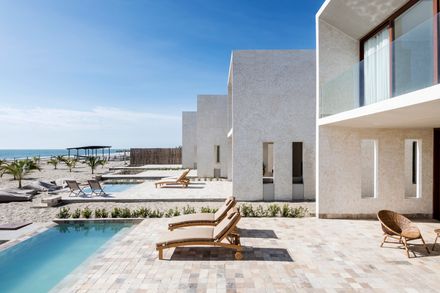

The Casamar housing complex is located by the Northern Peruvian Sea in the Pacific Ocean on a beach in Zorritos, Perú.

Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati

This project originated with five friends who acquired a beach parcel to turn into a personal vacation space whenever they needed it; and, when not, to rent.

The owners divided the lot into five homogeneous parcels, each of 8m by 100m, which led to an elongated house model and contained the same piece of housing that repeats itself 5 times.

Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati

Thus, the Casa M1 materializes. It results in a complex that functions as an individual home for each use and acquires wholeness through the configuration of its elements.

Following the elongated area of each sub-lot, the unit required a long shape to contain the entire individual setting.

Also, owners required privacy between dwelling homes leased to different families, so there had to be complete privacy between adjacent sides of the houses.

Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati

To accomplish this goal, we had to opt for lateral and rear fronts -North, South, and East- extremely 'opaque'; and create strategies to generate a controlled and efficient income of light and air through narrow openings, overhead light, and piecework that would later form balconies. Conversely, towards the West, the front could be very translucent to obtain the best view of the beach.

Each bedroom piece arises under the battling notion of needing to open up for ventilation without allowing a visual record; in addition to being the most intimate part of the program, it had to be placed in one of the private fronts of the piece.

In response, a modular bedroom piece is created, which, through voids on the south front, works with a private patio or balcony that allows it to open to the West, receive the predominant wind from the southwest, and have a view of the sea.

Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati

This would cause the recurrence of this modular piece to become the nucleus of the composition and configuration of the project.

The equatorial climate of high temperatures and torrential rains remained a challenge. For this, thermodynamics plays a vital part and appears as a formal response to the context through ceilings.

The natural light brightens up the bedrooms with overheard lights thanks to the heights and inclinations of the roof.

Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati

In addition, it works harmoniously with the balconies to draw cool air from the wide southwest void and drain hot air through the cross-ventilated northeast clerestory.

The result of this work translates into the fact that, when visiting Casa M1 and the Casamar complex, the user encounters varied and rich situations of exposure to light and air that enriches the spatial route of the work.

Casamar Housing Complex
© Renzo Rebagliati
Casamar Housing Complex
© Renzo Rebagliati

Moreover, they make human activity comfortable, inviting, and pleasant at all times.


Casamar Housing Complex
Section A
Casamar Housing Complex
Section B+C+D


Casamar Housing Complex
Sketch Axo
Casamar Housing Complex
Sketch Bedroom


Casamar Housing Complex
Plans
Casamar Housing Complex
Sketch Plot Plan


Casamar Housing Complex
Axonometry
Casamar Housing Complex
Casamar Negative
