ART CENTRE VIHRONY

Vision Consulting

ARCHITECTS
Vision Consulting

CATEGORY
Gallery, Cultural Center

YEAR
2022

PHOTOGRAPHS
Assen Emilov

MANUFACTURERS
Bespoke Ceramics , Baux, Bramac, Knauf

LEAD ARCHITECTS
Eva Popnedeleva

STRUCTURAL DESIGN AND CONSTRUCTION MANAGEMENT
Borislav Aleksandrov

STRUCTURAL DESIGN
Mihail Ralev

AREA
700 m²

LOCATION
Dolno Kamartsi, Bulgaria

PAINTINGS
Vihrony Popnedelev

PROGRAM / USE / BUILDING FUNCTION
Art Centre And Gallery

Bulgarian studio Vision consulting has been working for almost three years within the challenging technical constraints of existing school canteen building transformed into an Art centre.

Originally the existing building was built in the early 80 s, and had typical design characteristics of Communist era.Local people without any qualification had been involved in the works which reflected on poor construction quality.

Art Centre Vihrony
© Assen Emilov
Art Centre Vihrony
© Assen Emilov
Art Centre Vihrony
© Assen Emilov

The character of the building and public realm were dated and did not encourage the visitors to linger.

The building has been abandoned for years and almost ruined. At least 30 % of the load bearing structural members were missing which added more challenge to the already tight budget.

However our proposal aimed to reuse the existing structure whilst improving the quality of the facades and increasing the gallery space. A proactive approach to sustainable reuse put the retention of the existing basement to first floor structure at the forefront of the design.

Art Centre Vihrony
© Assen Emilov
Art Centre Vihrony
© Assen Emilov
Art Centre Vihrony
© Assen Emilov

The regeneration of the centre was impeded by a number of challenges particularly in the time frame of 2020-2022. Our response was to simplify the design and focus on three dimensional thinking rather than on expensive materials.

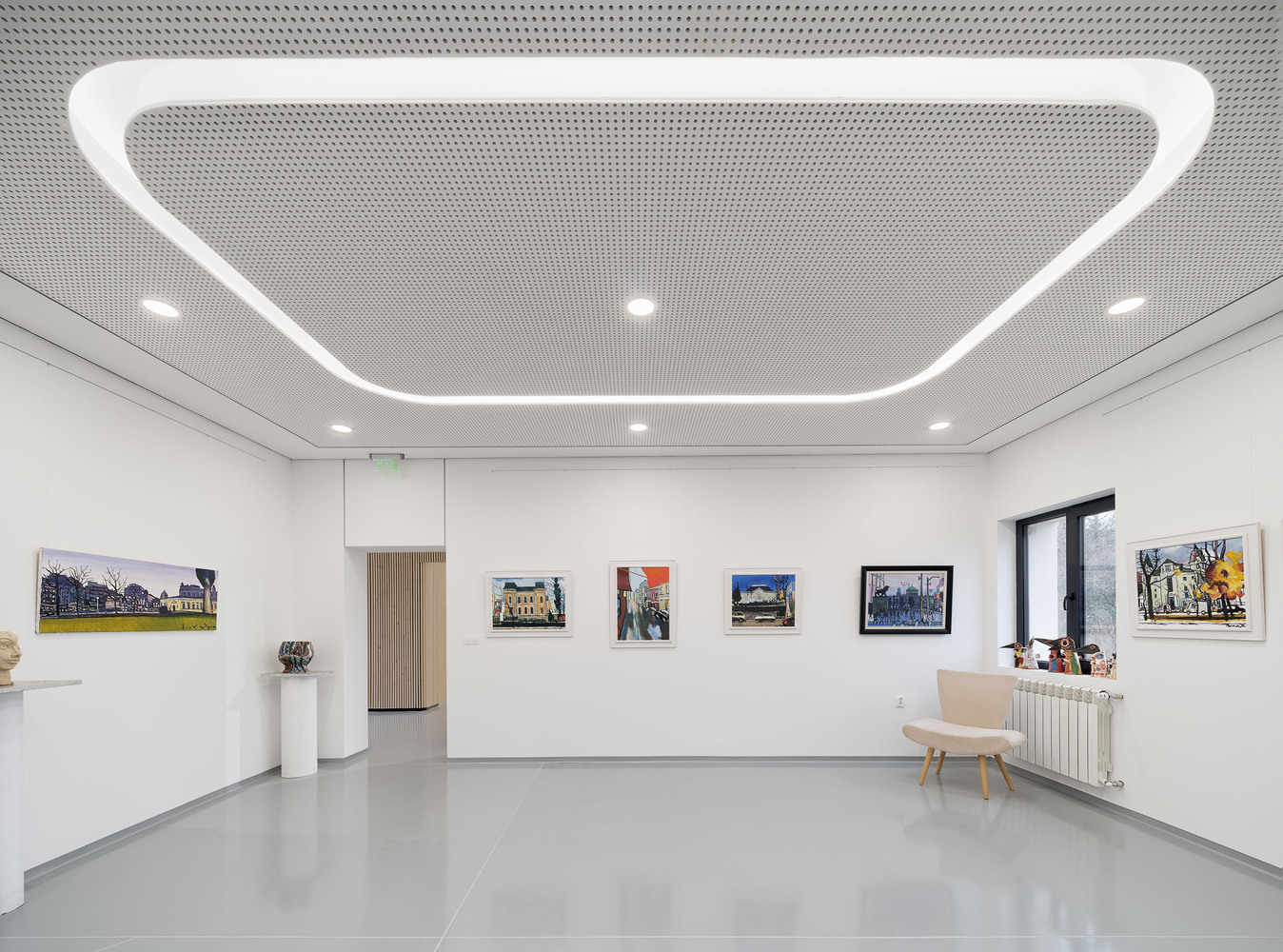

On the Ground floor level all partition walls of the old canteen were demolished to simplify the space and provide more spacious exposition area to the Gallery.

Art Centre Vihrony
© Assen Emilov
Art Centre Vihrony
© Assen Emilov

The project introduced an all new top floor extension with Art Depot to accommodate a lifetime Art Collection of the Client.

The goal to provide open space layout free of columns was achieved by designing a single span timber frames. Innovative engineering and contemporary structural techniques applying Glulam and epoxy timber column-rafter connections was adopted.

Art Centre Vihrony
© Assen Emilov
Art Centre Vihrony
© Assen Emilov

The slab between Ground floor and First floor levels was partially demolished which added more volume to the space and more flexibility in terms of art showcasing.

During the design process we worked in close collaboration with artists to enhance craftsmanship and art involvement in the project.

The entrance area features a floor to top façade cladded with reclaimed timber manually formed and etched by a local artist.

Art Centre Vihrony
© Assen Emilov
Art Centre Vihrony
© Assen Emilov
Art Centre Vihrony
© Assen Emilov

At least 70 % of the materials were reused in a form of public art. Some of the materials available on site, such as the floor terrazzo and existing concrete beams were integrated within the interior design enhancing the contrast between old and new.

The part-demolition, part-extension and complete refurbishment will reinvigorate the building into an attractive artistic destination. At least 80 % of the original structure was retained which cuts the building’s embodied carbon by over half compared to a new building.

Art Centre Vihrony
© Assen Emilov
Art Centre Vihrony
© Assen Emilov

The Framework, trough targeting realistic and deliverable interventions in the short term seeks to promote Art Centre Vihrony as a vibrant cultural place which acts as a focal point for cultural and art life in Bulgaria. This in turn will assist in the more permanent regeneration and rejuvenation of the local area.


Art Centre Vihrony
Existing - Section
Art Centre Vihrony
Proposed -Section


Art Centre Vihrony
Existing - Ground floor
Art Centre Vihrony
Proposed - Ground floor
Art Centre Vihrony
Existing - First floor
Art Centre Vihrony
Proposed - First floor
Art Centre Vihrony
Proposed - Top floor
