Querkraft Architekten ZT GmbH

IKEA Store

IKEA Store
© Heausler

IKEA STORE

Querkraft

ARCHITECTS
Querkraft

GREEN SPACES
Kräftner Landschaftsarchitektur, Green4cities

BUILDING PHYSICS
Ingenieurbüro P. Jung

COST MANAGEMENT
Fse Ruhrhofer & Schweitzer Gmbh

STRUCTURAL ENGINEER
Thomas Lorenz Zt Gmbh

ELECTRICAL ENGINEER
Tb Eipeldauer + Partner Gmbh

BUILDING SERVICES
Rhm Gmbh

COST MANAGEMENT
Werner Consult Ztgmbh

CLIENT
Ikea Österreich

PHOTOGRAPHS
Heausler, Hertha Hurnaus

AREA
29480 m²

YEAR
2022

LOCATION
Vienna, Austria

CATEGORY
Store, Retail Interiors

Car-free + urban. This building makes an important contribution to the future of a living and ecological city and also to the future of retailing – this is an urban IKEA with excellent connections to the public transport system and an inviting roof terrace – a good neighbor.

From a three-phase architecture competition involving several workshops querkraft emerged as the winner. At the briefing stage already, the client formulated the aim: “We want to be a good neighbor”. querkraft’s approach to achieving this goal is reflected by a building that represents an added value, also for its surroundings.

IKEA Store
© Heausler
IKEA Store
© Hertha Hurnaus
IKEA Store
© Hertha Hurnaus

The roof terrace is accessible to the public that offers somewhere to drink coffee, relax, and enjoy the view of the city, and a large amount of greenery on all the facades – these are all aspects that contribute to being “a good neighbor”.

External shelving. The building’s external shell recalls a set of shelves. This about 4.5-meter-deep, shelf-like zone runs around the building and provides shade. It allows spaces to expand and provides room for terraces and greenery, as well as for servant elements like lifts, escape stairs, and building services.

IKEA Store
© Hertha Hurnaus
IKEA Store
© Heausler

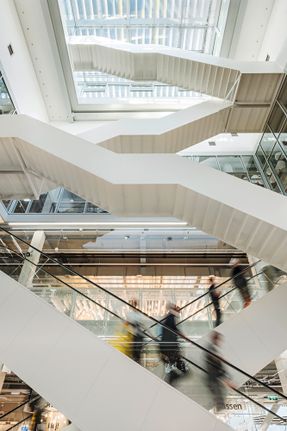

Openness allows interaction. The entrance level is a lively place – a generous void will link it to the retail areas that stretch in front of it along mariahilfer straße. A void extending right through the interior of the building will allow visual contact between the different stories.

60 trees on and around the building. Trees on the facade and on the roof have a perceptible impact on the microclimate. As the trees could be placed at different heights and depths in the building there is more planting than would be possible on the building’s ground area.

IKEA Store
Section
IKEA Store
South elevation

In the “Urban Heat Island-Strategy Plan“ of the City of Vienna planting is one of the most important measures. The climbing plants and trees of the IKEA furniture store have a cooling and humidifying effect – like a kind of natural air conditioning system.

The air temperature will be improved at the pedestrian level, too. Computer simulations indicate a relevant temperature decrease of 1.5°C.

IKEA Store
Rooftop plan
IKEA Store
Site plan

Centralized + efficient building services. To ensure efficient conditioning of the building the services are based on a simple principle: short distances and direct access. In the building, the infrastructure is left visible, which increases the perceived height of the space.

Mix of functions through open floor plans. The prefabricated reinforced concrete columns stand on a c. 10 x 10-meter grid that allows flexibility in the use and design of the spaces.

IKEA Store
Retail
IKEA Store
Hostel

Adaptations to meet changing demands can be made easily, as is already becoming apparent. Ikea retail occupies the lower floors, and the jo&joe hostel with 345 beds is located on the top two floors. This mix creates a building that is alive 24 hours a day, 7 days a week.

To ensure the optimal implementation of this car-free, inner-city IKEA an almost entirely female team of architects under Carmen Hottinger as querkraft’s project manager is working in close collaboration with the client.

IKEA Store
