Tigermandiri Office Building

Tigermandiri Office Building
© Kafin Noe’man

Tigermandiri Office Building

Csutoras & Liando

CONSTRUCTION MANAGER
Penta Mitra Sejahtera

STRUCTURAL ENGINEERING
Pt. Sentra Reka Struktur

MANUFACTURERS
Jung, Dormakaba, 3+ Projects , Bristol, Daikin, Kone, Lantai, Sandei Blinds, The Schuco Group, Toto

M&E ENGINEERING
Pt. Emse Mitra Membangun

QUANTITY SURVEYOR
Graha Estimatika Pradana

ARCHITECTS
Laszlo Csutoras, Melissa Liando, Matthew Aditya, Edmund Santos

MAIN CONTRACTOR
Kencana Sewu Persada

PHOTOGRAPHS
Kafin Noe’man

AREA
3700 m²

YEAR
2022

LOCATION
Jakarta, Indonesia

CATEGORY
Office Buildings

The new office headquarters of Indonesian manufacturing company Tigermandiri is located in the rapidly transforming district of Cideng on the edge of Jakarta’s CBD.

Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man

The building faces a busy main road, whose 2-3 storey buildings are being gradually replaced by larger, up to 8-story tall commercial developments.

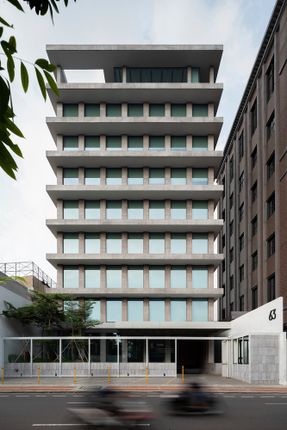

The building appears as a stack of terrazzo slabs held up by rows of repetitive terrazzo columns.

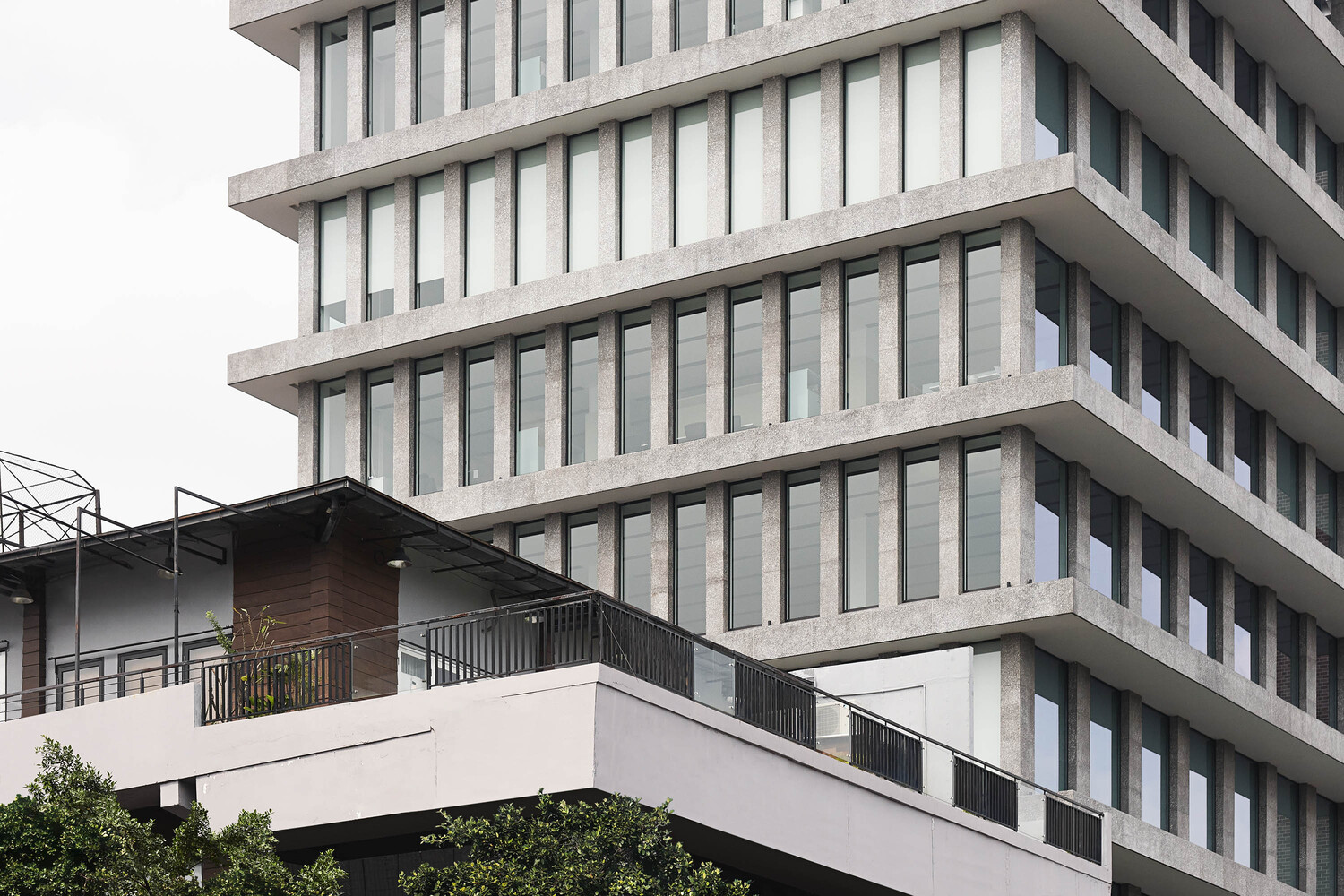

The slabs project over the line of the columns to provide shading and protection from the rain.

Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man

In response to the site’s orientation, the projection is deeper at the front and rear elevations, while the rhythm of the columns is denser on the sides.

In addition to providing efficient sun shading, the facade articulation also responds to the difference in privacy requirements between the front and rear where there aren’t any buildings in proximity, and the sides where zoning allows for tall neighbors only meters apart from each other.

Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man

The entrance area to the building is elevated by 1.2 meters and is separated from the street by a glass screen, which serves as an acoustic barrier from the busy traffic artery it faces.

A large glass and perforated metal canopy over the entrance and the car drop-off area provide protection from the torrential rains Jakarta experiences during its rainy seasons.

Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man

Over a semi-basement car park, the first floor accommodates a reception, a lobby with a small café, and a showroom displaying products made by the company.

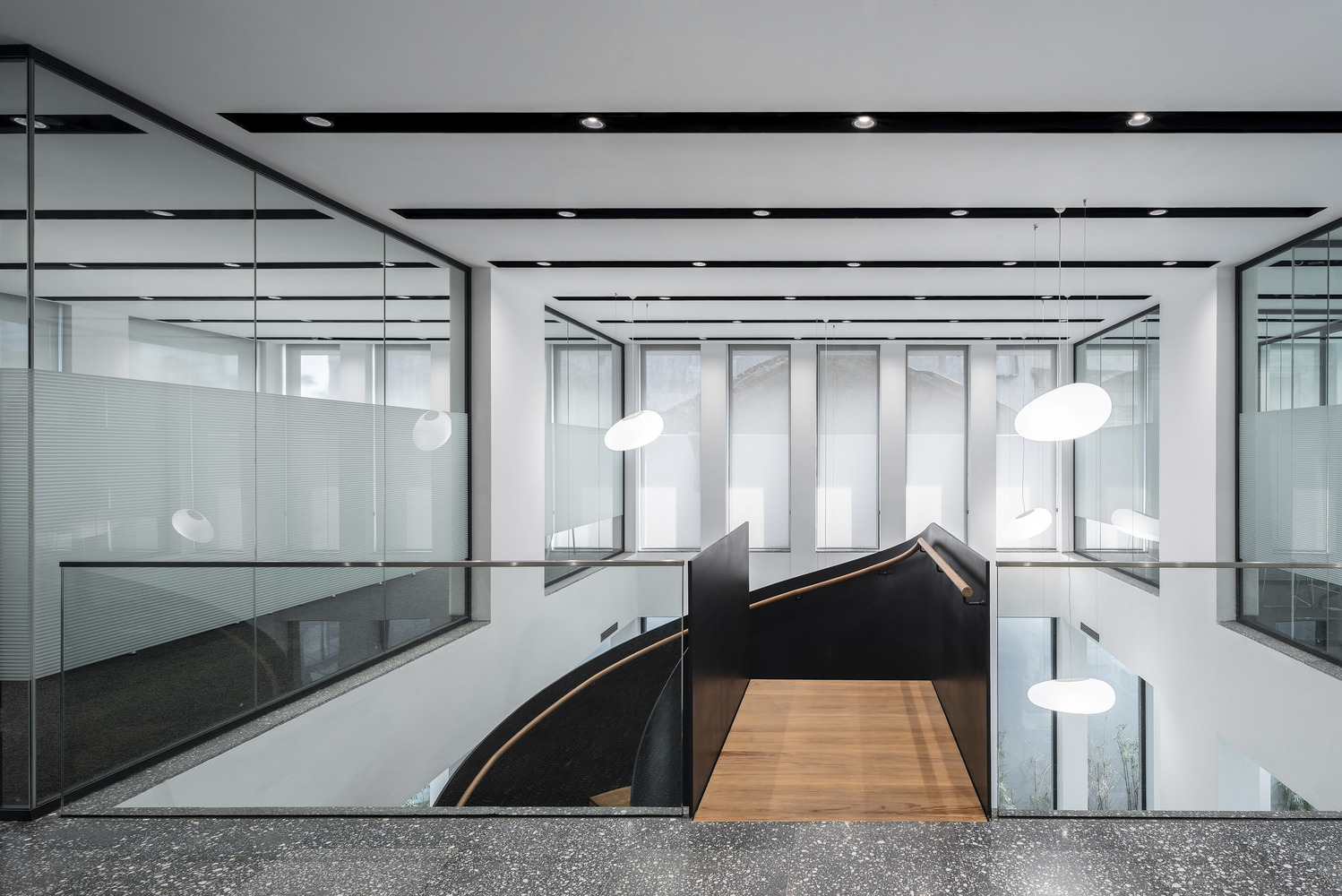

A spiral staircase in the double-height central void connects to the mezzanine level, which houses several meeting and dealing rooms. The second floor is home to a generous, flexible canteen space, which can be used for company functions and training as well.

Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man

The five floors above provide flexible, efficient office space with the lift core and building services designed to allow for different office configurations.

The top floor houses the company director’s office and lounge and a 20-person conference room overlooking a green roof terrace.

Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man

The building was designed to achieve an enduring presence through its tectonic qualities, which contrast with the nondescript glass curtain walls predominantly used for contemporary commercial architecture in Jakarta.

It is hoped that the building’s passive response to the tropical environment and the use of low-maintenance materials in combination with flexible engineering solutions will allow it to withstand the rapid, and hardly sustainable, cycles of urban renewal that have been accompanying Jakarta’s emergence as one of the world’s largest urban centers.

Tigermandiri Office Building
© Kafin Noe’man


Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man


Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man
Tigermandiri Office Building
© Kafin Noe’man


Tigermandiri Office Building
North Elevation
Tigermandiri Office Building
West Elevation
Tigermandiri Office Building
Section


Tigermandiri Office Building
Plan - Basement
Tigermandiri Office Building
Plan - Ground Floor
Tigermandiri Office Building
Plan - Mezzanine Floor
Tigermandiri Office Building
Plan - 2nd Floor
Tigermandiri Office Building
Plan - 5th Floor
Tigermandiri Office Building
Plan - 7th Floor
Tigermandiri Office Building
Plan - 8th Floor
