Casa Aa

CASA AA

Ir Arquitectura

Casa Aa

ARCHITECTS
Ir Arquitectura

STATUS
Built

AREA
1000 sqft - 3000 sqft

YEAR
2015

LOCATION
Buenos Aires, Argentina

CATEGORY
Residential › Private House

Casa Aa

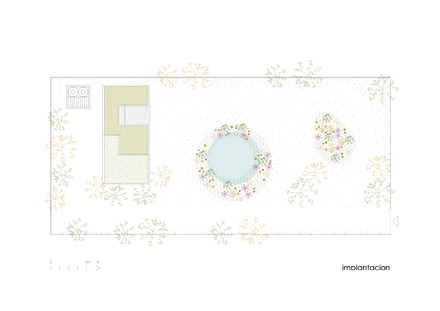

AA House is located in a neighborhood of villas in Tortuguitas, Buenos Aires.

Its position in the lot guarantees the best solar incidence range on the north side, on which all the main rooms of the house are laid out.

Casa Aa
Casa Aa

On the other hand, it provides a form of processional visual approach to its visitors.

The architectural model is determined by two systems, one formal and the other constructive. The first is a sequence of 4 variations in section formed by one or two inclined planes.

Casa Aa
Casa Aa

Each section, extruded in varying depths, contains program (main bedroom-bathroom-dresser, greenhouse-desk, gallery-bedroom-kitchen and secondary bedrooms-bathroom-game room) that takes advantage of the spatial condition of each section.

These programmatic-volumes are arranged in plan so that the program is divided into two distinct areas, adult and children, mediated by a common area.

Casa Aa
Casa Aa

The second constructive system is what gives meaning to the general modulation of the whole piece.

The load-bearing box is made up of wooden racks assembled in a workshop, completing the structural system with beams of the same material arranged in line with the modulation of the uprights and glued laminated beams of larger section to cover the spans where the wall continuity is interrupted.

Casa Aa
Casa Aa

This supporting skeleton is the perfect support for the components that complete the sense of the form of the house, due to its material characteristics.

Outside, the walls are clad with vertical planks in elevation.

Casa Aa
Casa Aa
Casa Aa

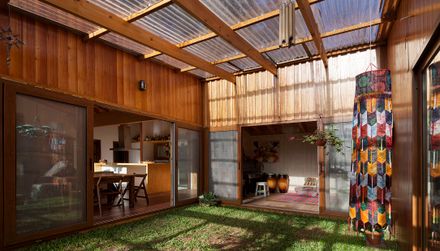

Two elements interrupt this logic, the framing level that connects the living room to the gallery and the facade-roof greenhouse, the latter resolved with transparent corrugated polycarbonate.

Inside, the spaces between studs have mud walls, tested with the technique called "wet thatch" and finished with a fine blend of clay to achieve even finishes.

The wall solution, combined with the green roof that covers the entire roof surface, results in a high thermodynamic performance envelope for its ability to absorb ambient moisture and natural temperature regulation.
