Rancho Sierra Allende

RANCHO SIERRA ALLENDE

Fabian M Escalante H Arquitectos

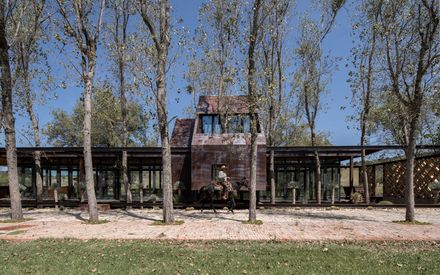

Rancho Sierra Allende
© Jorge Succar

ARCHITECTS
Fabian M Escalante H Arquitectos

STATUS
Built

PHOTOS
Jorge Succar

AREA
0 sqft - 1000 sqft

BUDGET
$0 - 10K

YEAR
2020

LOCATION
San Miguel de Allende, Mexico

CATEGORY
Residential › Private House

Rancho Sierra Allende
© Jorge Succar

Located in a natural area, next to a body of water, the Terrace / Rancho Sierra Allende's main function is to provide a respite from the bustle of the city to its inhabitants.

It is configured as an ideal place to rest and develop social activities, enjoying the views of the dam and the trees that surround it.

Rancho Sierra Allende
© Jorge Succar
Rancho Sierra Allende
© Jorge Succar

The building was projected as one more element of the landscape, in it all the trees were preserved, seeking harmony with the natural context.

The functional scheme responds to the needs of recreation and a continuous relationship between the interior and the exterior generating a 360º view. The functional scheme has two entrances and lateral circulation cores that articulate the program

Rancho Sierra Allende
© Jorge Succar
Rancho Sierra Allende
© Jorge Succar

To the east, it is accessed through a footbridge that welcomes you with a curtain wall of ceramic lattice that provides privacy to the interior space.

In the west is a large terrace that functions as an entrance hall and is an extension of the interior space that has the dining room, grill and food preparation area.

Rancho Sierra Allende
© Jorge Succar
Rancho Sierra Allende
© Jorge Succar
Rancho Sierra Allende
© Jorge Succar

In the main gabled volume are the family room, dining room and bar, which has a double height.

These spaces are connected to the outside and extend to the main terrace overlooking the dam.

The design of the terrace is articulated with the South walkway, bordered by a curtain of trees, and the North with a view of the dam.

Rancho Sierra Allende
© Jorge Succar
Rancho Sierra Allende
© Jorge Succar

Materials from the region (wood, clay and basalt) were integrated in its construction, the structure is a combined system of steel elements and wooden beams.

In the lower part of the terrace, concrete piles were designed that, regardless of their structural function, have the main objective of separating the terrace from contact with water, while the upper part is built with slender steel columns.

The façade had folding PVC double-glass door system, it’s also used as thermal insulator that provides daylight and ventilation.

Rancho Sierra Allende
© Jorge Succar
Rancho Sierra Allende
© Jorge Succar
Rancho Sierra Allende
© Jorge Succar

The main gabled volume is lined with a steel sheet with an oxide finish, low maintenance and with thermal insulation on both sides. The lattice is designed with pieces of ceramic, placed at 47 °, the same inclination as the gabled roof.

The project formally and schematically highlights a volumetry and simple organization; as well as the combination of the use of current and old construction systems, which go hand in hand with the use of materials from the site handcrafted to achieve a distinctive aesthetic.

The end result takes care of and respects the environment by implementing passive cooling systems. Natural resources are reused, the design captures rainwater and wastewater are treated for reuse in the irrigation of garden areas.

Rancho Sierra Allende
© Jorge Succar
