Kariouk Architects

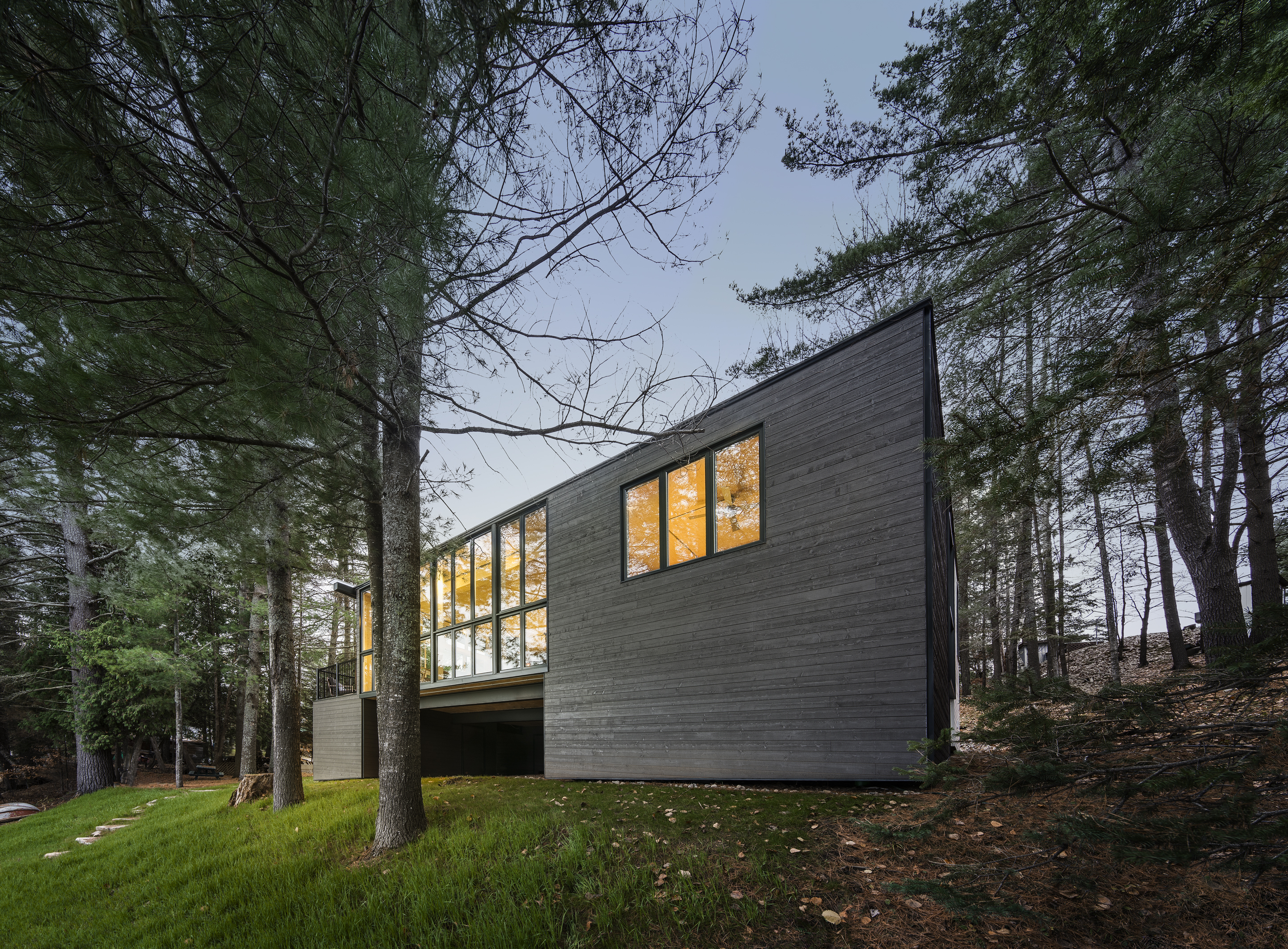

Cross-Laminated-Timber Cottage

Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde

Cross-Laminated-Timber Cottage

Kariouk Architects

STATUS
Built

AREA
0 Sqft - 1000 Sqft

PHOTOS
Photolux Studio/christian Lalonde , Kariouk Architects

YEAR
2014

LOCATION
QC, Canada

CATEGORY
Residential › Private House

TASK:

To design a small cottage using prefabricated cross-laminated-timber (CLT) to minimize costs.

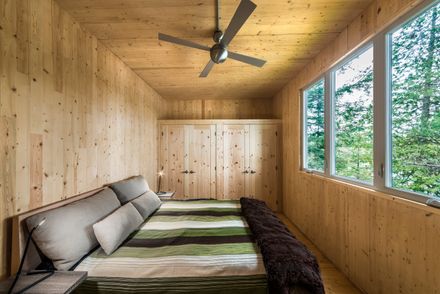

Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde

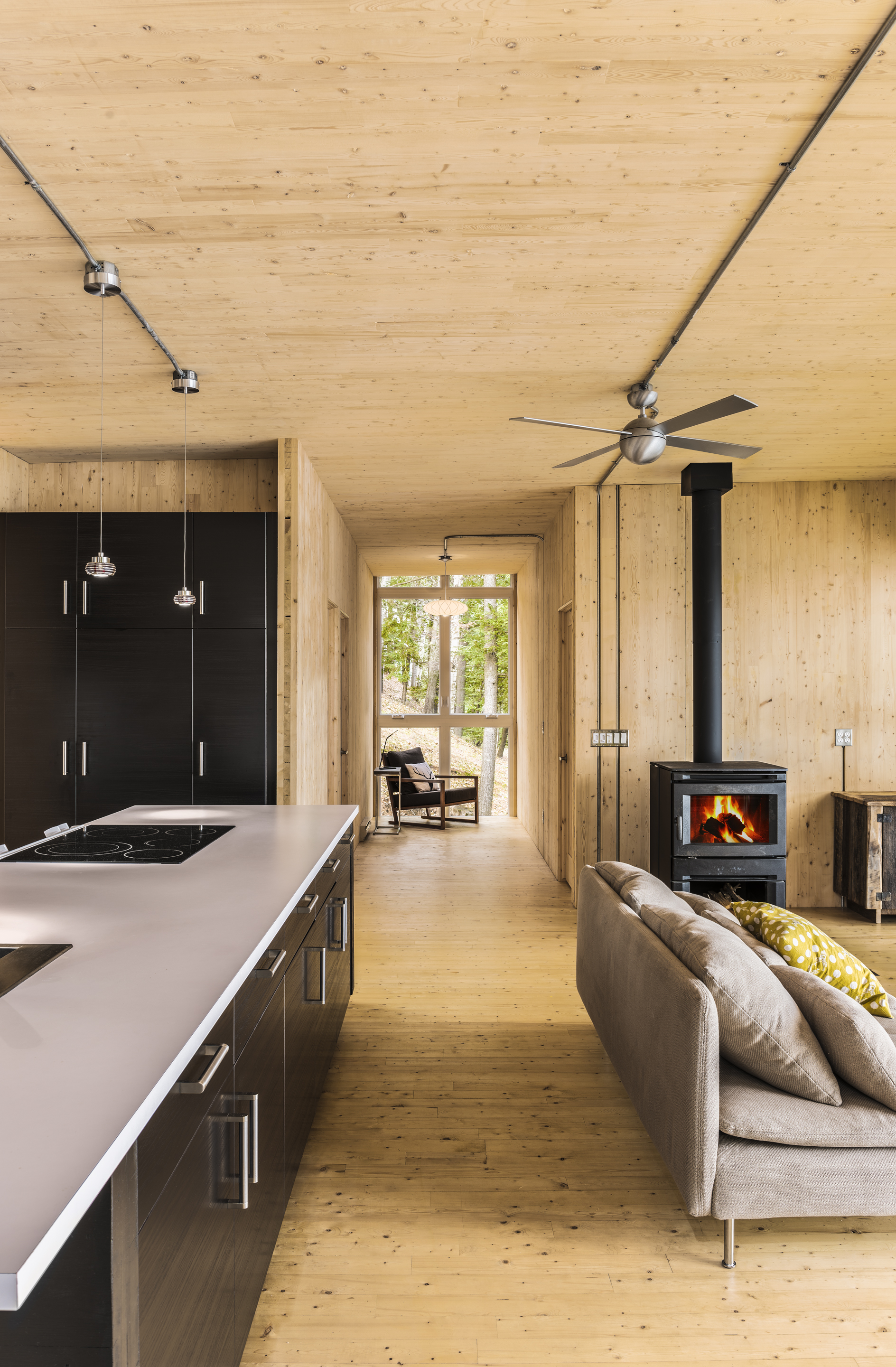

Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde

DESIGN CHALLENGE:

The site for this project is a remote, private lake beside which for more than seventy years existed a family’s cottage.

When the land passed from mother to son, the decision was made to reinvigorate the home; ultimately, because the home had already reached such an advanced state of decay, it was decided to have it removed and to build a new cottage.

Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde
Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde

For sentimental reasons, the new home was to be the exact dimensions of the former and was to sit in the exact same location. Aside from those requirements, a far more open spatial arrangement was desired.

The cottage was only intended for three-season use (the Manhattan couple for whom it was being built intended to spend winters in warmer climates).

Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde
Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde

The house design was simplified because significant insulation was not required; however, construction intentions were complicated by the fact that the remote location meant that the cost of labor “commuting” from the city would be extremely costly.

DESIGN SOLUTION:

In order to minimize the cost of workers on the construction site while simultaneously ensuring the highest quality of construction, the decision was made early on to pursue the use of prefabricated parts.

Specifically, the material selected was CLT, which can be fabricated in panels as large as 60 feet by 10 feet. A detailed computer model was generated for every surface that would comprise the cottage whereby every opening and cut needed for assembly, apertures, and services was indicated.

This information was then sent to a computer-controlled milling machine that produced the finished panels.

Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde
Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde

These were brought to the site, where a steel-post foundation was installed the week before and hoisted into place; the entire shell of the cottage was assembled in less than two days.

While the technology to mill the CLT panels is “modern,” the cottage is in fact identical in construction and materiality to a traditional log home for which fully milled elements are simply joined together.

Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde


Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde
Cross-Laminated-Timber Cottage
©Kariouk Architects

Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde
Cross-Laminated-Timber Cottage
©Photolux Studio/christian Lalonde
