ARCHITECTS
noarq

AUTHOR
arch. jose carlos nunes oliveira

STATUS
built

GAS AND AVAC PROJECT
eng. ricardo vasques – apro engenharia.

CONSTRUCTOR
josé moreira sampaio lda

COLLABORATORS
arch. hugo araújo; arch. joana l.p; arch. daniel viana.

HYDRAULIC PROJECT
eng. rossana pereira –gepec trofa

STRUCTURAL PROJECT
eng. afonso serra neves – gepec trofa

TOPOGRAPHY
antónio carlos ferreira

PHOTOGRAPHY
joão morgado

BUDGET
$100k - 500k

SIZE
0 sqft - 1000 sqft

YEAR
2017

LOCATION
Vila Nova de Famalicão, Portugal

CATEGORY
residential › private house

ED & JO House 2017

The project was to demolish a single-family dwelling and build another one in its place in the centre of V. N. de Famalicão.

The proposal was made for a triangular urban plot of land covering an area of 940.80 m².

The topography includes a 7.60 m slope down from west to east, so the elevations in the corner converge with those on the surrounding roads.

ED & JO House 2017
ED & JO House 2017
ED & JO House 2017

The building on the site was of poor quality.

Everything was demolished apart from the garage, below the elevation of the patio with level access from the road at the lower level.

The surrounding walls also held back the earth, below the street level to the west and above street level to the east.

ED & JO House 2017
ED & JO House 2017
ED & JO House 2017

The house has a 367.20 m² footprint and a gross area of 408.90 m² on two floors.

Floor 0 is 99.30 m² and it was rehabilitated and expanded, preserving the garage, entrance, vertical access and storage area.

Floor 1, at the level of the interior of the plot, is 309.60 m², and this is where the main structure of the house is – service area, social zone and reserved zone.

ED & JO House 2017
ED & JO House 2017

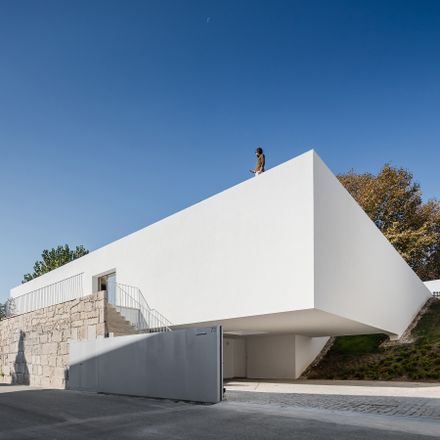

The land is highly exposed because of the different topographies between the adjoining streets: this is why the house sits 1 m from the western boundary, below the street and does not show any wall or elevation.

It is closed to the north for urbanistic and thermal reasons.

ED & JO House 2017
ED & JO House 2017

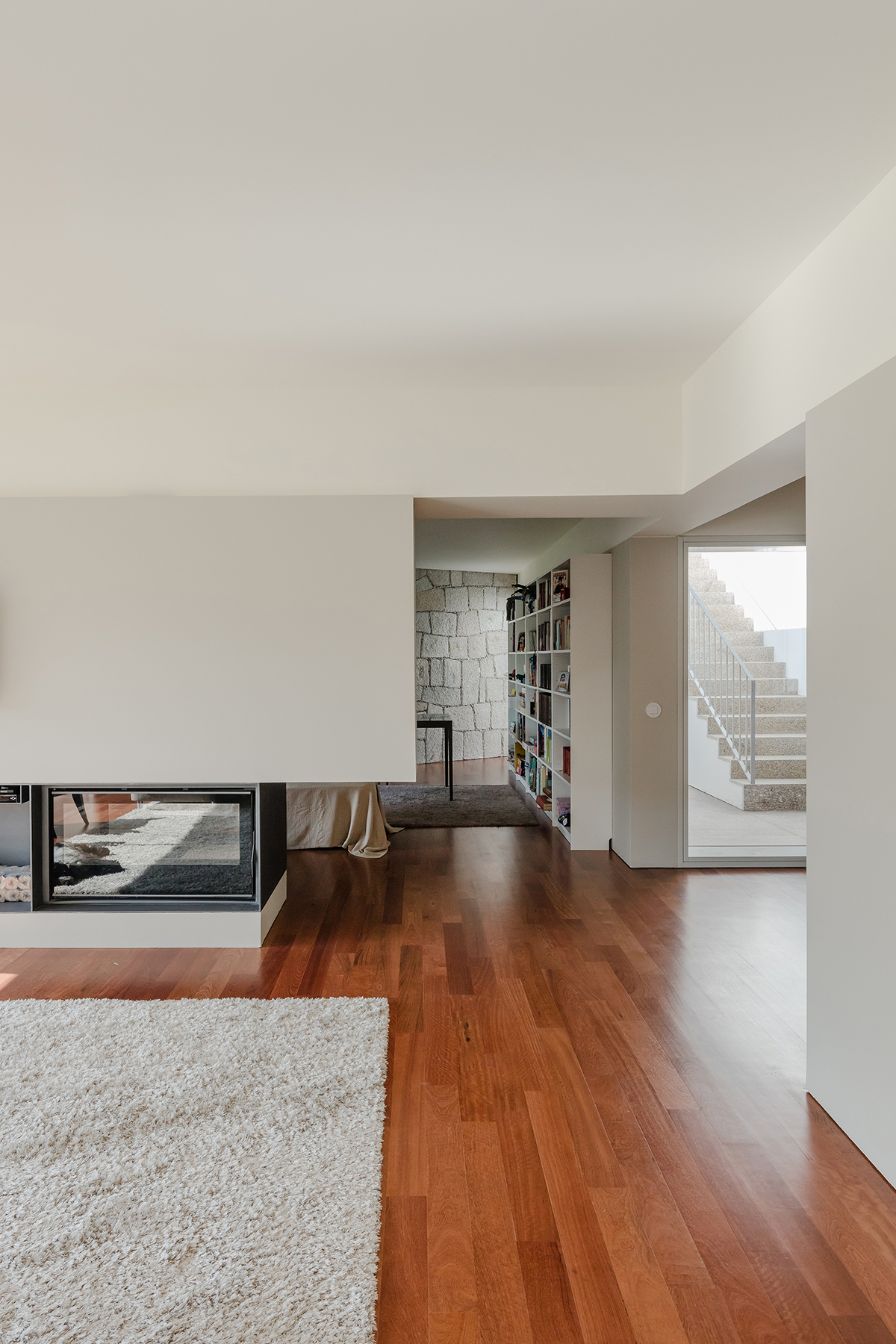

This is also why the house is open to the east where light enters the kitchen and the whole of the south-facing front is open under a curved shade cover.

The illumination of the other rooms comes from small patios cut out of the volume. –Patio 1, allows access from Rua Vieira da Silva; –Patio 2, illuminates the dressing room and the bathroom attached to the main bedroom;

ED & JO House 2017
ED & JO House 2017

–Patio 3, illuminates the 3 bedrooms; –Patio 4, for service, illuminates the kitchen and laundry.
