KNITCANDELA

ETH Zurich, Block Research Group

SHORT CREDITS
Block Research Group, ETH Zurich (BRG), Zaha Hadid Architects Computation and Design Group (ZHCODE), Architecture Extrapolated (R-Ex)

BUDGET
$10K - 50K

SIZE
0 sqft - 1000 sqft

YEAR
2018

LOCATION
3000, Insurgentes, Ciudad Universitaria, Ciudad de México, Mexico

CATEGORY
Cultural › Pavilion

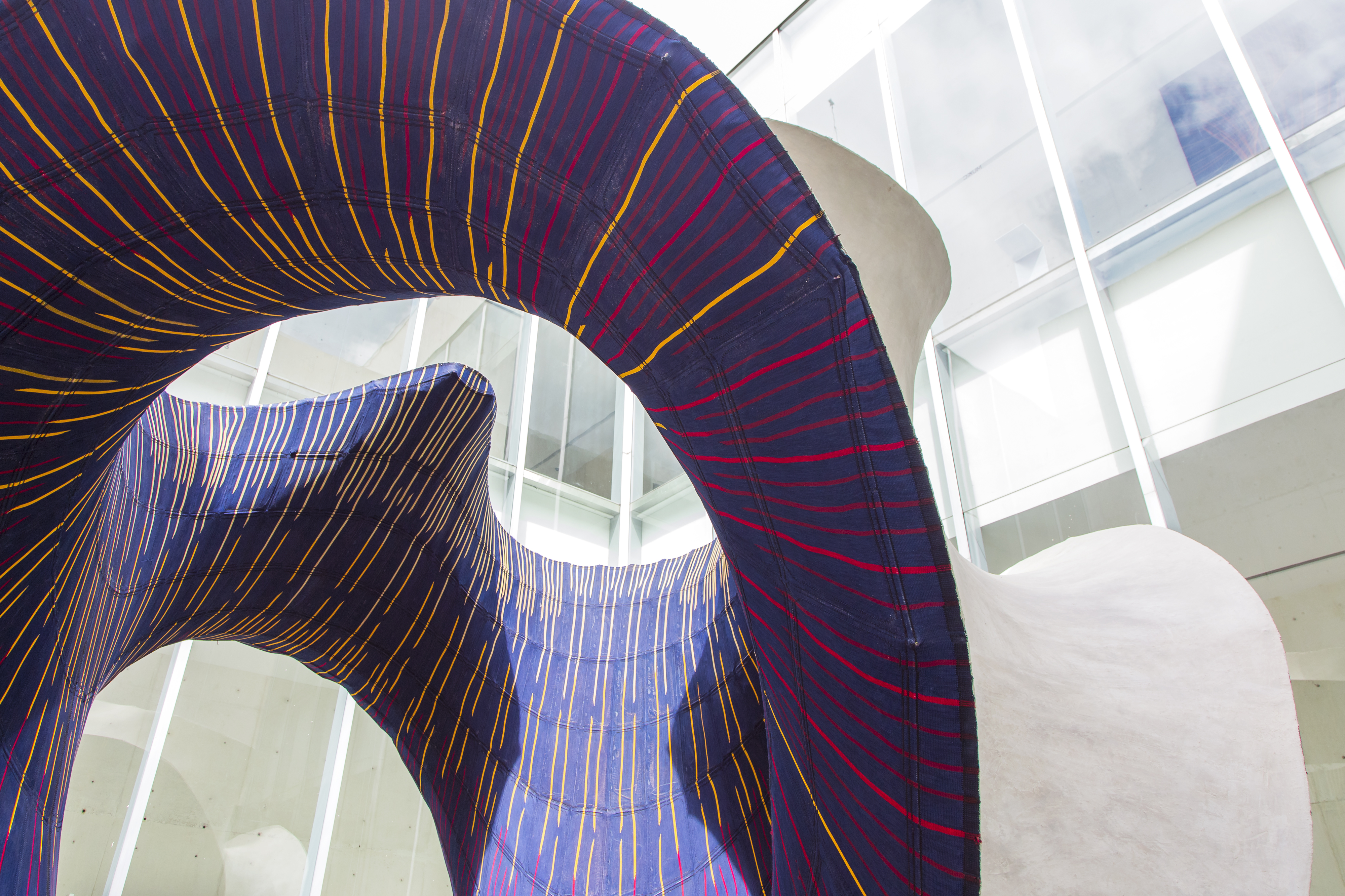

KnitCandela is a thin, sinuous concrete waffle shell. Built on an ultra-lightweight knitted formwork, which was brought from Switzerland to Mexico in two suitcases, KnitCandela demonstrates that employing a flexible cable-net formwork together with a knitted textile can cut down on material, labour, and construction waste, while simplifying and streamlining the construction process for sophisticated shapes in concrete.

KnitCandela
KnitCandela

Realised with a state-of-the-art BIM approach using the computational framework COMPAS, the structural design, engineering, digital fabrication, and construction of KnitCandela were incredibly efficient.

Its novel forming system allowed for a complex structural geometry requiring fewer materials, thus keeping project costs economical.

KnitCandela
KnitCandela

SHORT CREDITS:

Block Research Group, ETH Zurich (BRG), Zaha Hadid Architects Computation and Design Group (ZHCODE), Architecture Extrapolated (R-Ex)

PHOTO CREDITS:

Mariana Popescu, Lex Reiter, Philippe Block, Angelica Ibarra, Maria Verhulst

KnitCandela
KnitCandela

FULL CREDITS LINK:

http://block.arch.ethz.ch/brg/project/knit-candela-muac-mexico-city

CREDITS:

- Block Research Group, ETH Zurich (BRG) - Zaha Hadid Computation and Design Group (ZHCODE) - Architecture Extrapolated (R-EX)
