THE BRIDGE DAM

architecture INNATE

LEAD ARCHITECTS
Anjum Munavalli & Soham Raje

CIVIL CONTRACTOR
Jb Enterprise

PHOTOGRAPHS
Soham Raje

AREA
500 Ft²

YEAR
2022

 LOCATION
Karjat, India

CATEGORY
Pedestrian Bridge

The Bridge Dam
© Soham Raje
The Bridge Dam
© Soham Raje

Text description provided by architect.

An acre plot is naturally divided along the linear side having steep converging contours.

The Bridge Dam
© Soham Raje
The Bridge Dam
© Soham Raje

This piece of land has two peak points and a valley with water flowing during the monsoon.

One of the peaks has direct access to the main road and the other side has the client’s bungalow located.

The Bridge Dam
© Soham Raje
The Bridge Dam
© Soham Raje

It was essential to connect these two points to commute to and fro.

This is how the concept of elevated pathway- BRIDGE developed.

The Bridge Dam
© Soham Raje
The Bridge Dam
© Soham Raje

Along with the core intention, the architects decided to add a fun element as well as something that helps us, as humans, take a step ahead to revive mother earth.

A dam of 10 feet in height is built to collect the surface runoff water on one side, which is designed to recharge the groundwater by reinterpreting the topography of the landforms.

The Bridge Dam
© Soham Raje
The Bridge Dam
© Soham Raje

On the other side, a fun waterfall is designed for the user. The water overflow slit is protruding so that one can enjoy the waterfall standing beneath it.

Locally available wood is used for the walkway on top of the crest which gives a raw texture.

The Bridge Dam
© Soham Raje
The Bridge Dam
© Soham Raje

This walkway is strategically designed in between the massive foliage of the trees allowing the user’s transition to being experiential and intriguing.

The Bridge Dam
© Soham Raje
The Bridge Dam
© Soham Raje


The Bridge Dam

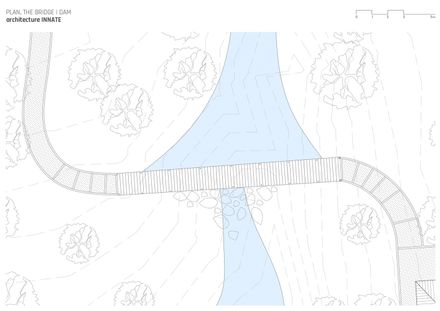

Floor Plan
The Bridge Dam
Floor Plan
The Bridge Dam
Floor Plan
The Bridge Dam
Site Plan


The Bridge Dam
Section
The Bridge Dam

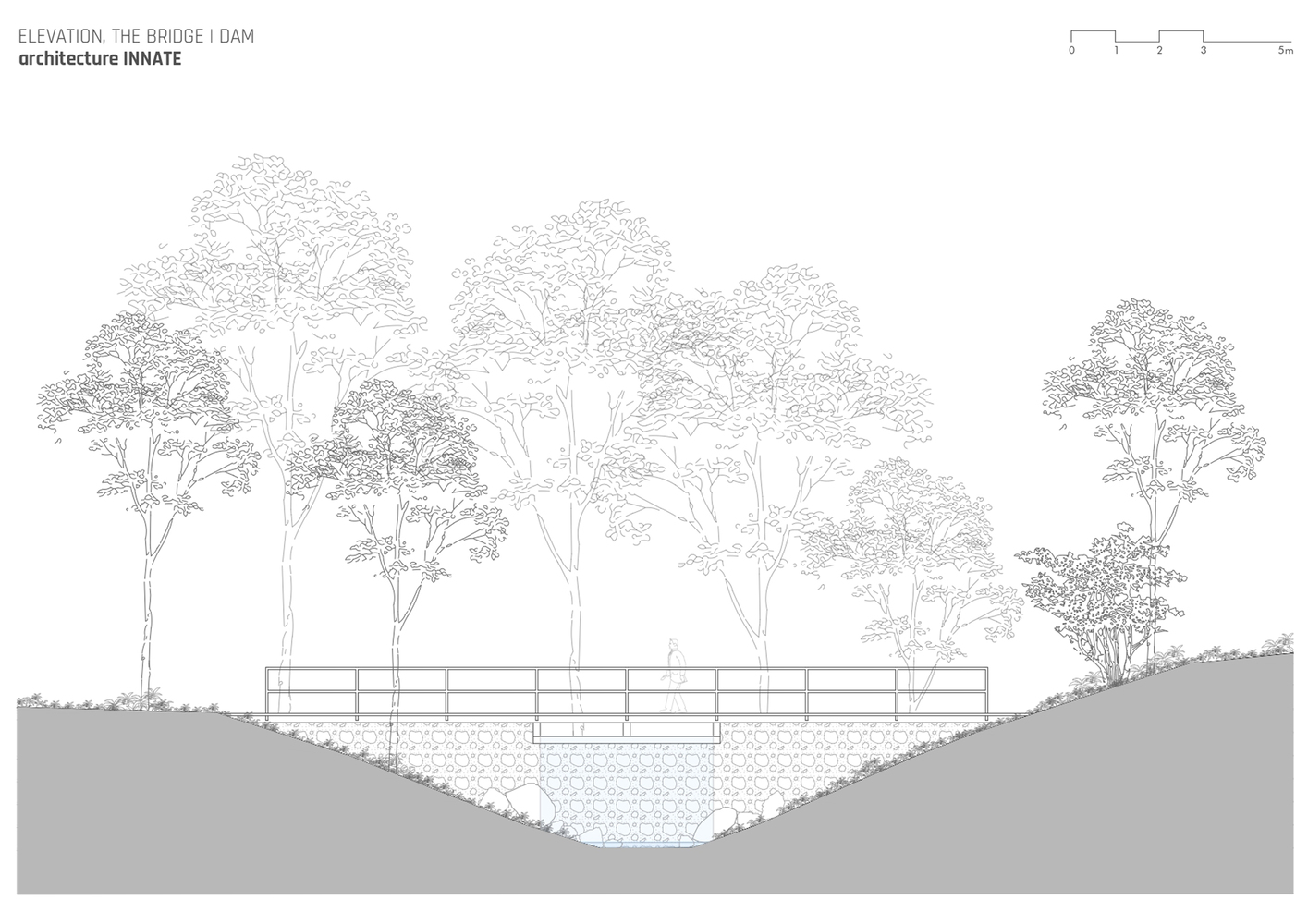

Elevation
