Porto Madero House

Porto Madero House
© Pedro Kok

PORTO MADERO HOUSE

grupoDEArquitetura

MANUFACTURERS
Deca, GMAD, Gerdau, Home Móveis

STEEL STRUCTURE
Pruden Art

PROJECT TEAM
Leandro Mendes, Thamires Garcia

ARCHITECT IN CHARGE
Cristiana Pasquini

PHOTOGRAPHS
Pedro Kok

AREA
318 m²

YEAR
2022

LOCATION
Presidente Prudente, Brazil

TYPE
Houses

Text description provided by architect.

Porto Madero Residence is located in the southern part of the city. A corner with 17.05mx23.00m, 2.60m of the slope, and the largest facade facing a Permanent Preservation Area - APP.

Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok

With this morphology, the project was implemented on two levels – one on the lowest level with entrance through the largest facade where the garage, storage room, a guest room, and an office are located; and another with access from the smallest facade, where the program of the house is located: 3 bedrooms, living room, dining room, balconies, and service.

With linear organization, all rooms open to the view of the forest that, in addition to a generous balcony to contain the morning sun, brises were also installed to contain the afternoon sun.

Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok

A beautiful sunset embraces the house every day – in winter the sun lies right in front of the porch and warms the house; in summer on account of its inclination, it puts itself behind the great boundary wall.

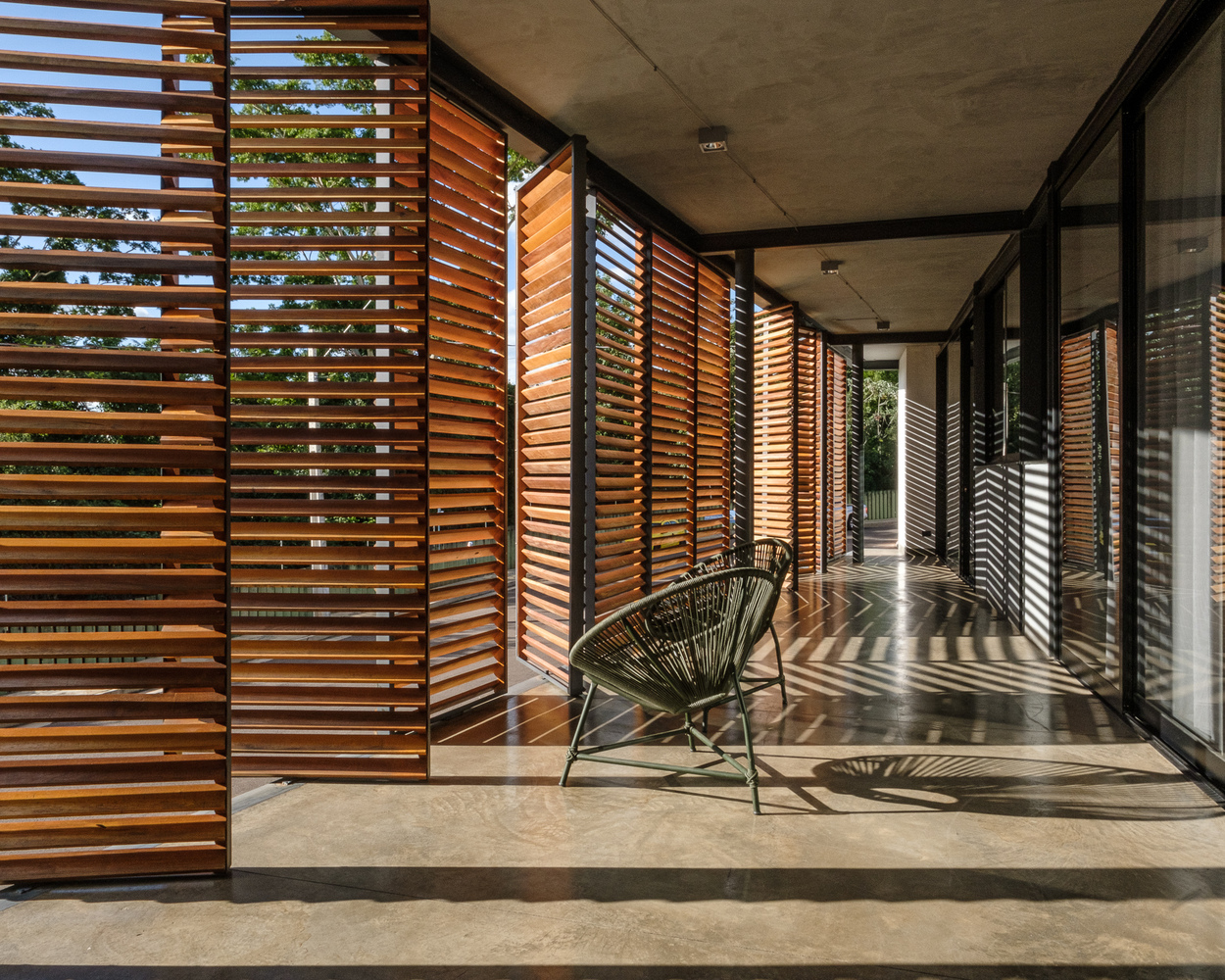

A shaded veranda in summer and in winter the brise that controls the insolation without losing view to the Preservation Area.

Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok

With all the rooms in the house going out to the balcony, the house also has cross ventilation made by small openings on the roof.

The structure is a mix of exposed concrete and steel. In the compression work on the concrete, the entire lower level was made in reinforced concrete that resolved support and base pillars.

Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok

The floor above was a block of the metal structure, making the construction lighter and with much faster assembly and execution.

All interior finishes are in exposed concrete: slabs and the floor – A roof garden gives back the entire land to the view at the end of the afternoon.

Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok


Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok


Porto Madero House
© Pedro Kok
Porto Madero House
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok
Porto Madero House
© Pedro Kok


Porto Madero House
Plan - Upper floor
Porto Madero House
Plan - Lower floor
Porto Madero House
Plan - Roof
Porto Madero House
Site plan

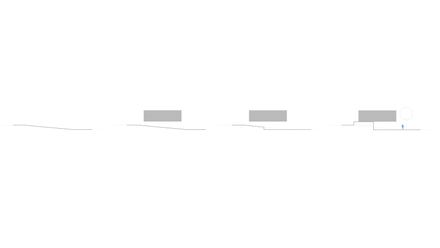

Porto Madero House
Collage - Elevation


Porto Madero House
Diagram
Porto Madero House
GIF


Porto Madero House
Section A
Porto Madero House
Section B

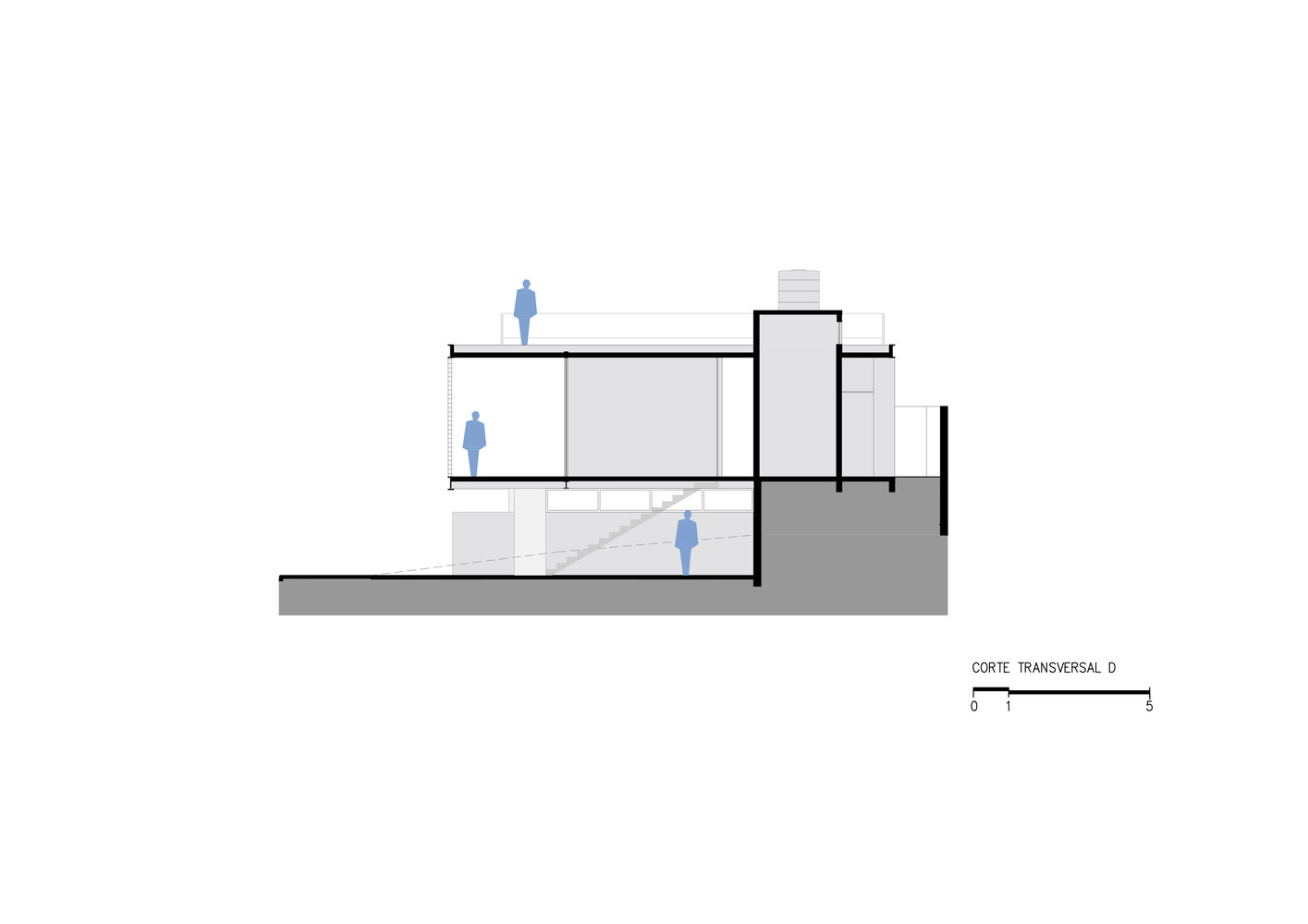

Porto Madero House
Section D
