IDOM Consulting, Engineering, Architecture, S.A.U.

Multisports center in Tarbes

Multisports center in Tarbes
© Pedro Pegenaute

Multisports center in Tarbes

IDOM

ARCHITECTS
Idom

AREA
131051 ft²

YEAR
2022

MANUFACTURERS
Schréder, Tarkett, Arcelor Mittal, Ecophon, Hunter Douglas, Mondo, Record, Reynaers

COSTS
Fabien Tonasso - Alayrac & Inés López Taberna + Gohar Manrique San Pedro Idom

ENVIRONMENTAL ENGINEERING
Arturo Cabo Ordóñez + Lucas Legay - Idom

LIGHTING
Miguel García Castillo - Idom

PUBLIC HEALTH SERVICES
Arturo Cabo Ordóñez + Lucas Legay - Idom

PROCESS FACILITIES
Arturo Cabo Ordóñez + Lucas Legay - Idom

LOCATION
France

TECHNICIANS / CAD
Iñaki Zabala Ziarsolo - Idom

ADMINISTRATION
Clarisse Guiraud - Idom

COLLABORATING ARCHITECTS
Duffau & Associés

CATEGORY
Recreation & Training, Renovation

LEAD ARCHITECTS
Inés López Taberna, Iñaki Garai Zabala, Gohar Manrique San Pedro

PHOTOGRAPHS
Pedro Pegenaute

ELECTRICAL ENGINEERING
Arturo Cabo Ordóñez + Lucas Legay - Idom

STRUCTURES
Miguel Angel Valverde González - Idom

INTERIOR DESIGN
Inés López Taberna, Iñaki Garai Zabala, Gohar Manrique San Pedro - Idom

SITE SUPERVISION
Pierre Duffau – Duffau Associés & Iñaki Garai Zabala+ Gohar Manrique San Pedro - Idom

CONSTRUCTION EXECUTION MANAGEMENT
ierre Duffau – Duffau Associés & Gohar Manrique San Pedro - Idom

Multisports center in Tarbes
© Pedro Pegenaute
Multisports center in Tarbes
© Pedro Pegenaute

Text description provided by architect.

The project is the result of an ideas competition for the transformation of an old military industry building from the early 20th century into a large sports center of reference for the city, the region and the country.

Multisports center in Tarbes
© Pedro Pegenaute
Multisports center in Tarbes
© Pedro Pegenaute

The building, oriented north-south, measures 125 m long by 85 m wide, organized into a 20 m high central building and two 13 m high side buildings.

Endowed with a clear and repetitive geometry with a sawtooth roof, the buildings emulate the nobility of a cathedral, despite a very poor exterior appearance, the result of the passage of time, of neglect and the absence of a façade cladding.

Multisports center in Tarbes
© Pedro Pegenaute
Multisports center in Tarbes
© Pedro Pegenaute

This nobility is confirmed in the interior thanks to the expressiveness of the polychrome structure that, although worn by the passage of time, defines the character of the space with the spectacular zenithal light that penetrates the glazed roof across fifty percent of its surface.

Our proposal aims to maintain the value of the pre-existence, while fully preserving the perception of its original character, even with the introduction of a new, light and colorful world, characteristics linked to the playful character that the building should express.

Multisports center in Tarbes
© Pedro Pegenaute
Multisports center in Tarbes
© Pedro Pegenaute

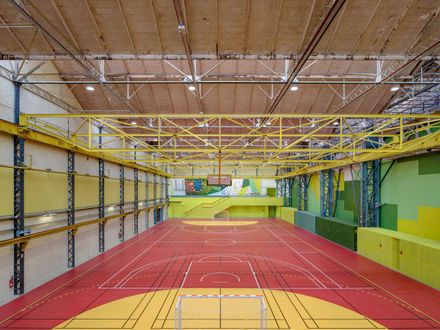

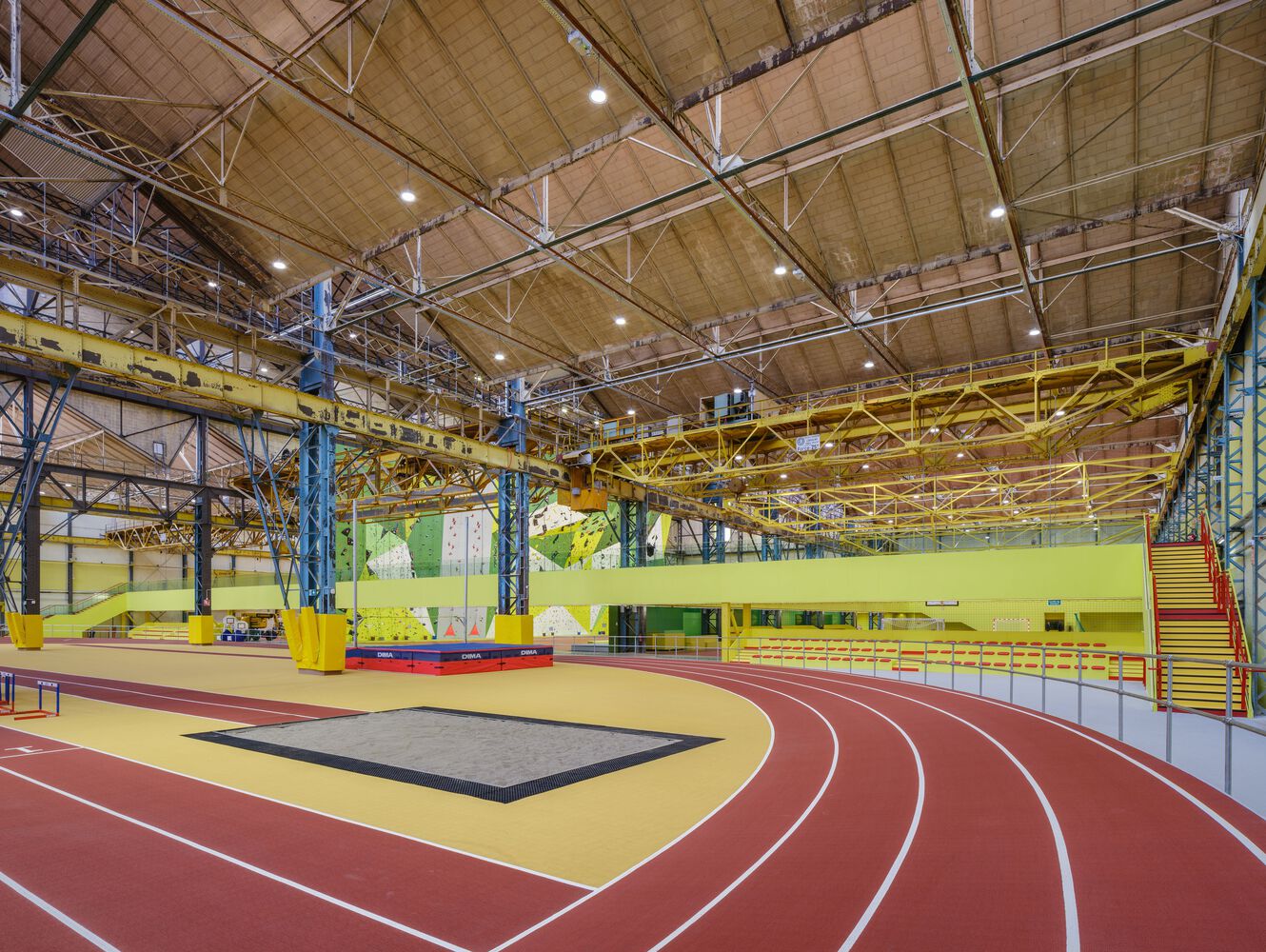

On the one hand, we intervened on the flooring, hitherto gray, filling it with colors to define the new sports areas: athletics, basketball, handball, badminton and climbing.

On the other hand, the requirements of the new sports program (lobby, changing rooms, federation rooms, offices) are resolved with a block of intense yellow color that in turn forms two large climbing walls that are the protagonists of the central space of the project.

Multisports center in Tarbes
© Pedro Pegenaute
Multisports center in Tarbes
© Pedro Pegenaute

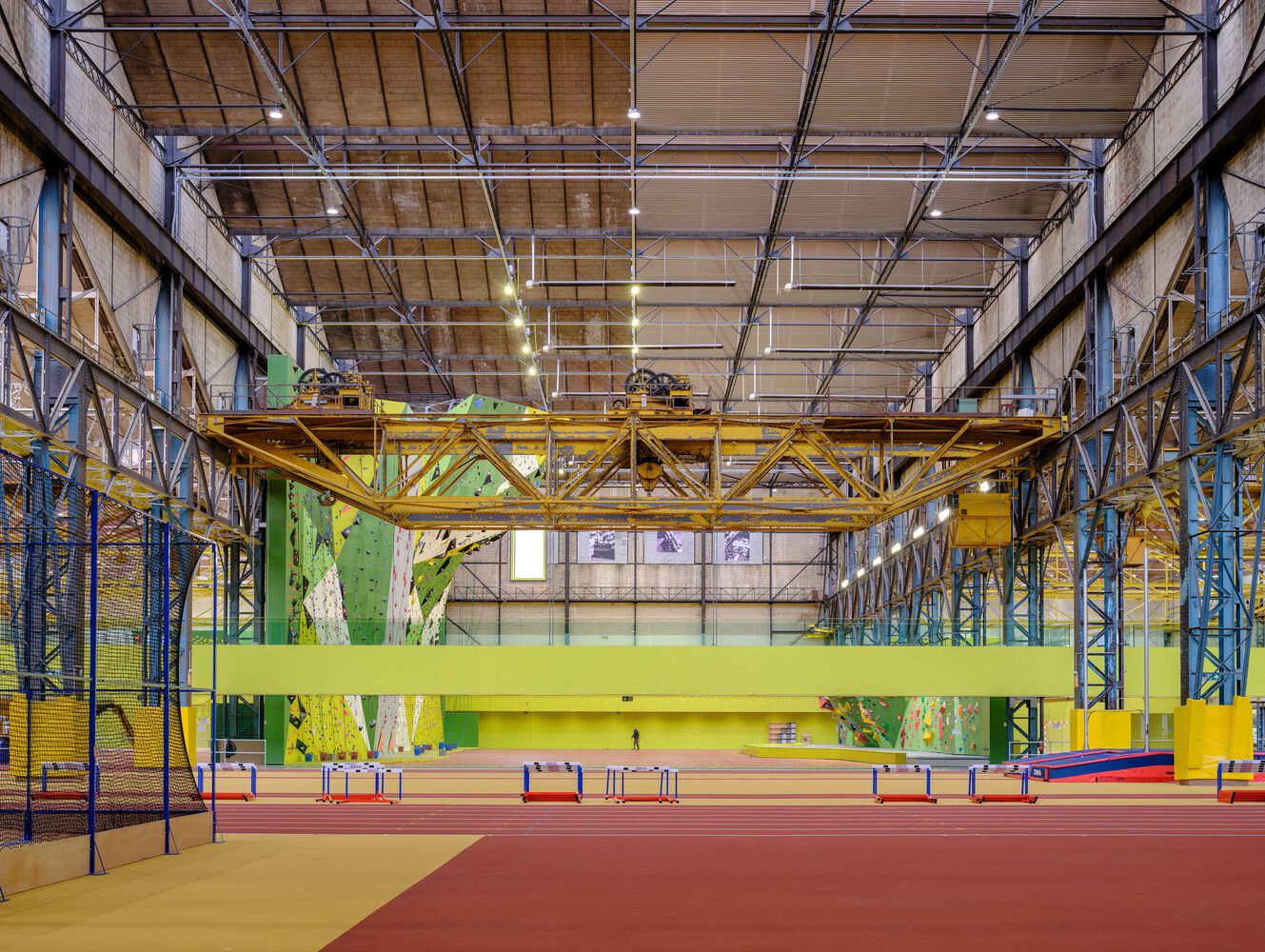

It is perceived as weightless, floating in the industrial cathedral space thanks to the fact that it is embedded in the large pillars of the building and hangs from the pre-existing bridge cranes, thus giving them a new life.

This piece also becomes the upper tier for spectators and the element that defines the boundaries between the different sports areas. Finally, our design provides the building with a new façade consisting of a brick base, in harmony with the architecture of the neighborhood, and white cladding that extends to the edge of the roof.

Multisports center in Tarbes
© Pedro Pegenaute
Multisports center in Tarbes
© Pedro Pegenaute

The latter has been resolved with white mini-wave sheet metal, commonly used in the industrial world, in which new strategic openings are inserted to express the public purpose of the new building and open it up to a more permeable relationship with its surroundings.


Multisports center in Tarbes
© Pedro Pegenaute
Multisports center in Tarbes
© Pedro Pegenaute
Multisports center in Tarbes
© Pedro Pegenaute
Multisports center in Tarbes
© Pedro Pegenaute


Multisports center in Tarbes
Section A
Multisports center in Tarbes
Section B
Multisports center in Tarbes

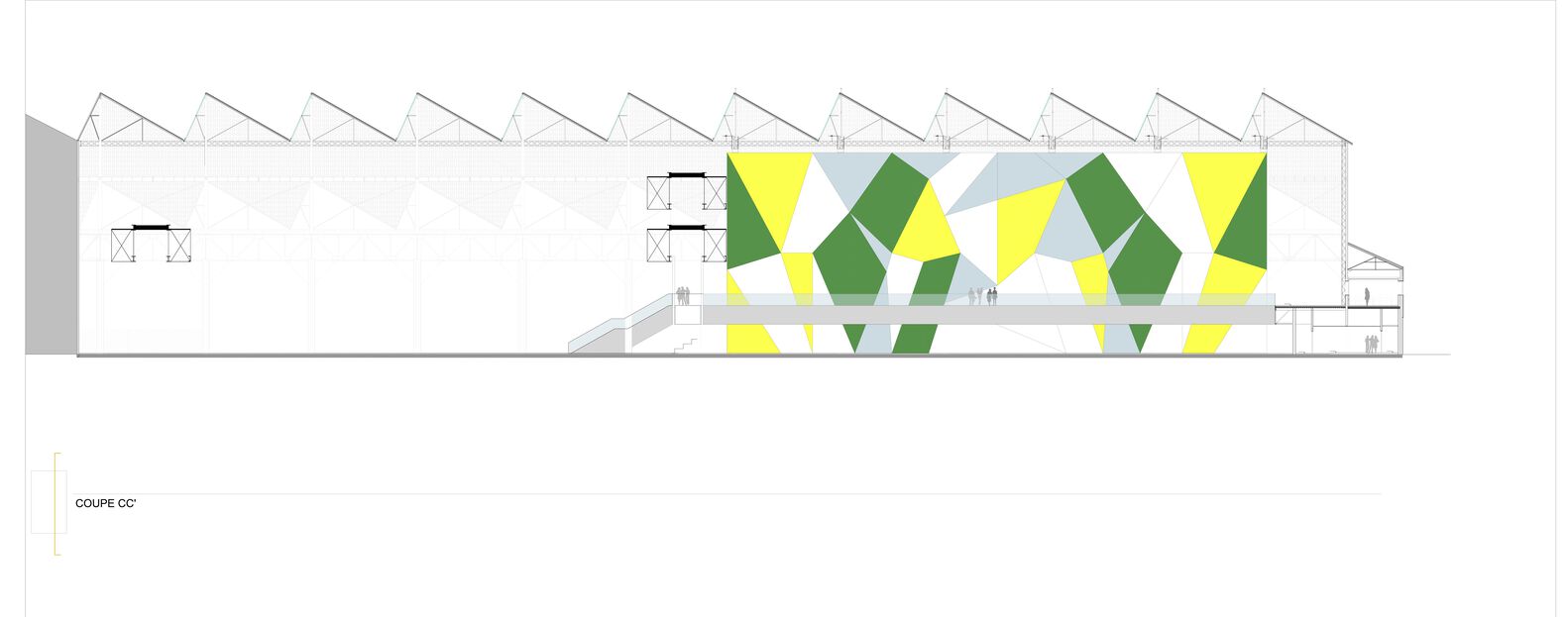

Section C


Multisports center in Tarbes
Plan - 1st floor
Multisports center in Tarbes
Plan - Ground floor
