Plan Architect Co., Ltd.

SISB School Thonburi Phase II

SISB SCHOOL THONBURI PHASE II

Plan Architect

SISB School Thonburi Phase II
© DOF Sky|Ground

ARCHITECTS
Plan Architect

MANUFACTURERS
Nippon Paint, Thaisoung, Willy

LANDSCAPE DESIGN
Sukta Landscape

CONTRACTOR
Thai Nakano Co.

STRUCTURAL ENGINEERS
Psaa Consulting Engineers

HEAD OF DESIGN
Wara Jithpratuck

LANDSCAPE DESIGN TEAM
Premprajak Teyarajkul, Sitthinon Chanchaiworawit, Ratcha Kantawong

INTERIOR DESIGN TEAM
Pattanapol Kamolhansa, Pitchanun Chaowsomboon, Ruksit Jitburanachart

ARCHITECTURAL DESIGN TEAM
Jittinun Jithpratugs, Chanin Paiboonsak, Wattana Narksuk, Sira Anugoolprayote

SYSTEM ENGINEER
Entech

PHOTOGRAPHS
Dof Sky|ground

AREA
13200 M²

YEAR
2022

LOCATION
Bangkok, Thailand

CATEGORY
Schools

SISB School Thonburi Phase II
© DOF Sky|Ground

Text description provided by architect.

Singapore International School of Bangkok, Thonburi phase II is the expansion phase for the secondary students, which the new site sits inside the existing one.

In the new phase layout, the 2 buildings are aligned on the back edge to create the big green activities space sharing between both phases.

The main school function consists of classrooms, auditorium, gymnasium, library, administration office, staff rooms, and common area.

SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground

The main concept of this school is to create a space where students can learn from architecture together with play and stay in all circumstances.

The building's shape is designed in a linear shape with 8-meter width double-load corridor in front of each classroom.

This space can be used as a common space and circulation at the same time.

SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground

To avoid lacking natural light and ventilation, the building is separated into two parts and additional halls to let the wind and sunlight come into the building.

With the regulation of city planning, the building needs to be separated into 2 with limited height, but we intend to make the buildings act as a single background for the landscape so the horizontal façade is used to link each other.

With one end on the edge is an auditorium, building A, which is closer to the entrance, is designed to spread the wing out to welcome the students and all users with the covered walkway that is designed to match and link with the building.

SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground

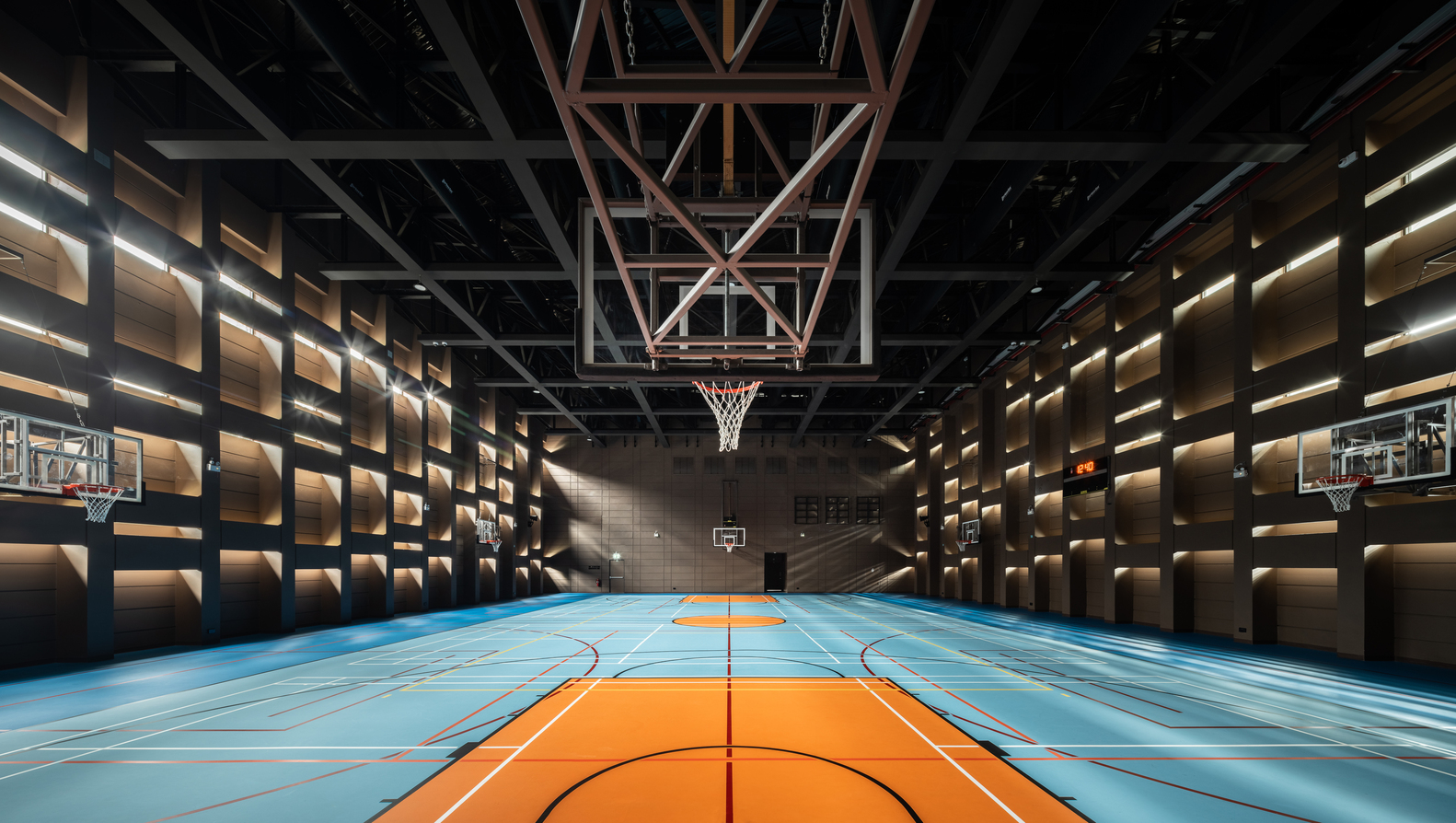

While another end of building B is provided for the location of the gymnasium.

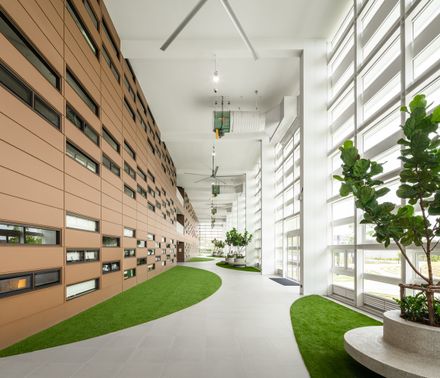

In the front of the buildings, the main hall of both building A and building B is also specially designed to be a ventilation control hall upon the daily weather.

In the normal condition, this hall can be used in the natural-ventilated mode by opening the windows on both the front and back sides of the building to let the air flow through.

SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground

While in 2.5 PM condition the axial fan on the top of the hall will work together with the filter to bring the fresh air in and make the hall becomes positive pressure.

Then at the bottom of the façade, the grille will work to release the air out. This space is intended to be a transition space where social activities could happen and the natural light can get in with less heat get inside.

SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground

The hall just provides the horizontal fins together with a gradient opaque wall allowing people inside can see the view clearly and can play even in the bad weather.

The spreading wing hall is provided a grandstand that can be used as a theatre together with the library underneath.

SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground

While on the green roof stand, it can be used as the stair steps linked the green area together from the ground to the top.

The oval pattern is created to link landscape and architecture together, acting as activities areas with a variety of terrains to encourage different types of activities, such as the sunken court in front of the building which can be used as an amphitheater from both sides.

SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground

This school is like an experimental design to create a space that can be used in all circumstances for all students and utilized in all areas to encourage learning abilities for everyone.


SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground


SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground
SISB School Thonburi Phase II
© DOF Sky|Ground


SISB School Thonburi Phase II
Plan - Ground Floor
SISB School Thonburi Phase II
Plan - 1st Floor
SISB School Thonburi Phase II
Plan - 2nd Floor
SISB School Thonburi Phase II
Plan - 3rd Floor
SISB School Thonburi Phase II
Layout


SISB School Thonburi Phase II
Section A - Building A
SISB School Thonburi Phase II

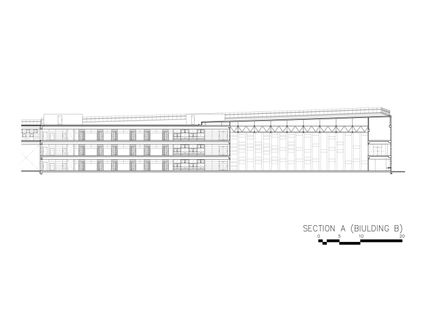

Section A - Building B
SISB School Thonburi Phase II
Section B - Building A
SISB School Thonburi Phase II
Section B and C - Building B
SISB School Thonburi Phase II
Section D - Building B
SISB School Thonburi Phase II
Section E - Building B


SISB School Thonburi Phase II
Elevation 1A
SISB School Thonburi Phase II
Elevation 1B
SISB School Thonburi Phase II
Elevation 2A
SISB School Thonburi Phase II
Elevation 2B
SISB School Thonburi Phase II

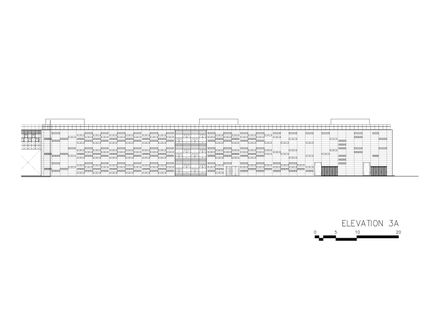

Elevation 3A
SISB School Thonburi Phase II
Elevation 3B
SISB School Thonburi Phase II
Elevation 4A
SISB School Thonburi Phase II
Elevation 4B


SISB School Thonburi Phase II
Diagram
SISB School Thonburi Phase II
Diagram
SISB School Thonburi Phase II
Diagram
SISB School Thonburi Phase II
Diagram


SISB School Thonburi Phase II
Diagram
