G19 Housing

G19 Housing

TZA

G19 Housing
© Piotr Krajewski

ARCHITECTS
Tza

MANUFACTURERS
Equitone, Feldhaus Klinker, Probet-dasag, Lamberts

ARCHITECTURE DESIGN
Marcin Zadrożny, Aleksandra Targońska, Daniel Małek

STRUCTURAL DESIGNI
Indico

ELECTRICAL ENGINEERING TEAM
Fpt Engineering S.c.

INTERIOR DESIGN
Magdalena Zalewska

GENERAL CONTRACTOR
Alfabet

SANITARY ENGINEERS
Studio Instalacji Sanitarnych Łukasz Drobiński

WAYFINDING
Podpunkt

PHOTOGRAPHS
Piotr Krajewski

AREA
11750 m²

YEAR
2022

LOCATION
Poland

CATEGORY
Apartment

G19 Housing
© Piotr Krajewski

Text description provided by architect.

The building is located on a corner site formerly occupied by a soap factory in Warsaw’s Praga district.

The neighborhood is a mix of pre-war buildings, heavy modernist estates, and new developments.

G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski

The main goal was to create a project that would bring new urban quality to the street flanked by old tenement houses while respecting the spirit of the district.

The spatial concept consists of separate residential volumes with red brick facades, located on a black plinth housing retail areas and entrances to the four staircases serving residential floors.

G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski

The building wraps around a trapezoidal patio that acts as an open, semi-public space with sitting areas and bicycle parking.

To the east, along Kosmowska street, a retail front was created, separated from the street by a strip of greenery with a row of linden trees.

G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski

The building’s mass was split into three blocks, and the separating voids frame uncommon views of the surrounding, both from the courtyard and from the balconies of the apartment.

The 108 apartments, ranging from 29m2 units to 100m2 flats on top floors, all have balconies and/or loggias, and those adjacent to the voids between the volumes have “bridges” spanning between the neighboring blocks.

G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski

The balconies are prefabricated in red concrete and the shadows cast by the zig-zag of cantilevering elements create a geometric pattern on the exterior walls of the complex.

The colors and materials used on the facades echo the pre-war industrial workshops and factories that previously predominated in the area.

G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski

The orange-red hue is also used in the interiors, on fiber-cement cladding and flooring that accentuate the hall spaces with lift entrances.

The building features a custom wayfinding system designed by a local studio – Podpunkt.

To maximize natural areas on a compact site, ample planters line up the courtyard and the passage along the shops planned on the east side of the building.

G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski

Greenery covers all the visible roofs, while the topmost “fourth elevation” accommodates PV panels supplying common areas of the building.

Climber plants will grow in the voids between the brick volumes.

G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski


G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski
G19 Housing
© Piotr Krajewski


G19 Housing
Ground Floor Plan
G19 Housing
Typical Floor Plan


G19 Housing

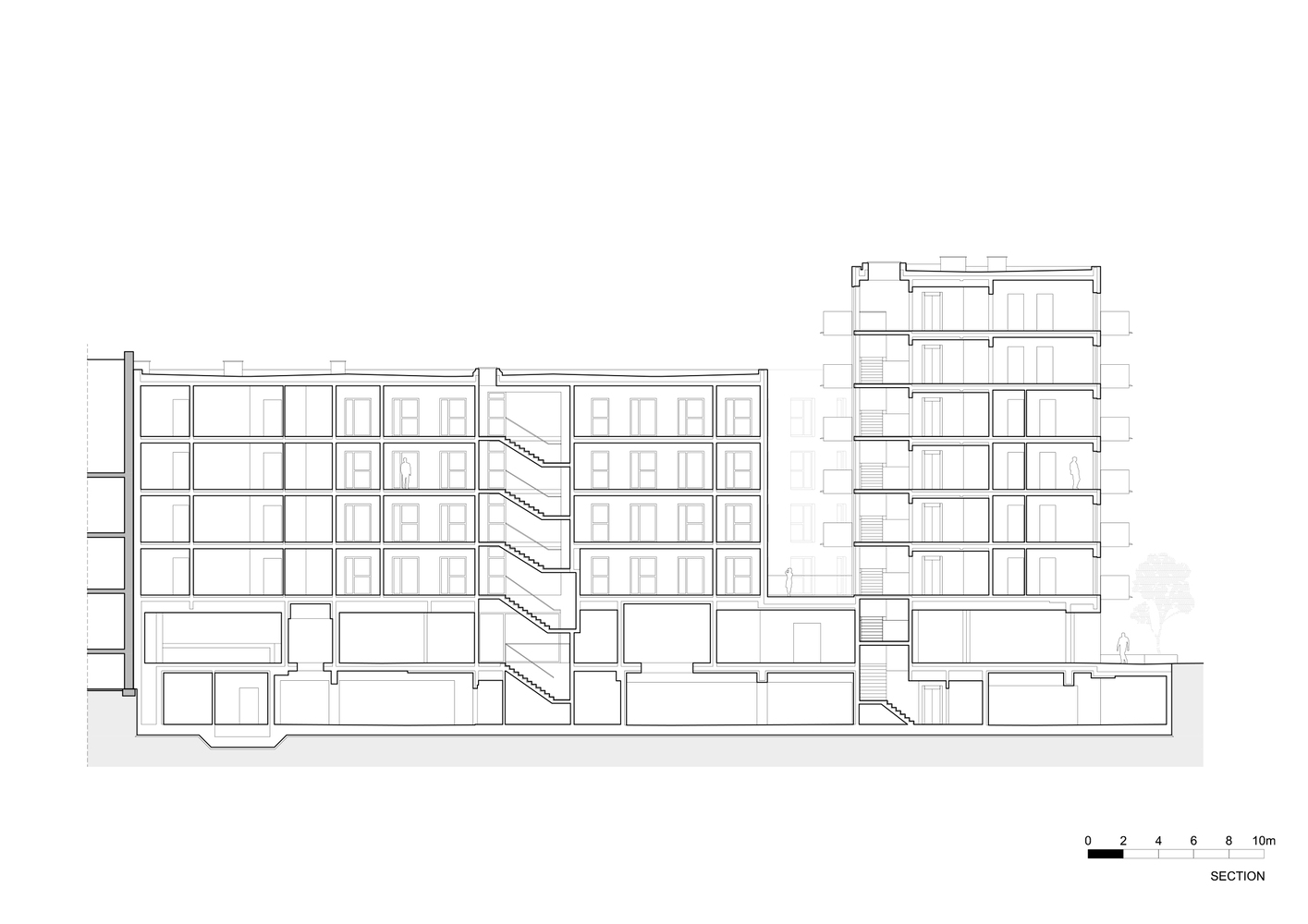

Section
G19 Housing
Site Plan
