SMALL VACATION COTTAGES U GAI

SAN Architektura

CATEGORY
Lodging

LOCATION
Radomice, Poland

YEAR
2022

AREA
81 m²

PHOTOGRAPHS
Michał Drapała

MANUFACTURERS
Dombal, Konsbud, Novobudowa

LEAD ARCHITECT
Rafał Oleksik

HVAC ENGINEERS
Michał Baran Embe Studio

ELECTRICAL ENGINEER
Paweł Kóska

WODEN STRUCTURE CONTRACTOR
Konsbud

WINDOW CONTRACTOR
Novobudowa

CONSTRUCTIONS
Am Projekty Konstrukcje

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

The cottages were built on a hill with a beautiful view of the Karkonosze Mountains.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

The area is rich in flora and fauna. As part of the investment, two summer houses with a total usable area of ​​approximately 80 m2 were designed.

In the near future, a third larger building will be built as the next stage of the project - a single-family house for the hosts. During an on-site inspection, it was found that there was a closed quarry near the plot.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

There was an idea to refer to this unusual neighborhood in the project.

The plot is located on a steep slope, so the houses have been arranged in such a way as to give the impression of freely scattered boulders.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

The buildings resemble hewn cubes.

Undoubtedly, the greatest value of the plot is its landscape character, which is why it was important to emphasize the view of the Karkonosze in the design process, which was achieved thanks to the use of 4,5 m wide panoramic windows that frame the view of the mountains like a picture frame.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

The location of the buildings and paths has been planned to minimize interference with the vegetation on the plot.

It was also important to preserve the natural "wild" character of the plot, as little affected by human activity as possible, hence the abandonment of traditional paved surfaces in favor of unpaved paths with elements of aggregate from the immediate vicinity. The fence marking the plot boundaries was also abandoned.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

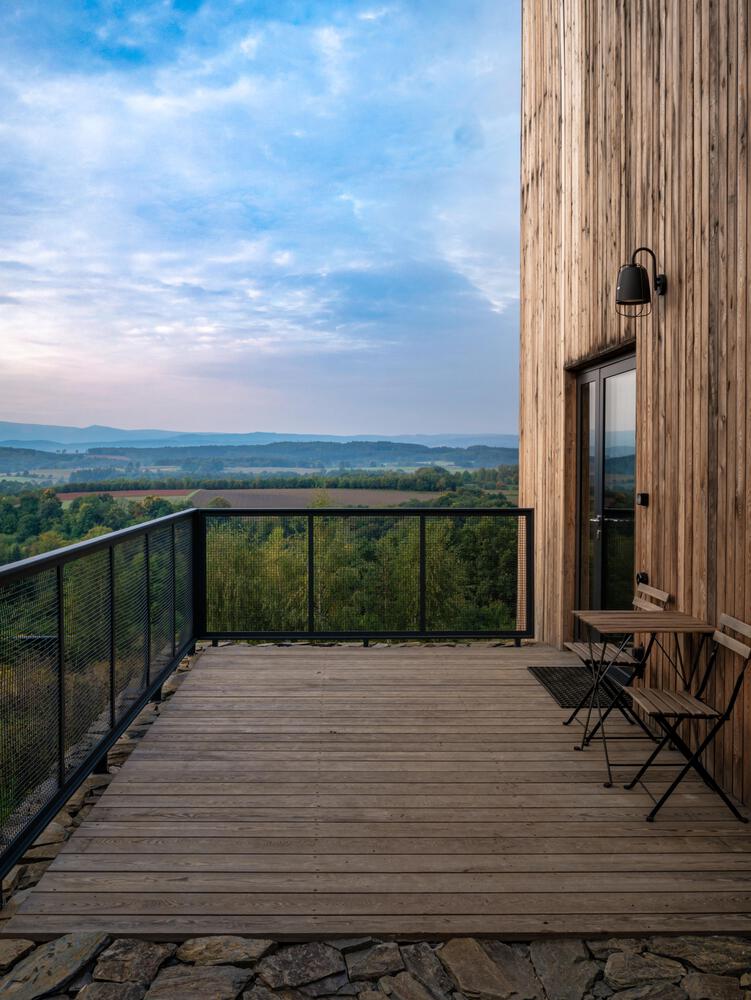

The buildings are set on a pedestal, which then turns into a terrace. The overhang of the houses behind the plinth gives the impression that from the outside they seem to be levitating over the slope.

From the inside, this procedure brings users even closer to the surrounding landscape.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

The bushes located directly under the upper house from the living room side resemble tree tops, enhancing the majesty of the view that can be viewed from the living room.

The cottages are designed on a square plan.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

The main entrance is on the east side through the adjoining terrace.

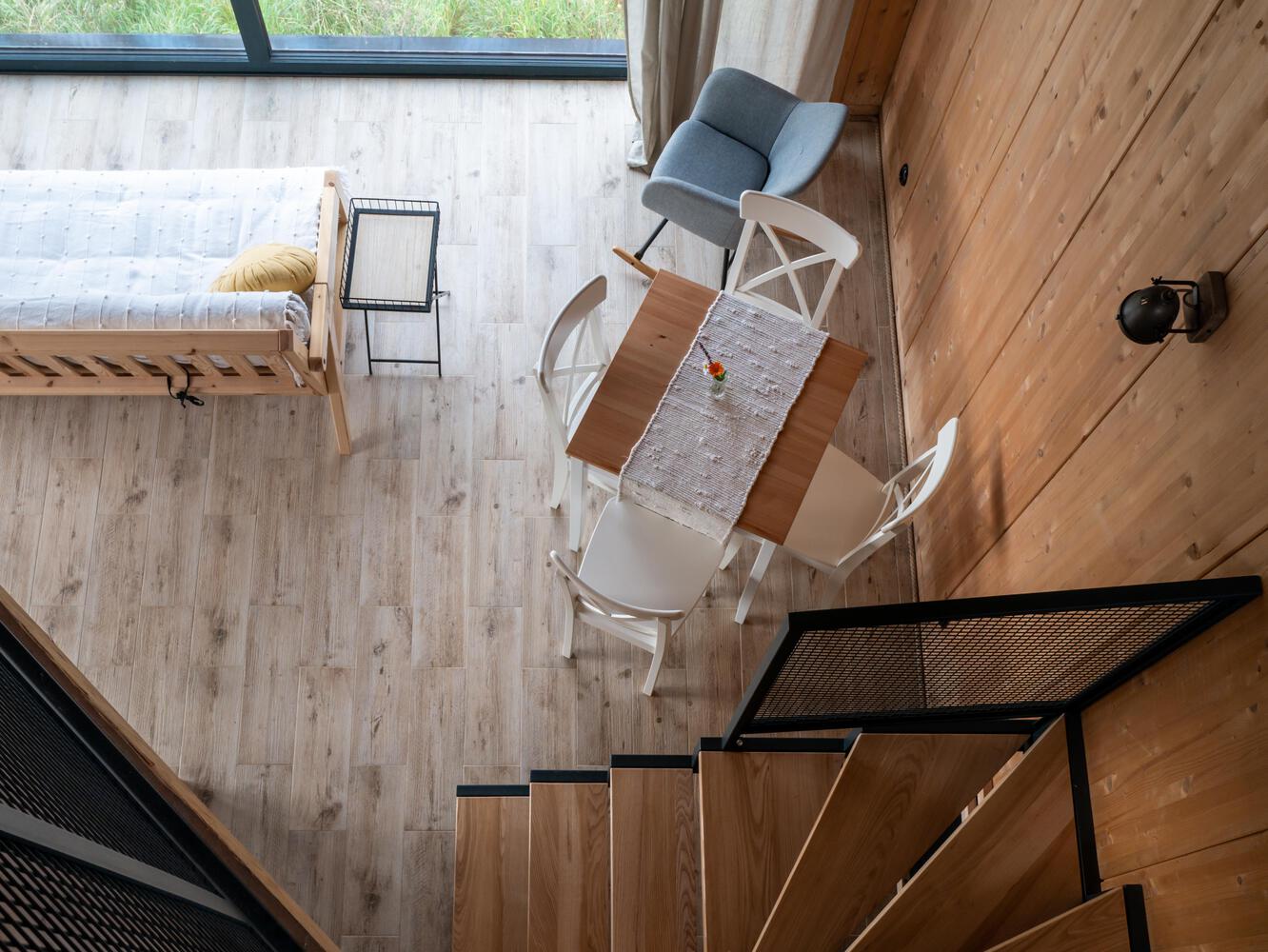

On the ground floor, there is a living area with a kitchenette, a bathroom, and a dressing room.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

There is a bedroom on the mezzanine, the outline of which is in line with the ridge line, i.e. diagonally to the house's projection.

By guiding the roof line in this way, it was possible to achieve the right height where it was most desired.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

Individual objects were made in the HBE glued timber system.

Thanks to this technology, there was no need to finish the walls with additional cladding from the inside.

Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała

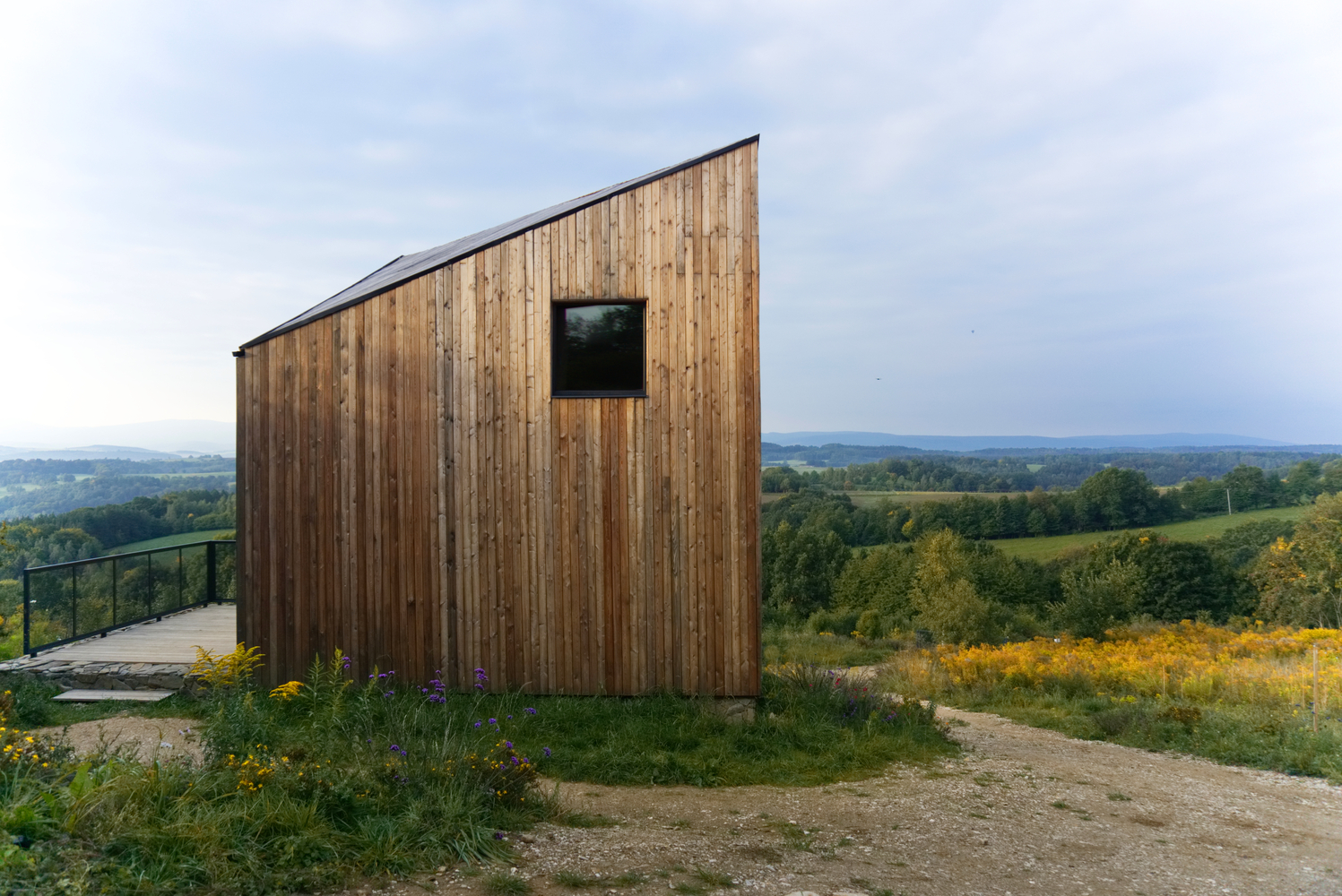

Outside, the façade and the roof are made of Siberian larch, which began to patinate under the influence of UV rays, thanks to which the houses blend in even more with the surrounding landscape. The plinth is finished with hewn stone.


Small Vacation Cottages u Gai
© Michał Drapała
Small Vacation Cottages u Gai
© Michał Drapała


Small Vacation Cottages u Gai
South Elevation
Small Vacation Cottages u Gai
East Elevation
Small Vacation Cottages u Gai
North Elevation
Small Vacation Cottages u Gai

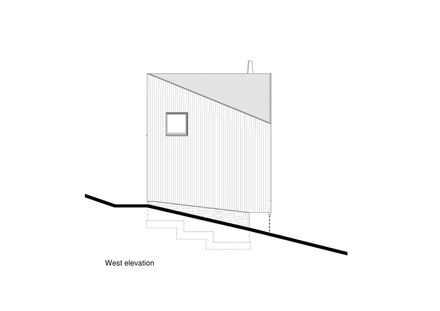

West Elevation


Small Vacation Cottages u Gai
Plan - Ground Floor
Small Vacation Cottages u Gai
Plan - Mezzanine
Small Vacation Cottages u Gai

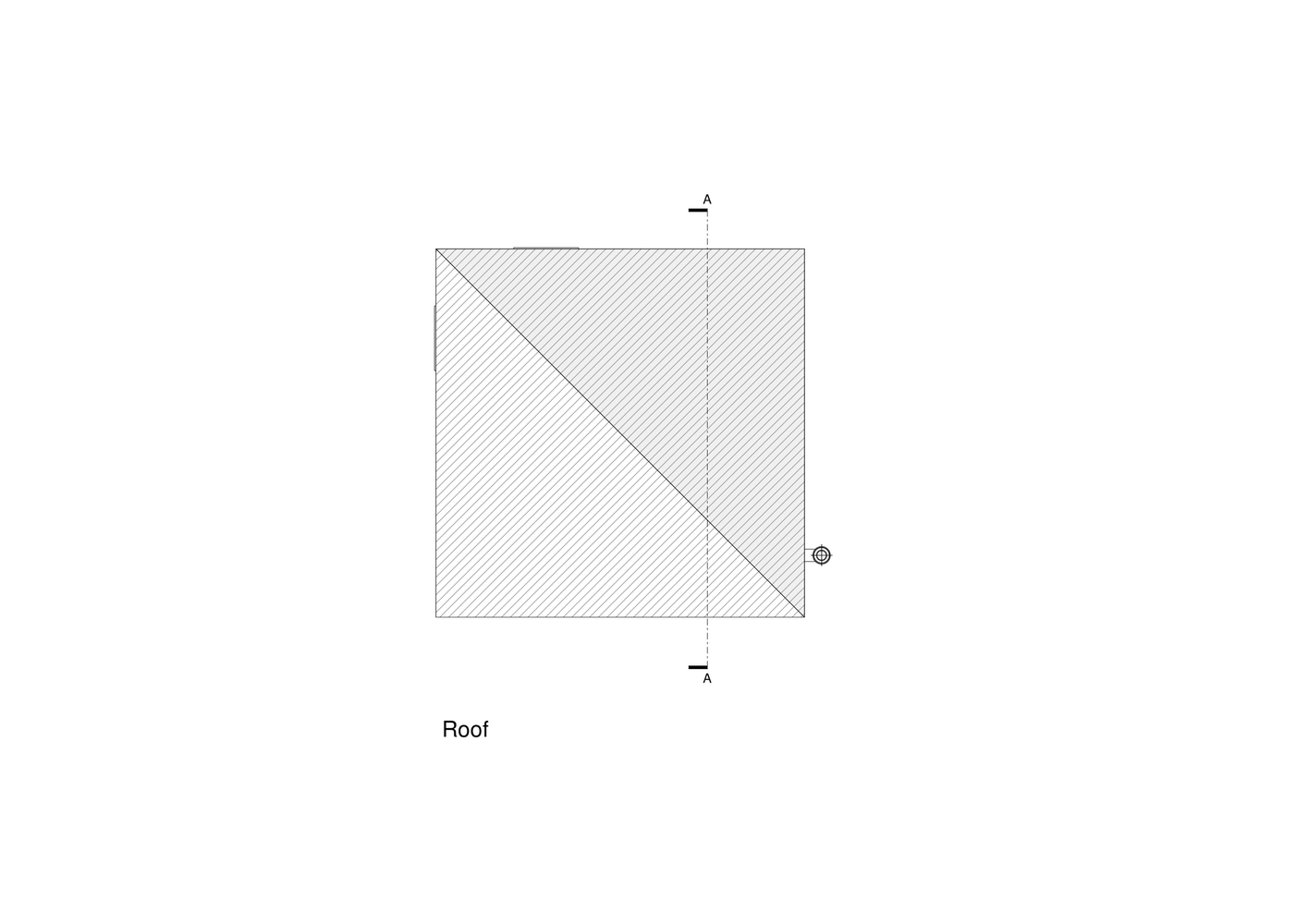

Plan - Roof
Small Vacation Cottages u Gai

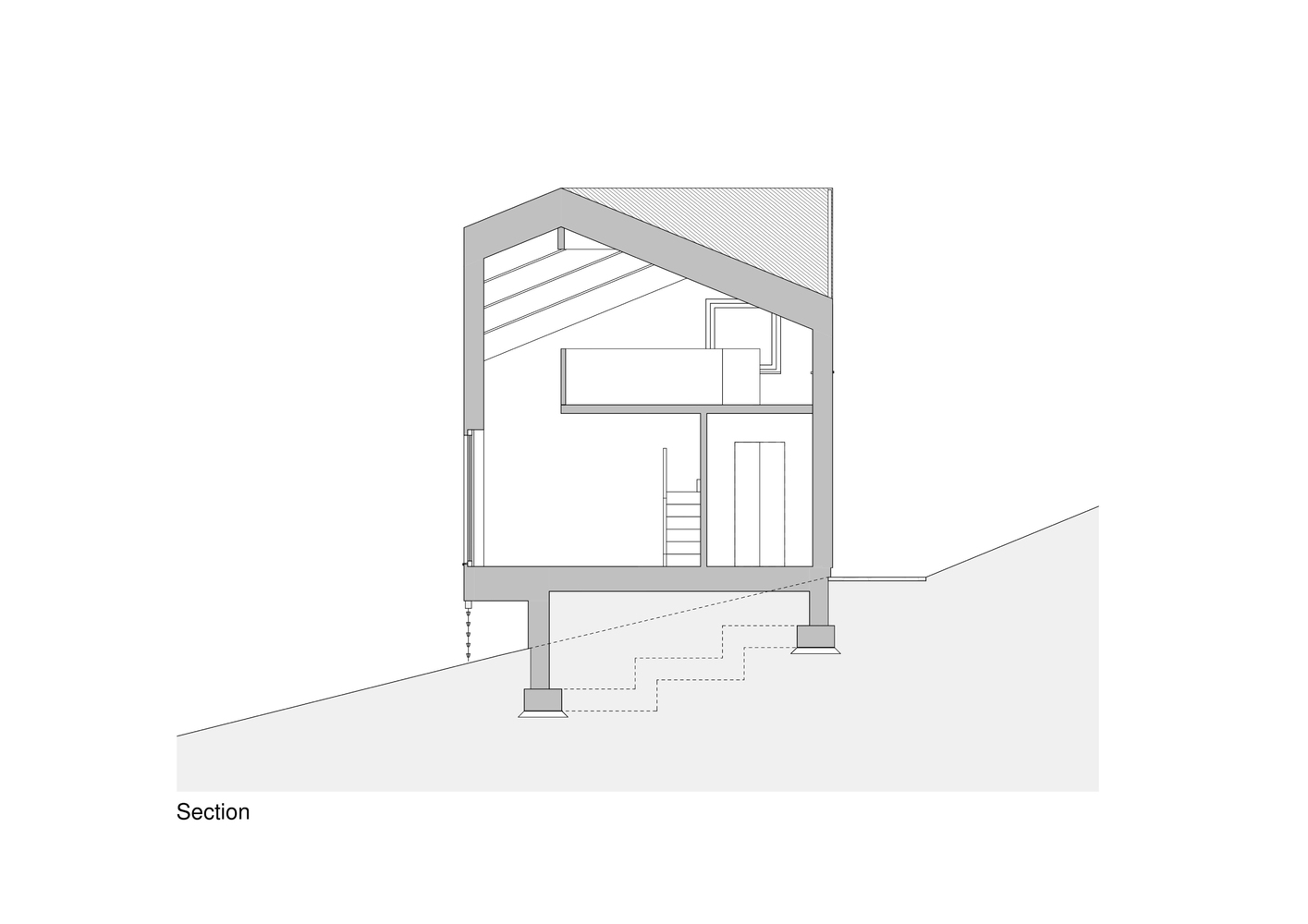

Section
Small Vacation Cottages u Gai
Site Plan
