FOOTBRIDGE OVER RIPOLL RIVER

Infraestructures de Muntanya + JBP Enginyeria

ARCHITECTS
Infraestructures De Muntanya, Jbp Enginyeria

PROJECT MANAGEMENT
Álvaro Sainz

STRUCTURE
Jbp Enginyeria, Otherstructures

TECHNICAL PLANNERS
Bac Engineering Consultancy Group

CONSTRUCTION
Infraestructures De Muntanya

DESIGN TEAM
Jose Alonso

PHOTOGRAPHS
Simón García

AREA
2850 m²

YEAR
2022

LOCATION
Spain

CATEGORY
Bridges

Text description provided by architect.

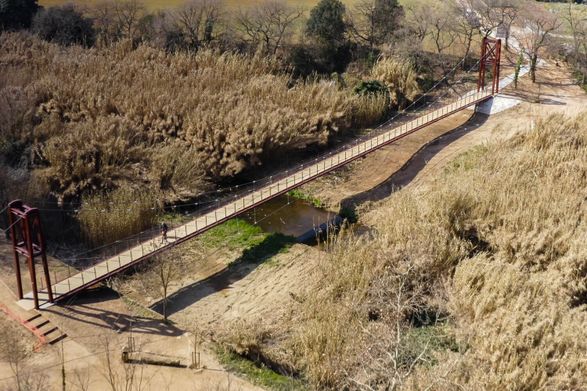

The hanging metal footbridge connects the Molí Vermell wetlands and the urban center on the right bank of the Ripoll River with the Castell de Barberà and the green ring of the municipality on the left.

Footbridge over Ripoll River
© Simón García
Footbridge over Ripoll River
© Simón García
Footbridge over Ripoll River
© Simón García

There are 84 meters of distance between pillars, 2 meters of free width and the pine wood deck reaches up to 5 meters of free height with respect to the river.

With two 9-meter-high pillars and two main steel cables (catenaries).

Footbridge over Ripoll River
© Simón García
Footbridge over Ripoll River
© Simón García

The accesses are concrete ramps and remain integrated between the vegetation and topography of the environment.

Footbridge over Ripoll River
© Simón García
Footbridge over Ripoll River
© Simón García


Footbridge over Ripoll River
Axonometric
Footbridge over Ripoll River
Plan
