Folding House

Folding House

Folding House

X11 Design Studio

ARCHITECTS
X11 Design Studio

MANUFACTURERS
Autodesk, Dulux, Toto, Eurotile

LEAD ARCHITECT
Tran Tuan Anh

PHOTOGRAPHS
Hoang Le

AREA
260 M²

YEAR
2022

LOCATION
Hanoi, Vietnam

CATEGORY
Houses

Folding House
Folding House

Text description provided by architect.

Tube house is the most common type of housing in Hanoi, which are narrow, elongated, and have no gap with each other along their length.

The project is located in an increasingly narrow urban area, the air quality becomes degraded, and city greenery spaces are gradually replaced by infrastructure systems and out-of-control buildings.

So, a true living space brings family members closer to each other, and children have enough space to grow up, play and interact with nature, instead of living around four walls.

Folding House
Folding House

Folding House is inspired by paper folds, and flexible transitions to create spaces of different levels, interwoven with green spaces which are developed vertically in the house. Its appearance is quite ulterior and private.

The solid wall panels combined with the green setback reduce the impact of solar radiation from the southwest and minimize smoke, dirt, and noise from the outside.

Folding House
Folding House

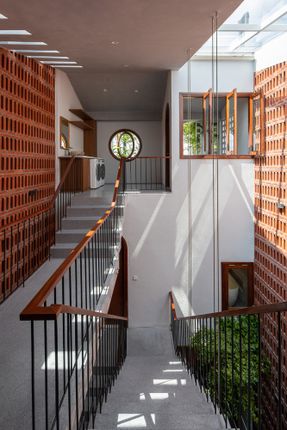

The split-level space combined with the reverse stairs creates large and small skylights, then green patches crept on every level of the space.

The house uses two light sources from the front and from the main atrium in the middle of the house.

Folding House
Folding House

It helps auxiliary functions such as corridors, stairs, and toilets receive natural light and ventilation.

The top end is a small garden, where the children can nurture and take care of the tree with their own hands, where the whole family and friends can gather, relax, and organize cozy parties.

Folding House
Folding House
Folding House

In Folding House, we develop void and garden throughout the vertical dimension, thereby making air convection and microclimate regulation more effective.

This also increases the connection between family members, people, and nature in the most harmonious way.

Concrete, rustic brick combined with some natural materials such as stone, wood, and trees bring a tropical breath to the building, creating inspiration for the growth of trees, natural light, and ventilation.

Folding House
Folding House


Folding House
Folding House
Folding House
Folding House
Folding House


Folding House

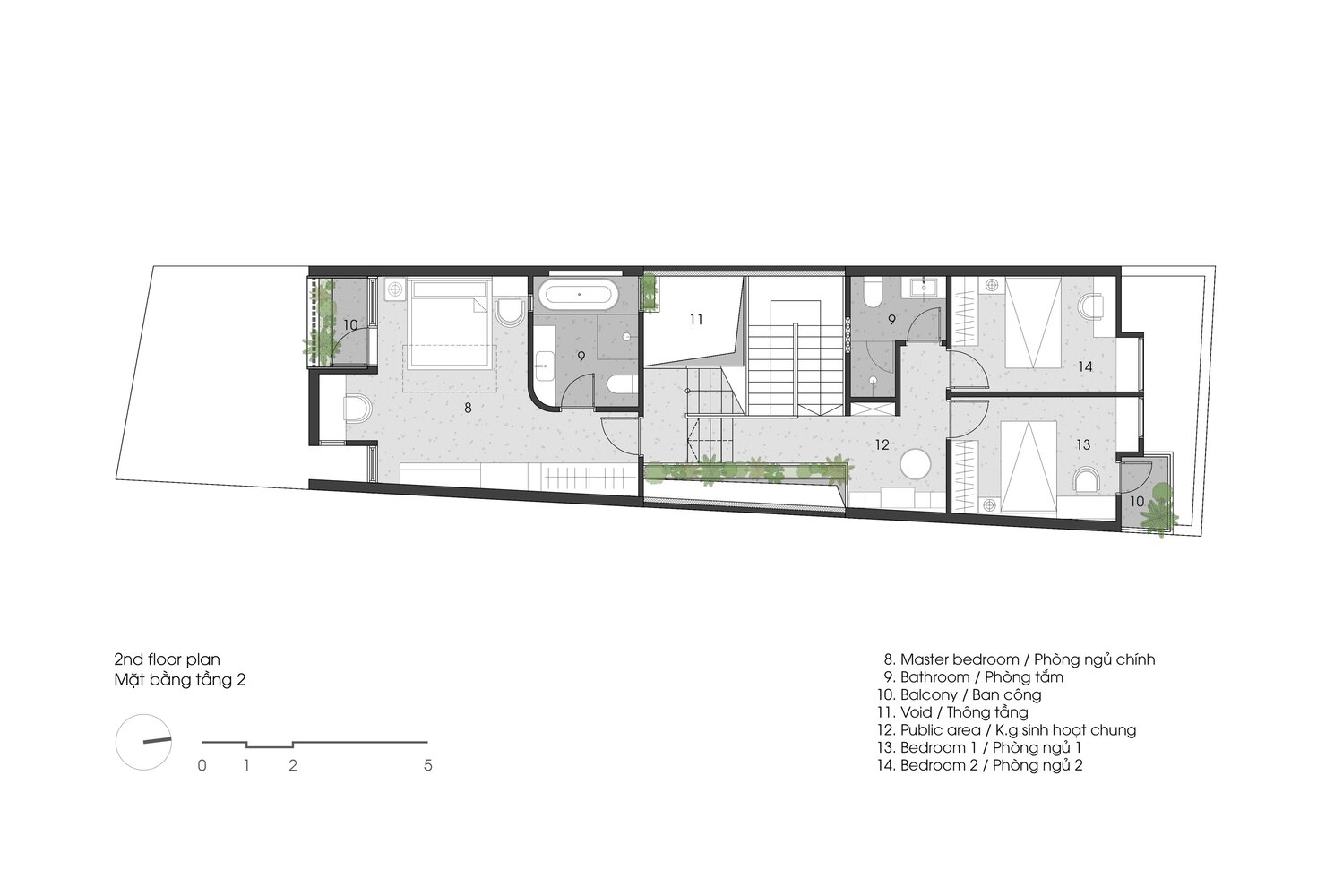

Plan - 2nd Floor
Folding House

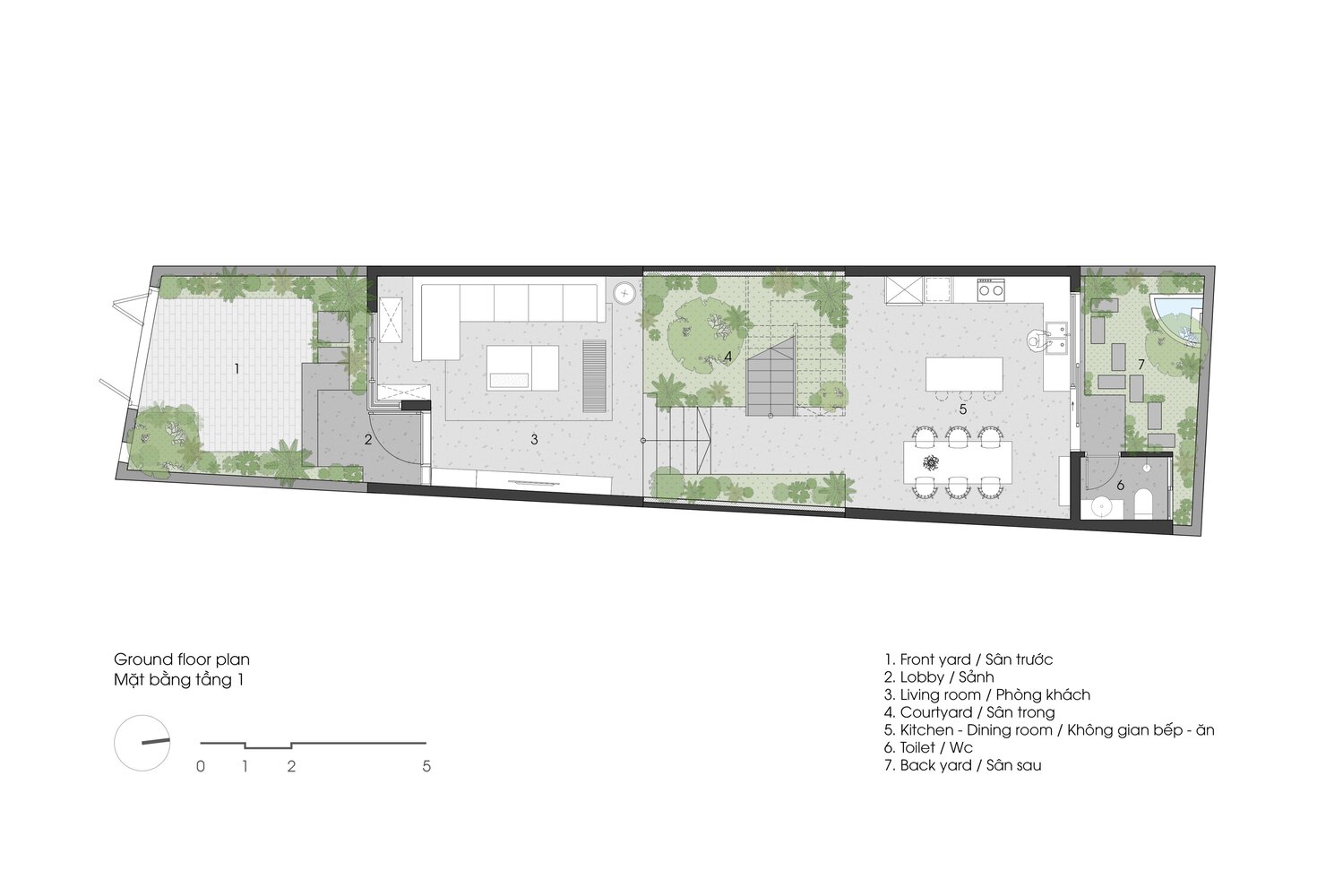

Plan - 1st Floor
Folding House

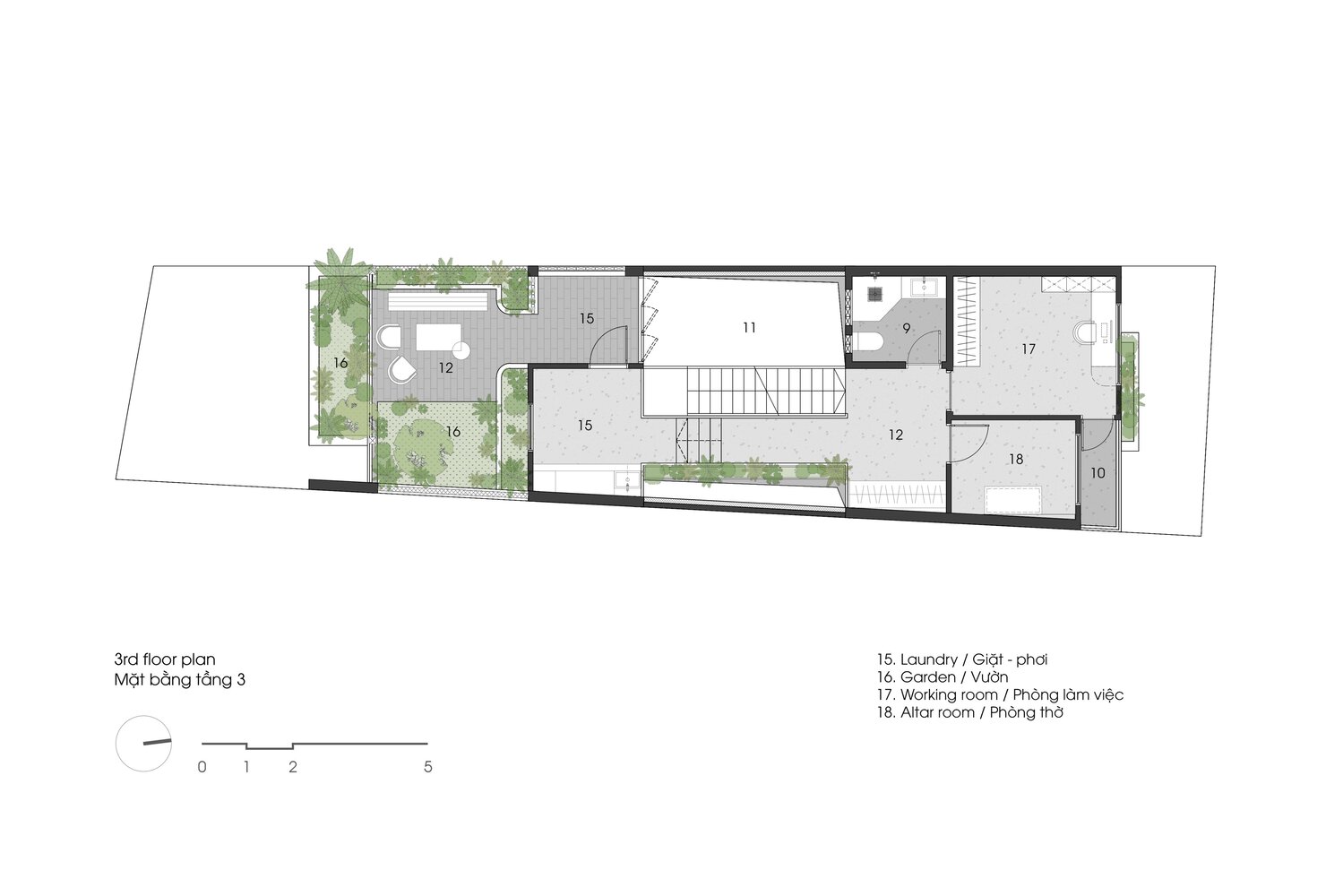

Plan - 3rd Floor


Folding House

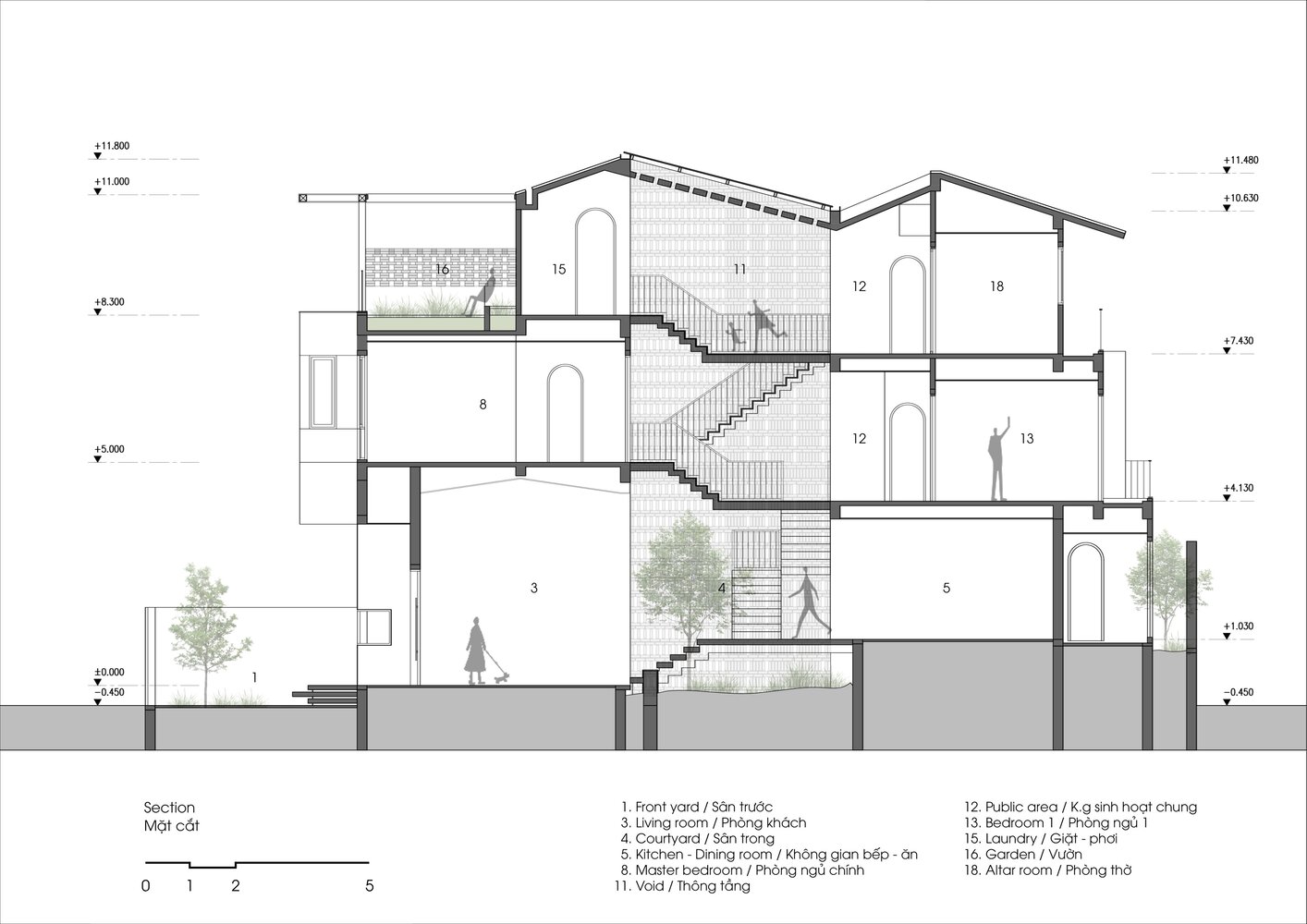

Section 01
Folding House
Section 02
