BEIJING FENGTAI STATION

gmp Architects

ARCHITECTS
gmp Architects

LIGHTING CONSULTANT
Grand Sight Design International Limited

FACADE CONSULTANT
SuP Ingenieure GmbH

PARTNER
China Railway Design Corporation

PROJECT LEADERS
Linlin Jiang, Marco Assandri

PROJECT MANAGEMENT
Ling Li, Fang Xie

DESIGN TEAM
Sebastian Beyer, Lene-Marie Brüggemeier, Graciano Macarrón Stamp, Maarten Harms, Sebastian Linack, Mulyanto, Jan Peter Deml, Thilo Zehme, Yue Han, Han Huang, Ran Li, Zheng Li, Luhua Liu, Xiao Liu, Yuan Ma, Ju Su, Junwen Wang, Shuo Wang, Yan Wang, Jiuzhou Xing, Yinan Yu, Chengcheng Zhai, Wei Zhou, Tao Yuan

CLIENT
China Railway

PHOTOGRAPHS
Schran Images

AREA
400000 m²

YEAR
2022

LOCATION
Beijing, China

CATEGORY
Metro Station

Text description provided by architect.

With the new Fengtai Station in Beijing, the architects von Gerkan, Marg and Partners (gmp) have completed a complex transport building:

Beijing Fengtai Station
© Schran Images
Beijing Fengtai Station
© Schran Images

in terms of square area, it is Asia’s largest railway station and the first railway station in China, which the tracks for high-speed trains are located above those for normal trains, which significantly reduces the footprint area of the station.

Under its seemingly floating roof the new station – with two levels above ground and a floor area of almost 400,000 square meters – combines a system of different transport lines.

Beijing Fengtai Station
© Schran Images
Beijing Fengtai Station
© Schran Images

Twelve tracks for the high-speed trains going north/south from Beijing to Hong Kong and from Zhangjiakou to Shanghai are located as terminus stations at the top level. The conventional railway lines with 20 tracks are at level 0, and two underground lines are at the level below.

With these services, Fengtai Station will be an important new transport intersection and the largest of Beijing’s three intercity railway stations. At peak times it is expected that up to 20,000 passengers will use the station to arrive, depart or change trains.

Beijing Fengtai Station
© Schran Images
Beijing Fengtai Station
© Schran Images

Fengtai Station has been in existence since 1896 and is located at the 4th Ring Road to the southwest of the city center.

After a competition in 2010, gmp and China Railway Design Corporation were commissioned the rebuilding the station; in 2016, the design was revised, and building work started in 2018.

Beijing Fengtai Station
© Schran Images
Beijing Fengtai Station
© Schran Images

The construction period was only just over three years. The upgrade of Fengtai Station provides relief for Beijing’s other two large intercity stations, South Station and West Station, and improves connections between the suburbs and the city infrastructure, as well as benefiting Fengtai District.

With its colonnade-style facade and the high, naturally lit entrance hall, which – similar to an airport – also contains retail outlets in addition to the check-in and security zones, the station is an important new transport hub.

Beijing Fengtai Station
© Schran Images
Beijing Fengtai Station
© Schran Images

The building has a symmetrical layout and is accessible from all sides. Travelers arriving from the city on foot can access the station from the north and south via two large public spaces.

Motorized traffic approaches at the level above, from where there is access to the departure area with waiting zones, ticket counters, and shops.

An important element of the design concept was to bring in plenty of daylight to help travelers find their way through the building.

Beijing Fengtai Station
© Schran Images
Beijing Fengtai Station
© Schran Images

Continuous roof lights in the 495-meter-long roof, as well as the glass facades, admit much natural light to the interior, some of which is conducted to the lower levels via sun tunnels.

The roof has been fully fitted with solar modules that are designed to generate 7 million kilowatt hours of eco-power per year, supplying partly the station’s electricity requirement. The building was awarded the “China 3-Star Green Building” certification.


Beijing Fengtai Station
model


Beijing Fengtai Station

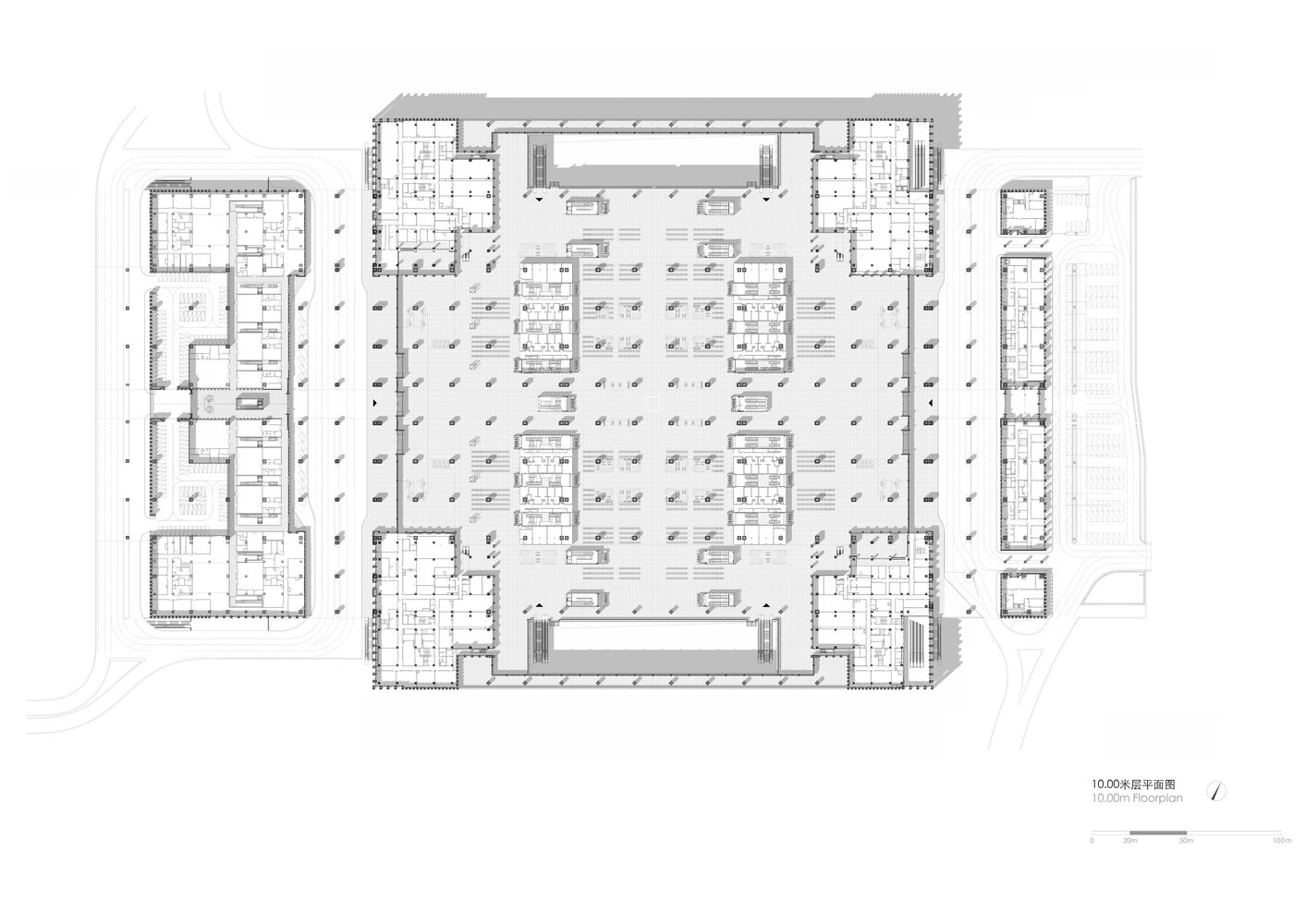

plan
Beijing Fengtai Station
plan
Beijing Fengtai Station
plan
Beijing Fengtai Station
plan
Beijing Fengtai Station
site plan
Beijing Fengtai Station
section
