Text description provided by architect.

An abode to humans and birds alike; Kalrav house, which translates to the house of chirping birds, is nested within a thicket of previously existing and newly sapped trees.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

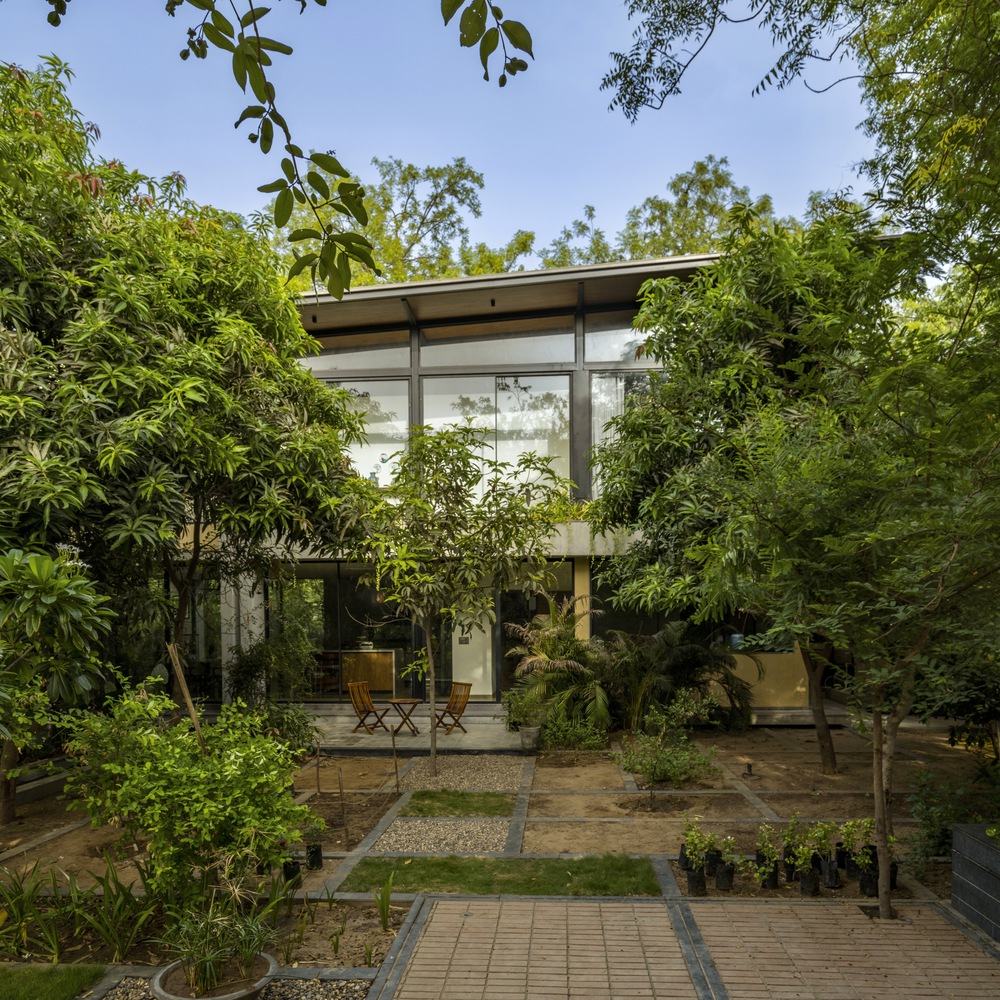

Facing the east, Kalrav (façade) opens up in the form of a ‘flying bird’.

Following the position of the house, the intent is the least possible footprint taken up by the house.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

The form is shaped with glass as a façade supported by exposed concrete and lime plaster to flaunt the minimal, sleek, and earthy design.

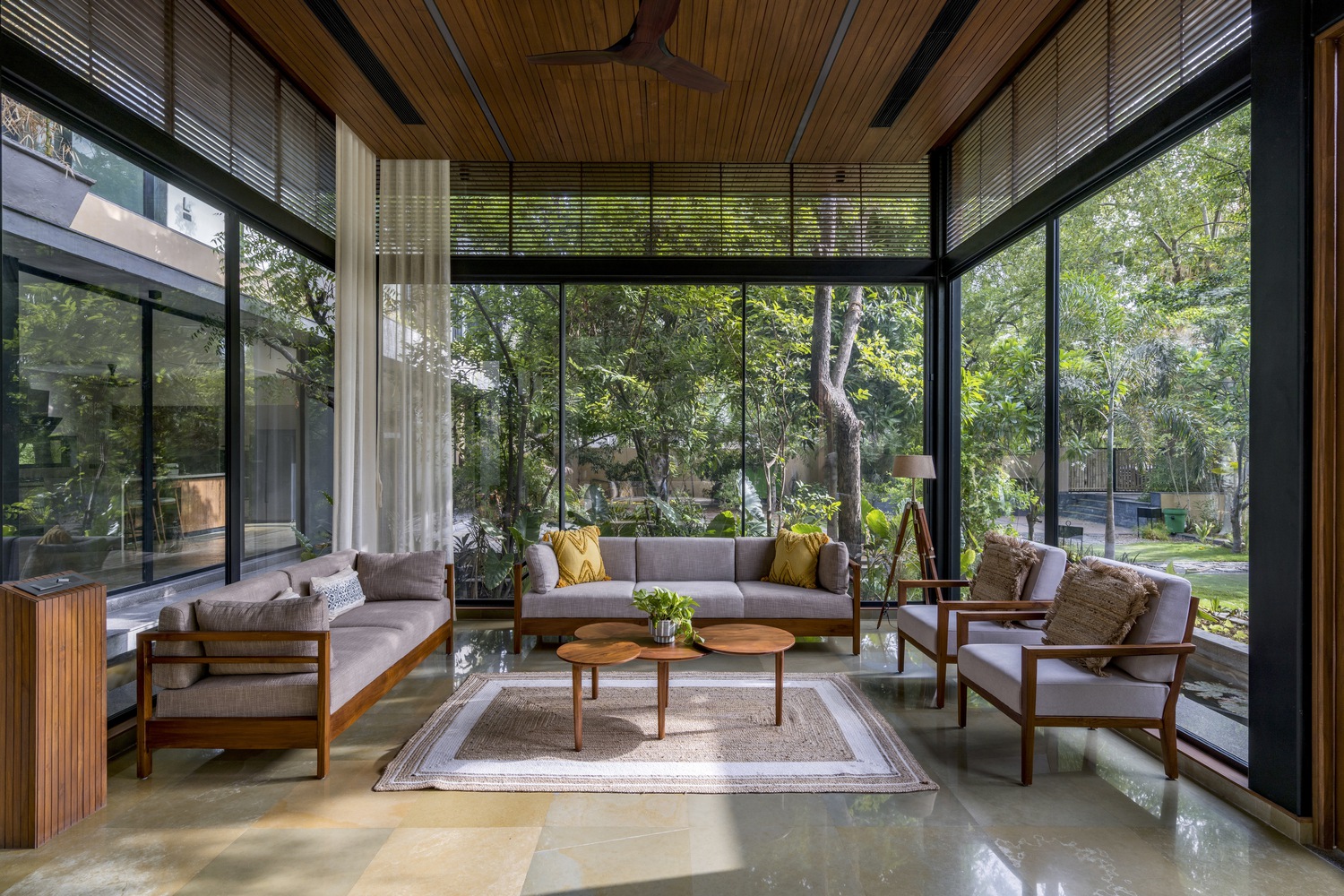

One is welcomed by the low heightened entrance pavilion into the house which unfolds two elevated seating rooms – private and formal- encompassed by water bodies, thus forming the ambiance of a floating island.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

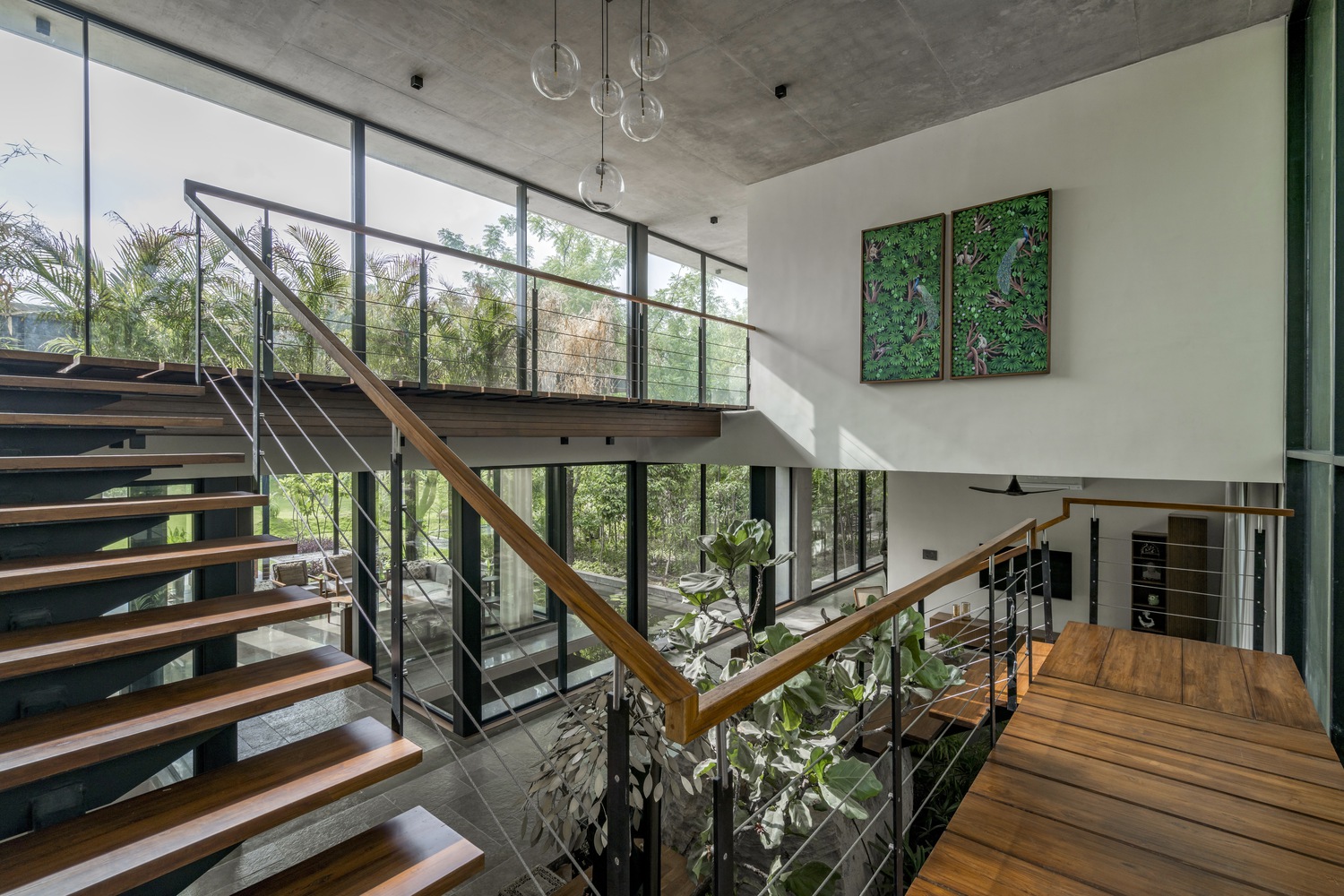

Further, these islands reveal a central, double-height stair shaft enveloping the landscape, and blurring the inside-outside of this abode.

The initial steps are designed as carvings of ‘dhangadhara (local) stone’, quite a stair trek.

While stepping up, stairs take sleek form from local teak wood and steel frame.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

This courtyard is elevated by the open ‘mandir’ space.

The prayer room is thoughtfully designed to be surrounded by the landscape around the courtyard.Instead of confining the deities within walls, they’re established in the more breathable square.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

On one side of this magnificent courtyard lie the semi-private spaces, the kitchen, dining, utility spaces, and so on. Whereas, the other side is private spaces including a bedroom at the corner and family seating.

An east-facing glass passage viewing the front garden encases the invigorating green landscape into the house. Glass-covered passages and balconies allow maximum involvement with nature around.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

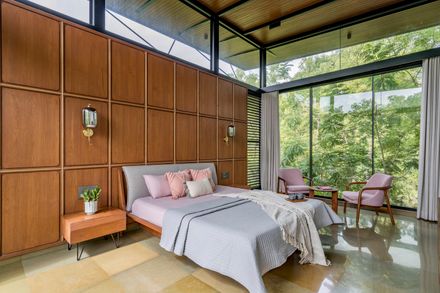

Succeeding the picturesque view allowed by the passage lie two master bedrooms. Master bedrooms have a subtle underline of earthy tones and composed decorum furnished by lime plaster and neutral interiors.

Besides, these master bedrooms are elevated by the design of the roof which, not only forms ‘the flying bird’ façade but helps create an uplifted (floating) aura.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

Once more, the sleekness of glass and metal walls along with exposed RCC act as the rescue in accessorizing these bedrooms with the presence of the lush greenery as a backdrop.

The floating roofs are elevated at 1.5 height and are a steel deck construction with a concrete layer atop. It is further finished by tiles on top and with thermal insulation finished with timber wood as the ceiling.

The timber ceilings impart a soft and warm feeling throughout. The concept of an open bath is induced with utmost importance given to privacy.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

Custom bathtubs are fashioned out of local stones (Rajasthan stone and black stone respectively) back dropped with a dry-clad stone wall. The bamboo screens permeable to the light and greenery provide a soft and soothing aura.

The open-to-sky bathrooms are adorned with added landscape furniture. A glass façade that skins the majority of this abode is designed by keeping climatic response in mind.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

The house is a man-nest surrounded by maximum foliage throughout the year, thus maintaining a balanced temperature. The water bodies and local materials further help in maintaining freshness. Private spaces like bedrooms have ‘kota stone’ flooring and fabricated louvers to control the natural light.

Lime plaster and pigmented lime plaster are used instead of paints making a more sustainable design approach. Respecting the existing nature around, none of the trees were cut during planning.

Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio

Instead, these trees were preserved and the water body was designed to keep them on the islands. The minimum footprint provides a huge central lawn along with a separate service structure and mini sports plaza.

The interiors of the house flaunt neutral color schemes and fabrics keeping a minimal and earthy look alive. The paintings that beautify the lime-plastered walls, are inspired by nature, birds, and animals truly fulfilling ‘the man’s nest’.

Kalrav Villa
© Inclined Studio


Kalrav Farm Designed By VPA Landscape by Jinal Patel


Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio
Kalrav Villa
© Inclined Studio


Kalrav Villa
Sections AA and BB
Kalrav Villa
Section CC
Kalrav Villa
Section DD
Kalrav Villa
Section EE


Kalrav Villa
Elevation


Kalrav Villa
Plan - Ground Floor
Kalrav Villa
Plan - 1st Floor
Kalrav Villa
Plan - Master
