B - L Barkow Leibinger Gesellschaft von Architekten mbH

Trumpf Day-Care Center

Trumpf Day-Care Center
© Stefan Müller

Trumpf Day-Care Center

Barkow Leibinger

CLIENTS
Trumpf Gmbh + Co. Kg

LEAD ARCHITECTS
Regine Leibinger, Frank Barkow

MANUFACTURERS
Rheinzink, Artemide, Bega, Cinca, Heradesign, Knauf, Lts, Neuform-türenwerk Hans Glock Gmbh, Arta, Alphabet Of Light, Ardex Pardomo, Dusyma, Fink Duo Gmbh, Lkml, Romazip Screen, Vmzinc, Holzius Gmbh

STRUCTURAL ENGINEERING
Breinlinger Ingenieure

BUILDING PHYSICS
Gn Bauphysik Ingenieurgesellschaft

DESIGN TEAM
Tobias Wenz, Fabian Ziltz, David Eichner, Arne Löper, Marco Ripa Di Meana, Ana Skrebic, Robert Tzscheutschler

GENERAL CONTRACTOR
Holzius

HVAC
Krebs Ingenieure

PHOTOGRAPHS
Stefan Müller

AREA
1270 M²

YEAR
2019

LOCATION
Ditzingen, Germany

CATEGORY
Day Care

Text description provided by architect.

The machine-tool manufacturer, Trumpf, has completed its first company daycare center in the north-west edge of its Campus in Ditzingen.

Trumpf Day-Care Center
© Stefan Müller
Trumpf Day-Care Center
© Stefan Müller

The one-story building was built using mass-timber elements prefabricated in a South Tyrolean factory and then assembled on site. The daycare center offers a place for 75 children of the employees and is also open to other children from the municipality.

The building is set back within the industrial context and, thanks to its low height, blends almost seamlessly into the topography.

Trumpf Day-Care Center
© Stefan Müller
Trumpf Day-Care Center
© Stefan Müller

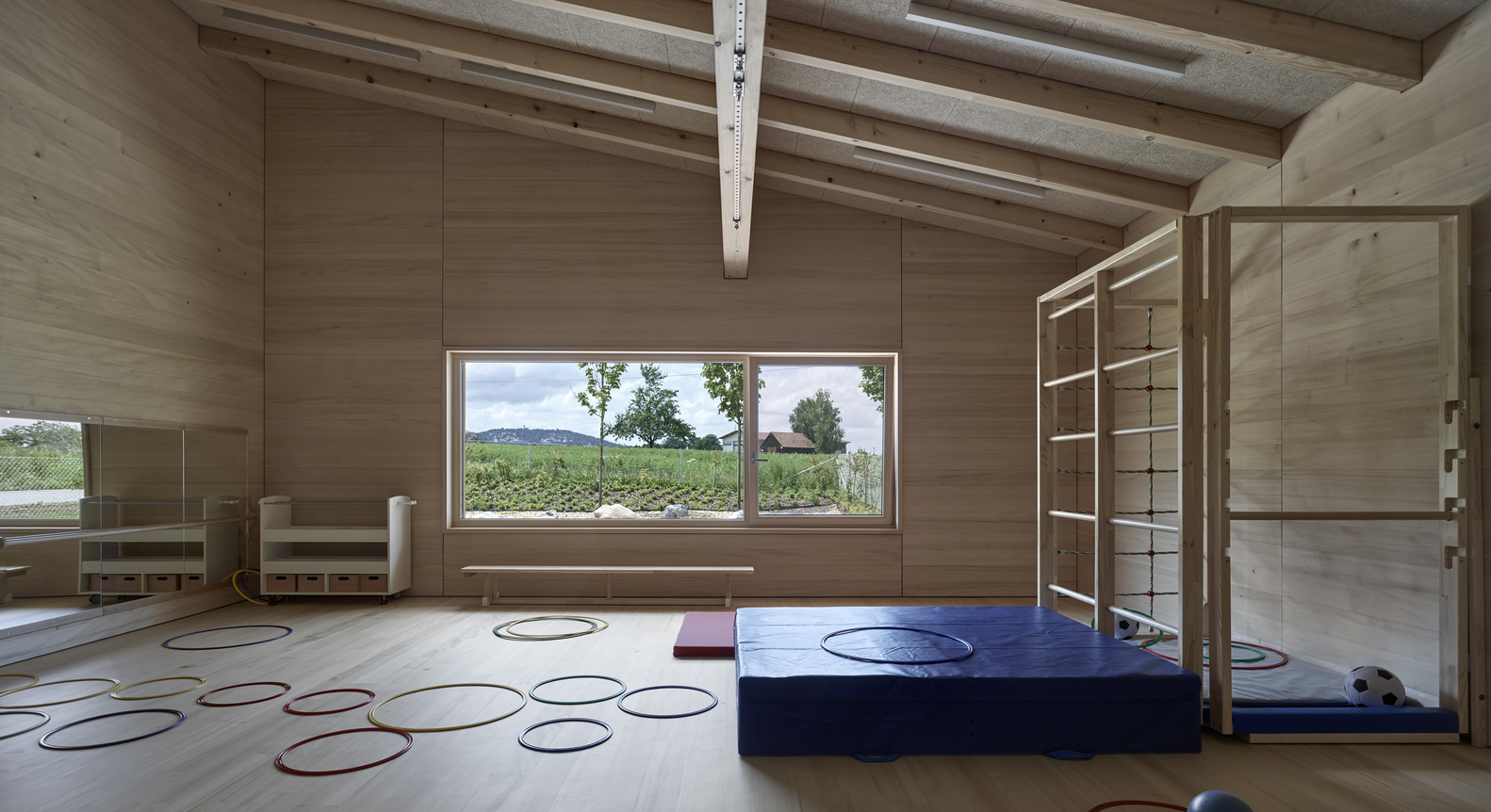

The building is also linked to the architecture of neighboring farms, by way of its flat pitched saddle roof—an open and visible rafter roof construction.

Regarding the effects of the weather, the green roof has an overhang on all four sides of the building, and which varies in depth to protect the rooms and terraces from direct sunlight or rain.

Generous skylights are also arranged at the side of the ridgeline for natural lighting, ventilation, and smoke extraction.

Trumpf Day-Care Center
© Stefan Müller
Trumpf Day-Care Center
© Stefan Müller
Trumpf Day-Care Center
© Stefan Müller

The building structure is made from prefabricated, unglued solid wood elements. The base layer consists of two 6 cm thick layers of solid structural timber (fir) and is joined by dovetail connectors. The outer cladding consists of a 2.7 cm thick top layer of white fir, which is used everywhere in the visible area—insulated in between panels with wood fiber.

The wood comes from PEFC certified forests and the fabrication is glue-free in nature. The purlin roof is screwed on as well.

Trumpf Day-Care Center
© Stefan Müller
Trumpf Day-Care Center
© Stefan Müller

In this way, the building could potentially be recycled and reused without any problems. Thanks to the collaboration with a regional manufactory in South Tirol, and short delivery distances, the ecological footprint of the building is quite low. Furthermore, Pellet heating ensures environmentally friendly heat production.

The interior is divided by eight cubes dedicated to group and employee rooms, a cloakroom, and a kitchen. A meandering corridor connects all volumes and widens at three points within the building's perimeter, creating smaller gathering "squares".

Trumpf Day-Care Center
© Stefan Müller
Trumpf Day-Care Center
© Stefan Müller

These three intermediate spaces are available for communal use and have a direct connection to the outside space through their extensive glazing.

The Trumpf Day-Care Center is also completely handicap accessible and a has high energy standard (KfW 55).

Trumpf Day-Care Center
© Stefan Müller


Trumpf Day-Care Center
© Stefan Müller
Trumpf Day-Care Center
© Stefan Müller
Trumpf Day-Care Center
© Stefan Müller


Trumpf Day-Care Center
Floor plan
Trumpf Day-Care Center
Site plan


Trumpf Day-Care Center

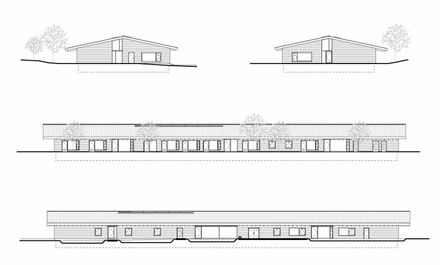

Elevations
Trumpf Day-Care Center
Sections
