Miralles Tagliabue Embt, SLP

Barajas Social Housing Blocks

Barajas Social Housing Blocks
© Roland Halbe

Barajas Social Housing Blocks

EMBT

ARCHITECTS
Embt

STRUCTURE
J.h.s Proyecto De Estructuras Y Arquitectura Sl, Jesús Hierro Sureda

PROJECT AND CONSTRUCTION MANAGER
Elena Rocchi, Salvador Gilabert Sanz

PROJECT DIRECTOR
Elena Rocchi, Salvador Gilabert Sanz

MODELS
John Lee Miralles Tagliabue Embt, Gabrielle Rotelli, Morton Engel, Gitte Kjaer

CONSULTANTS INSTALLATIONS
Josep Massachs, Projecte I Solucions Tècniques Girona Sl.

TELECOMMUNICATIONS
Carlos Fernández Loeches, Colegio De Ingenieros De Telecomunicaciones (C.o.i.t).

CLIENT
Emvs Empresa Municipal De Vivienda Y Suelo

QUANTITY SURVEYOR
Beatriz Llamas Cepedano

ARCHITECT IN CHARGE
Benedetta Tagliabue

PROGRAM
120 Dwellings, 127 Parking Spaces, 120 Storage Rooms And 2 Shops

DESIGN TEAM
Alex Ruiz, Susana Oses, Cesar Trujillo, Marta Ruiz Nieto, Jordi Gorbe Neira, Valentina Antinucci, Laura Weiss, Jack O’Kelly, Cristián Ferrera, Vaiva Simoliunaite, Jesús Baranda, Carls Ernesto Lince, Carolina Carvalho, Ramón Gómez, Pedro Rodríguez Gómez Limón, Marco Coletti.

PHOTOGRAPHS
Roland Halbe

BUDGET
9.600.000 €

AREA
12568 m²

YEAR
2013

LOCATION
Madrid, Spain

CATEGORY
Housing, Social Housing

Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe

Text description provided by architect.

The apartment building, located in Barajas in the group of blocks under the management of the new extension of Barajas, was generated mainly at first to catch the light, wind and outdoor life.

Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe

Based on the urban zoning for this block, the building is conceived as a game where the apartments act as blocks on top of five floor slabs creating interspersed terraces and open spaces.

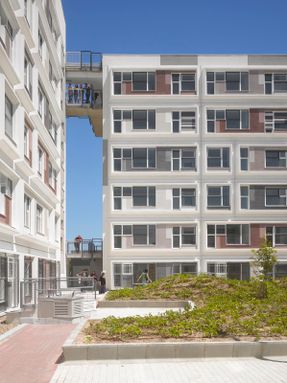

The building is organized around open corridors of the old “corralas”.

This condition creates interrelation between neighbors and new living spaces.

Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe

The apartments have a human character which comes from its architectonic qualities and new common spaces: the hallways, terraces and central interior zone.

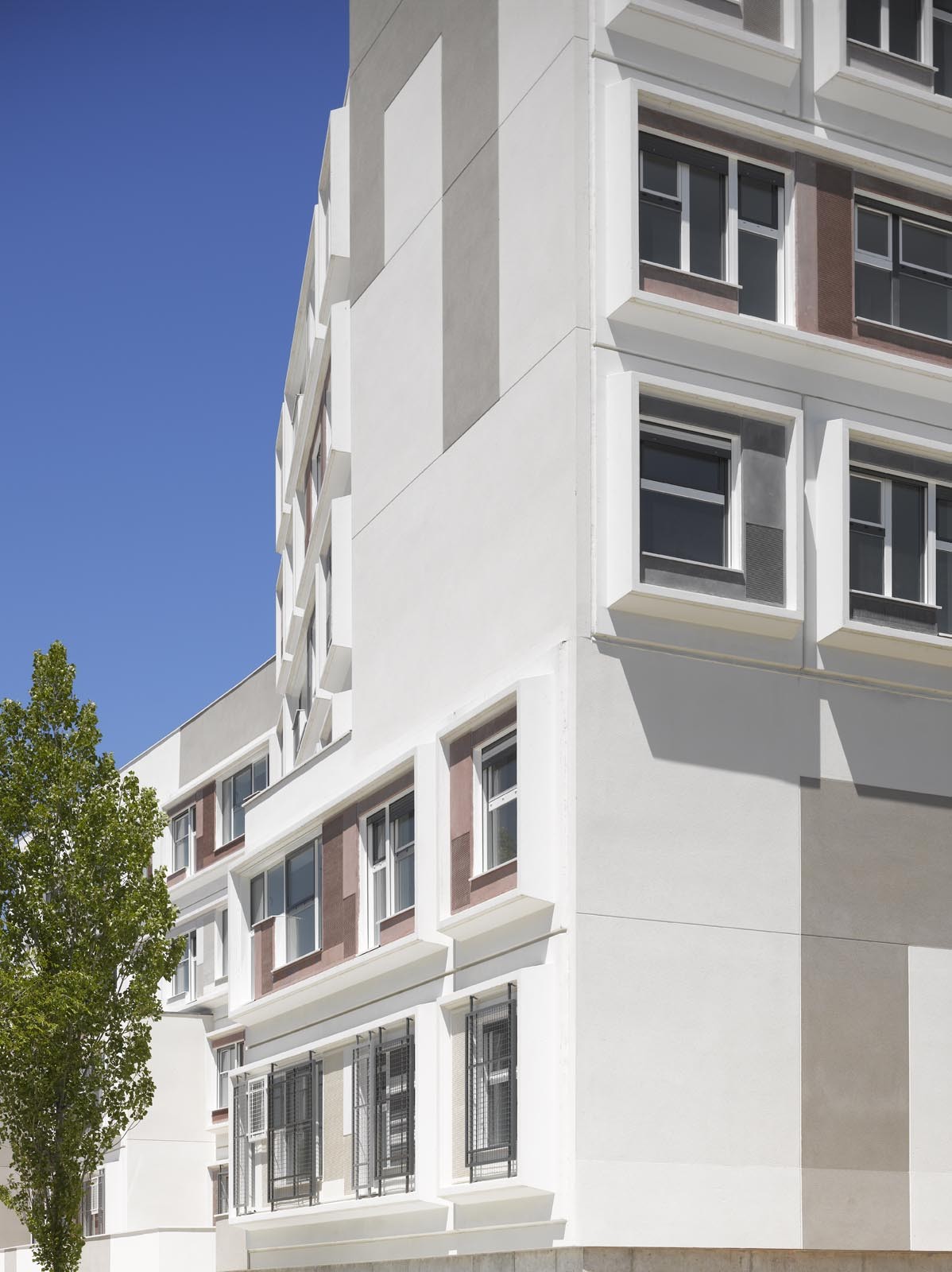

The facade is defined by the identity and uniqueness of each housing unit. Each was conceived as "a Box Top¨, made ​​with only two precast concrete slabs, providing time saving, fast and easy installation.

A hybrid architecture that emerges from the combination of simple pieces which create a complex result: single range of different colors and materials generated various possibilities.

Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe

Pre-fabricated elements of the facade provide an economy of construction by reducing cost and waste and strengthening the concepts of ecology and sustainability of the building.

Thermal comfort and lighting is gained through the naturally favorable orientation of the facade to the south and east, and the openings opposite the main side of the housing (providing cross ventilation).

This solution saves the costs of artificial air conditioning throughout much of the year.

Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe

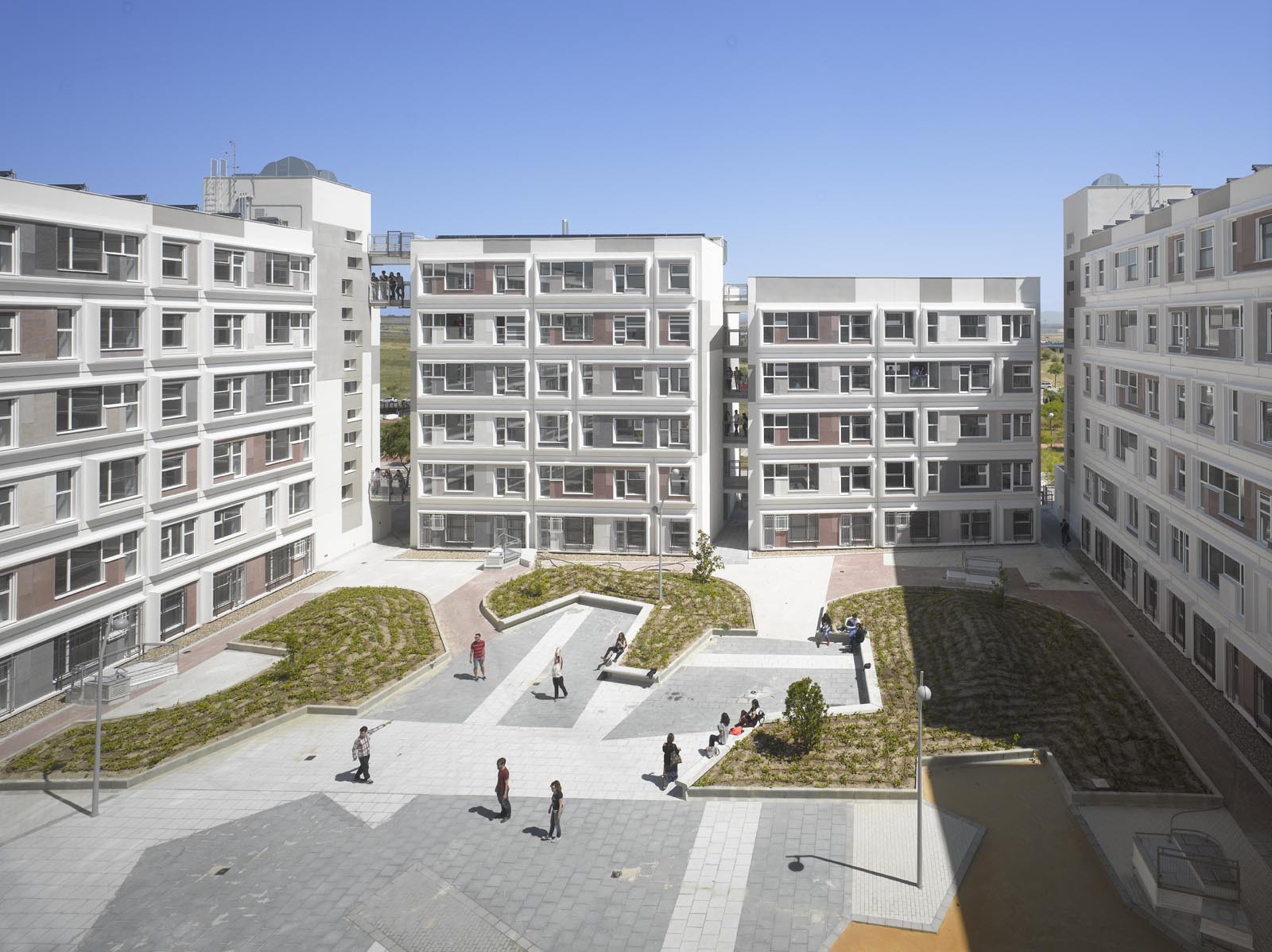

The public square within the block is derived from the representative elements of culture in Madrid.

Derived from conceptual collage, the result is a warm and collected space.

The materials remain concrete and cobble, which are softened by green areas, areas of rest and children's spaces.

Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe
Barajas Social Housing Blocks
© Roland Halbe


Barajas Social Housing Blocks

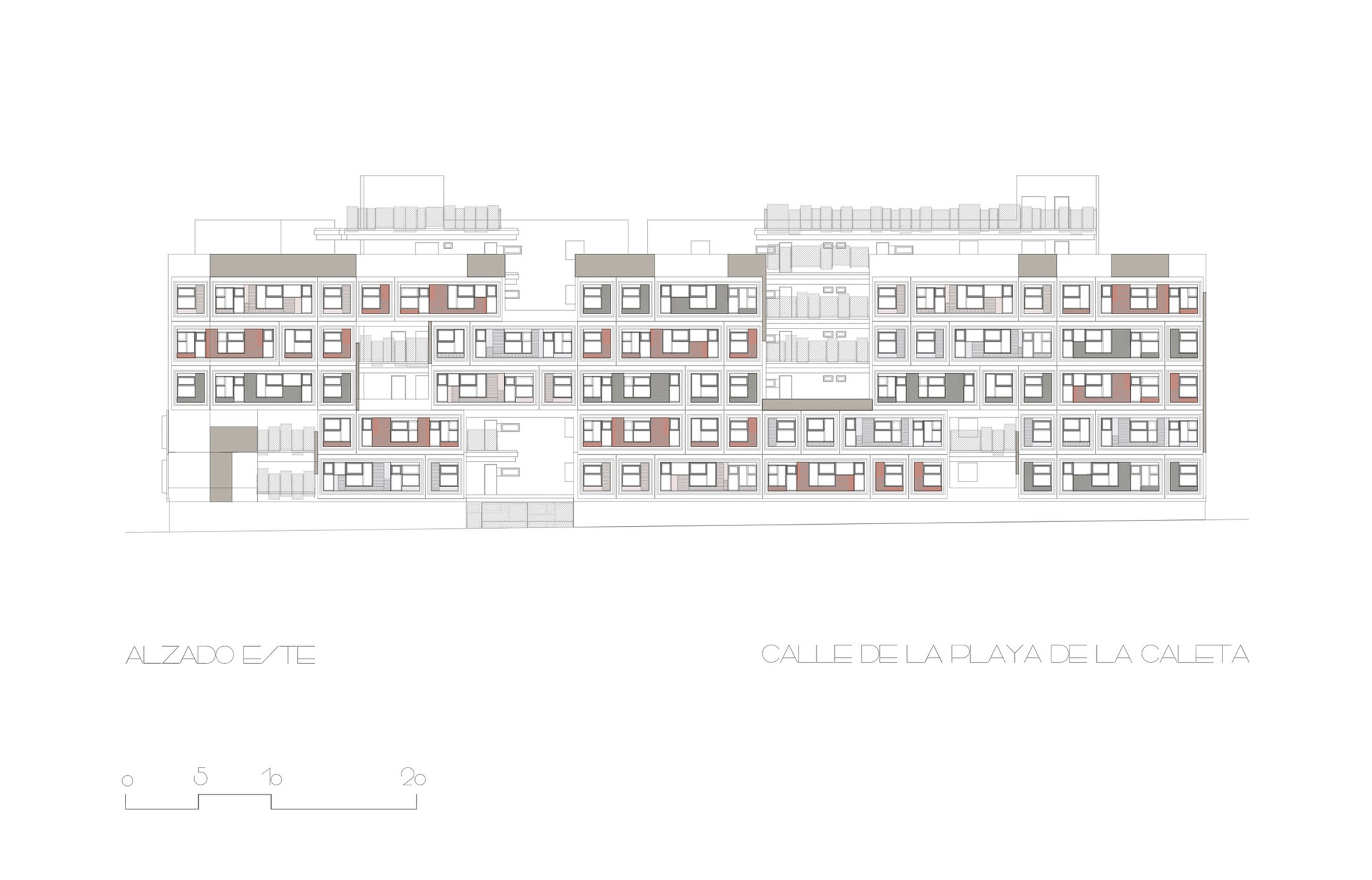

East Elevation
Barajas Social Housing Blocks
West Elevation
Barajas Social Housing Blocks

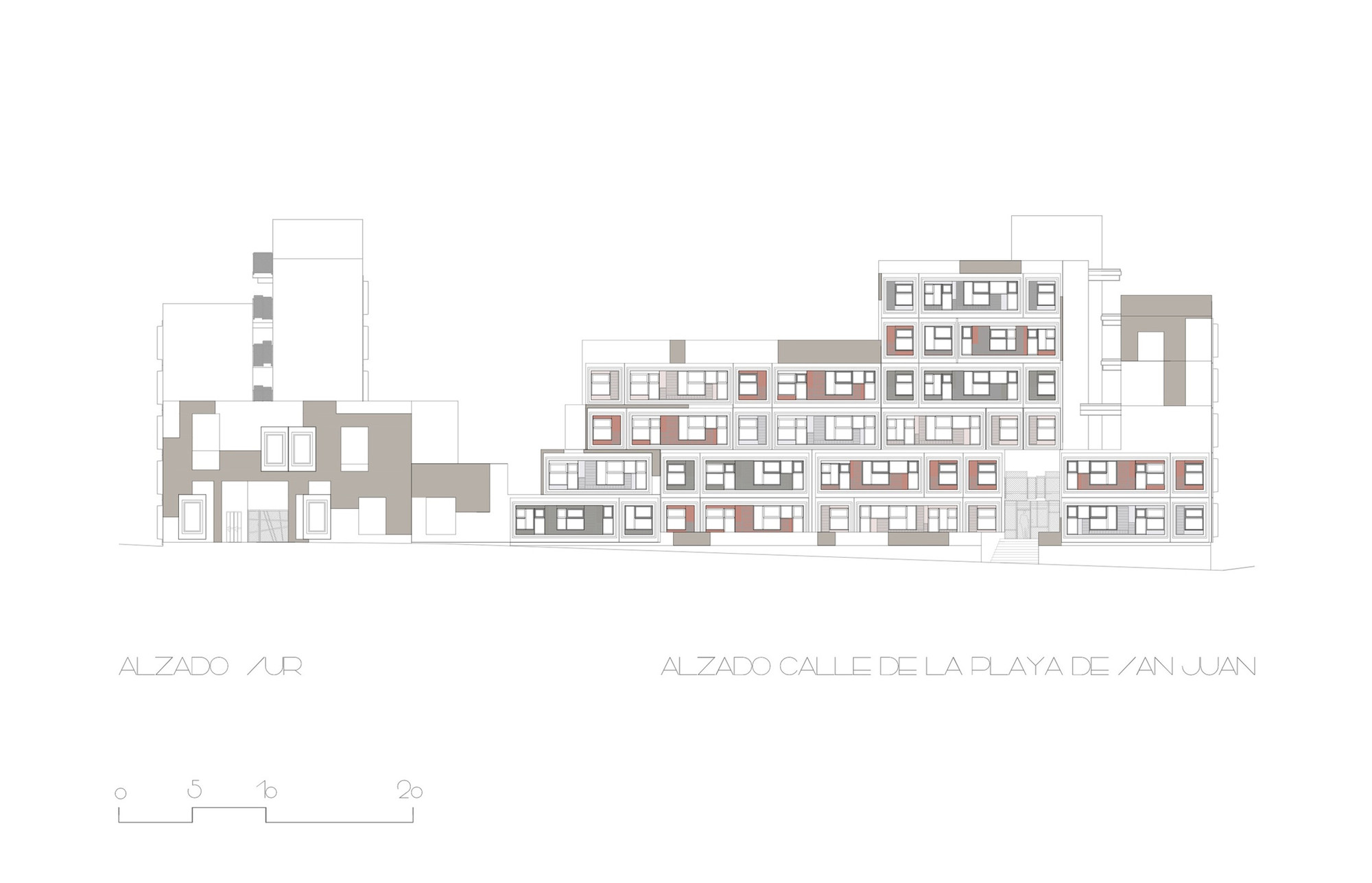

South Elevation
Barajas Social Housing Blocks

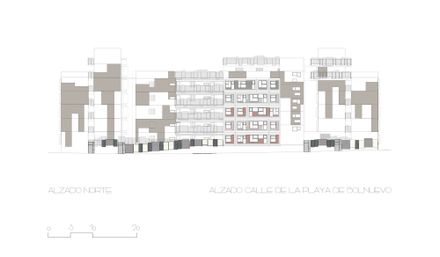

North Elevation


Barajas Social Housing Blocks
Precast Details
Barajas Social Housing Blocks
Precast Details


Barajas Social Housing Blocks

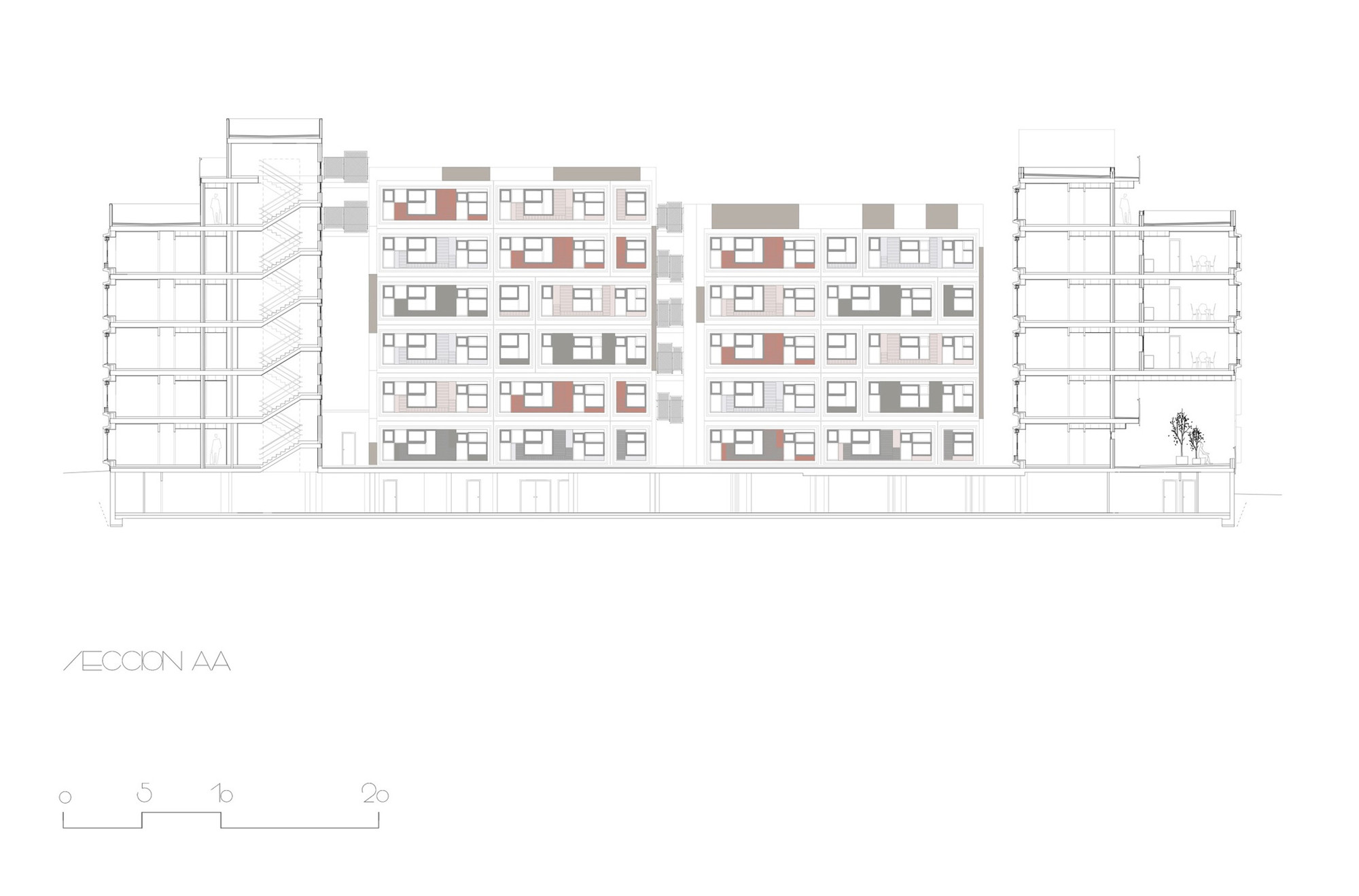

Section AA
Barajas Social Housing Blocks

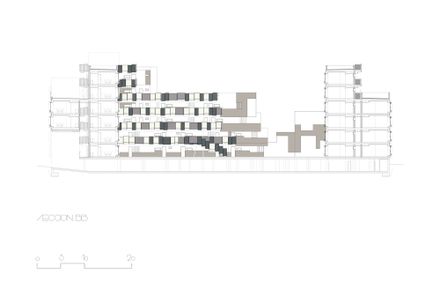

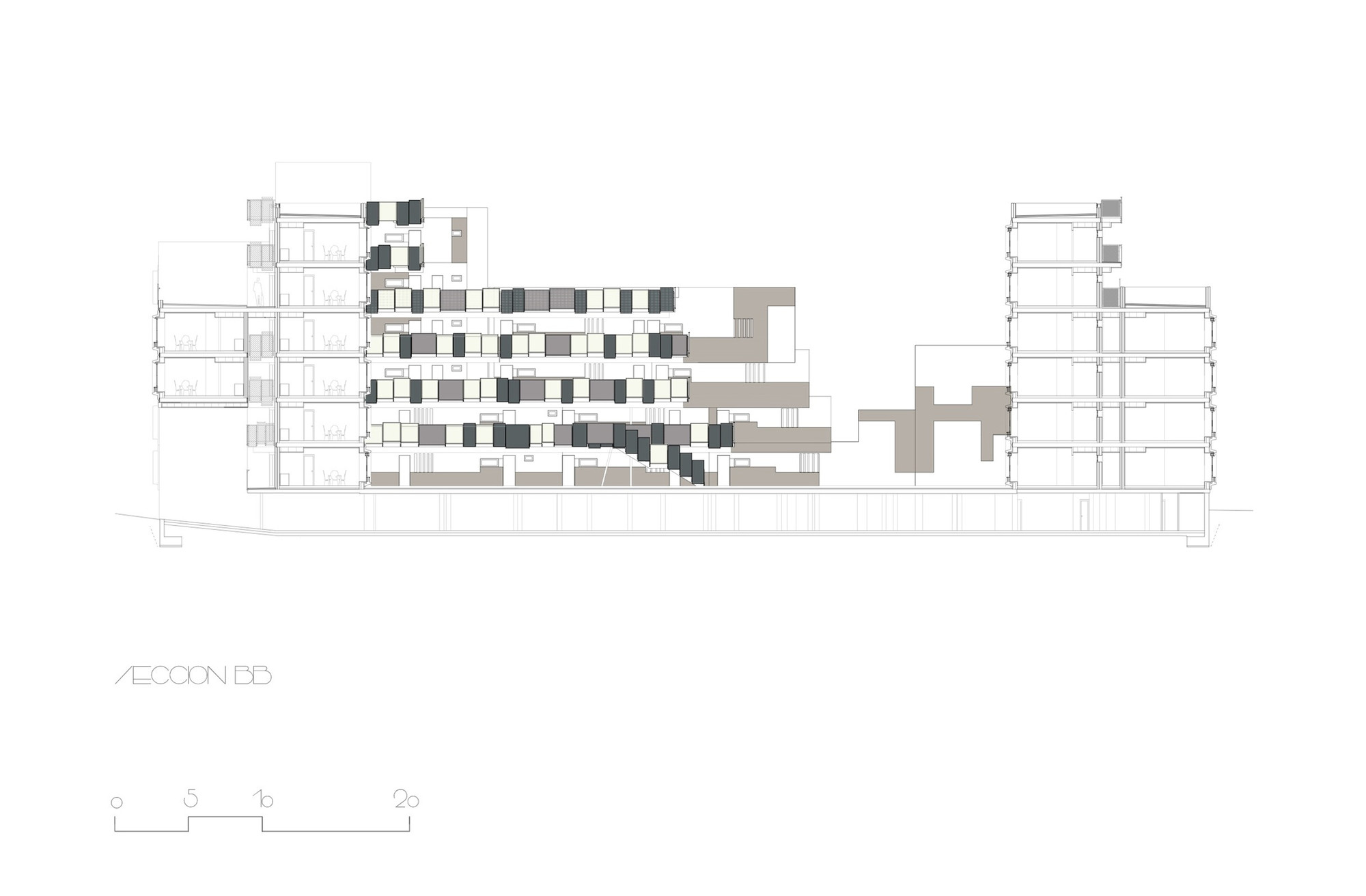

Section BB
Barajas Social Housing Blocks
Section CC
Barajas Social Housing Blocks
Section DD


Barajas Social Housing Blocks
Ground Floor Plan
Barajas Social Housing Blocks
First Floor Plan
Barajas Social Housing Blocks
Second Floor Plan
Barajas Social Housing Blocks
Third Floor Plan
Barajas Social Housing Blocks

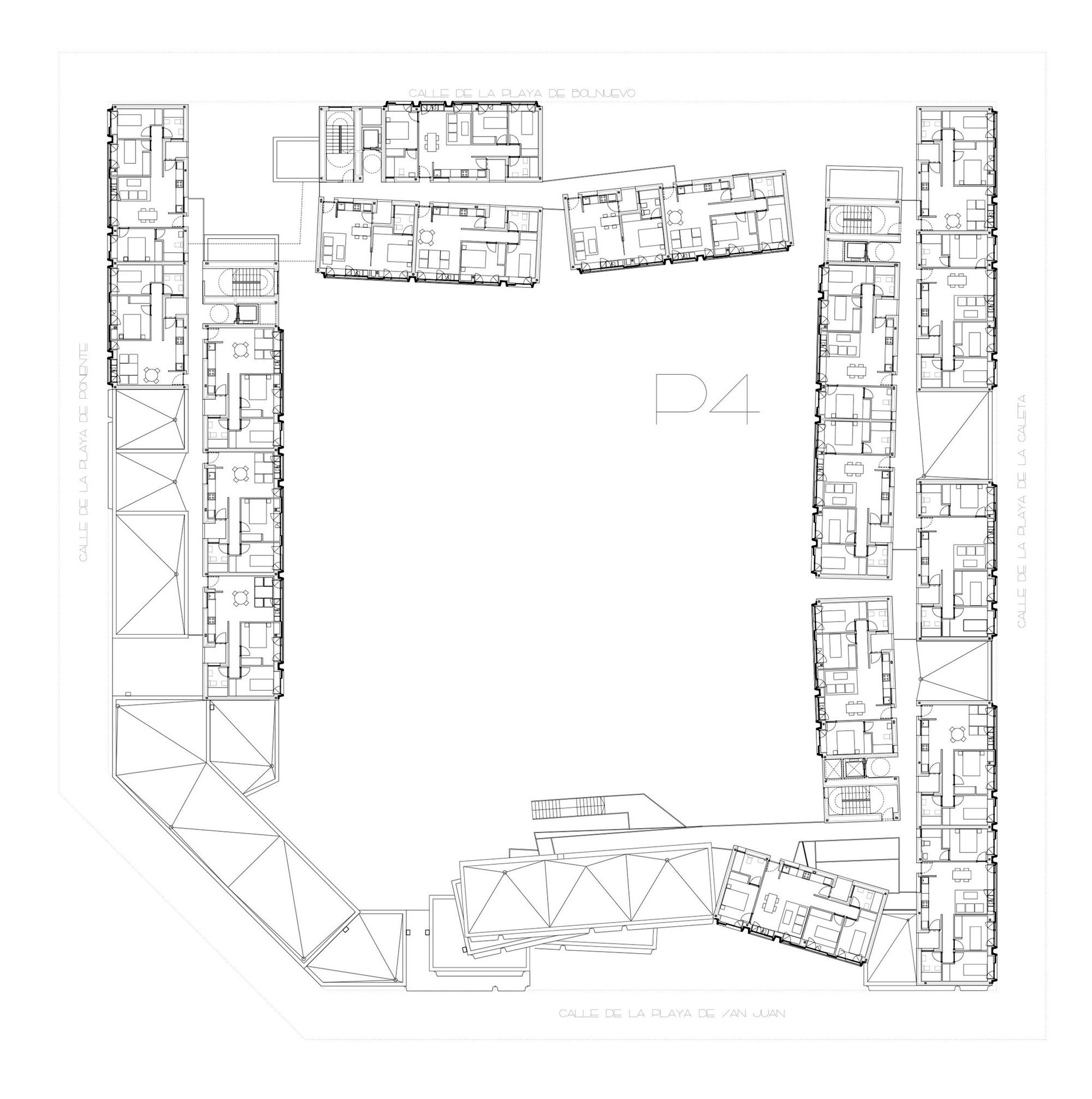

Fourth Floor Plan
Barajas Social Housing Blocks

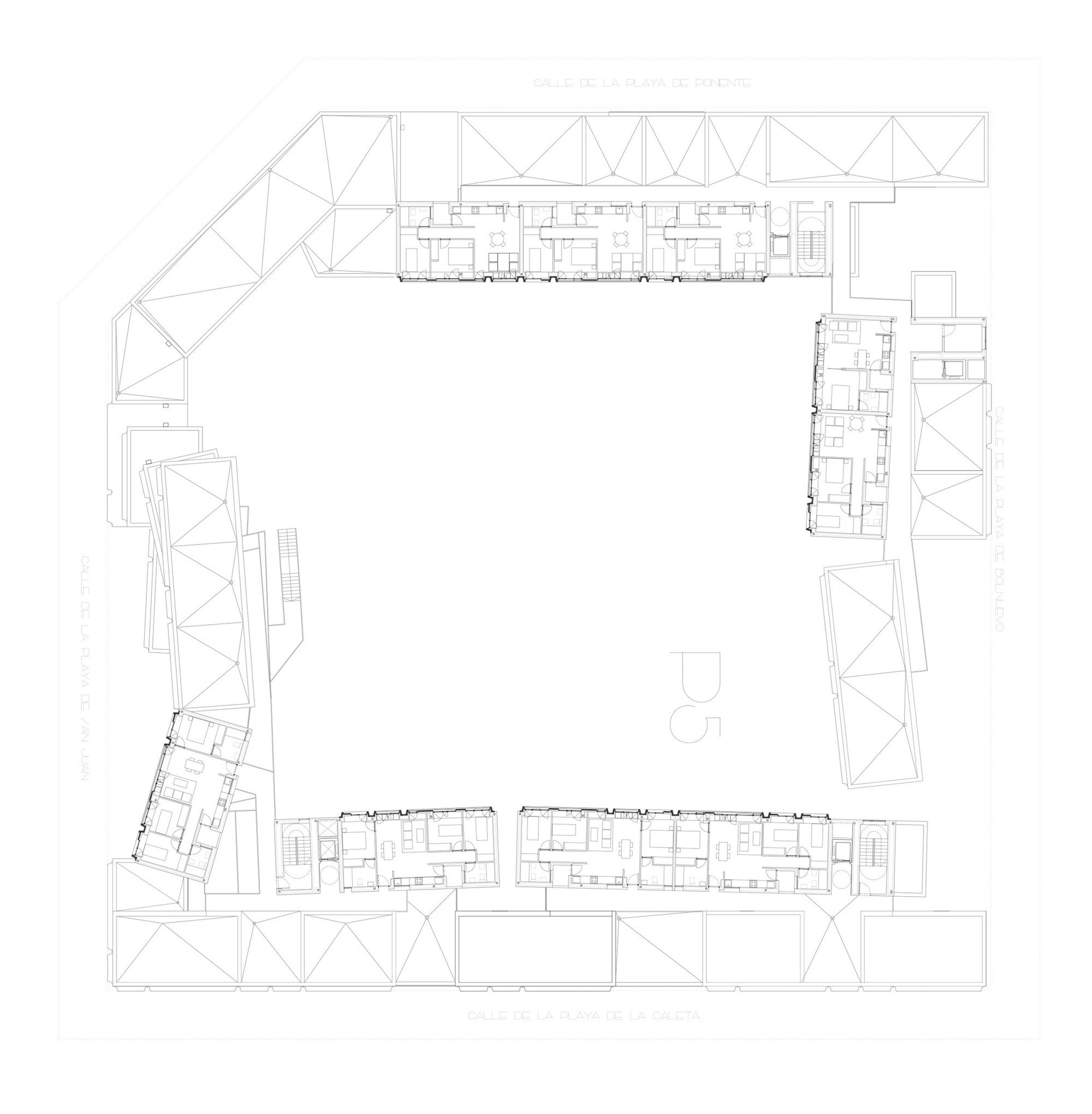

Fifth Floor Plan
Barajas Social Housing Blocks

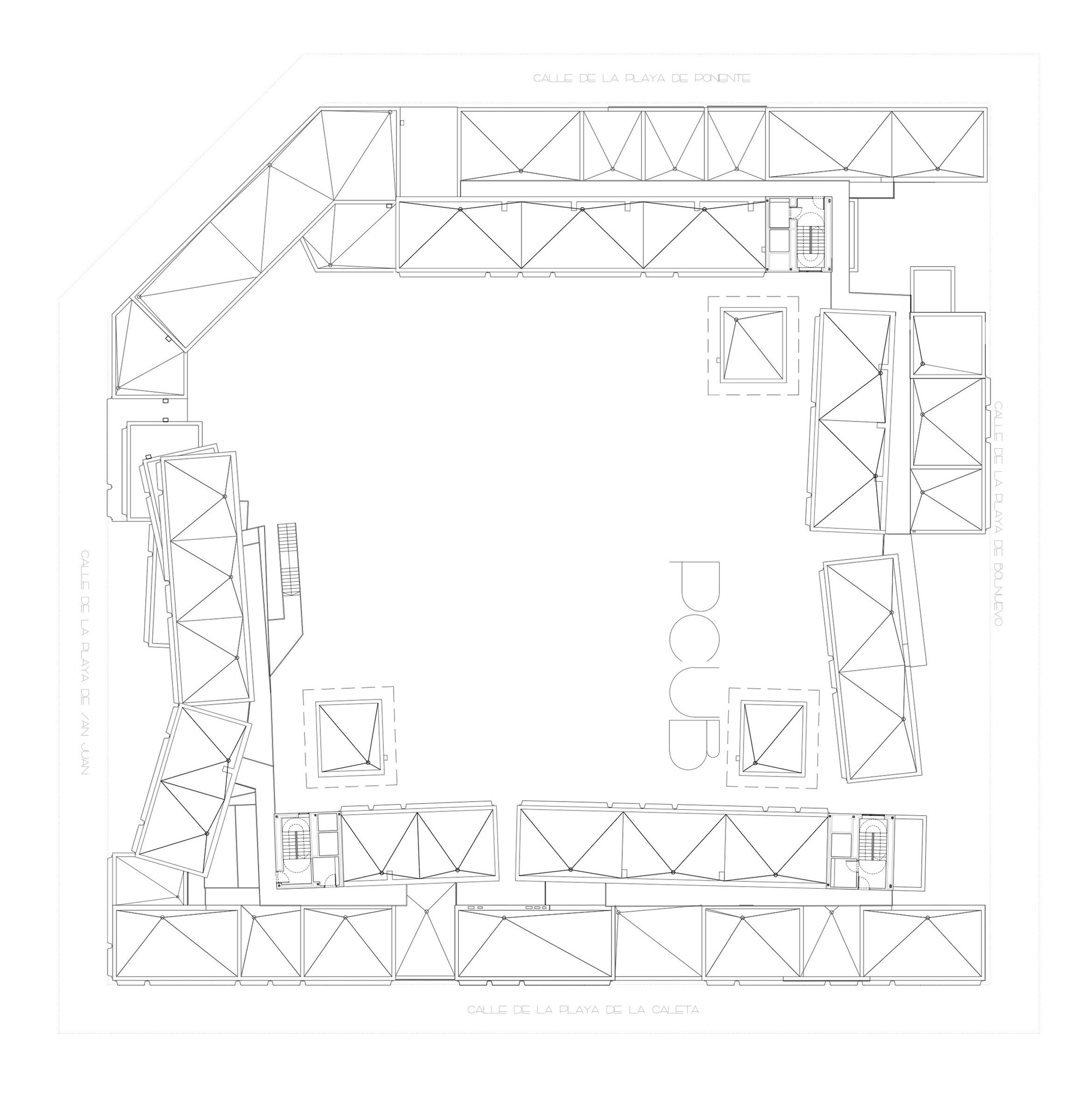

Roof Plan
Barajas Social Housing Blocks
Scheme Section


Barajas Social Housing Blocks
Public Space, Ground Floor Plan
Barajas Social Housing Blocks

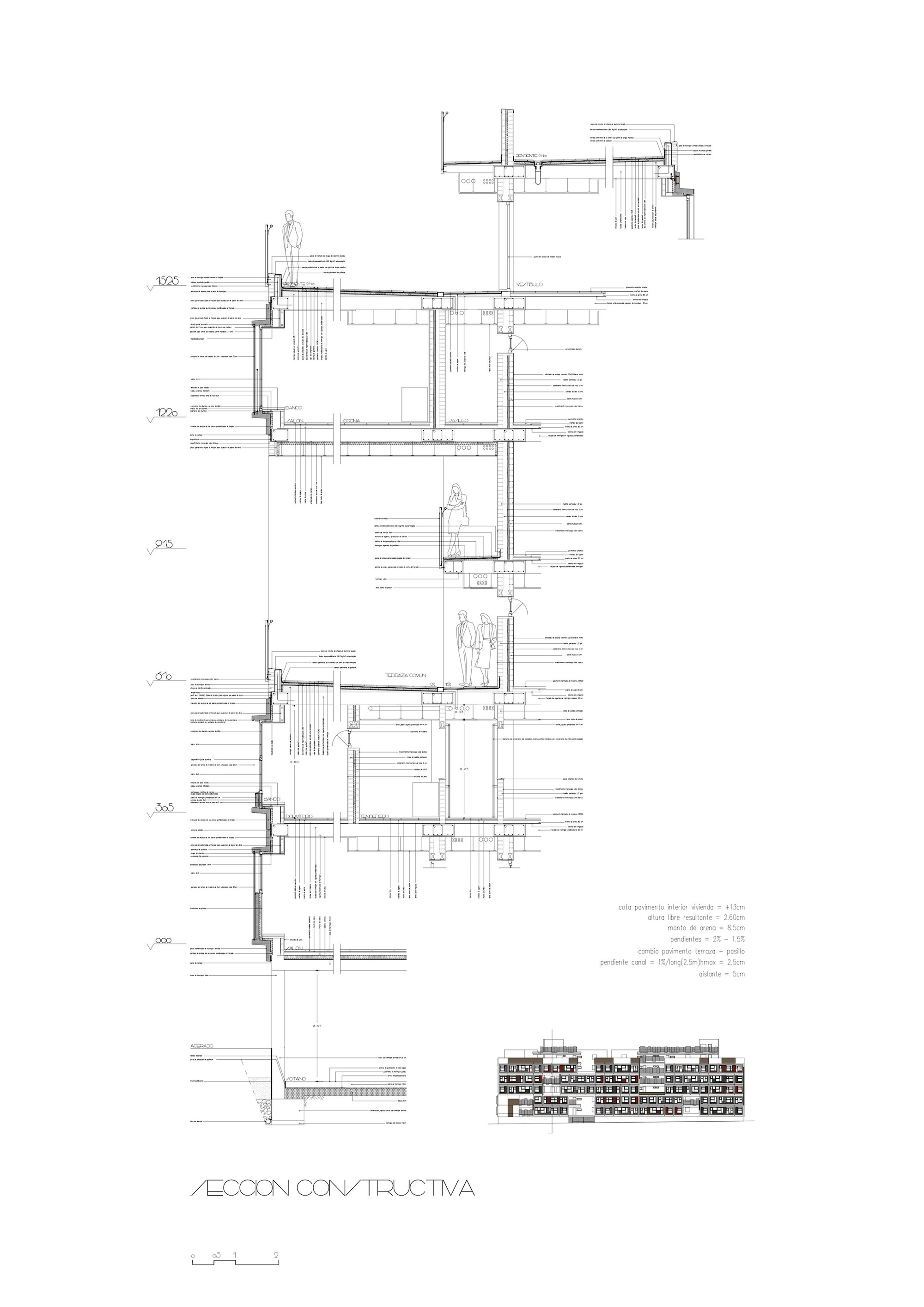

Constructive Section
