Double Kindergarten Steinmürli

Double Kindergarten Steinmürli
© Radek Brunecky

Double Kindergarten Steinmürli

Schmid Ziörjen Architektenkollektiv

ENGINEERING
Makiol Wiederkehr Ag

LANDSCAPE
Rosenmayr Landschaftsarchitektur Gmbh

MANUFACTURERS
Aba Amriswil, Winkler Holzbiegewerk

DESIGN TEAM
Magdalena Pikali, Leonardo Strollo, Rafael Schmid, Mark Ziörjen

CLIENTS
Stadt Dietikon

PHOTOGRAPHS
Radek Brunecky

AREA
450 M²

YEAR
2019

LOCATION
Dietikon, Switzerland

CATEGORY
Kindergarten

Double Kindergarten Steinmürli
© Radek Brunecky

CONTEXT

The ample school campus Steinmürli in Dietikon (CH) is a cluster of orthogonally arranged buildings.

Double Kindergarten Steinmürli
© Radek Brunecky
Double Kindergarten Steinmürli
© Radek Brunecky

From the two existing kindergarten buildings on the campus with two units, each one had to be replaced. The new double kindergarten is placed along the eastern end of the perimeter.

The placement of the new building reorganizes and structures the open spaces and creates a new spacious outdoor play area.

As a connective element between the two buildings, there is a naturally shaped play area with an adventurous climbing and balancing parcours made of robinia wood.

Double Kindergarten Steinmürli
© Radek Brunecky
Double Kindergarten Steinmürli
© Radek Brunecky
Double Kindergarten Steinmürli
© Radek Brunecky

ARCHITECTURE

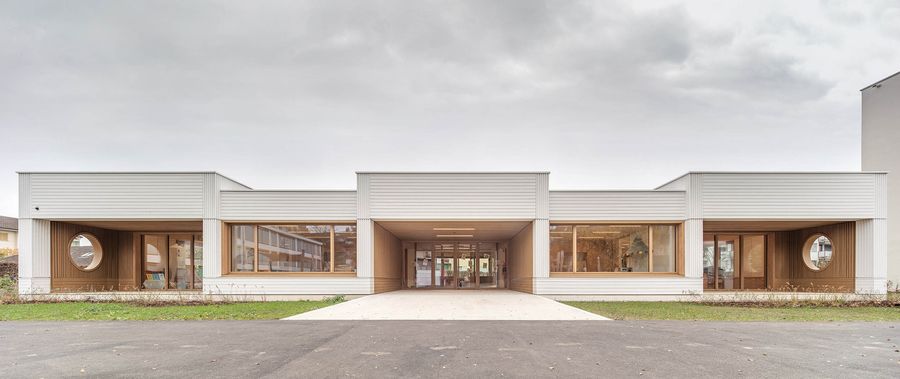

The double kindergarten is designed as a symmetric organized building. It’s accessible via a flat ramp in the centre of it.

A covered entrance area leads to the inner corridor and cloakroom of the kindergarten. To perceive the hierarchy of utilizations the arrangement of rooms is created at different height levels.

Sequences of different ceiling heights are the formative element of the interior. The subordinate rooms like small classrooms, a wardrobe, and bathroom have a height of 2.60m.

Double Kindergarten Steinmürli
© Radek Brunecky
Double Kindergarten Steinmürli
© Radek Brunecky

The main rooms like entrance, multi-purpose room, and main room have a clear height of 3.20m. The main classrooms are located on the transverse sides of the building and extend across the entire width.

STRUCTURE AND EXPRESSION

The modeled rooms with different heights are also apparent from the exterior. They structure the length of the building.

Double Kindergarten Steinmürli
© Radek Brunecky
Double Kindergarten Steinmürli
© Radek Brunecky

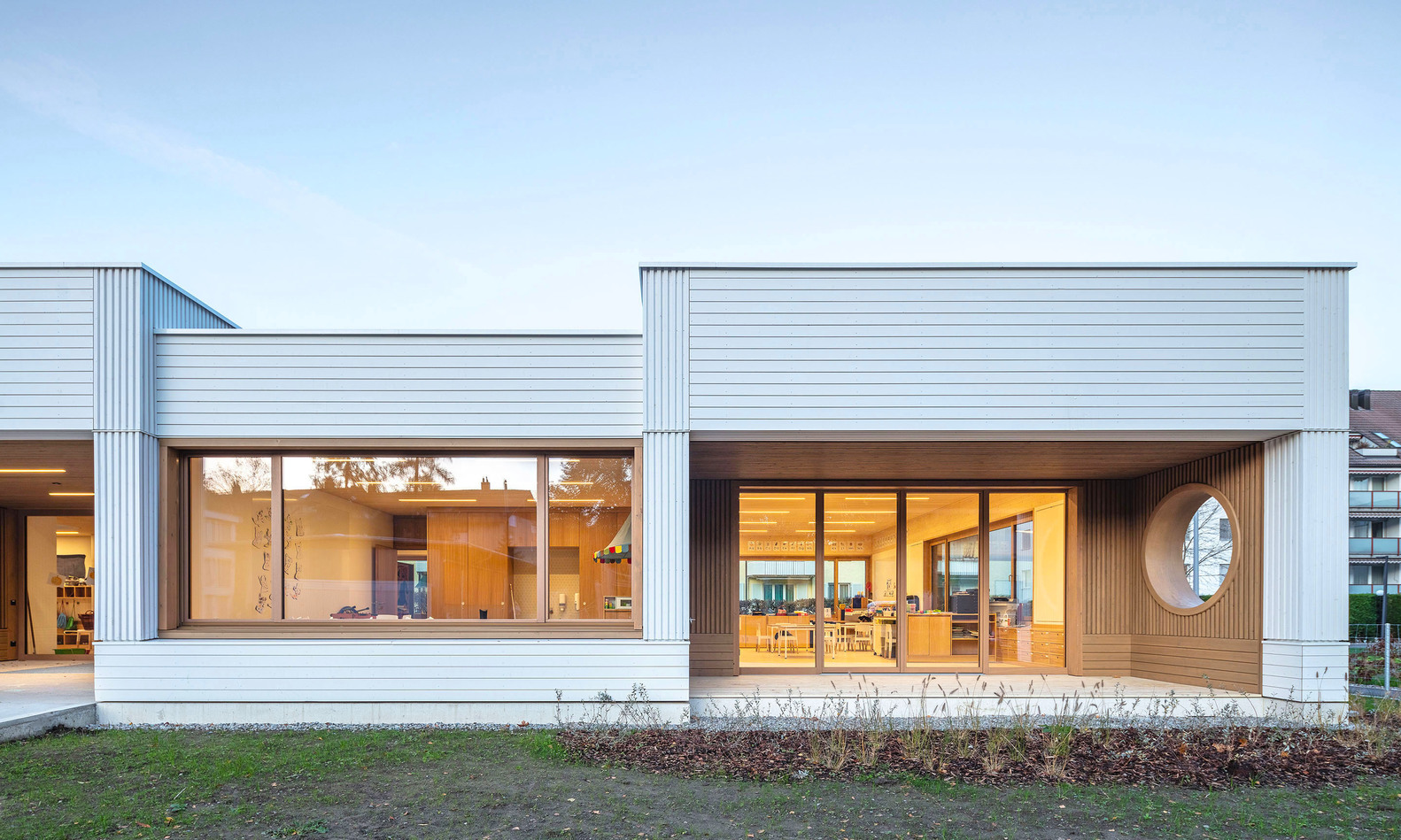

The vertical and horizontal alignments of the wooden formwork draw the shape of the building and refine the volume in its structure. The white painted wooden façade references the colors of the existing buildings on the site.

The kindergarten is designed as a single-storey wooden element construction that is placed on a solid concrete base. To improve the climatic conditions during summer months the inner walls are made of brick.

Double Kindergarten Steinmürli
© Radek Brunecky
Double Kindergarten Steinmürli
© Radek Brunecky

The summer heat protection is guaranteed by night cooling. Automated ventilation shutter opens in the facade and in the roof for some air circulation throughout the building.

Double Kindergarten Steinmürli
© Radek Brunecky
Double Kindergarten Steinmürli
© Radek Brunecky


Double Kindergarten Steinmürli
Elevation
Double Kindergarten Steinmürli
Elevation


Double Kindergarten Steinmürli
Floor plan
Double Kindergarten Steinmürli
Section


Double Kindergarten Steinmürli
Site plan
