PEDRO HOUSE

Diagrama Arquitectos

MANUFACTURERS
Autodesk, Adobe, Trimble

LANDSCAPE
Bac Taller De Paisajismo

DESIGN TEAM
Arturo Molina

COLLABORATORS
Isadora Vargas, Gisela Reyes, Regina Alarcón.

LEAD ARCHITECTS
Luis Aurelio Piña Plaza, Laura Elena Barba Prieto

CLIENTS
Huella Desarrollos

PHOTOGRAPHS
César Béjar

AREA
525 M²

YEAR
2019

LOCATION
Guadalajara, Mexico

CATEGORY
Apartments, Restoration, Extension

Text description provided by architect.

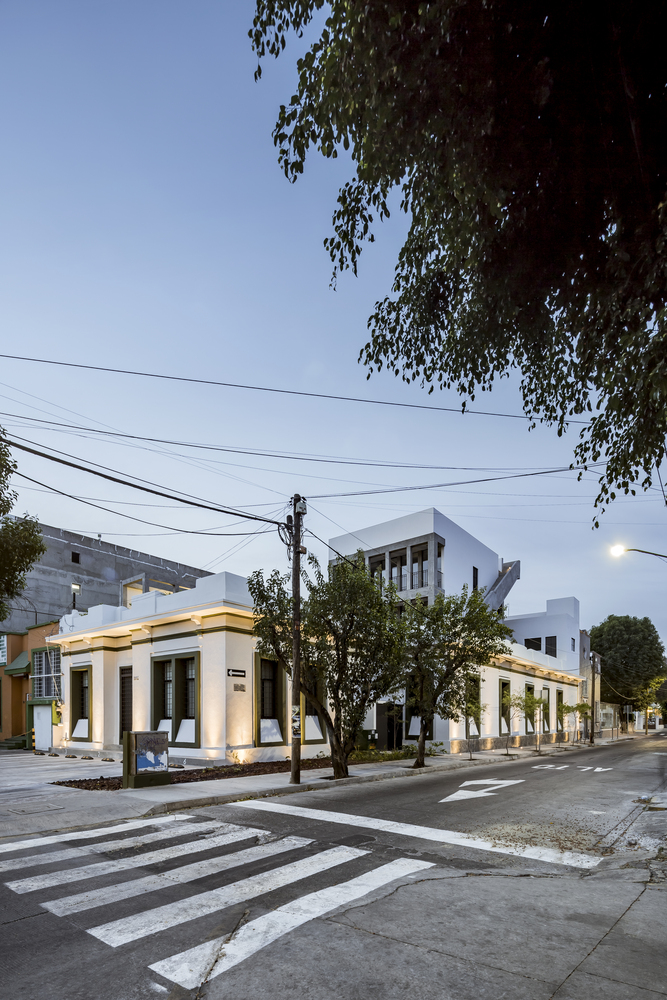

Casa Pedro aims to rescue the city’s architectural heritage by restoring an early-20th century building and adding an annex to the back, thus establishing a discrete and respectful dialogue between the historical and contemporary.

Pedro House
© César Béjar
Pedro House
© César Béjar
Pedro House
© César Béjar

As part of a large-scale urban reactivation plan for Guadalajara’s Historic Center, Casa Pedro plays a role in the re-densification of an area that is partially unoccupied and devitalized.

The restoration respected the preexisting doors and windows that divided the home, while the annex was placed in the lesser-seen terrace area in order to avoid modifying the building’s original circulations and central patio, which functions as the heart of the project.

Six residential units are located throughout the house — four within the original building and two in the annex — in typologies suited for one person or a couple, as well as larger ones that are able to accomodate a family.

Pedro House
© César Béjar
Pedro House
© César Béjar
Pedro House
© César Béjar

Respecting the project’s original distribution ensured that each apartment unit within the heritage house is unique.

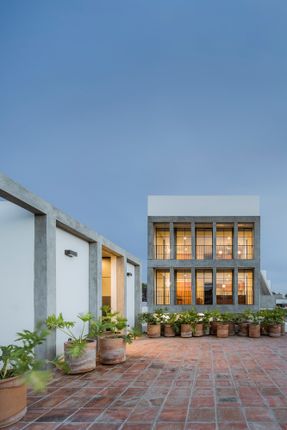

Both of the units located in the annex function as open-plan lofts. On the rooftop, a green space adds to the building’s shared-use areas.

Pedro House
© César Béjar


Pedro House
© César Béjar
Pedro House
© César Béjar
Pedro House
© César Béjar
Pedro House
© César Béjar
Pedro House
© César Béjar
Pedro House
© César Béjar


Pedro House
Side elevation


Pedro House
Front elevation
Pedro House
Axonometría


Pedro House

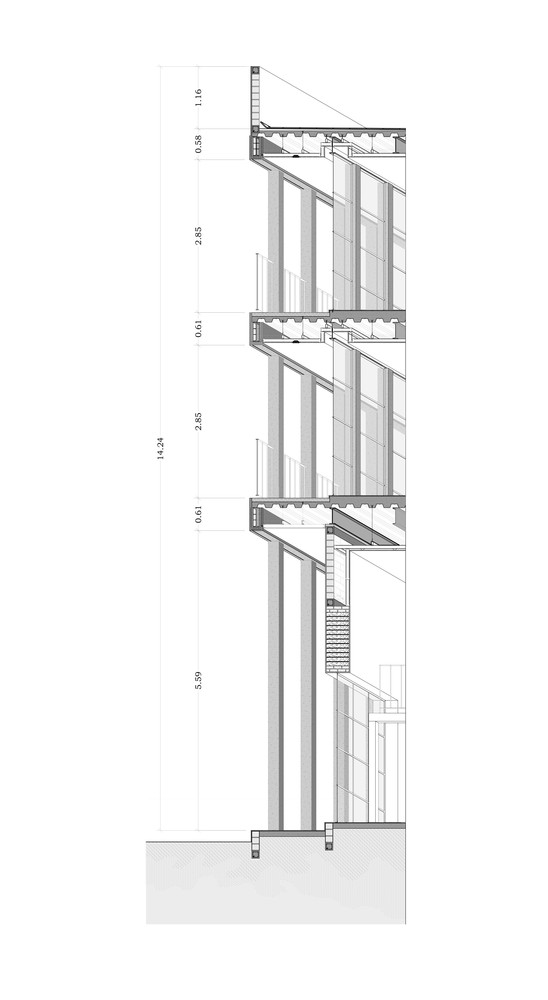

Sección por fachada
Pedro House
Longitudinal section
Pedro House
Transversal section


Pedro House
Ground floor plan
Pedro House
First floor plan
Pedro House
Second floor plan
