Bar-Pool-Gallery

Bar-Pool-Gallery
© Gabriel Castro

Bar-Pool-Gallery

Bcmf Arquitetos + Mach Arquitetos

ARCHITECTS
Bcmf Arquitetos, Mach Arquitetos

INTERIORS (BAR)
Ana Bahia

CONSULTANTS
Ambiente Piscinas

STRUCTURE
Conceptus Projetos Estruturais, Sérgio Carvalho, Antônio Victor

EXHIBIT (GALLERY)
Mostra Pau Ferro Cultural (Curated By Luciana Garcia Waisberg)

ARCHITECT IN CHARGE
Mach Architects, Bcmf Architects, Bruno Campos, Marcelo Fontes, Silvio Todeschi, Fernando Maculan, Mariza Machado Coelho

DESIGN TEAM
Patrícia Bueno, Vanessa Couto, Pedro Pereira, Yi Wang, Mateus Lira, Marcela Figueiredo

CLIENT
Casa Cor

PHOTOGRAPHS
Gabriel Castro, Jomar Bragança

SURFACE AREA
Bar (125m2) / Swimming-pool (340m2) / Gallery (110m2)

YEAR
2014

LOCATION
Nova Lima, Brazil

CATEGORY
Bar, Gallery, Swimming Pool

Text description provided by architect.

Designed and built over just three months, the “Bar-Pool-Gallery” was planned for the Casa Cor MG 2014 as a kind of a hilltop belvedere.

Bar-Pool-Gallery
© Gabriel Castro
Bar-Pool-Gallery
© Gabriel Castro

The site is located in the central area of a private weekend retreat development, a series of bungalows with hotel infrastructure scattered on a sloping mountain overlooking the stunning valleys of Nova Lima, 12 km away from the city of Belo Horizonte.

The Project comprises two very simple buildings with a common open space in between. BCMF Architects  designed the Bar, while MACh Architects (http://www.mach.arq.br/) designed the Gallery.

Bar-Pool-Gallery
© Gabriel Castro
Bar-Pool-Gallery
© Gabriel Castro

The open area (swimming-pool and deck) that integrates both structures and programs was designed in collaboration by the two studios, which are frequent partners and share the same working space since 2010).

The Bar is basically a raw concrete “square tube” structure with a cantilever spanning 10m over the site’s slope, pointing out to the landscape.

Bar-Pool-Gallery
© Gabriel Castro
Bar-Pool-Gallery
© Gabriel Castro

In contrast to its neighbors, identical bungalows that are accommodated according to the contour lines, the horizontal volume of the bar sticks out against the steep topography (north-south orientation), opening up enough space for the pool and deck, which unfolds on the rooftop of the Gallery.

The structure is an extremely simple volume (a 3x5x5m prism) as opposed to the pitched roof two-storey bungalows from the condominium, with few stark materials and almost no finishes.

Inside, there is a sequence os places from one end to the other of the tube: veranda (entry porch), lounge, indoor-outdoor bar, main sitting area and, on the end of the cantilever, another veranda framing the landscape.

Bar-Pool-Gallery
© Gabriel Castro
Bar-Pool-Gallery
© Gabriel Castro

The ribbed pre-cast slab of the ceiling suggested a series of “pixilated” openings to flood the core with soft natural light, while the floor is treated an extension of the swimming pool’s wooden deck.

Simple furniture pieces and delicate lighting fixtures fits the interior of the bar (by Ana Bahia), giving it a casual and informal feel.

Bar-Pool-Gallery
© Jomar Bragança
Bar-Pool-Gallery
© Jomar Bragança

The Gallery is the only “semi-buried” structure of the development.

This strategy allowed open views from the landscape, and the use of the roof as a split-level observatory deck, which is an extension of the swimming-pool deck.

Bar-Pool-Gallery
© Jomar Bragança
Bar-Pool-Gallery
© Gabriel Castro

Two raw concrete boxes compose the building: one formed by the floor slab and walls, and the other one formed by the roof slab and beams.

Steel columns allow a horizontal gap between the two boxes, bringing a beam of light to the interior as well as views from the swimming pool.

Bar-Pool-Gallery
© Gabriel Castro
Bar-Pool-Gallery
© Gabriel Castro

The access ramps and stairs play with the landscape, hiding away and revealing views as you approach the sunken space, culminating in a complete opening on the interior that frames the view in a way similar to the Bar’s.


Bar-Pool-Gallery
© Gabriel Castro
Bar-Pool-Gallery
© Gabriel Castro
Bar-Pool-Gallery
© Gabriel Castro
Bar-Pool-Gallery
© Gabriel Castro


Bar-Pool-Gallery
Site Plan
Bar-Pool-Gallery
Floor Plan
Bar-Pool-Gallery
Floor Plan
Bar-Pool-Gallery
Floor Plan


Bar-Pool-Gallery
Elevation
Bar-Pool-Gallery
Elevation
Bar-Pool-Gallery
Elevation
Bar-Pool-Gallery
Elevation
Bar-Pool-Gallery
Elevation
Bar-Pool-Gallery
Elevation


Bar-Pool-Gallery

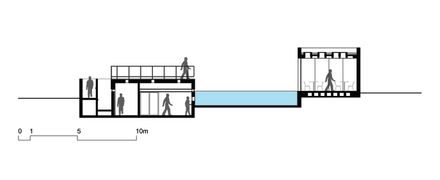

Section
Bar-Pool-Gallery
Section
Bar-Pool-Gallery
Section
Bar-Pool-Gallery
Section


Bar-Pool-Gallery
Model
Bar-Pool-Gallery
Model


Bar-Pool-Gallery
Render
Bar-Pool-Gallery
Render


Bar-Pool-Gallery
Detail
Bar-Pool-Gallery
Sketch
