Intangible Sound

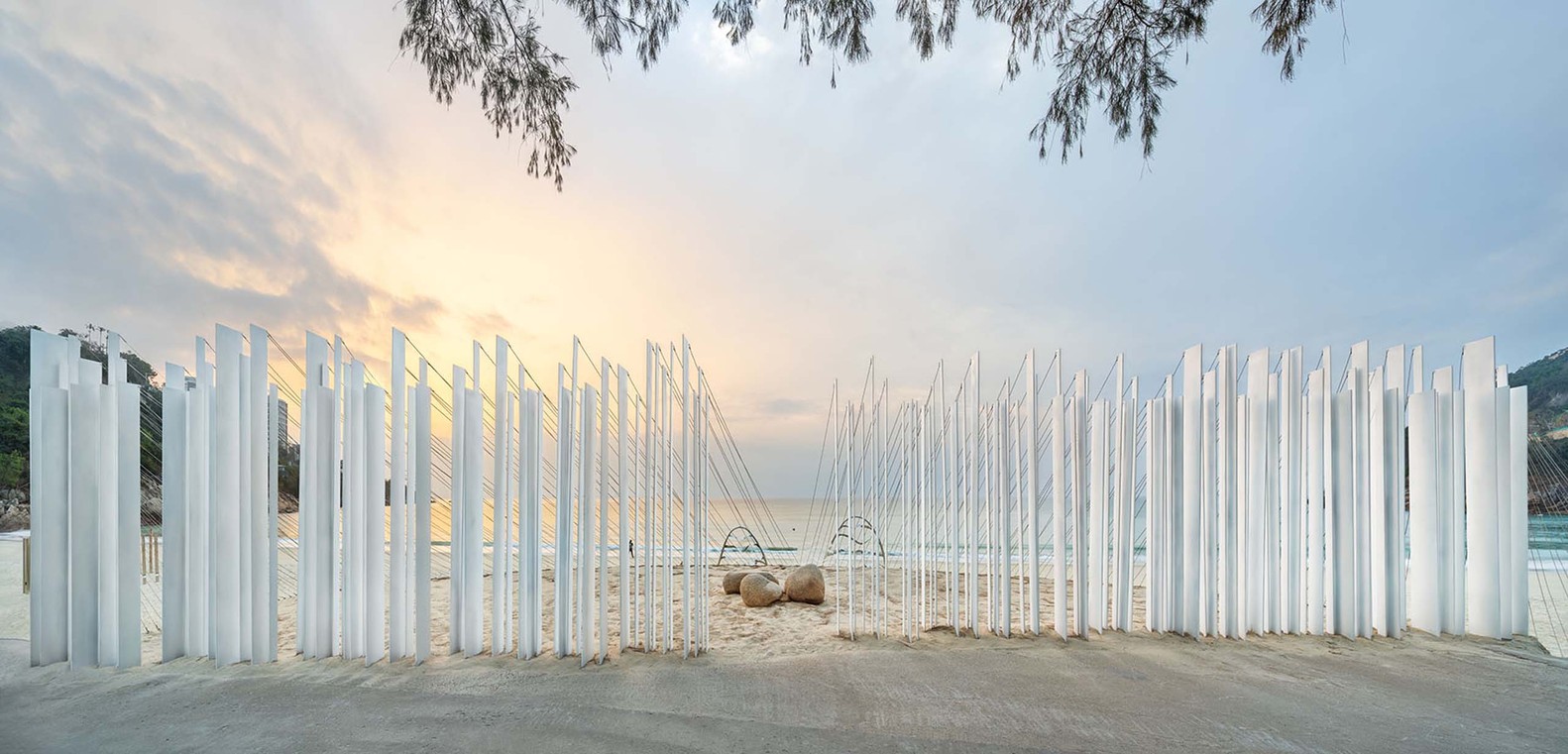

After viewing platform. Image © Bai Yu

Text description provided by architect.

The 2019 Bi-City Biennale of Urbanism╱Architecture (UABB) uses Urban Interactions as the theme of the exhibition, Aiming to explore new possibilities for future development through time and space.

Intangible Sound
Harmony of sand dunes and steel plates (underwent anodic oxidation). Image © Bai Yu
Intangible Sound
Steel plates isolate cluttered surroundings, strings connect vast seascapes. Image © Bai Yu

The city of Shenzhen is also congenital with unique and diverse geographical resources, Where urban residents can experience the cliffs and coasts in one day.

By containing two natural sceneries in one city, it provides residents an experience of openness and freedom, with the Xichong Resort in Dapeng New District as the best example.

Intangible Sound
Intangible Sound. Image Courtesy of HAS design and research
Intangible Sound
Exterior jagged steel plate and interior smooth dome. Image Courtesy of HAS design and research

Surrounded by mountains, the visual landscape of Xichong Resort is open to the coastline, thus making this region a vessel for observing natural changes; therefore, the focus of the design is not to build a new structure, but to create a scenery lens to present daily views.

The original site of the project is a semi-arc viewing platform, with heavy railings and cold concrete ground, blocking the interaction of people and the sea.

Intangible Sound
Strings prevent steel plates from deformation and function as railings. Image © Bai Yu
Intangible Sound
Viewing platform surrounded by net-like strings. Image © Bai Yu

The new construction operation emphasizes solidity and concealment with vertical lines, redefining the interface between the railings, and the sea; Horizontal lines enclose a smooth and clear space, creating a platform for interaction or dialogue with the ocean.

Before entering the pavilion, visitors pass through fences of different heights and spacing, thereby perceiving the distance from the seascape, which cherishes and nurtures for the scenery.

Intangible Sound
Architectural illustration of Intangible Sound between enclosure and transparency
Intangible Sound
Architectural illustration of seascape covered by fishnet-like strings

As entering the pavilion, the strings form an artistic scene through the curvilinear site; the scattered natural light, shadow, and the sound of wind together present a rhythm, providing an experience of the diversity and richness of the environment.

The design employs sturdy steel plates and delicate strings in combination with a special tensile structure.

Intangible Sound
Detail of strings. Image Courtesy of HAS design and research
Intangible Sound
Architectural illustration at sunset

Moreover, the sand dunes and stones are used in creating an interior landscape to present the most significant regional characteristics of the Xichong—vast mountain forests and floating coastlines.


Intangible Sound
Site top-view. Image © Kintoo Photography
Intangible Sound

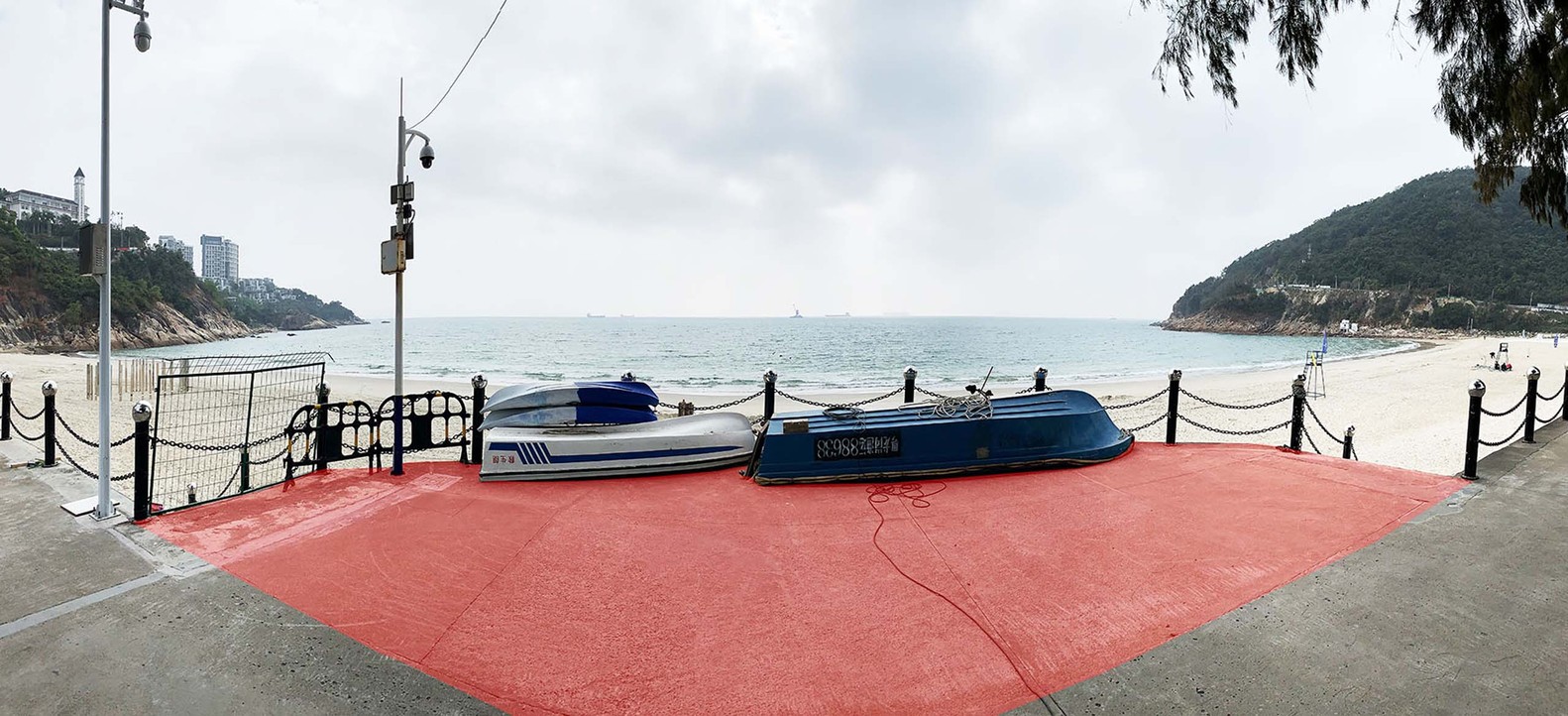

Existing abandoned viewing platform
Intangible Sound
Intangible Sound provides a unique space for local people. Image © Bai Yu
Intangible Sound
etail of Intangible Sound. Image © Bai Yu
Intangible Sound
Uneven spacings provide various viewing opportunities. Image © Kintoo Photography
Intangible Sound
Children exploring ways to entertain in Intangible Sound. Image © Kintoo Photography
Intangible Sound
Local people exploring ways to entertain in Intangible Sound. Image Courtesy of HAS design and research
Intangible Sound
Detail of strings. Image Courtesy of HAS design and research
Intangible Sound
Detail of new handrails. Image © Kintoo Photography
Intangible Sound
Strings generate a more transparent visual experience. Image © Bai Yu
Intangible Sound
ntangible Sound replaces the original railings. Image © Bai Yu


Intangible Sound
Existing viewing platform
Intangible Sound
Intangible Sound at Shenzhen Xichong Resort


Intangible Sound
Semi-arc platform creates a more transparent visual effect
Intangible Sound
Details


Intangible Sound
Intangible Sound with Xichong seascape and landscape forms an enjoyable scenery
Intangible Sound
Concept sketch


Intangible Sound
Structure and concept diagram
