Tchoban Voss Architekten GmbH

Greifswalder Office Building

Greifswalder Office Building
© Roland Halbe

GREIFSWALDER OFFICE BUILDING

Tchoban Voss Architekten

BUILDING EQUIPMENT
Planb - Beratende Ingenieure Gmbh

PROJECT MANAGEMENT
M.f.p.n. Projektmanagement Gmbh & Co. Kg

FAÇADE'S DETAILS PLANNING
Ibf Ingenieurbüro Franke, Glienicke

LEAD ARCHITECT
Sergei Tchoban

STRUCTURAL ENGINEERING
Ingenieurbüro Bendel Bradke & Lang Gmbh

SHELL
Berlin, Mastiok Bau Gmbh

FAÇADE, CONCRETE PARTS
Gbj Geithner Betonmanufaktur Joachimsthal Gmbh

PROJECT PARTNER AND LEADER
Axel Binder, Liza Gradinarova

PLANNING DETAILS FAÇADE
Ibf Ingenieurbüro Franke, Glienicke

TEAM
Andrea Moritz, Katja Fuks, Valeria Kashirina, Ramona Schwarzweller, Ingo Schwarzweller, Evgenia Sulaberidze

PHOTOGRAPHS
Roland Halbe

AREA
2100 m²

YEAR
2019

LOCATION
Berlin, Germany

CATEGORY
Office Buildings

Greifswalder Office Building
© Roland Halbe

Text description provided by architect.

On the 464 m2 corner site between Greifswalder Str. and Heinrich-Roller-Str.

In the Berlin district of Pankow, Prenzlauer Berg, an office building was created whose expressive, lively main façade with its floor-to-ceiling, square grid structure of light architectural concrete prefabricated parts immediately strikes the eye.

Greifswalder Office Building
© Roland Halbe
Greifswalder Office Building
© Roland Halbe

The structure comprises six full storeys, which can be used per rental unit as flexible combinations of open-plan offices, individual offices, conference and meeting rooms as well as coworking spaces.

On the ground floor there is an office unit with meeting areas and open-space workplaces.

Greifswalder Office Building
© Roland Halbe
Greifswalder Office Building
© Roland Halbe
Greifswalder Office Building
© Roland Halbe

The top floor is set back by approx. 1.60m on the street side.

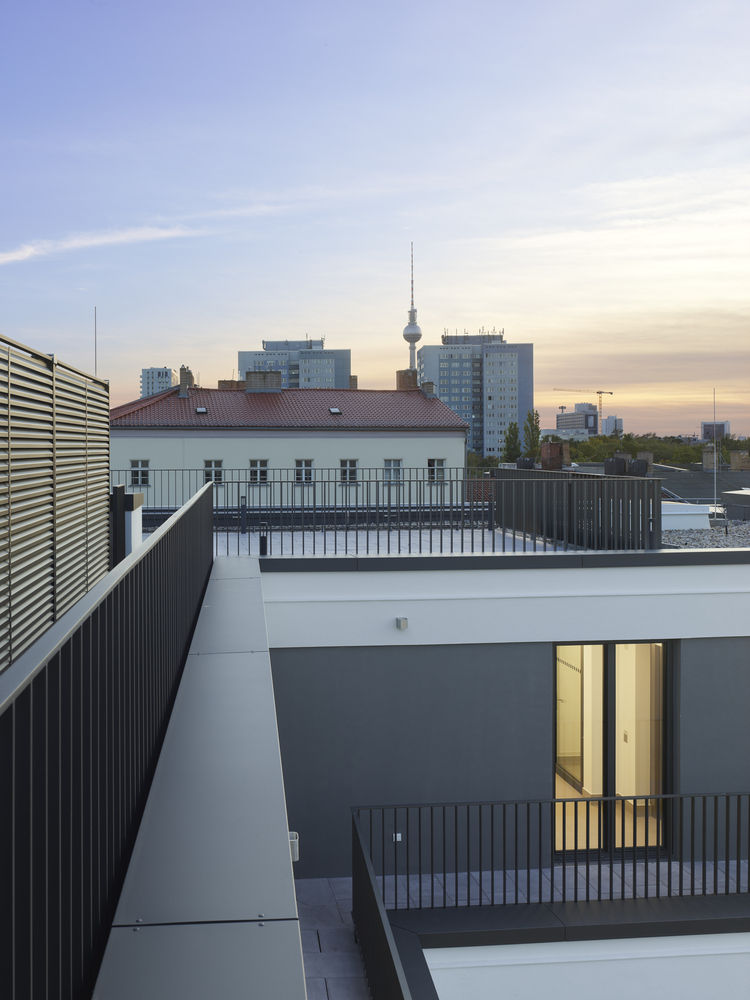

The roof area, which is accessed via the 5th floor, is greened and partly designed as a roof terrace.

The basement is intended for parking spaces for cars, bicycles and technical rooms.

Greifswalder Office Building
© Roland Halbe
Greifswalder Office Building
© Roland Halbe
Greifswalder Office Building
© Roland Halbe

The new building, which is used as a modern office business centre, follows the line of the building on the street side and connects to the fire walls of the neighbouring buildings while maintaining the spacing in the courtyard and exploiting the maximum building depth.All new building parts have flat roofs.

The street façade on the ground floor consists of large-format insulating glazing in mullion-transom construction.

From the first to the fourth upper floor, the façade is constructed in a square grid of architectural concrete.

Greifswalder Office Building
© Roland Halbe
Greifswalder Office Building
Greifswalder Office Building
© Roland Halbe

The slightly twisted pillars and floor slab strips meet alternately at either a high or low point and form a coherent, dynamic, organic-flowing structure.

At the high points of the grid structure, the façade protrudes 50cm above the building line.

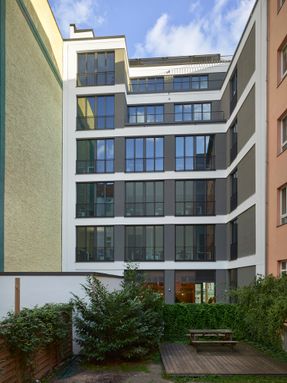

The inner courtyard facades were realized as plaster façades with circumferential window bands with metal railings.

Greifswalder Office Building
© Roland Halbe
Greifswalder Office Building
© Roland Halbe
Greifswalder Office Building
© Roland Halbe

The roof area with its restrained glass façade forms the clear, calm end of the building.

The representative foyer of the main entrance is accessed from Heinrich-Roller-Straße.

As a special design element, the lighting is integrated into the ceiling, backlit showcases in the walls are intended for the exhibition of works of art.

Greifswalder Office Building


Greifswalder Office Building
Floor Plan
Greifswalder Office Building
Ground Floor Plan


Greifswalder Office Building
Section
Greifswalder Office Building
Section
Greifswalder Office Building
Section

Greifswalder Office Building
Site Plan
