RESIDENZE CARLO ERBA

Eisenman Architects + Degli Esposti Architetti + Azstudio

STRUCTURAL ENGINEERING
Studio D’ingegneria Associato

GENERAL CONTRACTOR
Cle Cooperativa Lavoratori Edili, Italiana Costruzioni

MECHANICAL & ELECTRICAL ENGINEERING
Sistema Group Engineering, Montichiari, A.t. Advanced Tecnologies, Studio Mgm, Gallarate

CLIENTS
Pinerba S.r.l., Morelli Group

CONSTRUCTION SUPERVISION
Lorenzo Degli Esposti, Paolo Lazza, Stefano De Vita

PROJECT SURVEILLANCE
Sherpa Engineering, Giorgio Marocchi, Tristano Barroccu

YEAR
2019

LOCATION
Milan, Italy

CATEGORY
Apartment

Text description provided by architect.


For a triangular site bounded by nondescript buildings, this project attempts to create a symbolic contemporary apartment building with the number of units required for commercial viability while responding to the context, particularly to the adjacent public garden, by continuing the garden onto the site.

Residenze Carlo Erba
© Maurizio Montagna
Residenze Carlo Erba
© Maurizio Montagna

Restricted by the height limit due to the local regulations, we designed a series of horizontal bands stacked with slight offsets that create four different layers in the nine-story building.

The first three floors constitute a base course similar to historic urban palazzi with travertine cladding and punched window openings of similar size, with inset balconies.

The fourth floor, or second layer, is like a traditional piano nobile; it is set back from both the face of the travertine base and the marble face above, and its glazing contrasts with the stone surfaces.

Residenze Carlo Erba
© Maurizio Montagna
Residenze Carlo Erba
© Maurizio Montagna
Residenze Carlo Erba
© Maurizio Montagna

The third layer, floors five and six, is articulated by enameled metal frames that create a horizontal band running the length of the façade.

These frames are set forward of the actual west face of the building. On the east facade, they excavate the mass of the building in a carving lattice.

The fourth and topmost layer, floors seven through nine, is in one sense not a horizontal layer but, in its stepped profile and volumetric mass, a series of “urban villas” with large planting terraces.

Residenze Carlo Erba
© Maurizio Montagna
Residenze Carlo Erba
© Maurizio Montagna

The whole ensemble of distinct layers slightly shifted off-center produces a dynamic effect, which, combined with traditional materials and window openings, marks the project as being of Milan today.

The S-form of the building was determined through a series of studies seen in diagrams that show how it meets both program and zoning requirements and also incorporates an early 20th-century classicist building on the site.

Residenze Carlo Erba
© Maurizio Montagna
Residenze Carlo Erba
© Maurizio Montagna

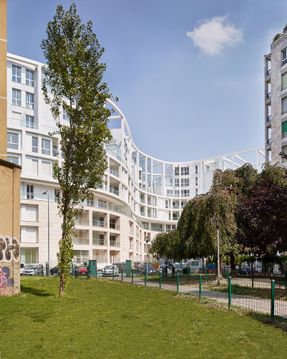

This building becomes part of the condominium, as well as its formal entrance. The public garden to the west now “ends” in the curve of the condominium’s west elevation.


Residenze Carlo Erba
© Marco de Bigontina ESPERIENZA-DRONE
Residenze Carlo Erba
© Marco de Bigontina ESPERIENZA-DRONE
Residenze Carlo Erba
© Marco de Bigontina ESPERIENZA-DRONE
Residenze Carlo Erba
© Marco de Bigontina ESPERIENZA-DRONE
Residenze Carlo Erba
© Maurizio Montagna
Residenze Carlo Erba
© Maurizio Montagna
Residenze Carlo Erba
© Maurizio Montagna
Residenze Carlo Erba
© Maurizio Montagna


Residenze Carlo Erba
Diagram
Residenze Carlo Erba
Diagram


Residenze Carlo Erba
Floor plan
Residenze Carlo Erba
Floor plan
Residenze Carlo Erba
Floor plan
Residenze Carlo Erba
Site plan
