Picharchitects / Pich - Aguilera

30 social dwellings in Gavá

30 social dwellings in Gavá
© Simón García

30 social dwellings in Gavá

Pich-Aguilera Architects

ARCHITECTS IN CHARGE
Felip Pich-aguilera Baurier, Teresa Batlle I Pagès

PROJECT DIRECTOR
Jordi París

PROMOTER
Fundació Aram

GROUP DIRECTORS
Pau Casaldáliga, Ángel Sendarrubias.

FACILITIES
Avant

MEASUREMENTS AND BUDGET
Leopoldo Varas, Lvcat

INTERN COLLABORATORS
Salvador Girvent

PHOTOGRAPHS
Simón García

FINAL COST
1.966.090,05 €

AREA
2763 M²

YEAR
2019

LOCATION
Gava, Spain

CATEGORY
Social Housing

Text description provided by architect.

The project of Gavá is a block of social housing, developed by Aram Foundation.

30 social dwellings in Gavá
© Simón García
30 social dwellings in Gavá
© Simón García

Since the project's inception in 2009 until the completion of the work in 2013, public and bank’s helps have suffered such deep changes that have destabilized, mainly to citizens in need of affordable housing, and also, to foundations or companies that promote this type of activity.

It is a multi-family housing building consisting of 30 homes, 6 per plant, of 2 and 3 bedrooms. The project is developed in the Partial Plan of the sector "Riera de San Llorenç" Gavá with use of generally protected housing scheme, as provided in its management.

30 social dwellings in Gavá
© Simón García
30 social dwellings in Gavá
© Simón García

The planning provides a specific volume alienated the street; parallel to this, the site has a steep slope that optimizes the parking floor and provides it with ventilation and natural light.

The project is built with industrial systems in its structure, enclosure and some elements of its facilities.

30 social dwellings in Gavá
© Simón García
30 social dwellings in Gavá
© Simón García

The structure is made of concrete, based on load-bearing walls, columns and hollow core slabs.

A light ventilated facade of corrugated sheet covers the entire building, allowing continuity, a unique texture and weightlessness. The facade is customized by the spacious balconies of each dwelling.

30 social dwellings in Gavá
© Simón García
30 social dwellings in Gavá
© Simón García
30 social dwellings in Gavá
© Simón García

Systems of centralized facilities are proposed to ensure maximum efficiency; solar panels feed domestic hot water and give support to heating.

Control and monitoring of each housing is planned is introduced to ensure smooth operation an energy management.


30 social dwellings in Gavá
© Simón García
30 social dwellings in Gavá
Ground Floor Plan
30 social dwellings in Gavá
Typical Floor Plan
30 social dwellings in Gavá
Floor Plan Type A
30 social dwellings in Gavá
Floor Plan Type B
30 social dwellings in Gavá

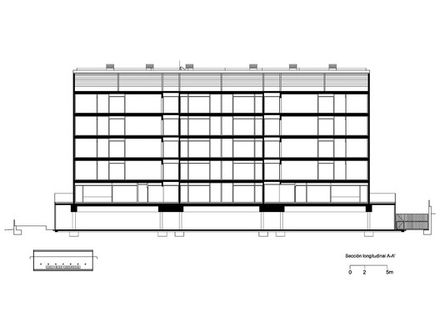

Longitudinal Section AA


30 social dwellings in Gavá
Cross Section AA
30 social dwellings in Gavá
Cross Section BB
