The Heights Building

The Heights Building
© Laurian Ghinitoiu

The Heights Building

Big

ARCHITECTS
Bjarke Ingels Group

PARTNERS IN CHARGE
Daniel Sundlin, Thomas Christoffersen, Beat Schenk, Bjarke Ingels

PROJECT LEADERS
Tony-saba Shiber, Ji-young Yoon, Adam Sheraden

DESIGN TEAM
Romea Muryn, Sidonie Muller, Seth Byrum Shu Zhao, Seo Young Shin, Terrence Chew, Cadence Bayley, Benson Chien, Josiah Poland, Elnaz Rafati, Vincenzo Polsinelli, Ku Hun Chung, Valentina Mele, Robyne Some, Maureen Rahman, Mateusz Rek, Mark Rakhmanov, Janice Rim, Jin Xin, Anton Bashkaev, Ibrahim Salman, Jan Leenknegt, Jack Gamboa, Ziad Shehab, Zach Walters, Simon David, Julie Kaufman, Margherita Gistri, Kam Chi Cheng, Saecheol Oh, Nicholas Potts, Maria Sole Bravo, Elena Bresciani, Daisy Zhong, Francesca Portesine, Douglass Alligood, Deborah Campbell, Cristian Lera, Tammy Teng, Evan Rawn, Benjamin Caldwell, Ricardo Palma, Pablo Costa, Bennett Gale, Amina Blacksher

CLIENT
Arlington Public Schools

EXECUTIVE ARCHITECT
Leo A Daly

COLLABORATORS
Robert Silman Associates, Interface Engineering, Gordon, Theatre Projects, Jaffe Holden Acoustics, Faithful+gould, Ghd, Hopkins Food Service, Geoconcepts, Haley & Aldrich, The Sextant Group, Tillotson Design Associates, Eht Traceries, Lerch Bates

PROJECT MANAGERS
Sean Franklin, Aran Coakley

PHOTOGRAPHS
Laurian Ghinitoiu

AREA
16700 M²

YEAR
2019

LOCATION
Arlington, United States

CATEGORY
Elementary & Middle School

Text description provided by architect.

The Heights Building opens as a cascade of green terraces fanning from a central axis, addressing the academic needs of Arlington’s two county-wide school programs while forming a vertical community within its dense urban context.

The Heights Building
© Laurian Ghinitoiu
The Heights Building
© Laurian Ghinitoiu

Located along Arlington’s Rosslyn-Ballston corridor, The Heights merges two existing secondary schools – the H-B Woodlawn Program and the Eunice Kennedy Shriver Program – into a new 180,000sf building to accommodate an expected enrollment of up to 775 students.

Working closely with Arlington Public Schools (APS), WRAP (West Rosslyn Area Plan) and the Arlington community, the design supports both H-B Woodlawn’s visual and performing arts-focused curricula and Shriver’s extensive resources for students with specialized educational needs. The Heights is currently on track to achieve LEED Gold.

The Heights Building
© Laurian Ghinitoiu
The Heights Building
© Laurian Ghinitoiu

Situated within a compact urban site bounded by roads on three sides and a portion of Rosslyn Highlands Park, The Heights is conceived as a stack of five rectangular floorplates that rotate around a fixed pivot point, maintaining the community feeling and spatial efficiencies of a one-story school.

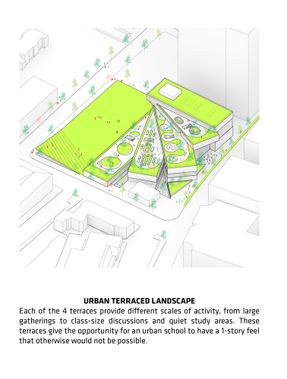

Green terraces above each floor become an extension of the classroom, creating an indoor-outdoor learning landscape for both students and teachers — an educational oasis rather than a traditional school setting.

The Heights Building
© Laurian Ghinitoiu
The Heights Building
© Laurian Ghinitoiu

A rotating central staircase cuts through the interior of the building to connect the four-tiered terraces, allowing students to circulate outside and forge a stronger bond between the neighborhood and the school.

While the upper terraces are more suitable for intimate classes and quiet study areas, the spacious first terrace and 18,700sf recreation field also serve as public event venues for school-wide and neighborhood activities.

The Heights Building
© Laurian Ghinitoiu
The Heights Building
© Laurian Ghinitoiu

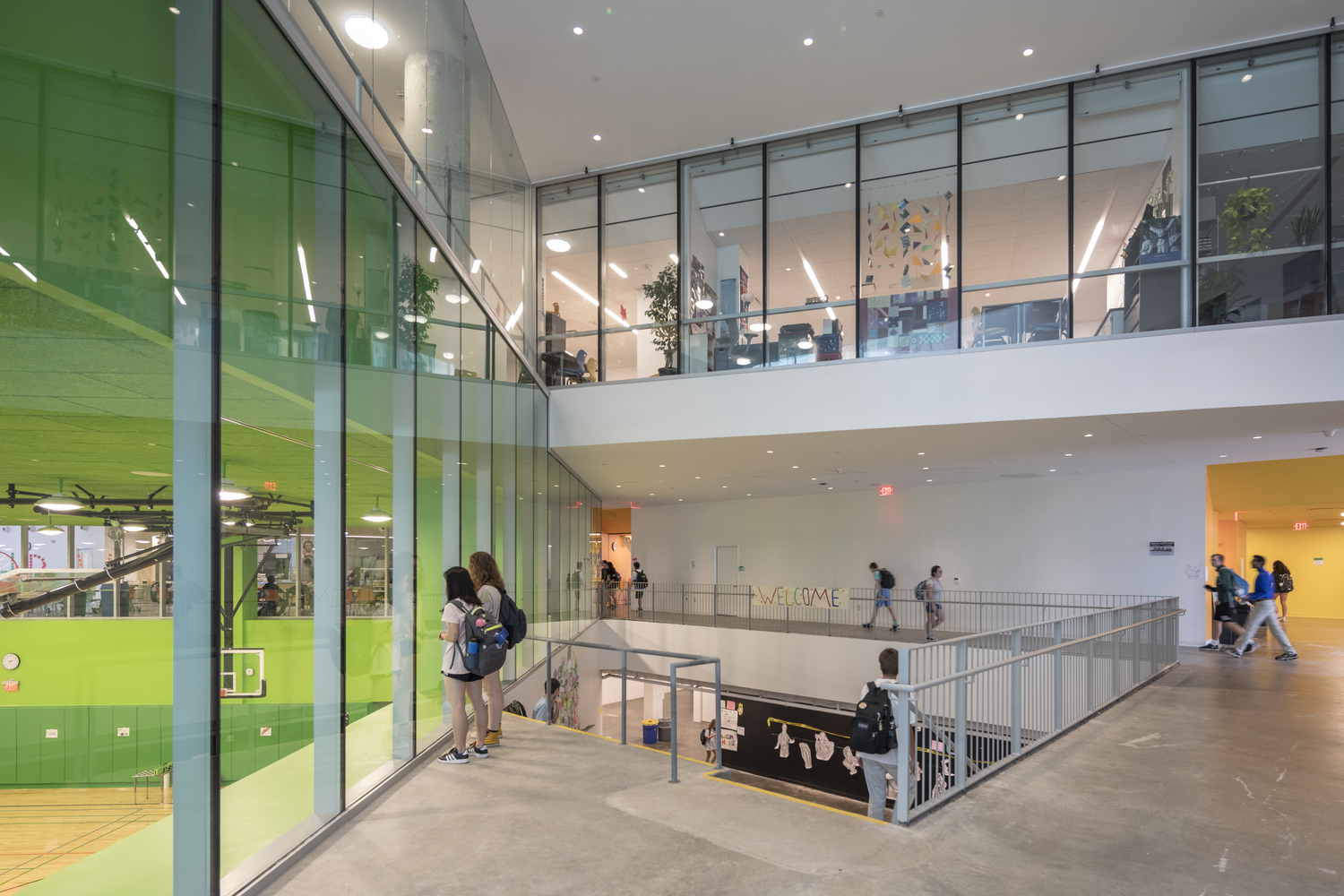

From Wilson Boulevard, students, teachers, and staff are greeted by a triple-height lobby with stepped seating that doubles as an indoor gathering space for both student assemblies and public gatherings.

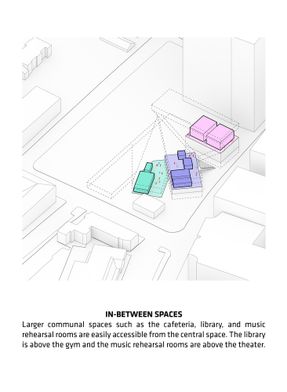

Many of the school’s common spaces, including the 400-seat auditorium, main gymnasium, library, reception, and cafeteria, are centrally located and directly adjacent to the lobby.

The Heights Building
© Laurian Ghinitoiu
The Heights Building
© Laurian Ghinitoiu

Easy accessibility to the community-oriented programs hosted in the school encourages public interaction throughout the building, creating a welcoming environment while heightening the visual connectivity between the shared spaces.

Other specialized student spaces include an art studio, science and robotic labs, music rehearsal rooms and two performing arts theaters.

The Heights Building
© Laurian Ghinitoiu
The Heights Building
© Laurian Ghinitoiu

The classroom bars serve as the primary organizing elements, surrounding a central vertical core that contains the elevators, stairs, and bathrooms.

As students enter from the central staircase, they are greeted by an expanded gradient of the color spectrum: each classroom bar is defined by its own color, combining intuitive wayfinding with a vibrant social atmosphere from the ground to the sky.

The Heights Building
© Laurian Ghinitoiu
The Heights Building
© Laurian Ghinitoiu

The Shriver Program providing special education for students aged 11 to 22 occupy two floors of the building accessible from the ground floor, and have specialized spaces dedicated to support APS’ Functional Life Skills program as well as privacy and ease of accessibility.

The gymnasium, courtyard, occupational physical therapy suite, and sensory cottage are designed to aid in sensory processing.

The Heights Building
© Laurian Ghinitoiu

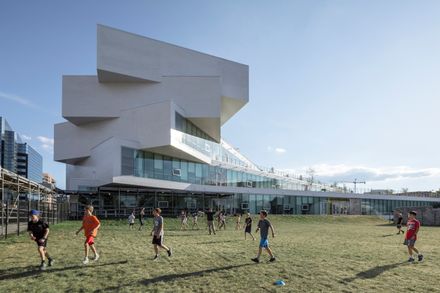

The Heights’ exterior is materialized in a graceful white glazed brick to unify the five volumes and highlight the oblique angles of the fanning classroom bars, allowing the sculptural form, the energy and the activity of the inside to take center stage.

In keeping the surrounding neighborhood and former Wilson School in mind, the building’s material palette pays homage to the historical architecture of Old Town Alexandria.


The Heights Building
Diagram
The Heights Building
Diagram
The Heights Building
Diagram


The Heights Building
Diagram
The Heights Building
Diagram
The Heights Building
Diagram


The Heights Building
Diagram
The Heights Building
Diagram
The Heights Building
Diagram
