STUDIO INKLINE

Inkline Design Studio

ARCHITECT IN CHARGE
Niyi Opebiyi

CLIENTS
Inkline Design Studio

DESIGN TEAM
Inkline Design Studio

MANUFACTURERS
Autodesk, Berger Paints, First Aluminum, Ikini, Nigerite Limited

CONSTRUCTION
Inkline Design Studio

AREA
232 m²

YEAR
2019

LOCATION
Lagos, Nigeria

CATEGORY
Office

Text description provided by architect.

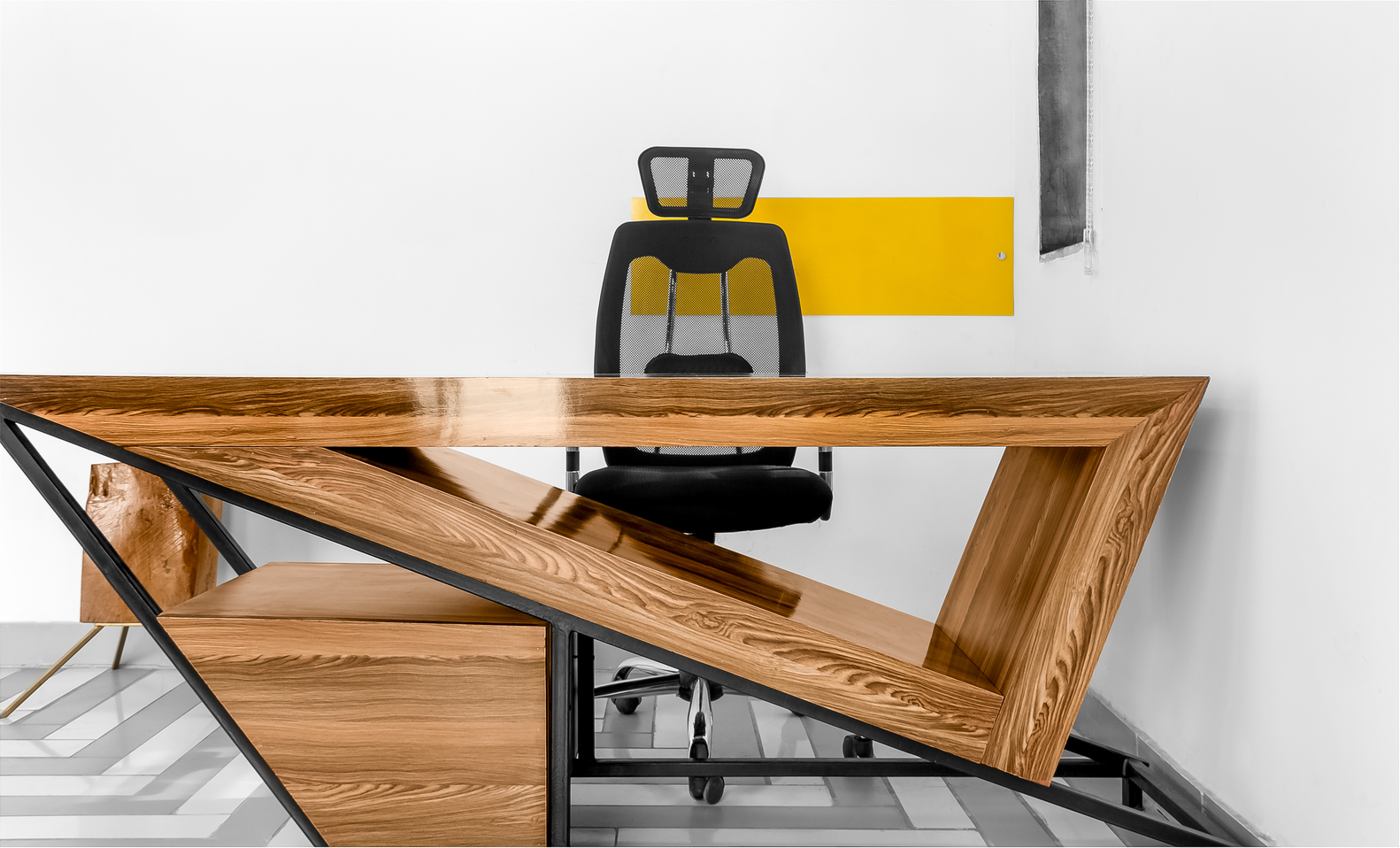

INKLINE studio and workshop is an office project we embarked on to house our design studio and the workshop for our furniture/product manufacturing.

Studio Inkline
© Mujib Ojeifo Photography
Studio Inkline
© Mujib Ojeifo Photography

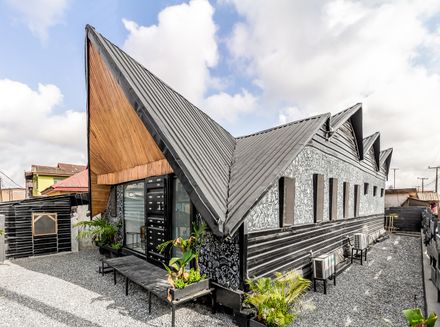

The design is an example of Vernacular Architecture heavily inspired by Japanese crafts – Origami, which is easily seen in the design of the roof.

Origami was used to develop the roof structure which is the main element of the structure as it canopies over the frame of the building.

Studio Inkline
© Mujib Ojeifo Photography
Studio Inkline
© Mujib Ojeifo Photography

Several iterations later using parametric modelling in Revit to control the undulation of the roof structures after establishing nodes and folding line, we realized this.

A roof structure with open façade to portray a welcoming embrace to the studio which has the entrance also used for the showroom of products and furniture.

Studio Inkline
© Mujib Ojeifo Photography
Studio Inkline
© Mujib Ojeifo Photography
Studio Inkline
© Mujib Ojeifo Photography

We have used locally available materials for construction with the most being WOOD. We have used wood extensively for the building frame and roof structure, also using louvres for the windows.

We however used cement board for the external frame to create a canvass for the upcoming murals on the walls.

The Japanese methods also came in handy once again in the waterproofing of the fence (arranged in a woven pattern) and the window hoods with the weathering technique- Shou-Sugi Ban.

Studio Inkline
© Mujib Ojeifo Photography
Studio Inkline
© Mujib Ojeifo Photography

We have carried over the shape of the roof into the building with exposed beams and columns and roof structure elements, the ceiling is installed along the undulation of the roof.

Roof beams are however covered using plywood which is then polished to create clean lines in the interior.

Studio Inkline
© Mujib Ojeifo Photography
Studio Inkline
© Mujib Ojeifo Photography

For extra security at the entrance of the building and to create some illusion we have used shipping container doors as the entrance door.

The entrance roof offsite is achieved using wood strips which are laid in tongue and groove installation method to accentuate the grooves, and weather naturally as the colour changes over time.

Studio Inkline
© Mujib Ojeifo Photography
Studio Inkline
© Mujib Ojeifo Photography


Studio Inkline
General plan
Studio Inkline
Roof plan


Studio Inkline

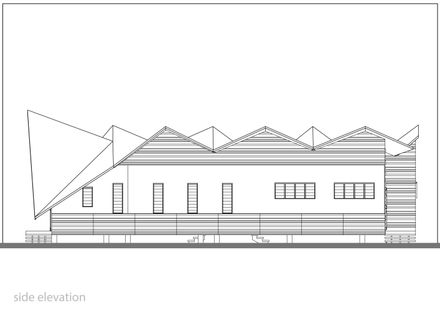

Elevation 01
Studio Inkline
Elevation 02


Studio Inkline
Diagram 01
Studio Inkline
Diagram 02
Studio Inkline
Diagram 03
Studio Inkline
Diagram 04
Studio Inkline
Diagram 05
