Temporary Pavilion Festival de las Artes Walk&Talk 2019

Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner

Temporary Pavilion Festival de las Artes Walk&Talk 2019

GA estudio + ArtWorks

ARCHITECTS
Artworks, Ga Estudio

COLLABORATOR
Jonas Klaassen

PRODUCTION
joão "Marreco" Costa

GERENTE DE PROYECTO
João Rebelo Costa, Sustenta

PROVEEDORES
Geo - Die Luftwerker, Fixpaços

CLIENTE
Anda Y Fala - Associação Cultural

ROOF CONSTRUCTOR
Geo Die Luftwerker

SOCIOS
Governo Dos Açores, Câmara Municipal De Ponta Delgada, Criptómeria Dos Açores, Tecnovia, Teatro Micaelense, Meo, Eda - Electricidade Dos Açores

PHOTOGRAPHS
Mariana Lopes, Sara Pinheiro, Tomás García De La Huerta, Xaviera Gleixner

YEAR
2019

LOCATION
Distrito De Ponta Delgada, Portugal

CATEGORY
Pavilion

Text description provided by architect.

Continuing the development of light structures, this pavilion breeds and recycles elements of other projects such as the Helio Pavilion (Portugal / Spain, 2018), Torre de Aire (itinerant, 2017), Still Cabanon (Portugal, 2018) and Flexible Tank (Chile, 2019).

Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner
Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner

The creation of this pavilion involved the building of a structure as the center of the Walk & Talk’s 19 art festival, which could host concerts, performances and talks linked to the festival program.

It is a temporary low budget pavilion where recycling (reuse of the balloon of the Helium Pavilion), the use of locally available materials (cedarwood) and the possibility of being dismantled for reuse in the future were fundamental goals to achieve to find a balance between design and available resources.

Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner
Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner

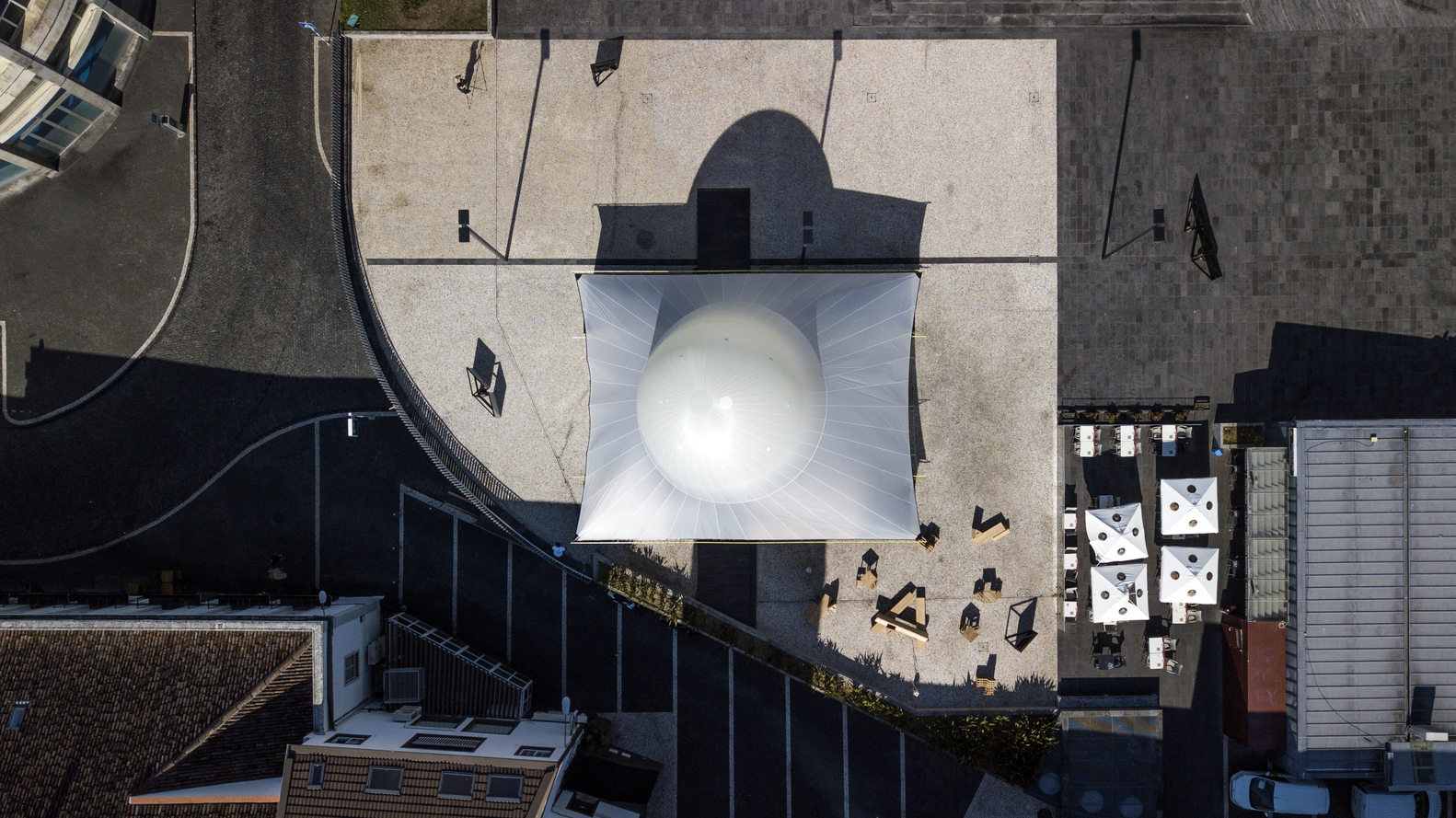

The economy was understood here as the spatial possibility itself, summarized in three elements: wooden wagons that house the waterproof program -bar, kitchen, technical room and cellar-, a recycled balloon of 6.8 meters in diameter and a fabric that connects both elements.

The hybrid nature of the result responds to the intention of contrasting elements without distorting them, in this sense, the expression of this construction is the expression of a kind of conflict that integrates elements of different structural and material nature.

Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner
Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner

The textile elements, the inflatable balloon and the supporting structures of local wood.

While at the same time, it is half stable and half unstable, this pavilion establishes a dialogue between the material and the ethereal, between bones and cartilage, between apparently stable elements and others that escape us and that provide other types of readings and relationships.

Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner
Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner

The fabric of the cover, for example, is what is used to navigate, its sound and vibration is what allows the navigator to read the wind.

On the other hand, the globe experiences pressure changes according to the weather, pressure on which the tensions depend on and, consequently, the profile of the entire roof.

Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner
Temporary Pavilion Festival de las Artes Walk&Talk 2019
© Mariana Lopes, Sara Pinheiro, Tomás García de la Huerta, Xaviera Gleixner

These qualities are integrated in the way of experiencing and perceiving this pavilion, one that seeks relationships rather than forms.


Temporary Pavilion Festival de las Artes Walk&Talk 2019
Floor Structure Plan
Temporary Pavilion Festival de las Artes Walk&Talk 2019
Architectural Floor Plan
Temporary Pavilion Festival de las Artes Walk&Talk 2019
Wooden Roof Structure Plan
Temporary Pavilion Festival de las Artes Walk&Talk 2019
Textile Roof Structure PlanTextile Roof Structure Plan


Temporary Pavilion Festival de las Artes Walk&Talk 2019
Section AA
Temporary Pavilion Festival de las Artes Walk&Talk 2019

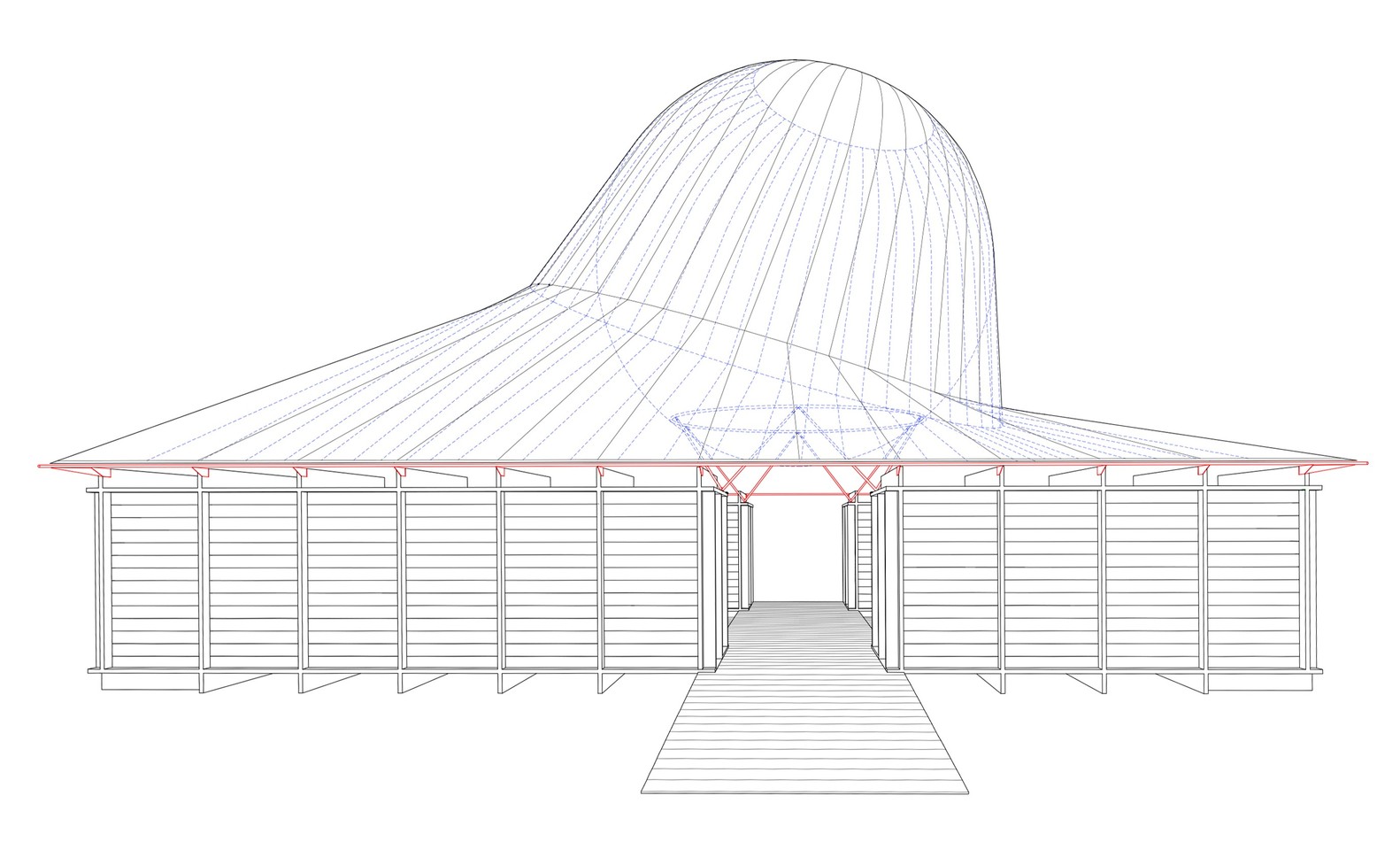

Elevation with Perspective
