CAP LLINARS DEL VALLÉS

Gustau Gili Galfetti

ARCHITECTS
Gustau Gili Galfetti

COLLABORATOR
Rafa Mejías

SURVEYOR
Toni Floriach, Gpcat

BUILDER
Copisa

ENGINEERING
Aia

STRUCTURE
Boma Inpasa

PHOTOGRAPHS
Filippo Poli

BUDGET
1.800.000 €

AREA
1550 M²

YEAR
2014

LOCATION
Llinars Del Vallès, Spain

CATEGORY
Medical Facilities

Text description provided by architect.

The project proposes a compact and low impact structure using economic and industrialized construction systems. The building, with its rectangular section, is located in a low-density area of the city with sports installations and parking areas, close to the town center.

Cap Llinars Del Vallés
© Filippo Poli
Cap Llinars Del Vallés
© Filippo Poli

The health care center is placed in the upper section of this area, closer to the urban grid. A cantilevered volume reaches out toward the street, where the main entrance is located.

Some ramps resolve the different topographical levels between street and entrance and create an open a green space.

Cap Llinars Del Vallés
© Filippo Poli
Cap Llinars Del Vallés

The rectangle is oriented in such a way so that the longer facades face east and west. A longitudinal interior courtyard opens from north to south and lets the natural light pour into the inner part of the building, thus assuring effective cross ventilation.

Waiting areas and circulations are visually connected to the exterior and emphasize its public character, whilst the medical boxes face onto the interior court. The building forms a compact low rise volume.

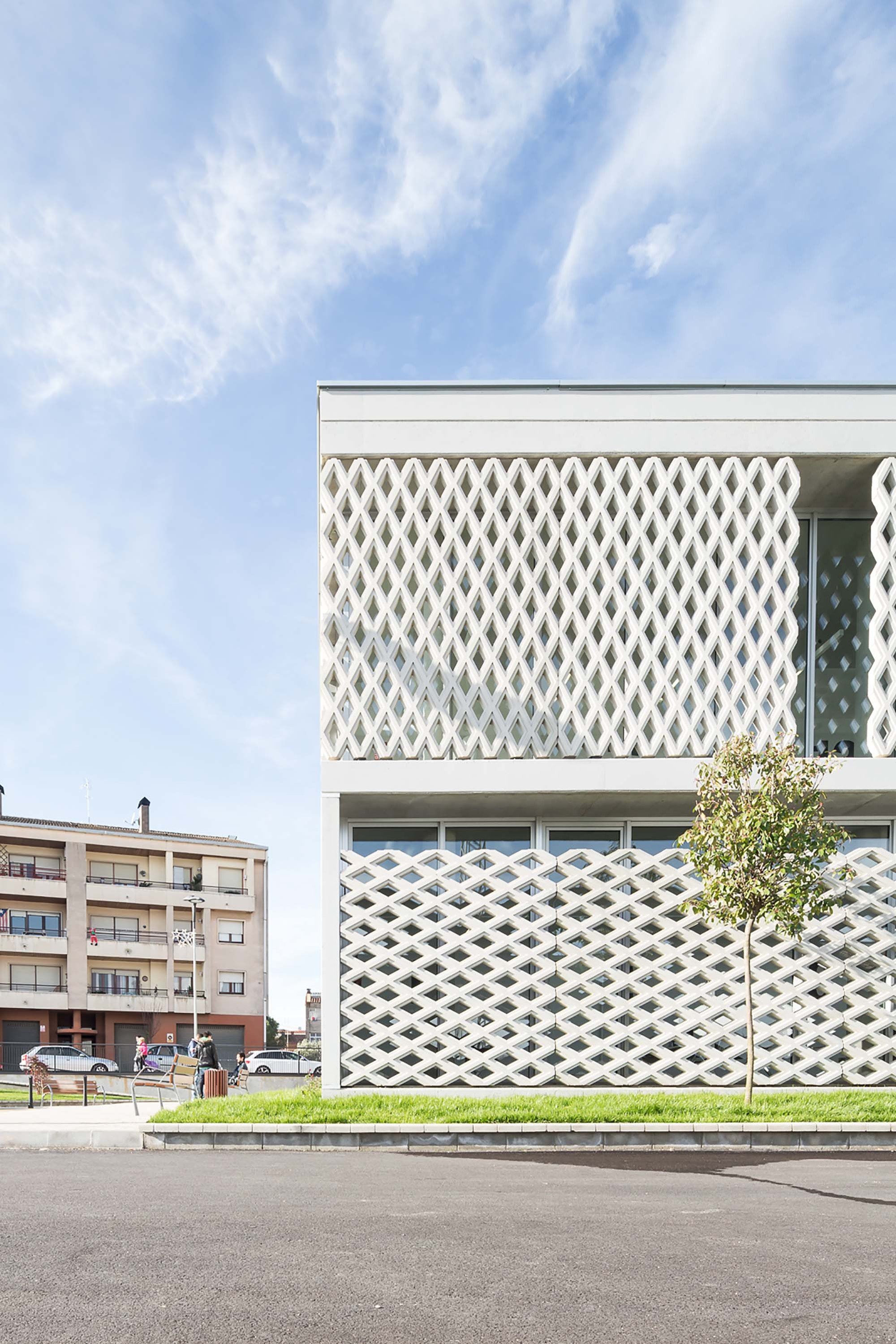

Its facade is made of two prefab elements: a concrete lattice for the translucent parts and some GRC panels for the blind parts.

Cap Llinars Del Vallés
© Filippo Poli
Cap Llinars Del Vallés
© Filippo Poli
Cap Llinars Del Vallés
© Filippo Poli

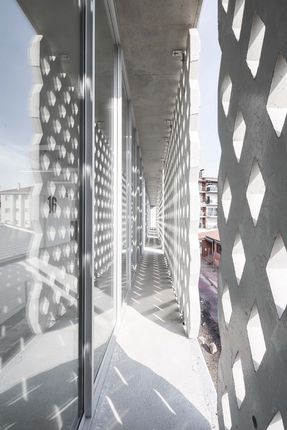

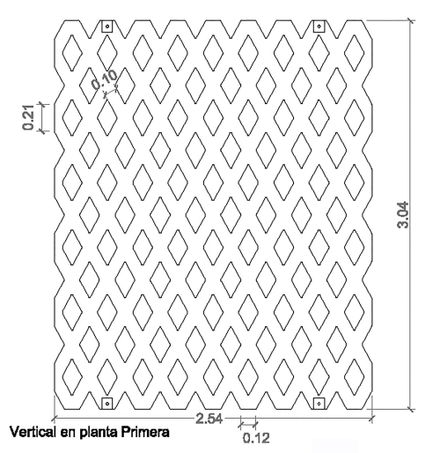

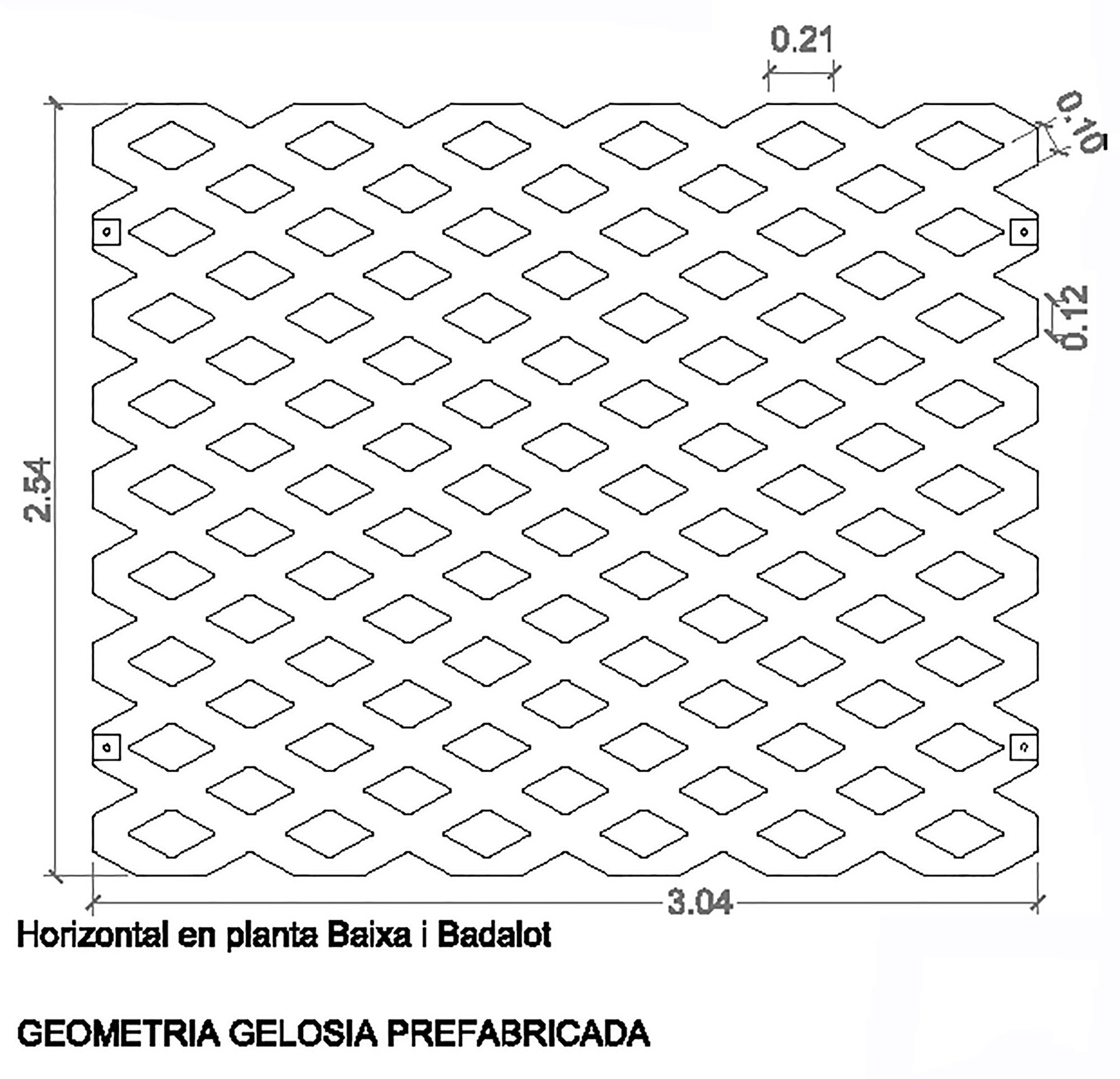

The lattice was fabricated with one purpose made large size mould and has been installed either, horizontally or vertically, as to add variety to the facade by just one standard constructive element. This lattice assures privacy as well as solar protection in exposed areas.

Above all, it acts as guarantor for giving a vibrant and everchanging visual effect. According to change and angle of daylight the industrialized prefab concrete building turns into a kind, warm and comfortable building.

Cap Llinars Del Vallés
© Filippo Poli
Cap Llinars Del Vallés
© Filippo Poli


Cap Llinars Del Vallés
© Filippo Poli


Cap Llinars Del Vallés

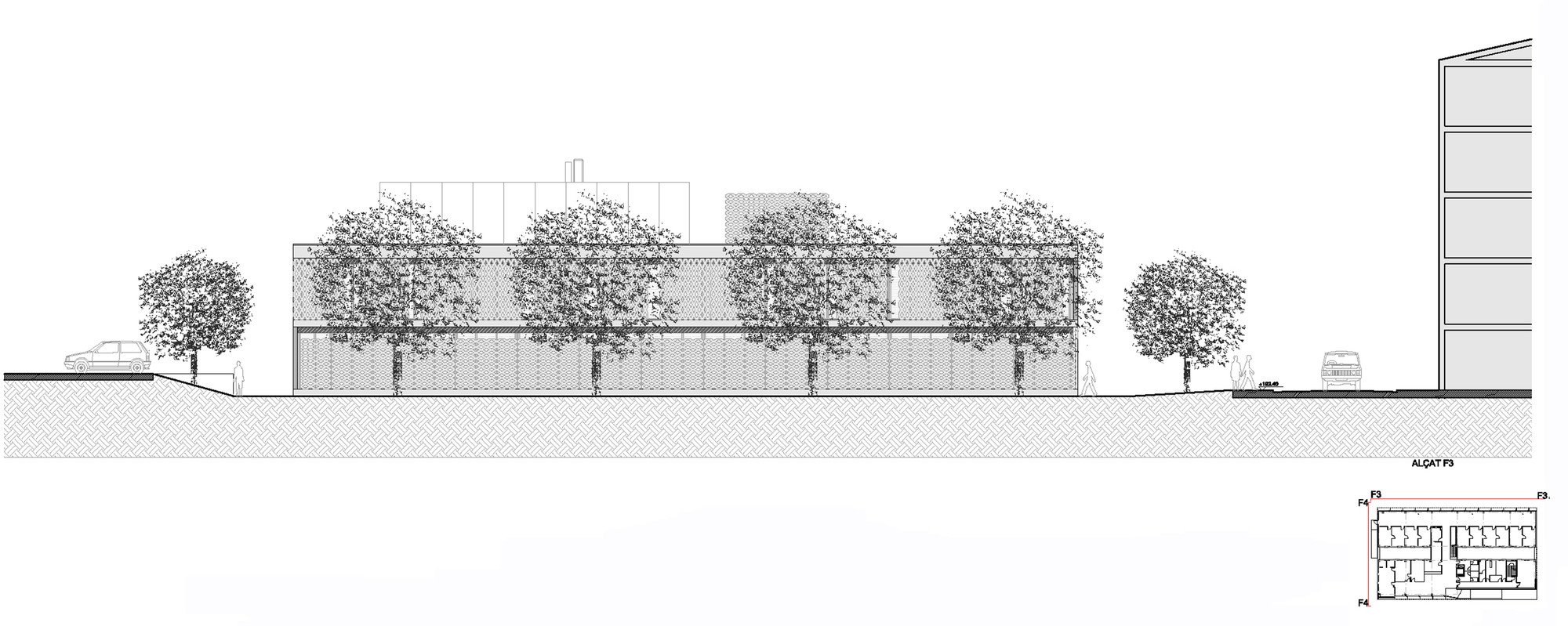

Elevation 1
Cap Llinars Del Vallés
Elevation 2
Cap Llinars Del Vallés
Elevation 3
Cap Llinars Del Vallés
Elevation 4


Cap Llinars Del Vallés
Section S1
Cap Llinars Del Vallés
Section S2
Cap Llinars Del Vallés
Section S3
Cap Llinars Del Vallés
Section S4
Cap Llinars Del Vallés
Section S5
Cap Llinars Del Vallés
Section S6
Cap Llinars Del Vallés
Section S7


Cap Llinars Del Vallés
Ground Floor Plan
Cap Llinars Del Vallés
First Floor Plan
Cap Llinars Del Vallés
Site Plan


Cap Llinars Del Vallés
Detail A
Cap Llinars Del Vallés

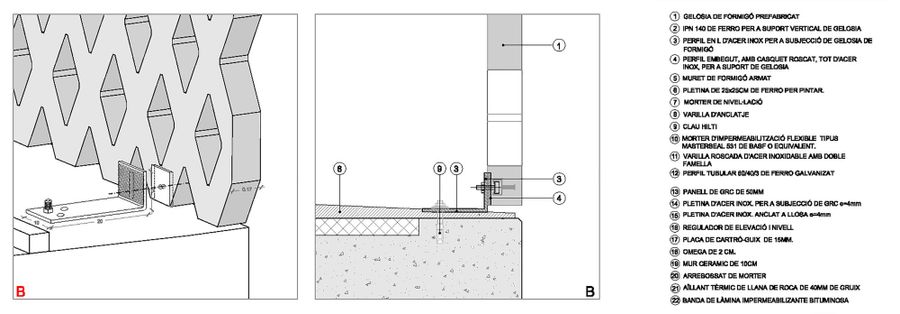

Detail B
Cap Llinars Del Vallés
Detail C
Cap Llinars Del Vallés
Detail D

Cap Llinars Del Vallés
General Detail


Cap Llinars Del Vallés
Detail 1
Cap Llinars Del Vallés
Detail 2
