Rural House in Puebla

Rural House in Puebla
© Onnis Luque

RURAL HOUSE IN PUEBLA

Comunal Taller de Arquitectura

MANUFACTURERS
Cooperativa ojtatsentekitinij, ECOLAM, Tosepan Tuchanchiuaj

AREA
60 m²

YEAR
2016

LOCATION
Ciudad De Cuetzalan, Mexico

CATEGORY
Houses

Text description provided by architect.

In February 2016 the National Housing Commission, CONAVI (for its acronym in Spanish), renewed its operating rules for providing federal subsidies.

Rural House in Puebla
© Onnis Luque
Rural House in Puebla
© Onnis Luque

New regulations established that the use of traditional materials and constructive systems such as bamboo, straw, bajareque, palm, carrizo and wood, is considered precarious, denying access to federal funds to self-construction practices with these materials.

Therefore, the first housing exercise, carried out jointly with the community of Tepetzintan through five workshops of technical training and participatory design, was discarded to receive government support, making it difficult for residents to self-construct it.

Rural House in Puebla
© Onnis Luque
Rural House in Puebla
© Onnis Luque

Given this scenario, together with the Tosepan Titataniske and Tosepan Ojtatsentekitinij Indigenous Cooperatives, we decided to make a second housing exercise that avoid using local bamboo species as structural elements in order to comply with the regulations already imposed by CONAVI.

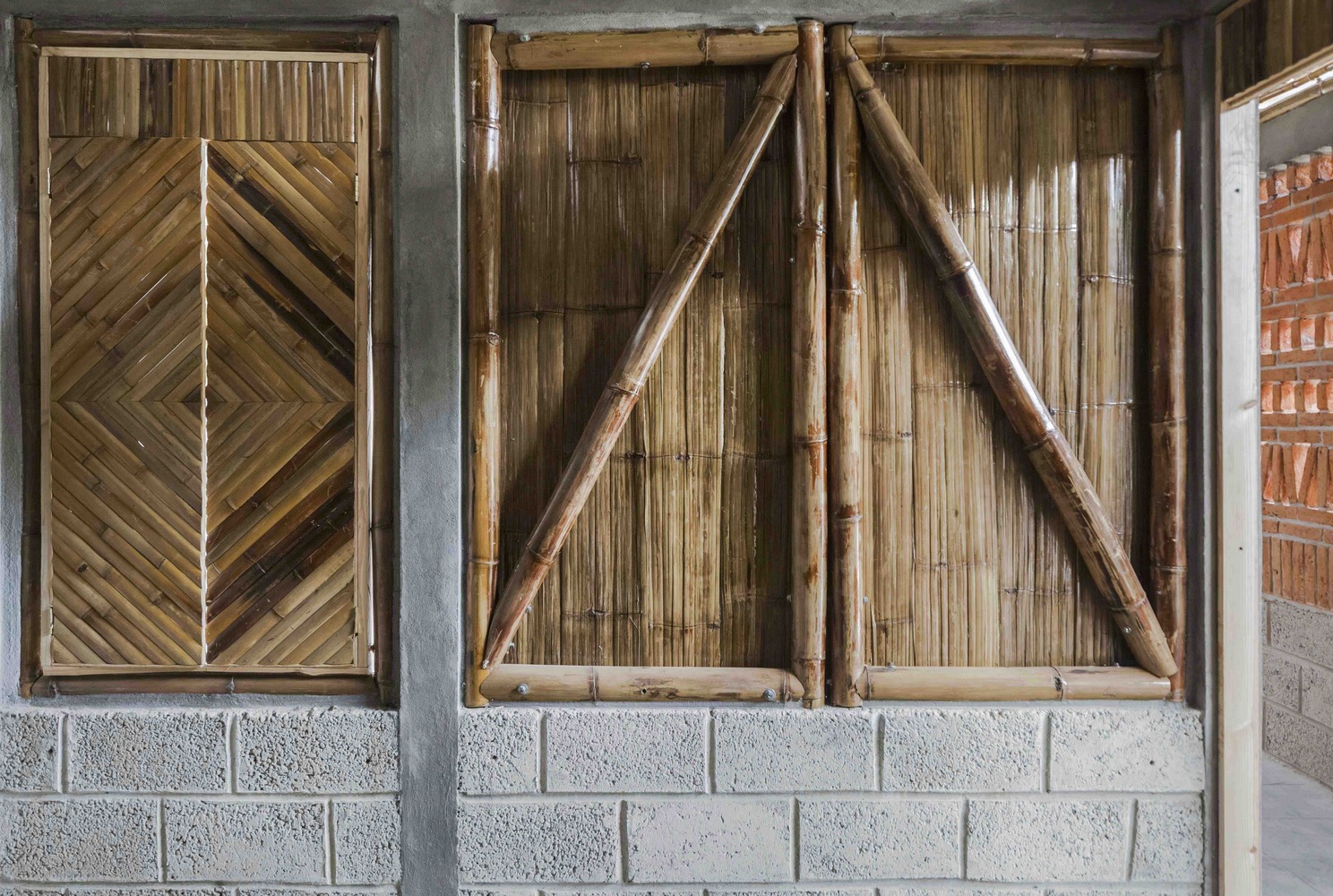

This second exercise preserves the modular and prefabricated building system based on panels made with bamboo oldhamii.

Rural House in Puebla
© Onnis Luque
Rural House in Puebla
© Onnis Luque

The construction system uses only three elements (two trusses and a panel with its variants); these elements are pre-fabricated and assembled once the structural frames have been finished, which significantly reduces site construction time. Also, the approximate assembly time is one week, reducing labor costs for a low budget project.

Once installed, bamboo panels are coated with ixtle (local tissue used to make coffee sacks) and a thin layer of mortar. Once the base structure has been placed, the beams and subsequently the ecolam sheet are fixed. This last one is a product made from food-grade aluminum waste, which gives thermal, acoustic and antibacterial properties.

Rural House in Puebla
© Onnis Luque
Rural House in Puebla
© Onnis Luque

In addition to local materials, which allow the villagers to contribute in kind and labor to reduce the cost of their homes, the project has an optimum environmental performance.

In the case of water, rainwater harvesting is used, as well as wetlands for reuse of gray water and biodigestor for sewage treatment. As for the climate, basic bioclimatic strategies were implemented to combat the region high temperatures.

Rural House in Puebla
© Onnis Luque
Rural House in Puebla
© Onnis Luque

In terms of space, the house responds to the customs and traditions of Nahuatl people, who employ a main hall where they locate the altar - the central element of the house - and dry the coffee and corn crop.

The kitchen has a permeable character to let out the smoke of the firewood and the design of traditional lattices is recovered. The second exercise was awarded by CONAVI with a silver medal in the "First National Rural Housing Contest" and approved to receive federal subsidies.

However, we will continue to seek the viability of the first exercise as we firmly believe that traditional building materials and vaconstructive systems must be endorsed by public housing policies in our country and promote the autonomy of indigenous peoples, the value of vernacular architecture and conservation of intangible knowledge.


Rural House in Puebla
Plan
Rural House in Puebla
Plan


Rural House in Puebla
Details
Rural House in Puebla
Details


Rural House in Puebla
Section
Rural House in Puebla
Section


Rural House in Puebla
Elevation
Rural House in Puebla
Elevation


Rural House in Puebla
Diagram
Rural House in Puebla
Diagram
Rural House in Puebla
Diagram
