THE SCREEN

Li Xiaodong Atelier

ARCHITECTS
Li Xiaodong Atelier

PHOTOGRAPHS
Martijn De Geus

AREA
600 M²

YEAR
2013

LOCATION
Ningbo, China

CATEGORY
Hostel

SITE

This project islocated in a mountain range called Dichen Valley, on the outskirts of port city Ningbo, located in Eastern China's Zhejiang Province.

To be able to appreciate and respect the pristine site in Dichen Valley in its totality, we propose a series of carefully placed architectural interventions to create a route of pure and distinct landscape experiences.

The first finished building is a small project that houses the management offices, staff and workers required for the rest of the site's development and maintenance.

The Screen
© Martijn de Geus
The Screen
© Martijn de Geus

Instead of evenly distributing the functional program on the site, we create a sequence of different worlds. The atmosphere of these realms relate to the specific qualities of the exact building site at any given location.

In this way the visitor can travel through the project and find a variety of worlds along its paths. Starting in the valley, through the wetlands, over the water, under the mountain and up the peaks.

The Screen
© Martijn de Geus
The Screen
© Martijn de Geus

SUSTAINABLE INTEGRATION

Our main objective for this project, as mutually expressed by both the client and the architect, was to achieve a sustainable integration of landscape and architecture.

Therefore the placement of our building is chosen carefully, so as to least interrupt the natural conditions, situated on a natural flattened part of the mountain slope. On the area where the slope is steeper we integrate two floors.

The Screen
© Martijn de Geus
The Screen
© Martijn de Geus

Secondly, the relation between building mass and the organic environment is softened by the facade, conceived as a wrapped around screen that makes the mass disappear and becomes a changing layer that interacts between in- and outside.

We propose a robust building mass, dissolved by the permeable facade, that is curled against the mountain slope. We believed that a good quality environment enables a better quality of life and this should be true for everyone.

Therefore, although this first building is a 'service building', meant to house and facilitate the people that will work or manage the site on a daily base, we also provide them with a good quality environment that respects their desires and creates a unique life/ work environment.

The Screen
© Martijn de Geus
The Screen
© Martijn de Geus
The Screen
© Martijn de Geus

In this way the quality of life is complemented by the natural qualities. To create a sense of community we cut out two courtyard spaces. These courtyards create two distinct focus points. One is oriented towards the outside, opening to the water stream and connecting the office space with the communal facilities.

The second courtyard is oriented towards the mountain side and provides a private focus with dormitory rooms and sanitary facilities located on its edges.

We use the courtyards to focus on the landscape around the building, and to connect people with the beauty of the natural environment around them. In this way, the appreciation of the landscape becomes inherent in their daily life and provides a strong attachment to the Dichen Valley.

The Screen
The Screen
© Martijn de Geus

Apart from appreciating the local environment, our appreciation of the local context also concerns the more intangibletradition of building.

By understanding the craftsmanship of local masonry builders, we were able to create a very complex, though simple in appearance, brick facade, using a traditional technique of brickwork, combined with modern techniques of engineering.

The Screen
© Martijn de Geus

We thus take a known, familiar concept, such as the solid brick wall, and instead we create a floating, permeable and open screen of bricks around the perimeter. This thus creates a contemporary response in line with the local, Chinese, conception of space in which mass and context are not solid objects, but become a series of linked, permeable environments.

We then continued this language of modern screens towards the inward focused parts of the building, the courtyards, private quarters and so. We took a second local material, bamboo, to continue this language of screens with a warmer, more public appearance. The bamboo is sourced and processed locally, again using modern fabrication techniques and engineering, that creates laminated bamboo planks, or sticks that can be used as flooring or wall screens respectively.


The Screen

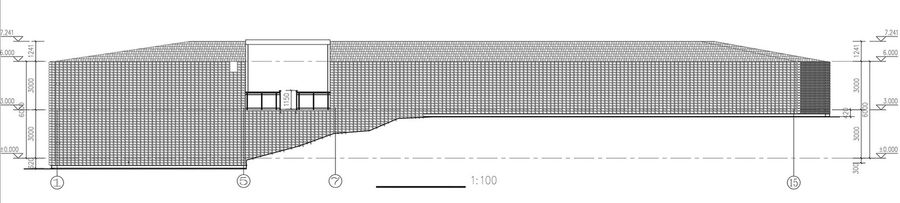

Elevation
The Screen
Elevation


The Screen
Section
The Screen
Section


The Screen
Floor Plan
The Screen
Floor Plan

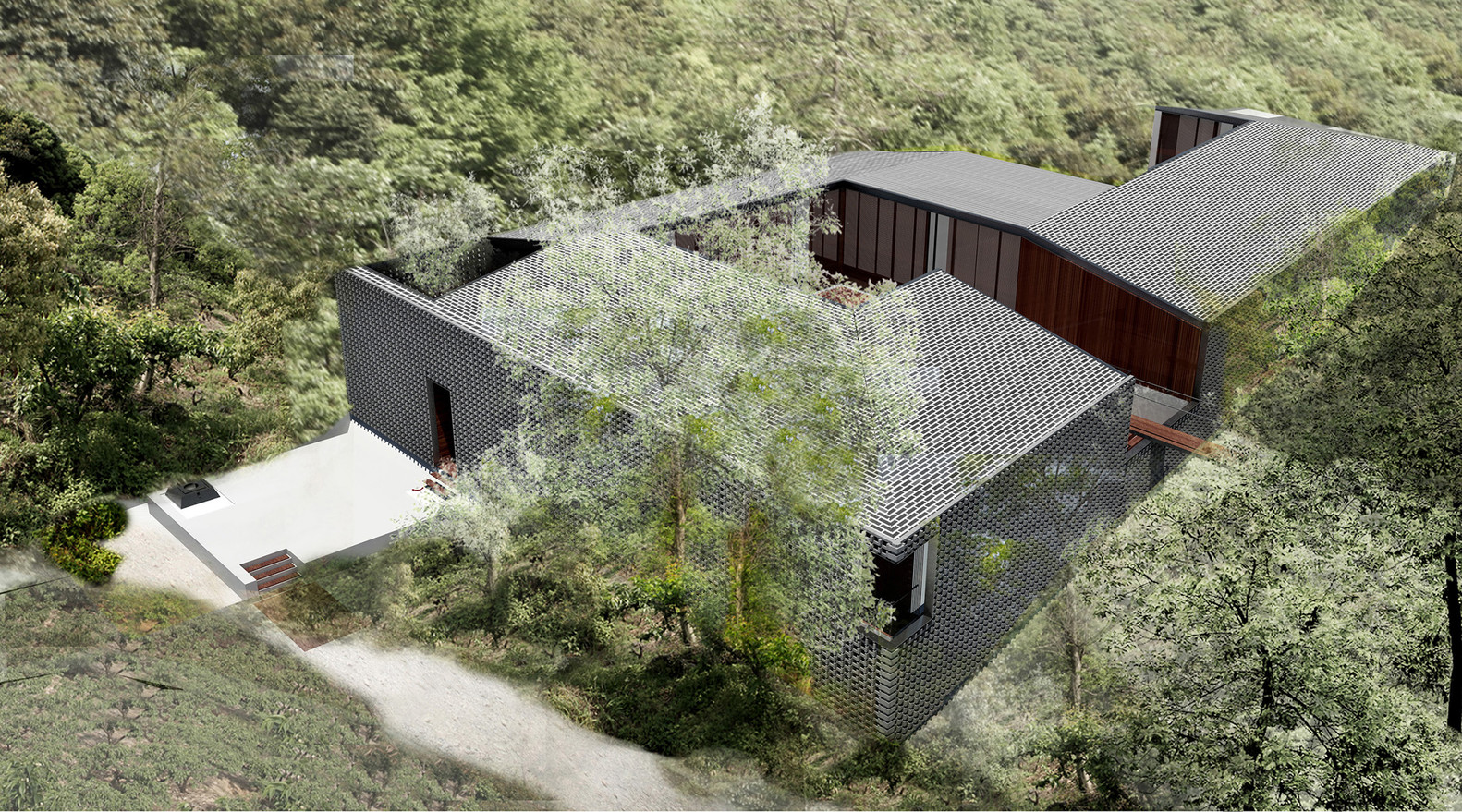

The Screen
3D Model
