Hypocam House

Hypocam House
© CreatAR Images

HYPOCAM HOUSE

Wutopia Lab

ARCHITECTS
Wutopia Lab

CONSTRUCTION DRAWING DESIGN
Alignment Studio

CONSTRUCTION
Shanghai Diping Building Decoration Engineering Co.ltd

CHIEF ARCHITECT
Ting Yu

LIGHTING CONSULTANT
Chloe Zhang

PROJECT MANAGER
Liran Sun

PROJECT ARCHITECT
Yuchen Guo

PHOTOGRAPHS
Creatar Images

AREA
543 M²

YEAR
2019

LOCATION
Shanghai, China

CATEGORY
Housing

Text description provided by architect.

Wutopia Lab was commissioned by the client to reconstruct an old house located in the heart of Shanghai into a secret place including a courtyard, a miniature private gallery, home office and residence, given the fact that no structure was allowed to be modified.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

Originally contained six families, this old house has a complex space layout with four small bathrooms and two kitchens.

The housing management department stipulates that the facade, structure, room function, old mosaic tiles, old wooden floors, and trees are immutable.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

Restrictions do not allow architects to make a big difference in form and space, but give architects an opportunity to trace the basic elements of architecture.

Since it is not possible to change the layout, color is used as the independent and unique basic element of the design to shape the spatial texture.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

We use different textures and depths of black and white as a set of relationships as the main color of the house.

When black and white ash is absent, the tone, line, contrast, and contrast between light and dark may be a choice to shape the space.

We removed the unneeded doors. The closed and independent dark pattern formed by the multi-family residence turned into a richly-spaced space with a light connection because of the opening of the door.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

It includes a well-connected light well, a galley without a gap, and a three-open office area with a line of sight.

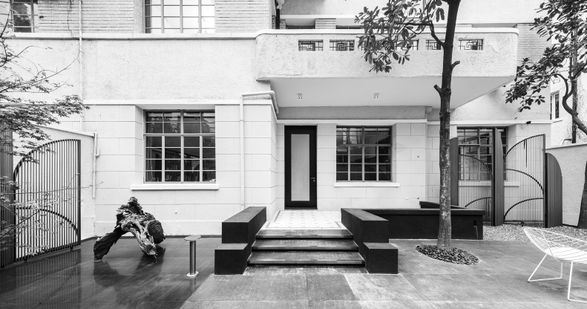

Continue the courtyard color of our previous project, House of Twilight, we use black ink to render the courtyard, and highlight the three old trees that remain.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

We use matte, glossy and black marble and dark gray gravel as the black for different levels. And by this point, the addition of the Japanese maple, Japanese maple and dahlia. This modern courtyard has a Chinese meaning.

On the three sides of the courtyard, a tulip-like brass grille screen is placed, and the original unchangeable wall is visually separated from the courtyard as a background, and the temperament of retaining the facade is quietly rewritten.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

We regard the courtyard as part of the facade and interior space, which can be subtly change the feel of the facade and become the prelude for the interior.

The miniature gallery on the first floor is the main space of the entire house, it’s in a relationship of positive and negative with the courtyard.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

The three spaces of the gallery are wrapped in a continuous black wall skirt, and the difference in the pattern of the wall skirt implies a functional distinction between the living space, the exhibition hall and the social space.

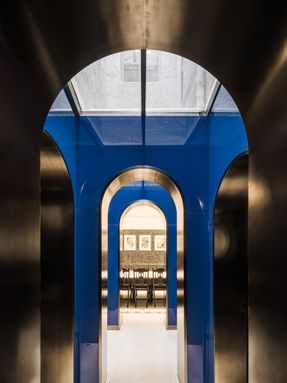

After the partition walls and doors of the patio were removed, it became a light container. We used eight arched doorways with golden rims and glass walls of Klein blue, as well as the fading light to distort the scale of the site. Formed a blue labyrinth.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

The first floor gallery used a two-meter-high black wood grain wall skirt with three different textures, as well as a beige white stucco ceiling and a grey disc multi-grinding.

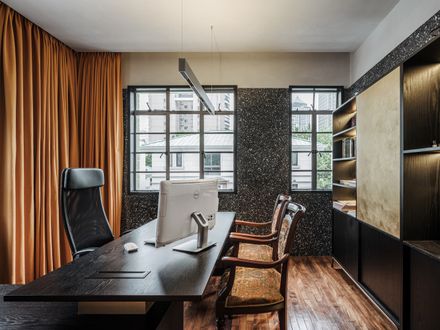

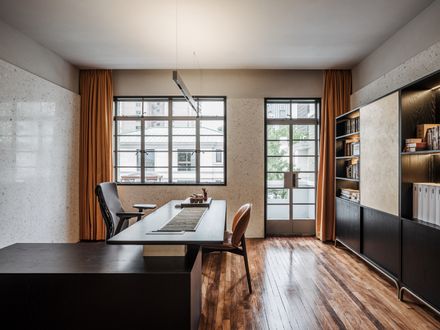

The second-floor office area is shaped by a glossy black wall skirt and a refurbished narrow strip of old, white walls, the most contrasting color combinations.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

The three-level intimate resting space is a medium-gray environment with black and white terrazzo and rough medium-gray stucco and narrow old floors combined with old furniture.

The meditation room on the top is in gray, reducing the intensity of the light. So the Hypocam house finally visually showed the graininess of black and white film.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

The materials and colors show the difference in space and texture of the subtle layers layer by layer.

Different from the aggressive magical realism image formed by the artistic treatment of daily forms in Wutopia Lab’s public space project, private home customization presents the retreat and subtraction of daily forms to highlight some thoughts hidden in daily life.

Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images

Memories, and finally pure life. This is also a manifestation of magical realism architecture.


Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images
Hypocam House
© CreatAR Images


Hypocam House
Courtesy of Wutopia Lab
Hypocam House
Courtesy of Wutopia Lab
Hypocam House
3F plan


Hypocam House
1F axon
Hypocam House
2F axon
Hypocam House
3F axon
Hypocam House
Material and color pattern
