Swimming Pool in Luzhniki

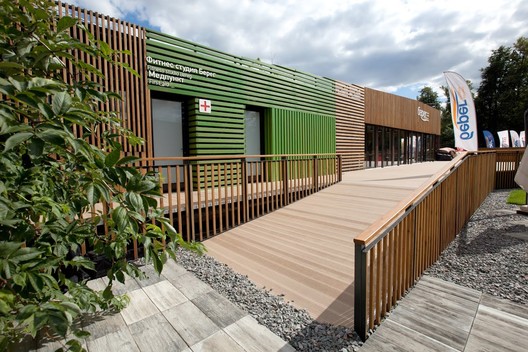

Swimming Pool in Luzhniki
Courtesy of Ka-Buro

Swimming Pool in Luzhniki

Ka-Buro

ARCHITECTS
Ka-buro

AREA
520 M²

YEAR
2014

LOCATION
Moscow, Russia

CATEGORY
Swimming Pool

Swimming Pool in Luzhniki
Courtesy of Ka-Buro
Swimming Pool in Luzhniki
Courtesy of Ka-Buro

Text description provided by architect.

We had a task to design a complex of locker buildings which would be in harmony with the natural environment on the territory of the "Luzhniki" Olympic complex.

Swimming Pool in Luzhniki
Courtesy of Ka-Buro
Swimming Pool in Luzhniki
Courtesy of Ka-Buro

The project was implemented as temporary buildings which were assembled from modular structures.

The buildings are located in front of each other in order to make a conditional corridor that would lead to the locker.

Swimming Pool in Luzhniki
Courtesy of Ka-Buro
Swimming Pool in Luzhniki
Courtesy of Ka-Buro

Modular buildings were provided by a specialized company www.modul.org The functionality of the buildings is not only a locker, they are used as well for keeping sports equipment, aid station, coach room and shower. All necessary conditions are provided for comfortable stay of sportsmen over there.

BUILDING STRUCTURE

The area of one building is 260,4 sqm. The buildings are designed of prefabricated modules 6000x2450 mm each which are finally assembled steel constructions joined by bolted connections.

Swimming Pool in Luzhniki
Courtesy of Ka-Buro
Swimming Pool in Luzhniki
Courtesy of Ka-Buro

The foundation of the building is made of screwed piles. Exterior walls of the modules are sandwich panels 100 mm, internal walls are 80 mm.

The facade of the buildings is finished with larch deck; wooden planks on the steel construction are jointed to the facade of the buildings and cover it totally hiding part of the windows.

Swimming Pool in Luzhniki
Courtesy of Ka-Buro


Swimming Pool in Luzhniki
Elevation
Swimming Pool in Luzhniki
Elevation
Swimming Pool in Luzhniki
Elevation
Swimming Pool in Luzhniki
Elevation


Swimming Pool in Luzhniki
Plan
Swimming Pool in Luzhniki
Section
