The Smile
© Guy Bell

Text description provided by architect.

Alison Brooks Architects has collaborated with The American Hardwood Export Council (AHEC), Arup and the London Design Festival to present a cross-laminated tulipwood structure, ‘The Smile’ at the Chelsea College of Art Rootstein Hopkins Parade Ground from 17 September until 12 October.

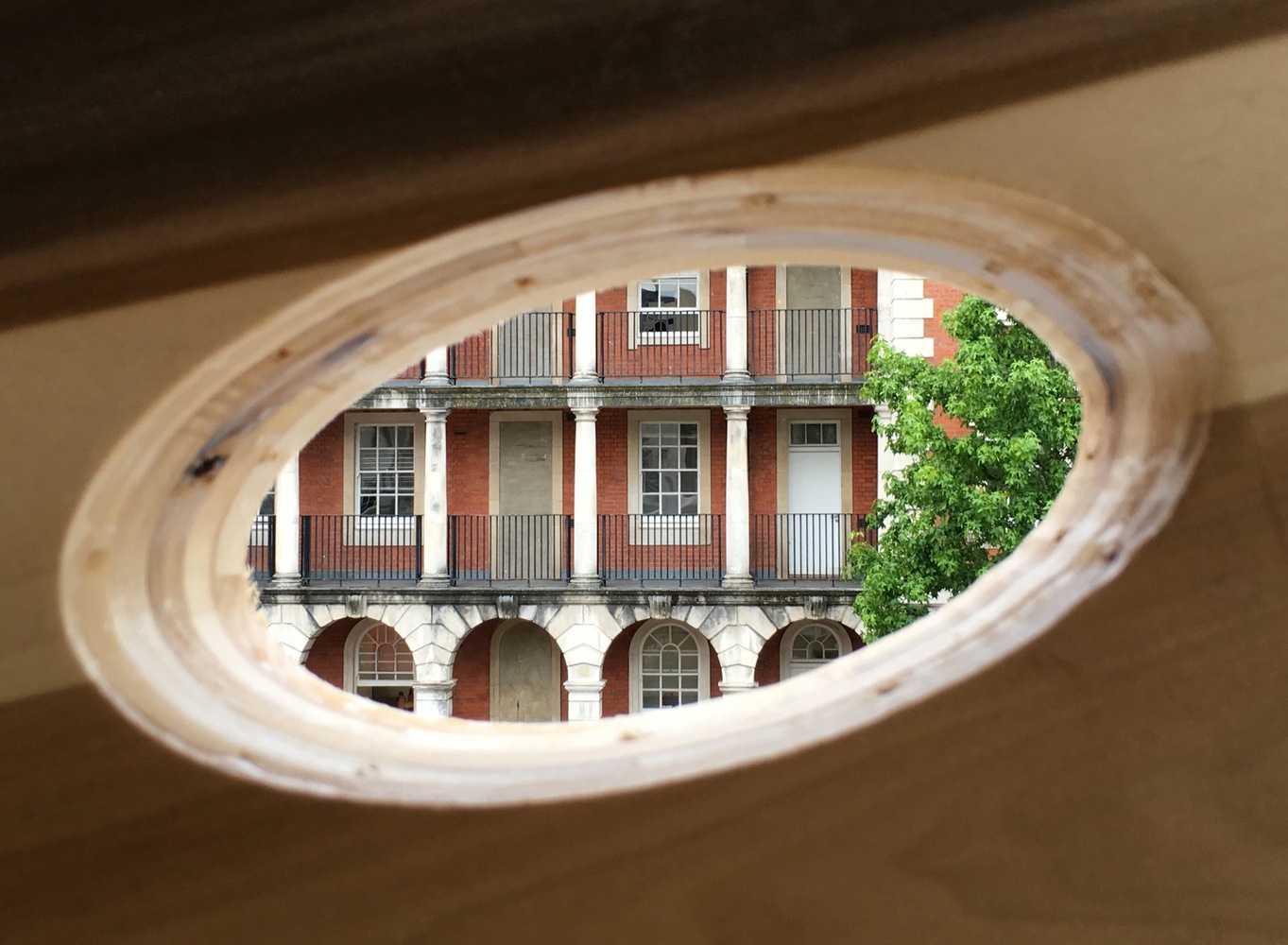

The Smile is one of the Festival’s Landmark Projects, which can be inhabited and explored by the public. The spectacular, curved, tubular timber structure measures 3.5m high, 4.5m wide and 34m long and is effectively a beam curving up at both ends.

The Smile
© Paul Riddle
The Smile
© Guy Bell

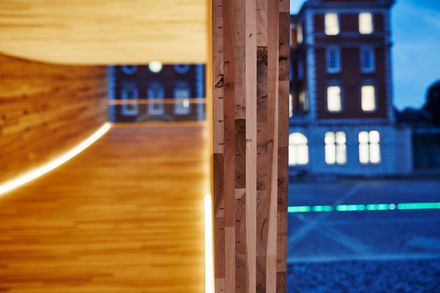

Showcasing the structural and spatial potential of cross-laminated American tulipwood, Alison Brooks' concept is the first ever ‘mega-tube’ made with construction-sized panels of hardwood CLT.

ABOUT CROSS LAMINATED TULIPWOOD

Cross-laminated timber (CLT) is an engineered timber that can be used to make the walls and floors of entire buildings.

The Smile
© AHEC
The Smile
© Paul Riddle

It has a layered construction with the wood fibres turned at right angles in each successive layer, creating a panel with equal strength in both directions, just like plywood.

Weight for weight, CLT is stronger than concrete and it can also be machined to incredibly high tolerances. This makes it ideal for prefabrication and rapid assembly, reducing construction times by up to 30%.

The Smile
© Paul Riddle
The Smile
© Paul Riddle

CLT is usually made of a softwood called spruce, better known as the Christmas tree. Together with Arup, AHEC has started a process of experimenting with CLT made from fast-grown North American tulipwood.

Testing has shown that the tulipwood is considerably stronger than spruce; it also has a superior appearance.

The Smile
© AHEC
The Smile
© AHEC

The Smile is the first project in the world to use large hardwood CLT panels, in fact the entire structure is made from just 12 huge tulipwood panels, each up to 14m long and 4.5m wide.

Fabricating these panels in a real CLT production plant has been an important step forward, showcasing how the material can be used for commercial projects.

The Smile
© Alison Brooks


The Smile
© Alison Brooks
The Smile
© Alison Brooks
The Smile
© AHEC
The Smile
© AHEC


The Smile
© AHEC
The Smile
© Paul Riddle
The Smile
© Paul Riddle
The Smile
© AHEC
The Smile
© Guy Bell
The Smile
© AHEC
The Smile
© AHEC
The Smile
© AHEC
The Smile
© AHEC


The Smile
© AHEC
The Smile
© Alison Brooks
The Smile
© Alison Brooks
The Smile
© Alison Brooks
The Smile
© AHEC
The Smile
© AHEC
The Smile
© Paul Riddle
The Smile
© AHEC


The Smile
Elevation
The Smile

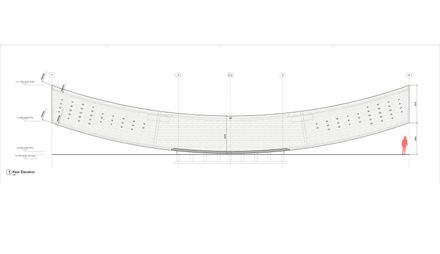

Elevation
The Smile
Site Elevations
The Smile

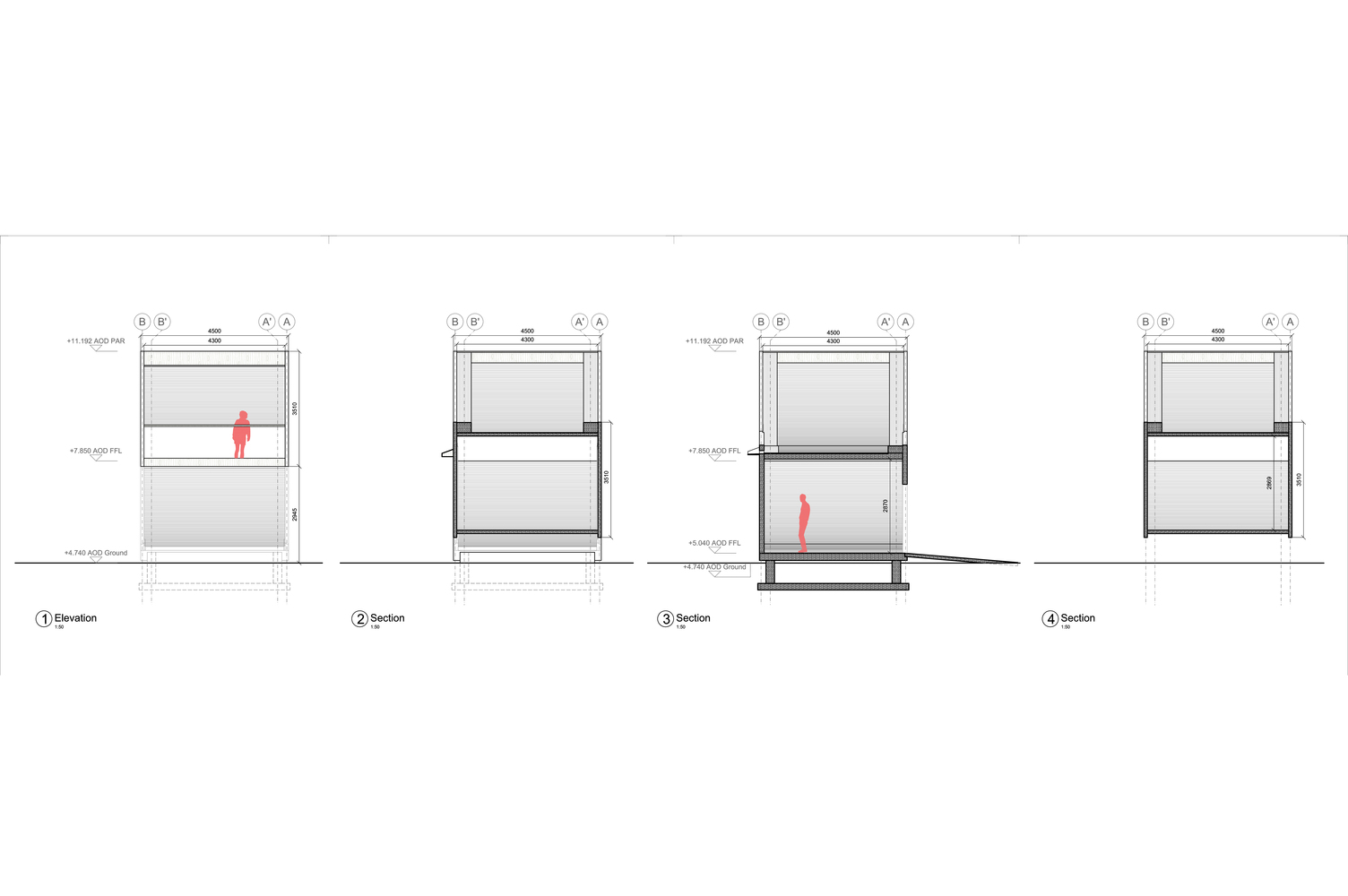

Sections
